V8062 Portable Veterinary ECG Device for Clinic Diagnosis
Reference: 1600909472176
Veterinary Instrument
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

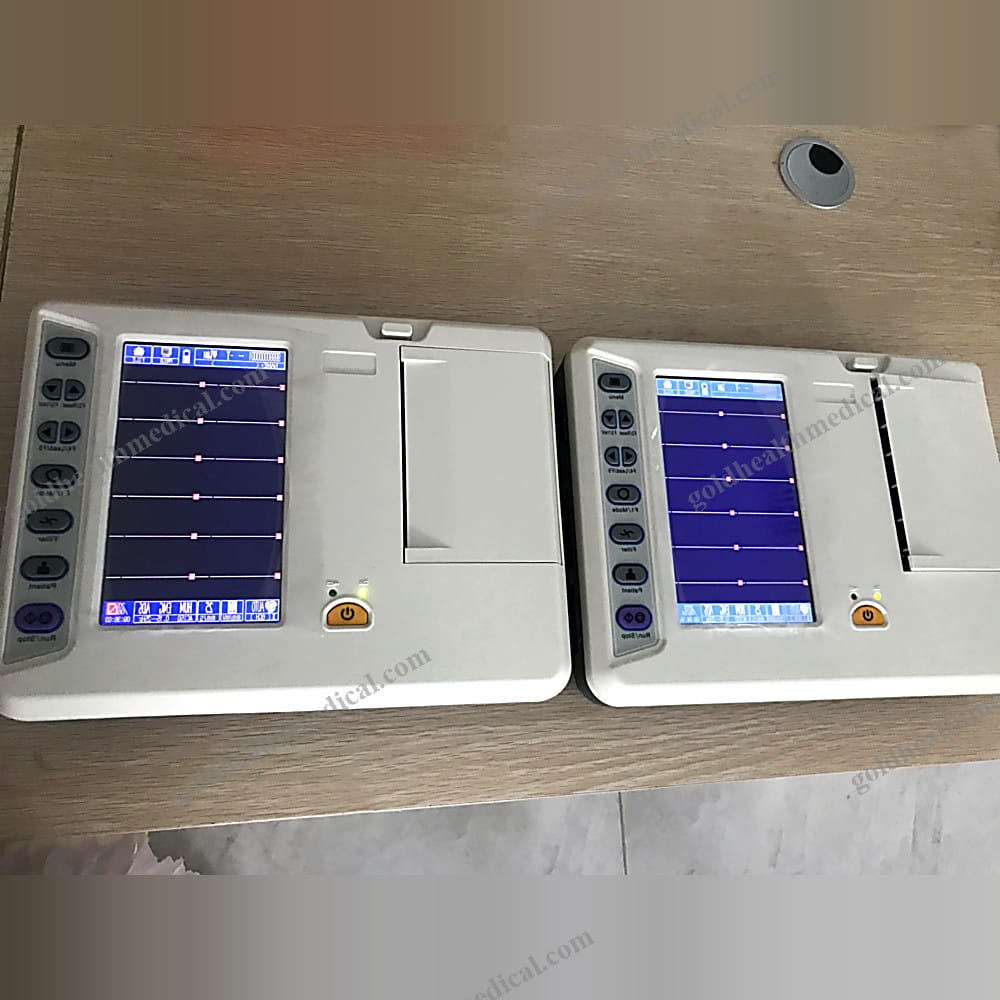

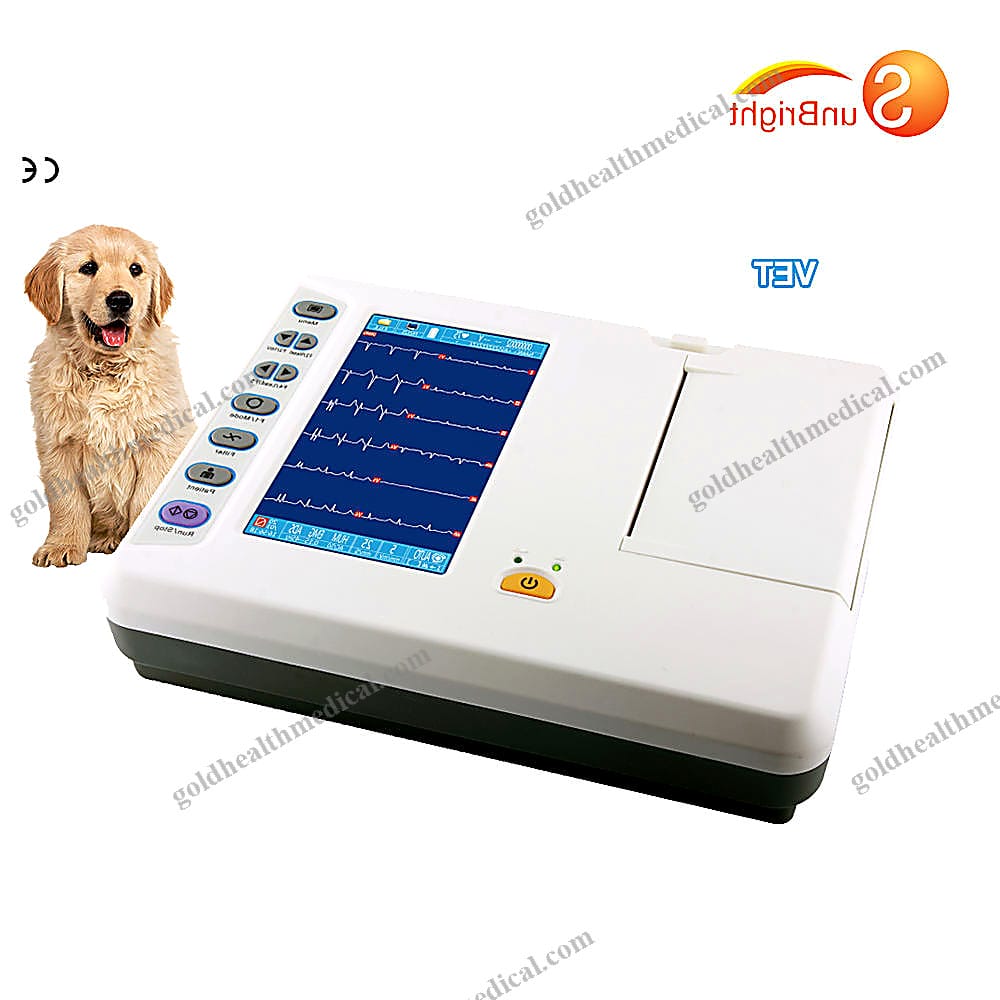

GoldHealth Medical Portable Veterinary ECG Device
Product Overview
The GoldHealth Medical Portable Veterinary ECG Device is a state-of-the-art solution designed for accurate and reliable cardiac diagnostics in animals. Featuring advanced technology and user-friendly functionalities, this device is perfect for veterinary clinics, research labs, and mobile veterinary services.
Key Features
- 7-Lead Synchronous Acquisition: Capture comprehensive ECG data with precision.
- Advanced Auto-Interpretation: Provides reliable diagnostic insights automatically.
- High-Accuracy Digital Filtering: Ensures clear signals with auto-baseline adjustment.
- Multiple Working Modes: Choose between Manual, Auto, and R-R Rhythm modes for versatile operation.
- Flexible Recording Options: Record in 3 or 6 channel formats to suit your diagnostic needs.
- High-Resolution Display: An 800×480 graphic, 7-inch color LCD provides detailed ECG information at a glance.
- Ample Storage: Store and replay up to 250 cases; optional SD card storage available.
- Long Battery Life: Built-in rechargeable Ni-MH battery supports continuous operation for 3 to 4 hours.
- High-Resolution Thermal Printing: 112mm x 20m thermal printer for clear and precise ECG outputs.

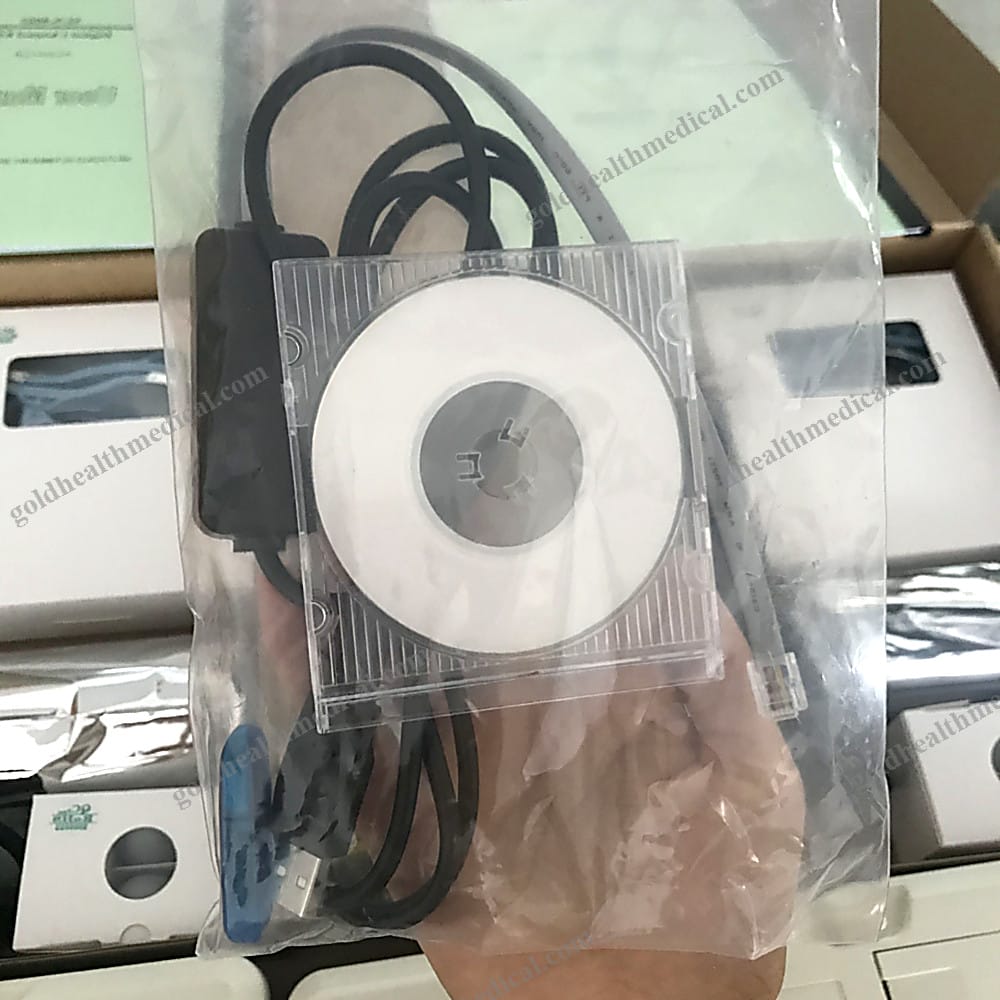

- Versatile Connectivity: RS232 and USB interfaces support optional USB disk storage, laser printer printing, and Veterinary PC ECG software.
Technical Specifications
- Dimensions: 390mm x 340mm x 220mm
- Weight: 6.0 kg
- Leads: Standard 7 leads
- Time Constant: ≥3.2s
- Lead Acquisition: 12bit/1000Hz (synchronously 7 leads)
- Frequency Response: 0.05～160Hz (-3dB)
- Noise Level: <15μVp-p
- Filters:
- AC Filter: 50Hz / 60Hz
- EMG Filter: 25Hz / 45Hz
- Anti-Drift Filter: 0.15Hz (Adaptive)
- Interchannel Interference: ≤0.5mm
- CMMR: ≥120dB (with AC FILTER)
- Sensitivity: 2.5, 5, 10, 20, 40, Auto (mm/mV)
- Input Circuit: Floating; Protection circuit against defibrillator effect
- Recording Modes: 3ch, 3ch+, 6ch, 6ch+
- Input Impedance: ≥50MΩ
- Paper Speed: 6.25, 12.5, 25, 50mm/s (±3%)
- Input Circuit Current: ≤0.05μA
- Paper: 112mm x 20m Roll paper
- Patient Current Leakage: <10μA
- Communication: RS232/USB port
- Calibrating Voltage: 1mV±2%
- Power Supply:
- AC 75-265V (±10%), 50/60Hz (±1Hz), 40VA
- DC Built-in rechargeable battery, 12V (1500mAh)
- Voltage Tolerance: ≥±500mV
Why Choose GoldHealth Medical?
GoldHealth Medical's Portable Veterinary ECG Device stands out with its exceptional accuracy, ease of use, and robust design. Whether you're conducting routine check-ups or complex cardiac evaluations, this device ensures you have the most reliable tools at your disposal. Its portability and long battery life make it ideal for both stationary and mobile veterinary practices.
