Trixell DR XRay Panel for Orthopaedic Clinics Mobile
Reference: 1600940155667
Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Introducing the GoldHealth Medical 20KW X-ray System, a cutting-edge solution designed for precision, reliability, and superior imaging performance. Engineered with advanced technology, this system is tailored to meet the needs of modern medical facilities, research institutions, and home healthcare environments.
Key Features and Specifications:
- X-ray Tube
- Tube Focus: 0.6/1.2mm
- Tube Current: 16-200mA
- Tube Voltage: 40-125kV
-
Supplied with a high-quality Japanese bulb tube for consistent performance and durability.
-
High-Frequency Generator
- Power Output: 20kW
-
Input Power: 380V, 50Hz
-

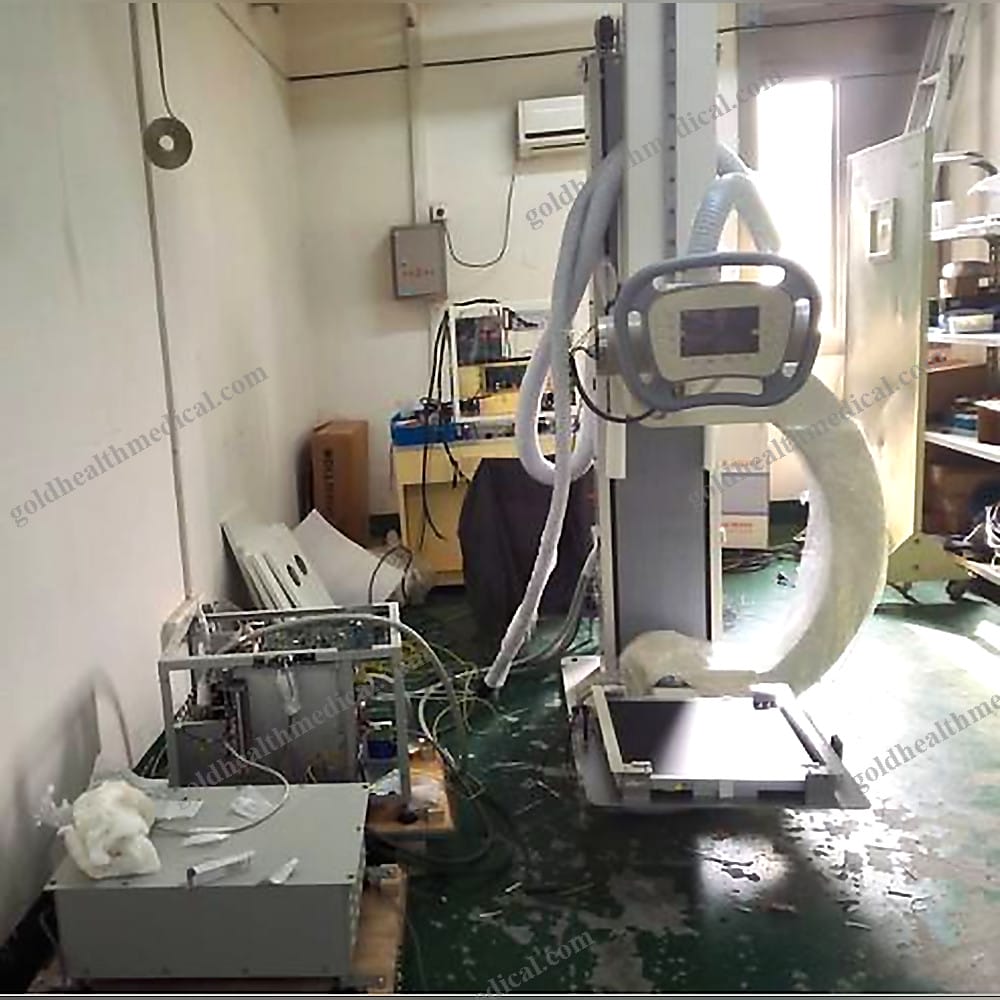

U-Arm Stand
- Source-to-Image Distance (SID): 1000-1800mm
- Arm Movement Range: 650-1700mm (up and down)
- Arm Rotation Range: -30° to 120°
-
Detector Rotation Range: -45° to 45°
-
Flat Panel Detector
- Brand: Trixell (France)
- Vision Area: 16"×17"
- Pixel Matrix: 2880×2880
- Gray-Scale: 16-bit
- Pixel Size: 148µm
- Spatial Resolution: 3.4LP/mm
- Dimensions: 500×490×45.5mm³
- Weight: 18kg
- Storage Temperature: -25°C to 70°C
- Operating Temperature: 10°C to 40°C
Unique Selling Points:
- Advanced Imaging Technology: Equipped with the latest flat-panel detector imported from France, this system delivers near-instant readiness for surgical and interventional procedures.
- Superior Image Quality: Utilizes high-resolution digital radiography to eliminate energy loss and geometric distortion commonly associated with traditional CCD detectors.
- Low Radiation Dose: Designed to minimize exposure for both patients and medical professionals while capturing the clearest images.
- Seamless Integration: Compatible with standardized PACS systems, ensuring adaptability to modern network requirements.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to innovation and excellence in medical technology. Our team of engineers and technicians, representing 40% of our workforce, continuously strives to push the boundaries of science and design. With a focus on precision engineering and user-centric solutions, our products are trusted worldwide, from Southeast Asia to the USA.
Experience the future of diagnostic imaging with GoldHealth Medical’s state-of-the-art X-ray system. Designed to empower healthcare professionals and enhance patient outcomes, this system sets a new standard for reliability and performance.
Applications:
- Clinical diagnostics
- Orthopedic imaging
- Surgical and interventional procedures
- Research and laboratory use
GoldHealth Medical is your trusted partner in advancing healthcare through innovative technology. Explore the possibilities today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Description:
GoldHealth Medical proudly presents its cutting-edge Mobile X-ray Equipment, designed to deliver unparalleled performance and reliability in radiography. This state-of-the-art device is engineered for versatility, making it ideal for hospitals, clinics, research labs, and even home healthcare environments. With its robust build and advanced functionality, this equipment ensures precise imaging while maintaining the highest standards of safety and efficiency.
Key Features and Specifications:
- Material: Constructed from premium-grade metal for enhanced durability and stability.
- Instrument Classification: Class II medical device, ensuring optimal safety and performance.
- Power Source: Powered by advanced machinery for consistent and reliable operation.
- Shelf Life: Designed for long-term use with a guaranteed shelf life of 1 year.
- Quality Certification: CE-certified, meeting international standards for medical equipment.
- Place of Origin: Crafted with precision in Jiangsu, China, known for its excellence in medical device manufacturing.
Product Properties:
- Specifically designed for radiography applications, this mobile X-ray equipment is perfect for capturing high-quality diagnostic images with ease and accuracy.
- Its portable design allows seamless mobility across different medical environments, ensuring accessibility where it matters most.
Packaging and Delivery:

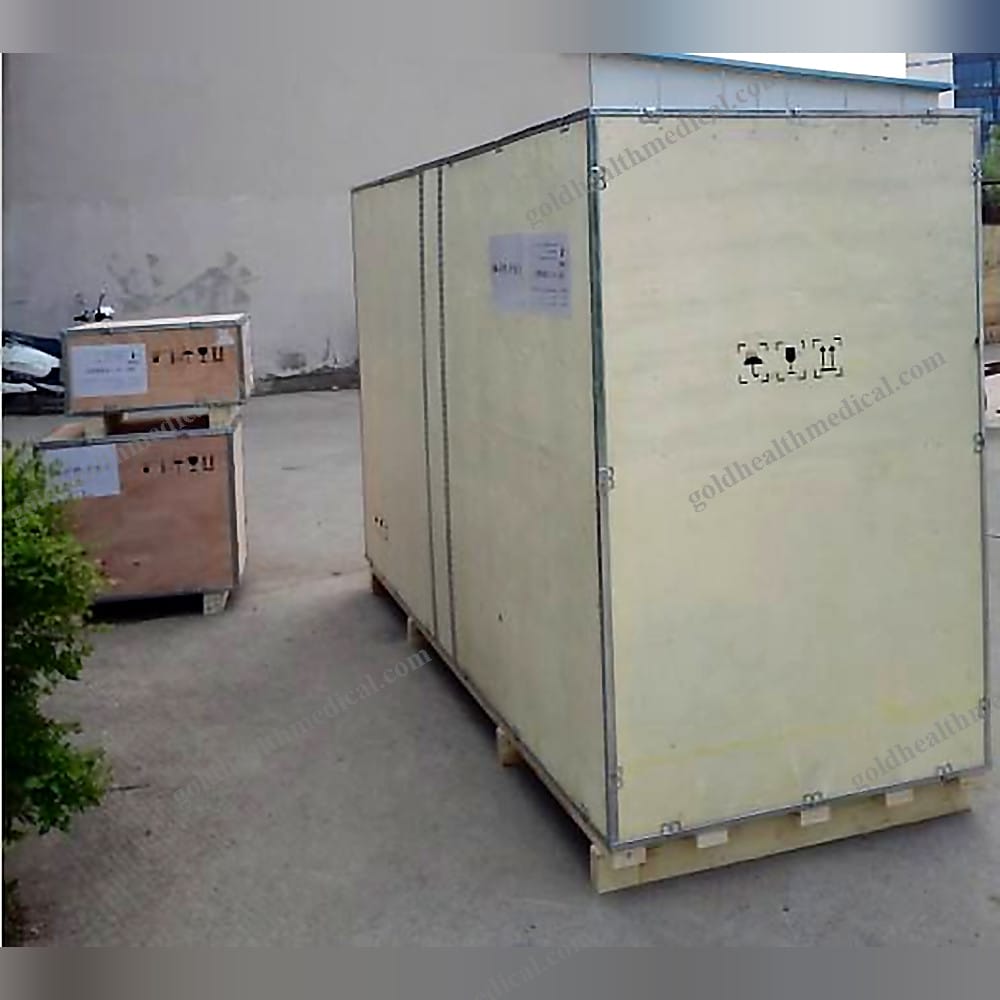

- Packaging Details: Safely secured in a durable wooden case to prevent damage during transit.
- Port of Delivery: Ships from Shanghai or other major ports for global accessibility.
- Supply Ability: Capable of delivering up to 2000 sets per week, ensuring timely availability for bulk orders.
After-Sale Support:
- Warranty: Comprehensive 1-year warranty for peace of mind.
- Service: Access to online technical support, ensuring prompt assistance whenever needed.
GoldHealth Medical’s Mobile X-ray Equipment is more than just a diagnostic tool—it’s a commitment to precision, reliability, and innovation in healthcare. Elevate your facility’s capabilities with a product that’s built to exceed expectations.
