Professional LED Xray Film Viewer Light Box for Medical Use
Reference: 60041505266
High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

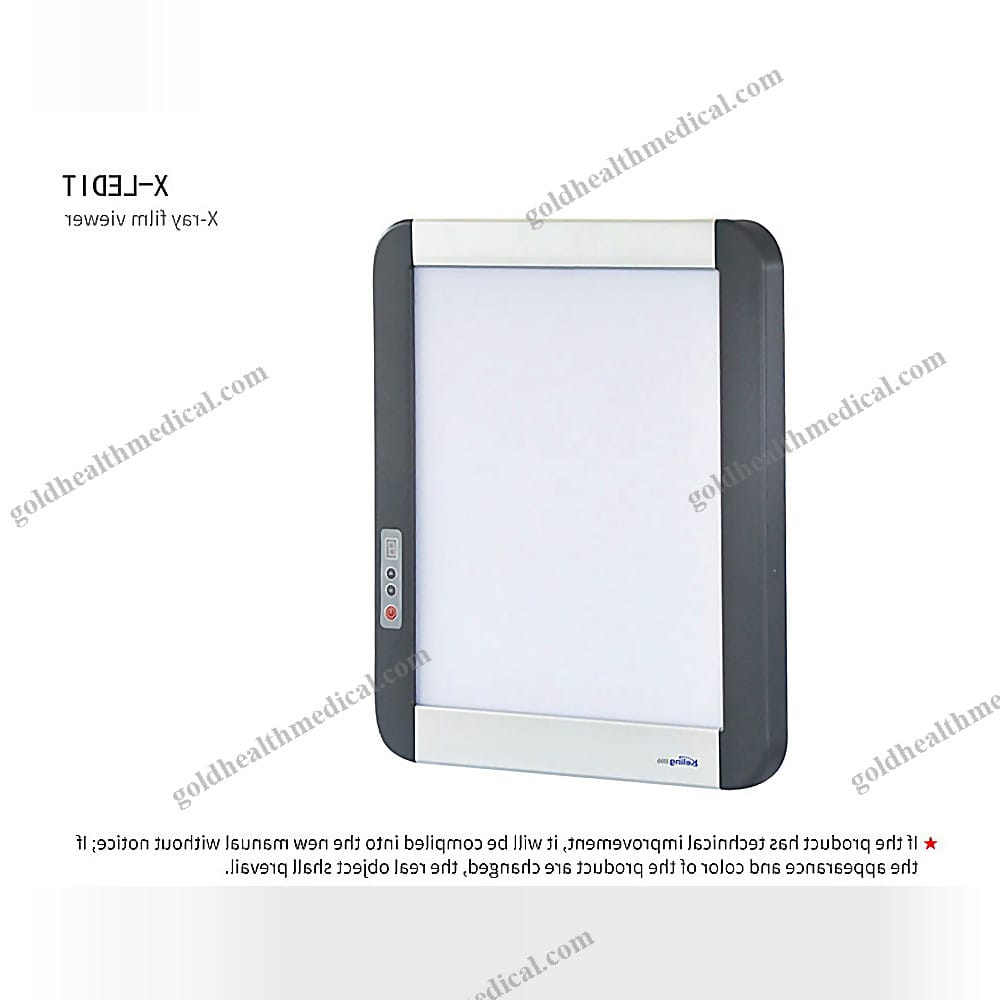

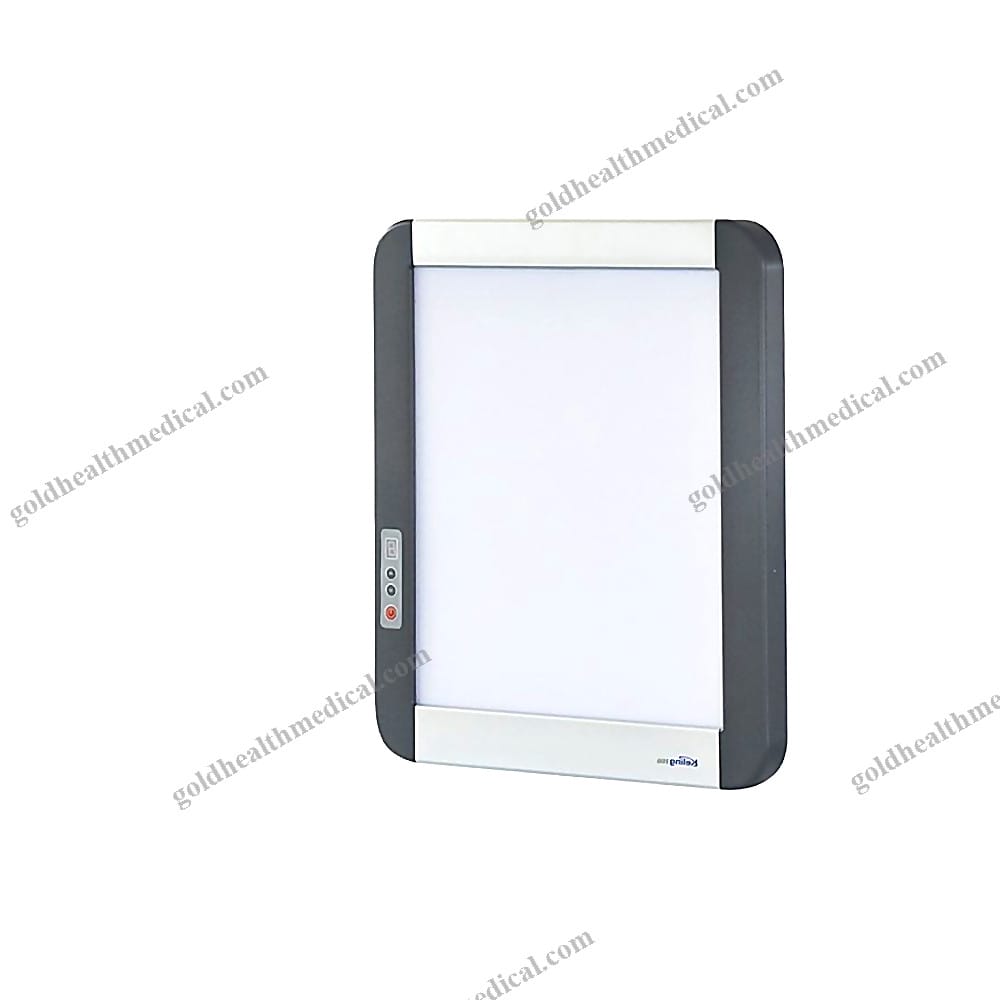

GoldHealth Medical X-Ray Film Viewer
Product Description
GoldHealth Medical introduces an advanced X-ray film viewer designed with cutting-edge ultra-bright LED technology as the backlight source. This innovation ensures exceptional clarity for viewing and diagnosing high-density digital films and mammography films.
The viewer features an ultra-thin, three-dimensional layered panel frame, elegantly finished in moonlight silver and dark grey. Constructed with high-strength electrophoresis aluminum alloys and durable plastic alloys, the device is remarkably sleek, measuring just 4cm in thickness.
Key Features
- Automatic Film Detection: The film-viewing area illuminates instantly upon film insertion and includes a delayed switch-off function after removal, enhancing product longevity.
- Brightness Control: A wide brightness adjustment range (300~5000 cd/m²) accommodates various film densities, including analog, digital, and mammography films.
- Extended Lifespan: The LED light source boasts an impressive service life of up to 100,000 hours.
- Superior Panel Quality: Imported acrylic transparent panels deliver high fineness, uniform light distribution, and resistance to deformation and discoloration.
- Uniform Illumination: Advanced LED backlighting eliminates dark zones, ensuring over 90% brightness uniformity across the viewing screen.
- Global Voltage Compatibility: Equipped with a built-in power supply that adapts to voltages between 90V~240V, saving space and ensuring reliability.
Technical Specifications
- External Dimensions: 470mm (L) × 545mm (H) × 40mm (D)
- Film-Viewing Area: 360mm (W) × 440mm (H)
- Backlight Source: LED with a color temperature of 9,300K
- Average Brightness: 300 cd/m² to 4000 cd/m²
- Average Illuminance: 900 lux to 13,000 lux
- Brightness Uniformity: ≥90%
- Power Supply: AC 90V-240V, 50W ±10%, 50/60Hz
Product Advantages
- Automatic illumination upon film insertion and delayed shutdown after removal.
- Wall-mounted and optional bracket designs for versatile installation.
- Memory function for brightness settings ensures consistent viewing preferences.
Applications
This X-ray film viewer is ideal for hospitals, clinics, research institutions, and diagnostic centers, supporting the accurate interpretation of analog, digital, and mammography films.
Why Choose GoldHealth Medical?
GoldHealth Medical combines decades of expertise with innovative engineering to deliver medical equipment that meets the highest standards of quality and performance. Our products are trusted globally for their reliability, precision, and user-centric design.
Operating Conditions
For optimal performance, the ambient room illuminance should not exceed 100 lux.
Optical Parameters and Functions
- Brightness Adjustment: 0-9 levels with digital display
- Automatic Induction: Activates upon film insertion
- Delayed Shutdown: 30 minutes after film removal
- Brightness Memory: Retains user settings
GoldHealth Medical’s X-ray film viewer redefines diagnostic precision with its sleek design, advanced functionality, and unwavering reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: LED X-Ray Film Viewer / X-Ray Viewing Light Box
Presented by GoldHealth Medical
Product Overview:
The LED X-Ray Film Viewer is a cutting-edge diagnostic tool designed to deliver unparalleled clarity and precision for medical imaging analysis. Engineered with advanced LED technology, this device ensures uniform illumination, making it easier for healthcare professionals to interpret X-ray films with confidence. Its sleek, durable metal construction guarantees longevity and reliability in demanding environments, from hospitals to home care settings.
Key Features and Specifications:
- Material: Premium-grade metal for enhanced durability and heat dissipation
- Instrument Classification: Class I medical device, ensuring safety and compliance
- Power Source: Electric, optimized for energy efficiency and consistent performance
- Shelf Life: 3 years, offering long-term usability and reliability
- Quality Certifications: ISO and CE certified, meeting international safety and quality standards
- Place of Origin: Hubei, China – crafted with precision engineering
Unique Selling Points:
- High-Energy-Ray Medical Equipment Compatibility: Designed to seamlessly integrate with high-energy-ray imaging systems for superior diagnostic accuracy
- Uniform LED Illumination: Delivers consistent brightness across the viewing surface, reducing eye strain and enhancing diagnostic precision
- Versatile Applications: Ideal for hospitals, clinics, research labs, rehabilitation centers, and home healthcare settings
Warranty and Support:
- Warranty: Comprehensive 1-year warranty for peace of mind
- After-Sales Service: Dedicated online technical support to ensure uninterrupted performance
Supply and Availability:
- Supply Ability: 100 sets per week, ensuring timely delivery for bulk orders
- Packaging: Securely packaged in robust CRTON materials for safe transit
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical equipment that empowers healthcare professionals to provide the best possible care. Our LED X-Ray Film Viewer combines advanced technology, superior materials, and meticulous design to meet the rigorous demands of modern medical diagnostics.
Choose precision. Choose reliability. Choose GoldHealth Medical.
