Portable Oxygen Generator Emergency Apparatus For Hospital Medical Use
Reference: 1601282261664
Breathing Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

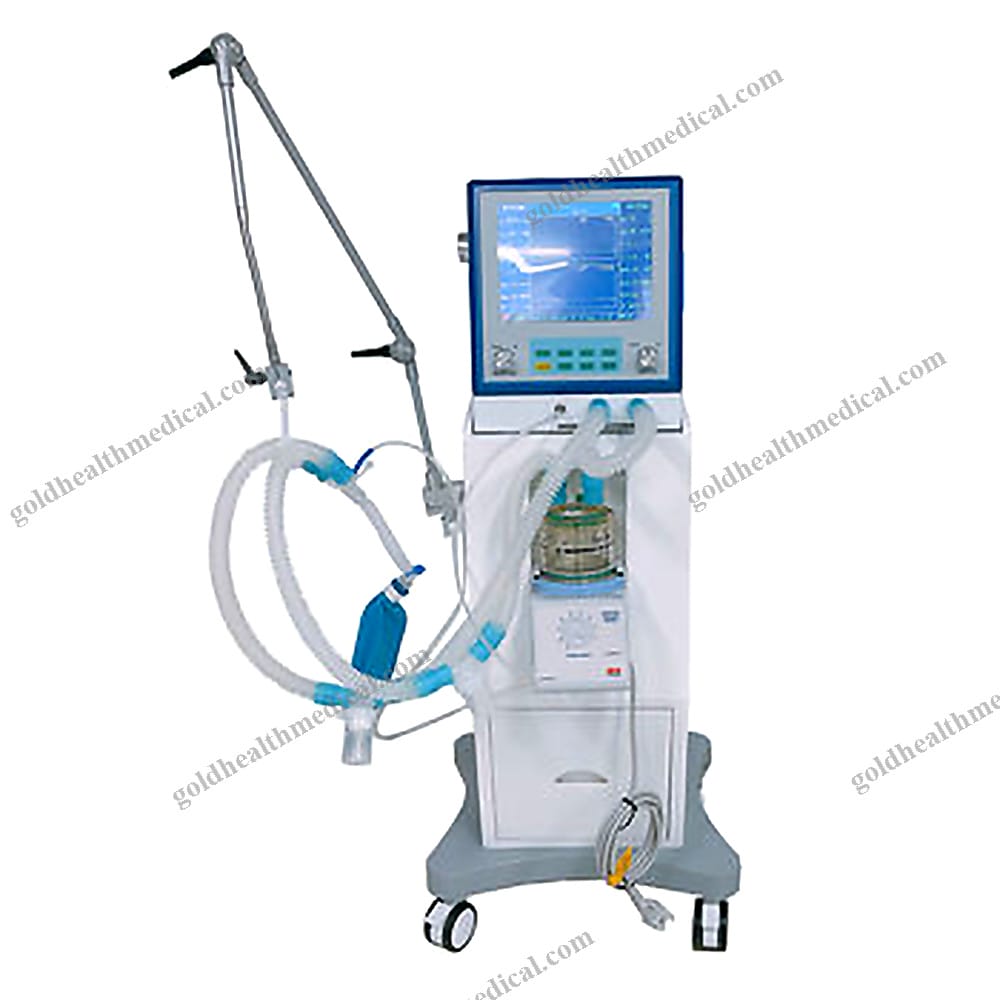

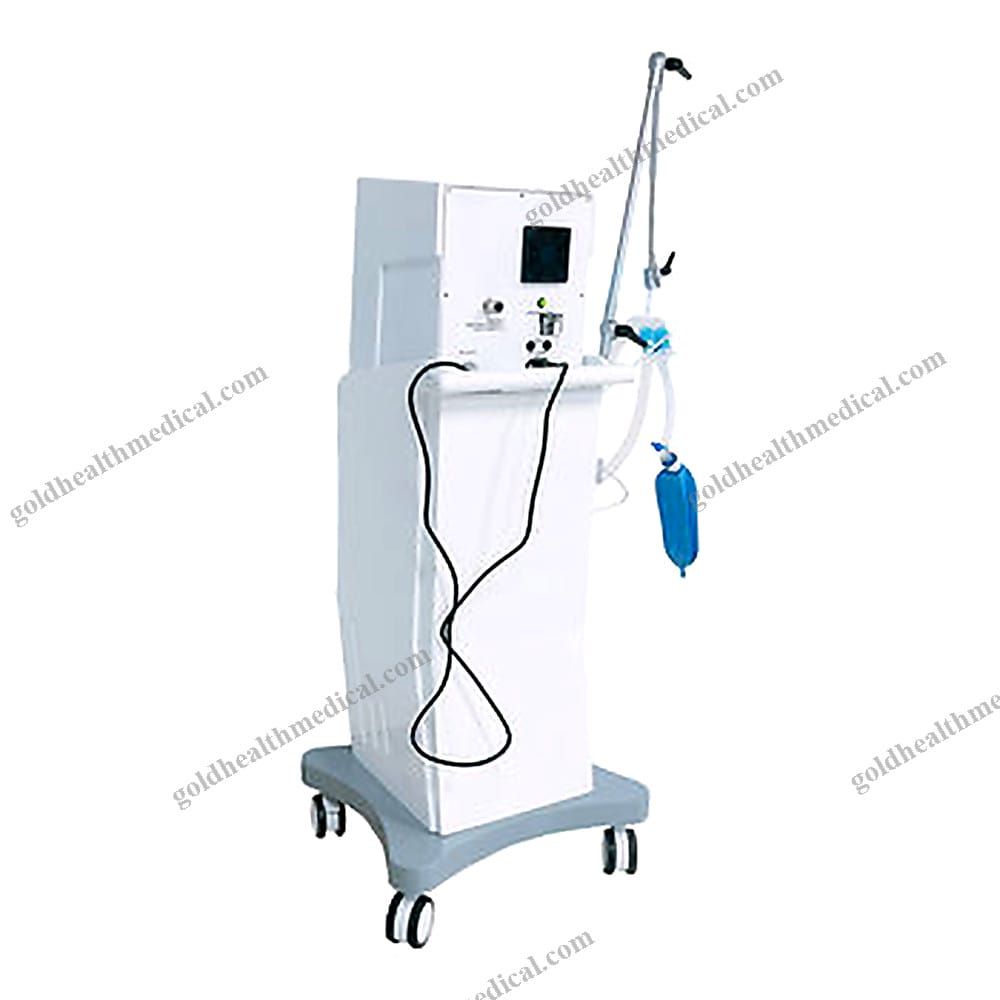

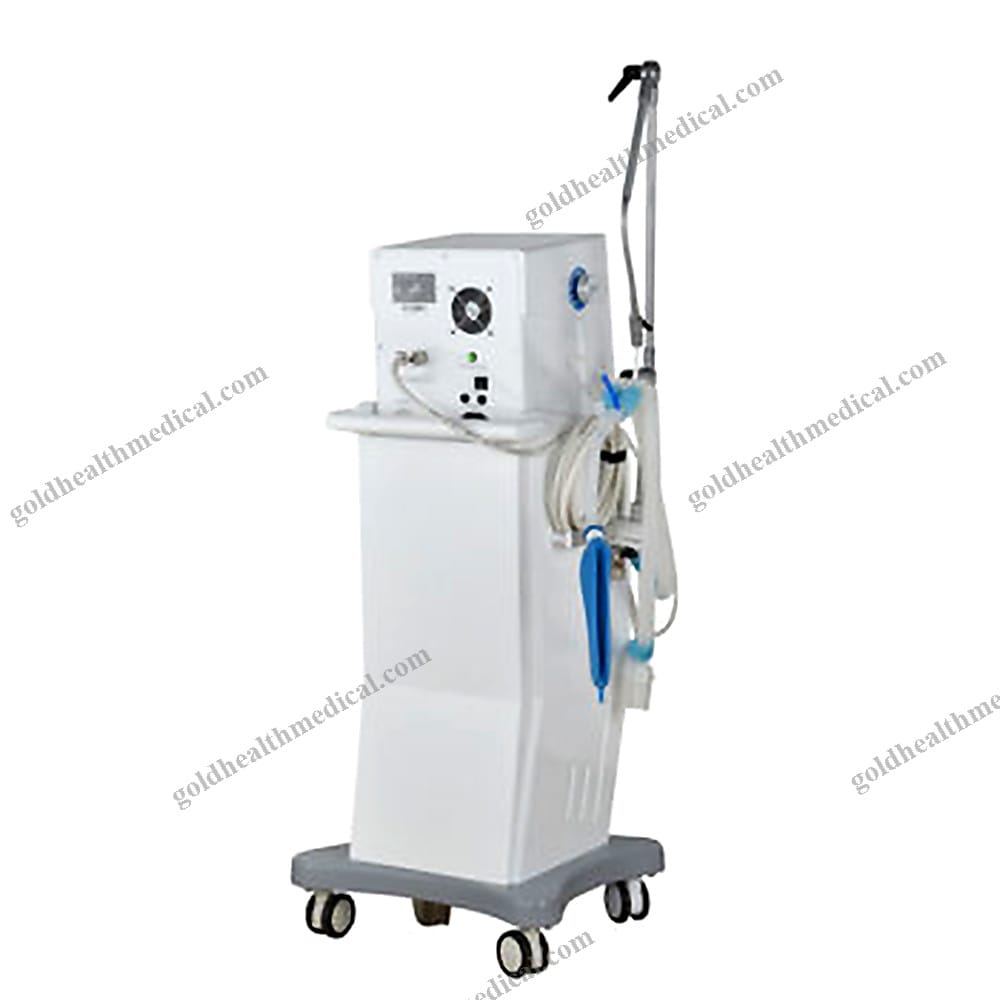

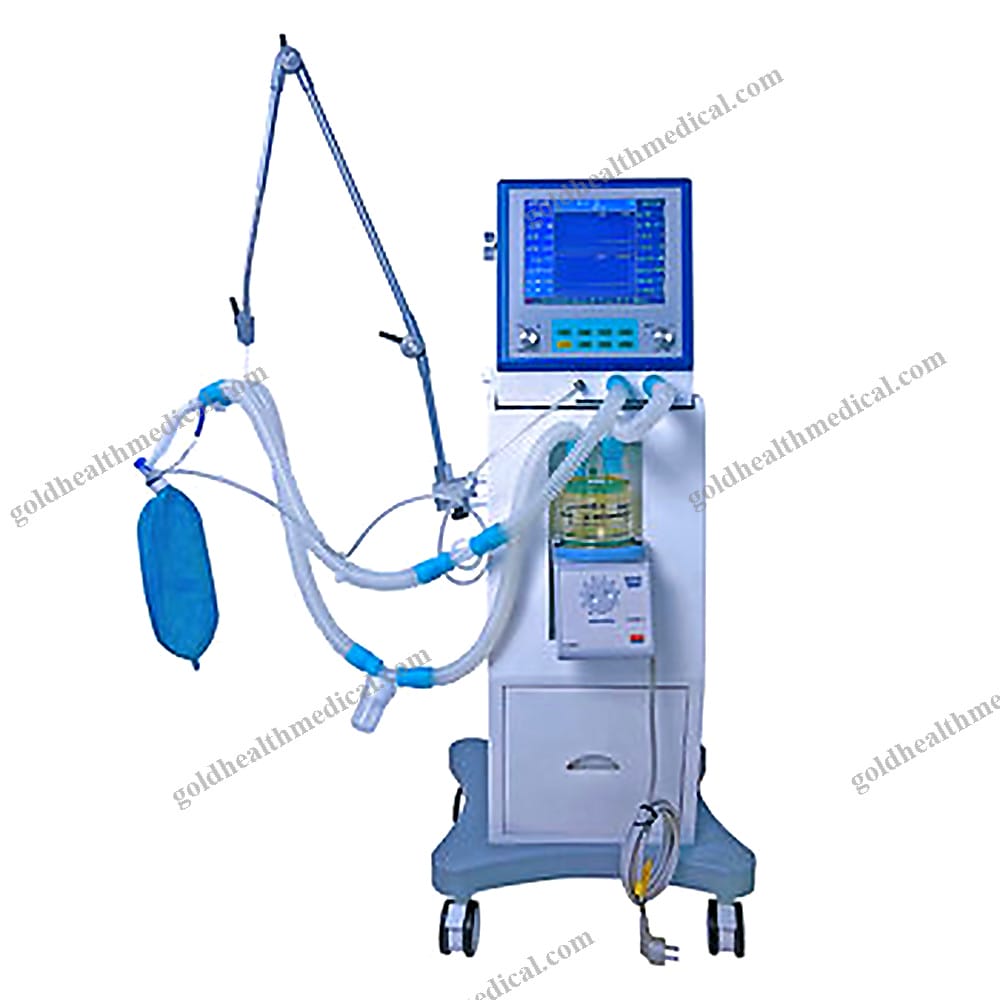

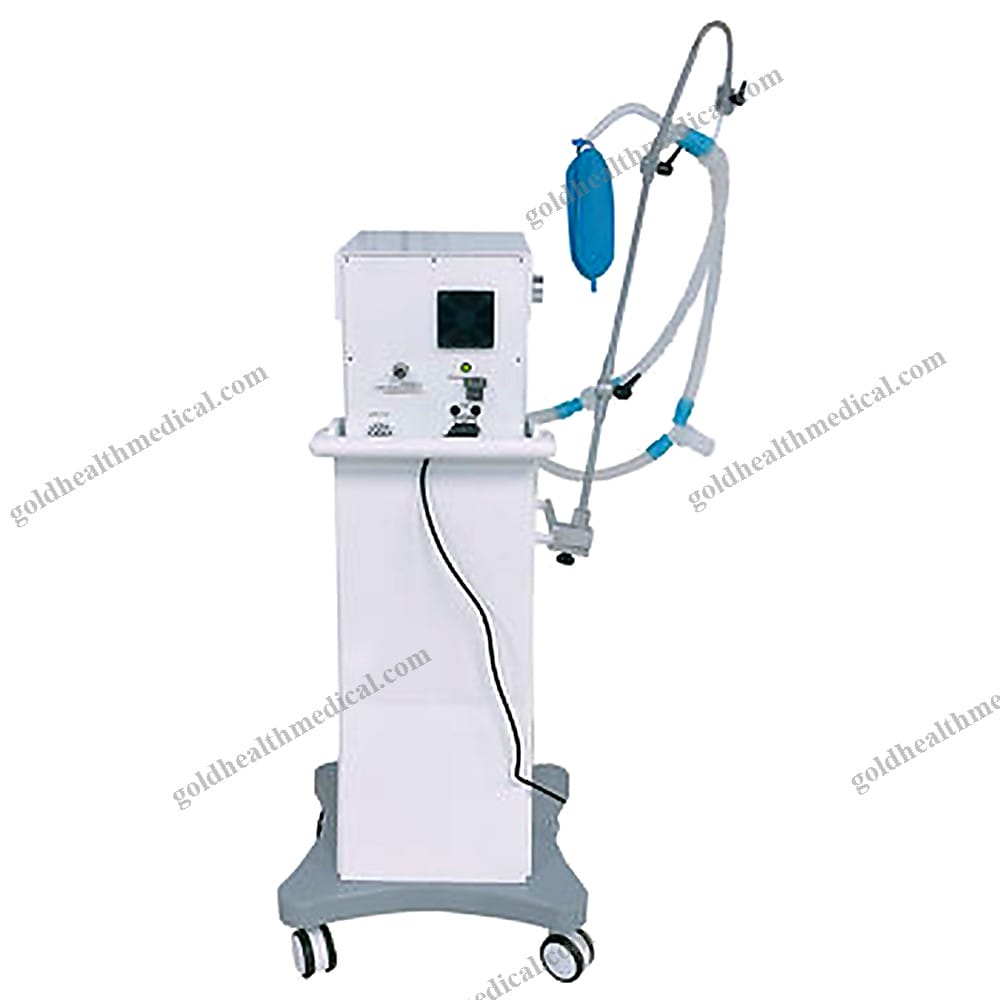

GoldHealth Medical Ventilator Technical Specification
Main Features and Benefits
GoldHealth Medical presents a cutting-edge ventilator designed to deliver precision, reliability, and versatility in respiratory care. Engineered with advanced aerodynamic and electric-controlled technology, this device ensures optimal performance for a wide range of medical applications. Its sleek design and intuitive interface make it an ideal choice for hospitals, clinics, research labs, and home care environments.
Key Highlights
- 10.5-inch Color TFT High-Luminance Screen: Offers crystal-clear visualization of critical parameters, ensuring accurate monitoring at a glance.
- Advanced Ventilation Modes: Supports multiple modes including A/C, SIMV, PSV, IPPV, MMV, SPONT, and SIGH, catering to diverse patient needs.
- Quiet Operation: With a noise level of ≤65dB(A), it ensures a peaceful environment for patients and caregivers.
- Comprehensive Safety Features: Includes alarms for apnea, oxygen supply pressure drops, and power failures, ensuring uninterrupted care.
Technical Parameters
- Dimensions:
- Main Frame: 55 x 63 x 120 cm (L x W x H)
- Carton Packing Size One: 55 x 48 x 85 cm (L x W x H), 32 kg
-
Carton Packing Size Two: 53 x 58 x 52 cm (L x W x H), 28 kg
-
Tidal Volume:
- Upper Limit: 20~3000 mL
-
Lower Limit: OFF, 20~2990 mL
-
Minute Volume:
- Upper Limit: 1~99 L
-
Lower Limit: 0~99 L
-
Oxygen Concentration:
- Upper Limit: 22~100%, OFF
-
Lower Limit: 20~99%
-
Airway Pressure:
- Upper Limit: 2~6 KPa
-
Lower Limit: 0~4 KPa
-
Respiratory Frequency:
- Upper Limit: 1~120 bpm
-
Lower Limit: 0~99 bpm
-
Compliance System: ≤4 mL/100 Pa
-
Continuous Pressure High: Activates when airway pressure exceeds (PEEP + 15) cmH2O for 15 seconds.
-
Apnea Alarm: Adjustable time range of 15~60 seconds with 5-second increments.
-
Oxygen Supply Alarm: Triggers when oxygen supply pressure drops below 0.28 MPa.
-
Ventilation Modes: A/C, SIMV, PSV, IPPV, MMV, SPONT, SIGH
-
PEEP Pressure: 0.1~2 KPa
-
PSV Pressure: 0~5 KPa
-
Inspiratory Time (Ti): 0.2~6 seconds
-
Pause Time (Tp): 0~2 seconds
-
Trigger Pressure (Pt): -2 KPa to 0 KPa
-
Mainframe Input Power: 65 VA
-
Gas Supplies:
- Oxygen: 0.3~0.6 MPa
-
Air Pressure: 96~104 kPa
-
Voltage: AC 100~220V, 50/60 Hz
-
Monitoring Parameters:
- Tidal Volume (Vt): 0~2000 mL
- Breathing Frequency (RATA): 0~120 bpm
- Minute Ventilation Volume: ≥18 L/min
- Airway Pressure Waveform: Pressure-Time, Flow-Time
Unique Selling Points
- Precision Control: Continuously adjustable oxygen concentration (40%~100%) ensures tailored therapy for each patient.
- Compact and Portable Design: Lightweight and easy to transport, making it suitable for various clinical and home settings.
- Robust Safety Mechanisms: Equipped with a pneumatic path system that ensures safety pressure does not exceed 12 KPa.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals and enhance patient outcomes. This ventilator exemplifies our dedication to quality, safety, and cutting-edge technology.
Frequently Asked Questions
-
Are you a manufacturer?
Yes, we are a factory with OEM/ODM capabilities. We welcome collaboration to bring your ideas to life. -
**What is the minimum order quantity (MOQ
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Ventilator Machine by GoldHealth Medical
Type: Advanced Breathing Apparatus
Key Features and Benefits
- Precision Engineering: Designed for critical care environments, this ventilator combines aerodynamic and electric-controlled mechanisms to ensure reliable and accurate performance.
- High-Visibility Display: Equipped with a 10.5-inch Color TFT high-luminance screen for clear, real-time monitoring even in challenging lighting conditions.
- Ultra-Quiet Operation: Complete machine noise is minimized to ≤65dB(A), ensuring a calm and focused environment for both patients and medical staff.
- Compact and Efficient Design: With overall dimensions of 55x63x120 cm (LxWxH), it fits seamlessly into operating rooms, emergency care units, and other clinical spaces.
- Compliance System: Delivers exceptional precision with a compliance system of ≤4mL/100 Pa, ensuring optimal air delivery tailored to patient needs.
Technical Specifications
- Power Source: Electric
- Driven Mechanism: Aerodynamic and electric-controlled
- Material: Durable metal and high-grade plastic construction for long-lasting reliability
- Instrument Classification: Class III medical device
- Shelf Life: 1 year
- Color: White
- Application: Operating rooms, emergency care, and critical care environments
Packaging Details
- Single Package Size: 110x105x85 cm (LxWxH)
- Single Gross Weight: 60.000 kg
Support and Assurance
- Warranty: Comprehensive 1-year warranty for peace of mind
- After-Sales Service: Access to online technical support, ensuring uninterrupted performance and quick resolution of any issues
Certifications
- Quality Certification: CE-certified, meeting stringent international safety and performance standards
GoldHealth Medical’s Ventilator Machine is engineered to deliver unparalleled precision, reliability, and ease of use, making it an indispensable tool for modern healthcare environments. Whether in hospitals, clinics, or home care settings, this device sets a new benchmark for respiratory care technology.
