Portable ICU Ventilator Emergency Mobile Respirator Surgical Hospital Oxygen Support Solution
Reference: 1601044264163
Ventilator
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

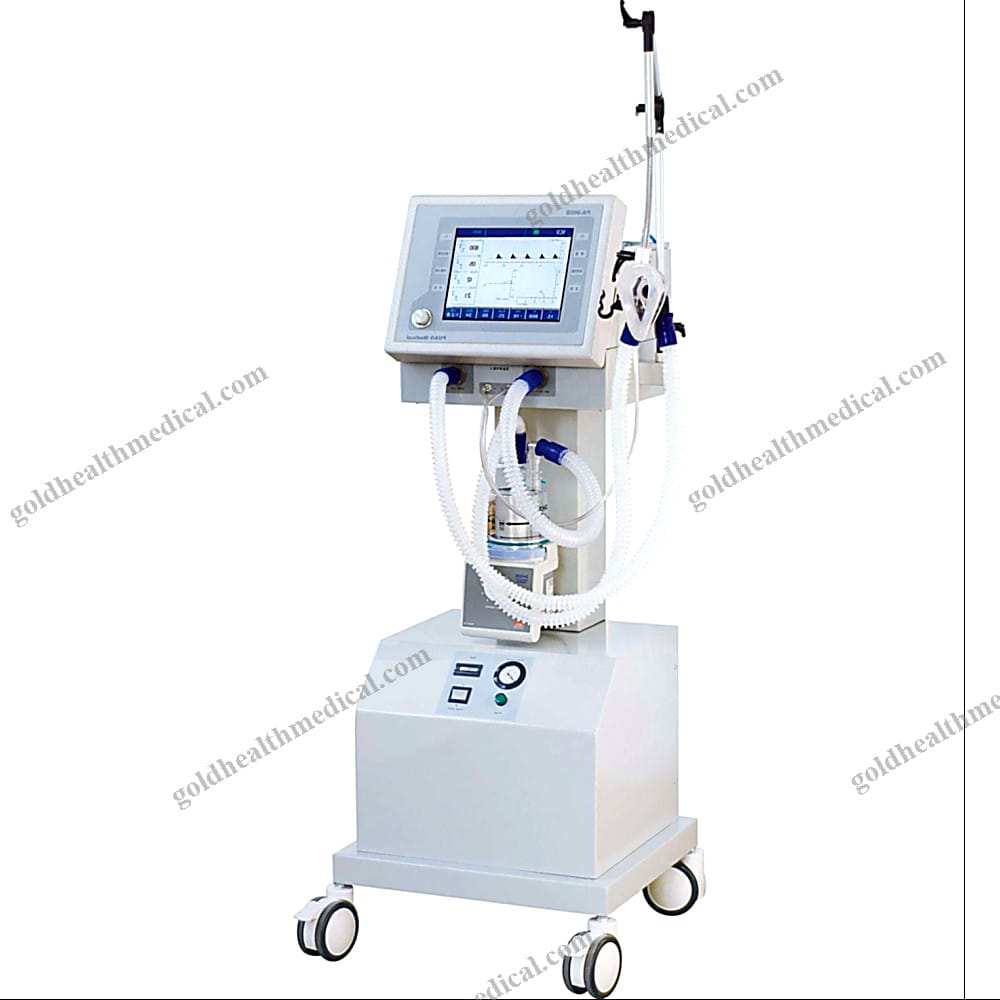

GoldHealth Medical Ventilator
Overview
GoldHealth Medical presents a cutting-edge ventilator designed for both emergency clinical resuscitation and respiratory therapy. This device combines advanced technology with user-friendly features, making it an essential tool for various medical environments.
Key Features
- Operating Modes: Pneumatically driven and electronically controlled, supporting closed, semi-closed, and semi-open configurations.
- Emergency Use: Equipped as a pneumatically driven, electrically controlled ventilator for critical situations.

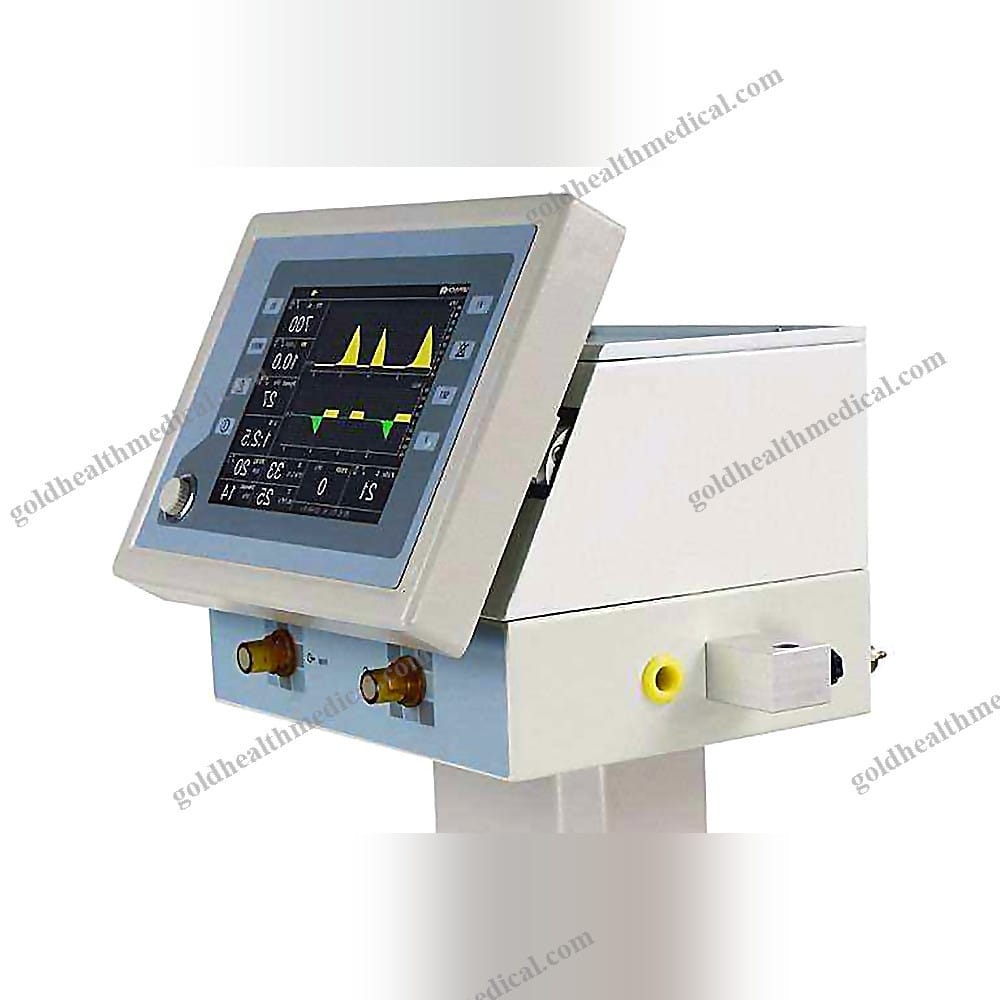

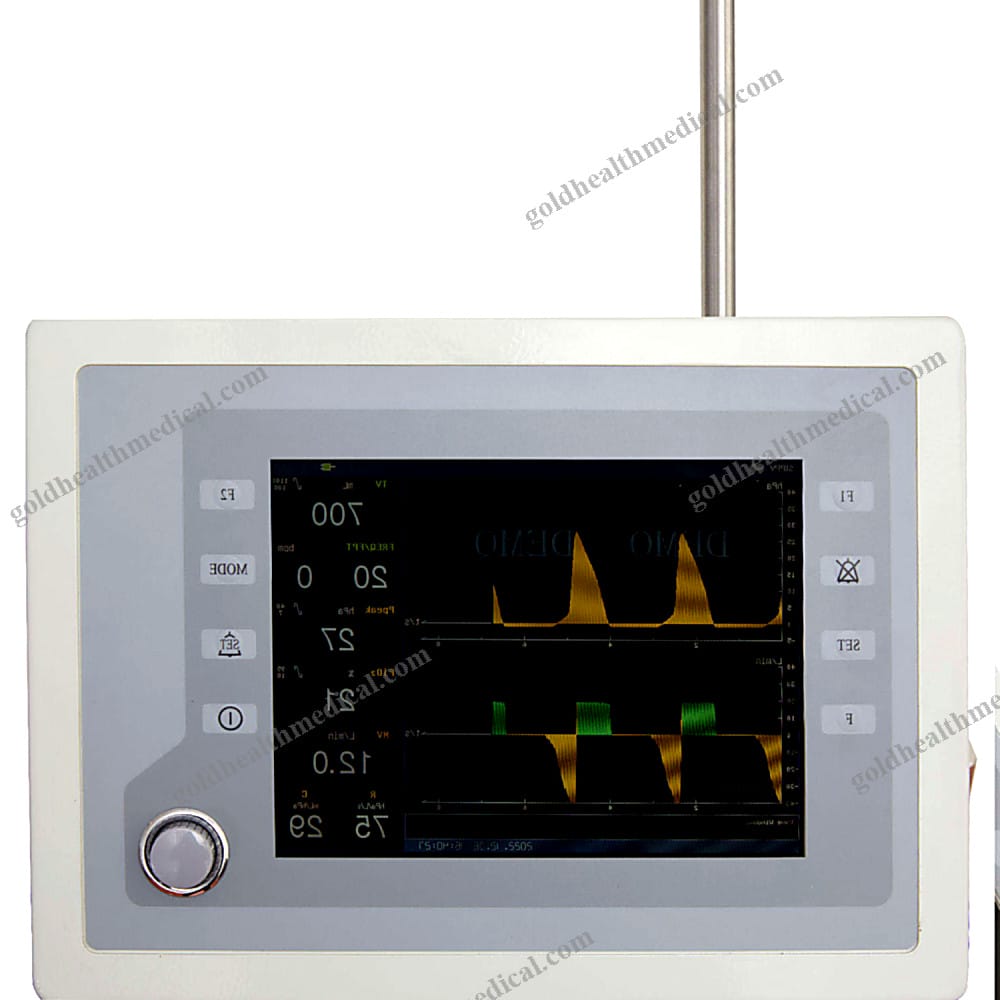

- Display: Features a built-in 10.4-inch color TFT display, fully adjustable. Capable of showing Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume, and any two waveforms simultaneously.
- Trigger Types: Offers both pressure and flow triggers for precise control.
- Sigh Functionality: Inserts 1-8 sigh breaths per 100 breaths, ensuring ventilation is at least 1.5 times the tidal volume.
- Sensors: Includes dual electronic flow sensors and dual respiratory modules for enhanced accuracy.
- Power Support: Automatically switches to standby mode during AC power outages.
- Monitoring Parameters: Tracks tidal volume, respiration rate, airway pressure, I:E ratio, inspiratory and expiratory status, and inspiratory trigger.
- Flow Sensor: Utilizes an infrared turbine flow sensor for precise gas flow measurement, ensuring stability and reliability.
- Humidifier: Offers 9-level adjustable humidification.
- Design: Nonhazardous, environmentally friendly frame with precise construction and elegant design. Includes automated self-checking and self-calibrating sensors during startup.
- Alarms: Provides audible and visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, intubation disconnection, low oxygen, power failure, and more. Features an alarm history query function.
Exclusive Advanced Features
- Air Compressor: Professional medical-grade air compressor designed for extended clinical use and low noise levels.
- Output Specifications:
- Output Gas Pressure: 0.4MPa ±20%
- Continuous Output Gas Flow: ≥20L/min
- Instantaneous Output Gas Flow: ≥60L/min
Detailed Specifications
- Display: 10.4-inch high visibility color TFT display.
- Ventilation Modes: A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL.
- Minute Volume: ≥18L.
- Back-up Power Supply: At least 4 hours.
- Tidal Volume: Adjustable range: 20-1500ml; Display range: 0-2000ml.
- Respiratory Rate: 1-99bpm.
- I:E Ratio: 4:1-1:4.
- PEEP: 0-10cmH2O.
- SIMV Rate: 1-20bpm.
- Inspiratory Pressure Trigger: -10-10cmH2O.
- Trigger Sensitivity (Flow): 1-10L/m.
- Inspiratory Plateau: Adjustable from 0-50% of inspiratory time.
- Adjustable Oxygen Concentration: 45-100%, 21-100%.
- Gas Supply Requirement: 280~600 kPa medical grade oxygen and compressed air supply.
- Pressure Limit: 1.0kPa~6.0kPa.
- Maximum Safe Operating Pressure: ≤6.0kPa.
- Tidal Volume Alarm: Upper Limit: 10~2000ml; Lower Limit: 0~1800ml.
- Airway Pressure Alarm: Upper Limit: 0.1~6kPa; Lower Limit: 0~5kPa.
- Oxygen Concentration Alarm: Upper Limit: 22~100%; Lower Limit: 21~80%.
Why Choose GoldHealth Medical?
GoldHealth Medical's ventilator stands out with its advanced dual-sensor technology, reliable power support, and comprehensive alarm system. The elegant design and automated self-checking functions ensure precision and ease of use, making it an indispensable asset for any medical facility.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
The GoldHealth Medical ventilator is a cutting-edge Class III medical device designed for both adult and pediatric patients weighing over 5kg. Featuring a high-visibility 10.4-inch color TFT display, this ventilator delivers precision, reliability, and versatility in critical care environments. Engineered with advanced ventilation modes and customizable settings, it ensures optimal respiratory support tailored to individual patient needs.
Key Features and Specifications:
- Ventilation Modes:
- SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV
- Tidal Volume:
- Adjustable range: 20-1500ml
- Display range: 0-2000ml
- Respiratory Rate: 1-99bpm
- Inspiratory/Expiratory (I:E) Ratio: 4:1 to 1:4
- PEEP (Positive End-Expiratory Pressure): 0-10cmH2O
- Inspiratory Plateau: Adjustable from 0-50% of inspiratory time
- Adjustable Oxygen Concentration: 21-100%
- Gas Supply Requirement: 280~600 kPa medical-grade oxygen and compressed air supply
Design and Build Quality:
- Constructed with durable metal and high-grade plastic materials for long-lasting performance
- Compact and ergonomic design for seamless integration into clinical environments
Safety and Compliance:
- Certified by SGS for quality assurance
- Designed for safe and reliable operation in hospitals, clinics, and home care settings
Patient-Centric Design:
- Suitable for both adult and pediatric patients weighing over 5kg
- Intuitive 10.4-inch high-visibility color TFT display for clear monitoring of critical parameters
Packaging Details:
- Single package size: 66 x 55 x 132 cm
- Single gross weight: 77.000 kg
Warranty and Support:
- Comprehensive 1-year warranty for peace of mind
- Access to online technical support for seamless after-sales service
Shelf Life: 6 years
GoldHealth Medical’s ventilator is engineered to meet the highest standards of performance and reliability, making it an indispensable tool for healthcare professionals and institutions worldwide.
