Portable Digital XRay Flat Panel Detector for Mammography and General XRay
Reference: 1601253271731
Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Diagnostic Imaging
GoldHealth Medical proudly introduces a groundbreaking range of Wireless Digital Flat Panel Detectors designed to redefine precision and efficiency in medical imaging. Engineered for versatility, these detectors cater to hospitals, clinics, veterinary practices, dental radiography, and more, delivering unparalleled performance across diverse diagnostic applications.
Product Highlights

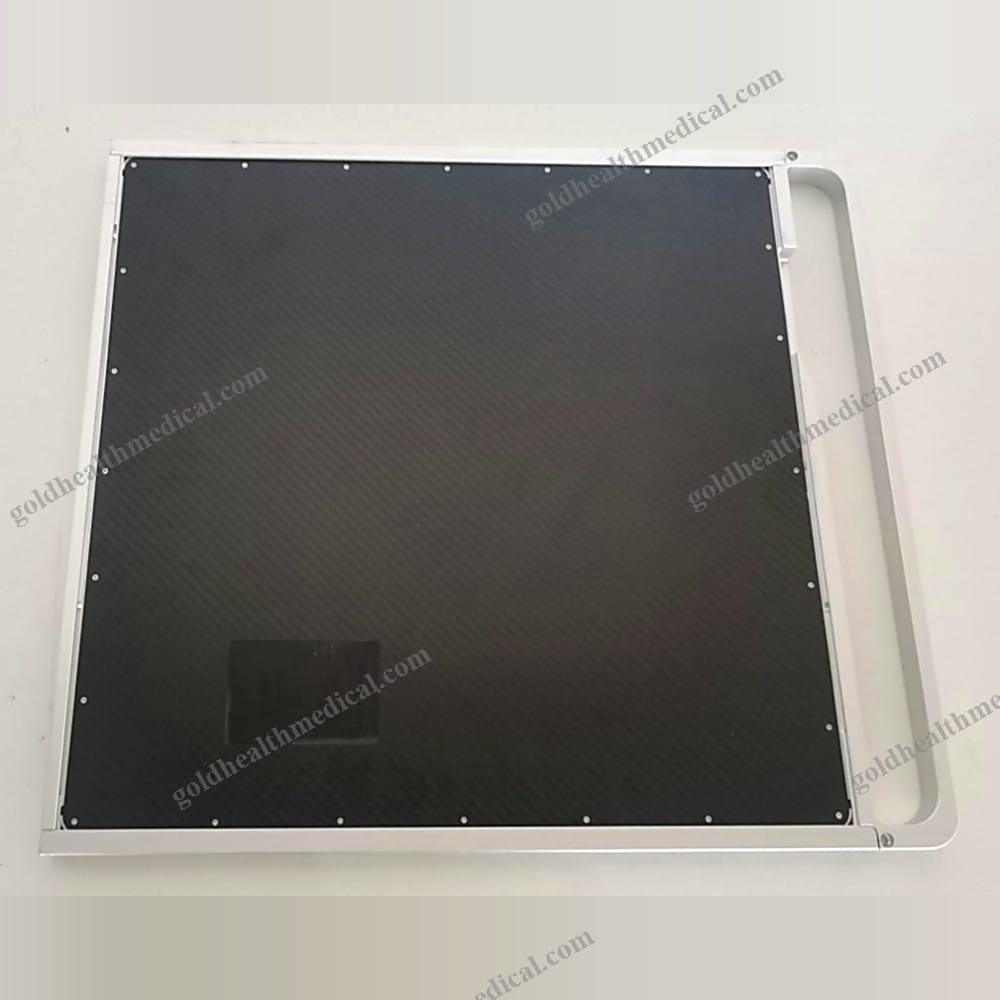

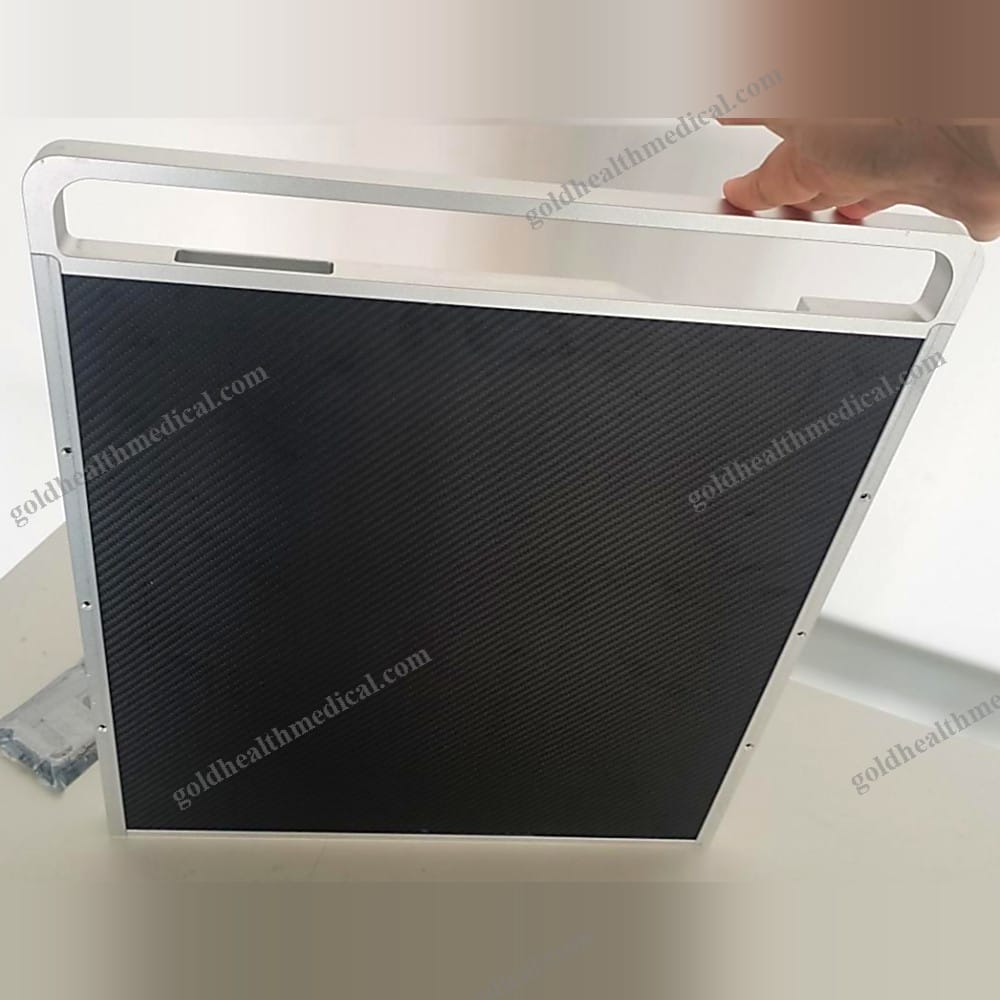

- Lightweight and Durable Design: Constructed with aluminum-magnesium alloys and a carbon fiber front panel, ensuring portability without compromising strength.
- Advanced Imaging Technology: Equipped with amorphous silicon (a-Si) sensors and cutting-edge scintillators (GOS/CsI:T) for exceptional clarity and accuracy.
- Versatile Applications: Ideal for human and veterinary radiology, mammography, dental imaging, and non-destructive testing.
- Seamless Connectivity: Gigabit Ethernet interface and wireless capabilities for rapid data transfer and enhanced workflow efficiency.
- Exceptional Image Quality: High resolution (3072x3072), pixel pitch of 100 µm, and a dynamic range of ≥76 dB ensure sharp, detailed images.
Key Specifications
- Active Area: 430x430 mm
- Resolution: 5 LP/mm
- Pixel Pitch: 100 µm
- A/D Conversion: 16 bits
- Acquisition Time: 1 second (wired)
- Energy Range: 40-160 kV
- MTF:
- 68% @ 1 LP/mm
- 38% @ 2 LP/mm
- 20% @ 3 LP/mm
- Sensitivity: ≥0.36 LSB/nGy
- Weight: 3.8 kg
- Dimensions: 460x460x14.8 mm
Environmental and Operational Parameters
- Operating Temperature: 10-35°C
- Storage Temperature: -10 to 50°C
- Humidity: 30-70% RH (non-condensing)
- Ingress Protection: IP51
- Power Supply: AC 100-240 V, 50-60 Hz; DC 24 V, 2.7 A
- Power Dissipation: <20 W
Unique Selling Points
- Wireless Freedom: Eliminate the constraints of cables with reliable wireless functionality, enhancing mobility and ease of use.
- Precision Engineering: Achieve diagnostic confidence with industry-leading MTF and sensitivity metrics.
- Global Standards Compliance: Certified to CE and ISO13845 standards, ensuring safety, reliability, and quality.
- Comprehensive Warranty and Support: Backed by a 1-year warranty and online technical support, ensuring peace of mind for users worldwide.
Applications
- Human Radiology: Optimized for hospital radiology departments, offering high-resolution imaging for accurate diagnostics.
- Veterinary Use: Tailored solutions for pet clinics and veterinary hospitals, ensuring precise imaging for animal care.
- Dental Radiography: Compact and precise, ideal for capturing detailed dental images.
- Portable Imaging: Lightweight design makes it perfect for mobile clinics, fieldwork, and remote diagnostics.
GoldHealth Medical is committed to advancing healthcare technology through innovation, precision, and reliability. Our flat panel detectors are not just tools—they are transformative solutions designed to elevate diagnostic standards and improve patient outcomes.
Experience the future of medical imaging with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Flat Panel Detector by GoldHealth Medical
Application: Designed for advanced medical diagnosis in X-ray rooms and radiography departments, enabling precise X-ray imaging for a variety of clinical needs.
Key Features and Specifications
- Instrument Classification: Class II medical device, ensuring safety and reliability in professional healthcare environments.
- Active Area: 10 inches, delivering high-resolution imaging for accurate diagnostics.
- Pixel Array: 139, providing exceptional clarity and detail in every scan.
- Pixel Pitch: 100 µm, ensuring sharp and precise image quality for enhanced diagnostic confidence.
- Power Source: Electric, with a power rating of AC 100-240V, 50-60Hz, making it adaptable to global power standards.
- Weight: Lightweight at just 3.8kg, offering portability and ease of installation.
- Dimensions: Compact design with dimensions of 460mm x 460mm x 14.8mm, ideal for space-constrained environments.
- Color Options: Available in classic black and white finishes for a professional aesthetic.
Certifications and Compliance
- Quality Certifications: ISO and CE certified, meeting the highest international standards for medical devices.
- Shelf Life: 1 year, ensuring long-term performance and reliability.
Packaging and Delivery
- Packaging Details:
- Single item per package.
- Package size: 55cm x 55cm x 16cm.
- Gross weight per package: 10.000 kg.
After-Sales Support
- Warranty: Comprehensive 1-year warranty for peace of mind.
- Service: Access to online technical support, ensuring seamless operation and troubleshooting assistance.
Applications
- Optimized for use in radiography departments, X-ray rooms, and research laboratories.
- Suitable for hospitals, clinics, rehabilitation centers, and home healthcare settings.
GoldHealth Medical’s Flat Panel Detector combines cutting-edge technology with precision engineering to deliver unparalleled imaging performance, empowering healthcare professionals to achieve accurate diagnoses and improve patient outcomes.
