MSLFP03 Advanced 14x17 Wireless X
Reference: 1600932827356
Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Veterinary Imaging

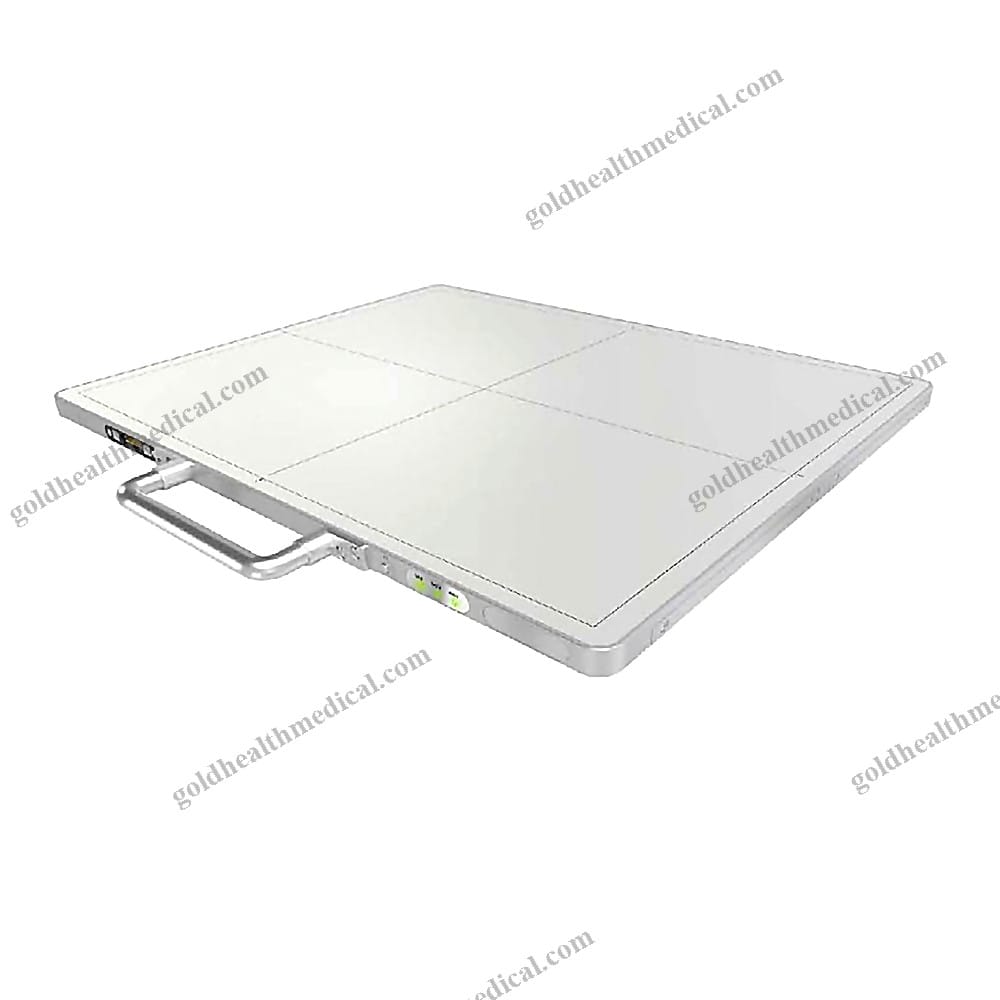

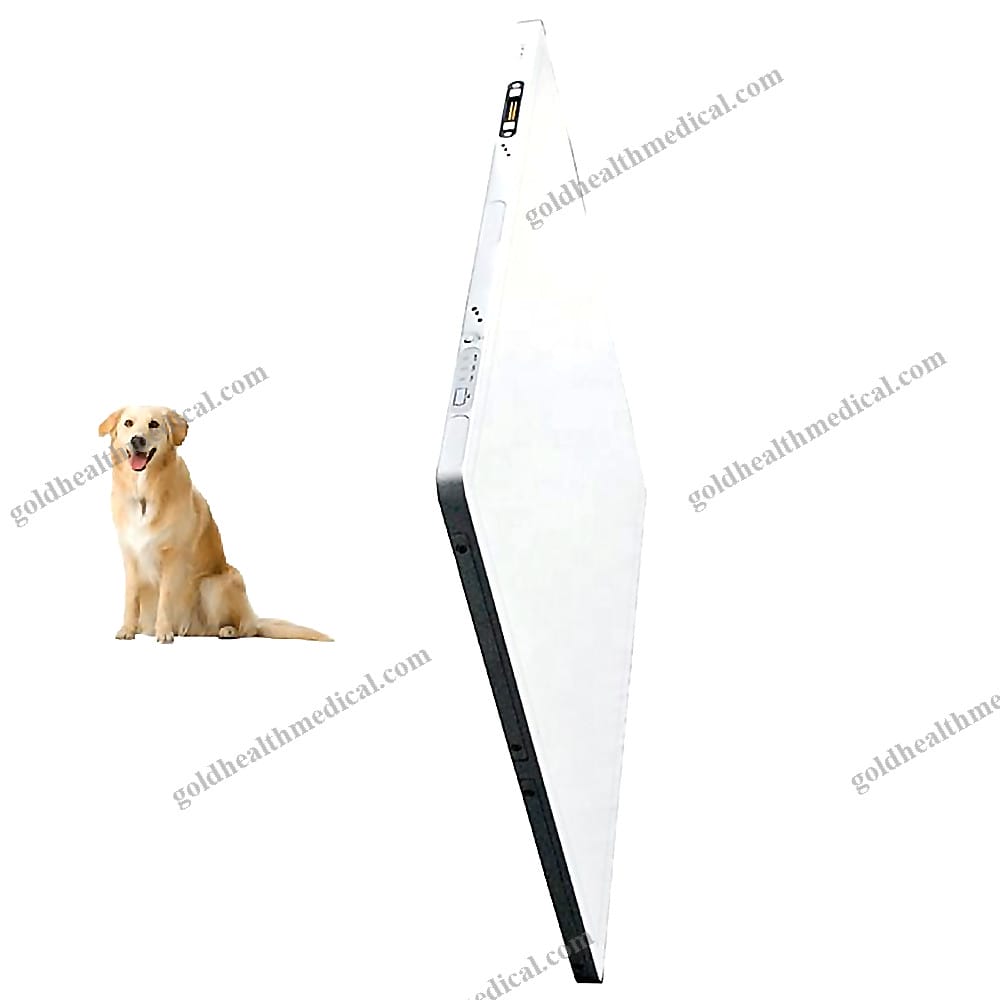

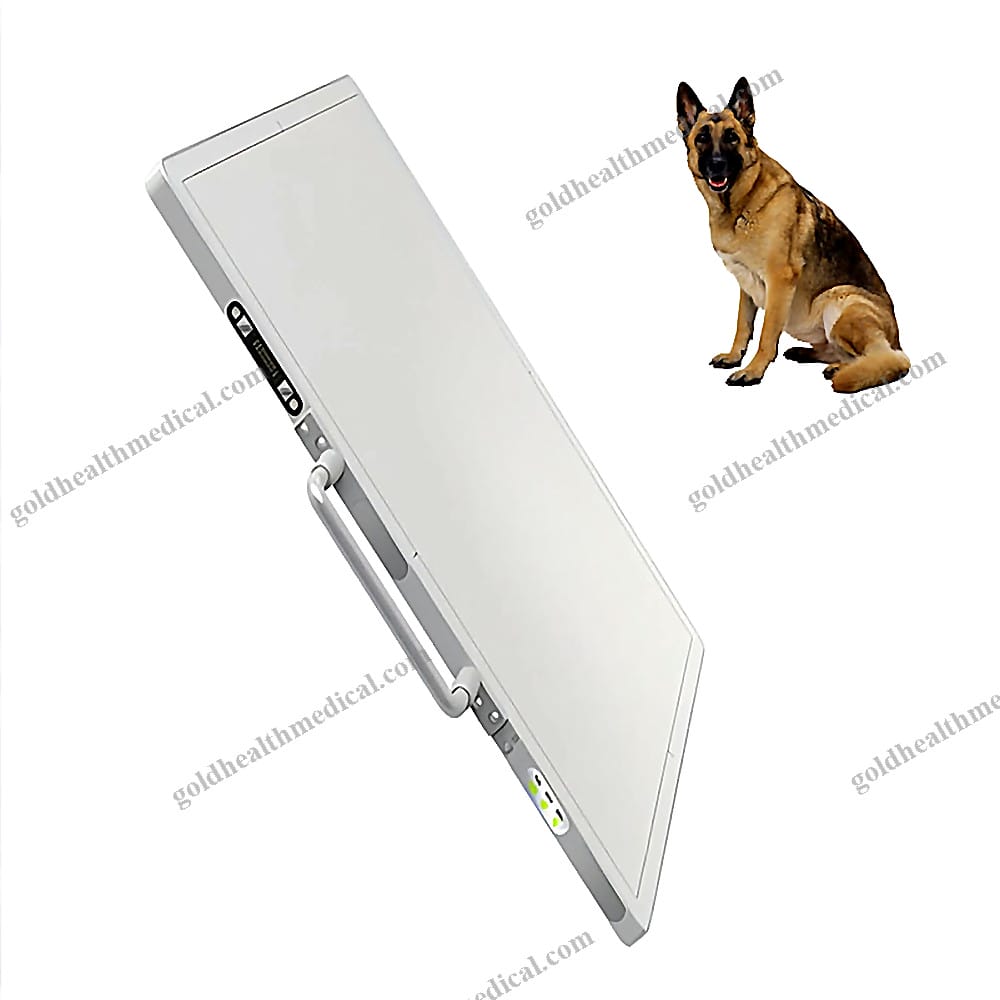

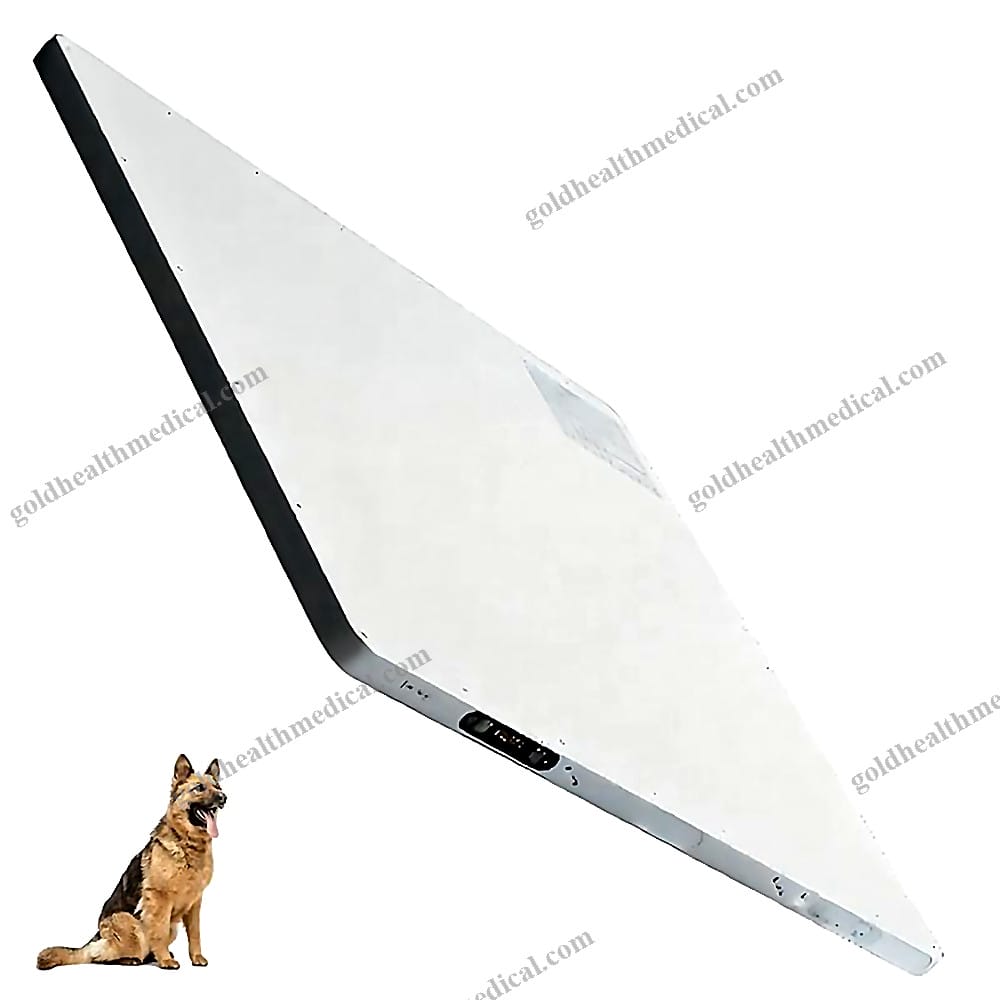

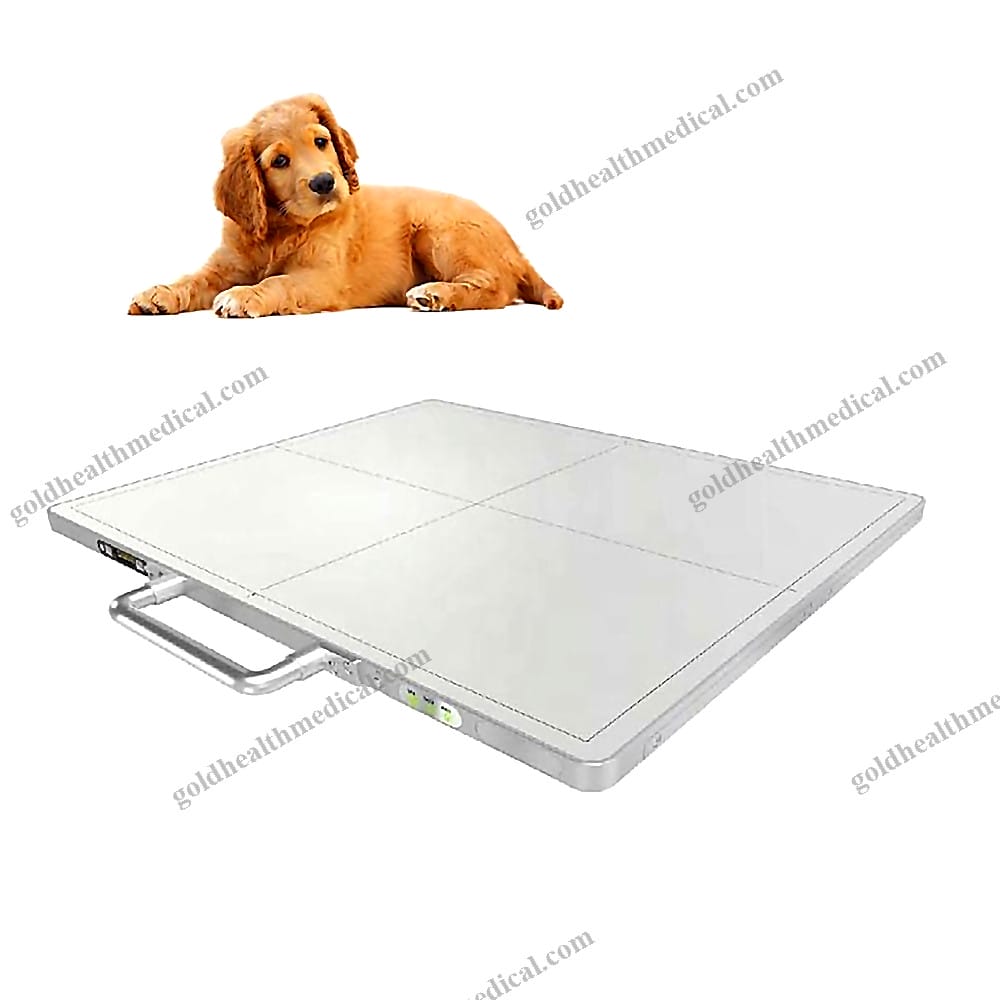

GoldHealth Medical presents an advanced wireless flat panel detector designed for both veterinary and human applications. Engineered with precision and cutting-edge technology, this imaging solution delivers exceptional performance and reliability.
Product Highlights
- Unparalleled Imaging Technology: Utilizes advanced a-Si receptor technology combined with a choice of scintillators (GOS / CsI:TI) for superior image quality.
- Generous Active Area: Features a large 430 x 430 mm active area, ensuring comprehensive coverage for various diagnostic needs.
- High-Resolution Imaging: Achieves an impressive resolution of 3072x3072 with a pixel pitch of 139 ΞΌm, capturing even the finest details.
- Advanced Digital Conversion: Equipped with 16-bit A/D conversion for enhanced image depth and clarity.
- Optimal Energy Range: Operates efficiently within a 40-160 kV energy range, accommodating diverse diagnostic requirements.
- Exceptional Dynamic Range: Boasts a dynamic range of β₯84 dB, ensuring accurate and detailed imaging across varying conditions.
- Rapid Wireless Acquisition: Facilitates quick and seamless image capture, enhancing workflow efficiency.
Technical Specifications
- Receptor Type: a-Si
- Scintillator Options: GOS / CsI:TI
- Active Area: 430 x 430 mm
- Resolution: 3072x3072
- Pixel Pitch: 139 ΞΌm
- A/D Conversion: 16 bits
- Limiting Resolution: 3.5 LP/mm
- Energy Range: 40-160 kV
- Dynamic Range: β₯84 dB
- Acquisition Method: Wireless
Package and Environmental Specifications
- Package Dimensions: 460Γ460Γ14.8 mm
- Weight: 4 kg
- Storage Temperature: -10~50Β°C
- Humidity: 30-70% RH (non-condensing)
Why Choose GoldHealth Medical?
- Innovative R&D: Backed by strong research and development capabilities with support from local university laboratories, ensuring rapid adaptation to market demands.
- Commitment to Quality: Rigorous quality control processes include pre-production samples and final inspections before shipment.
- Specialized Expertise: Focused exclusively on medical equipment, particularly for veterinary applications, ensuring deep industry knowledge and tailored solutions.
- Global Reach: Trusted by clients across Western Europe, North America, South America, and beyond, reflecting our international standards and reliability.
GoldHealth Medical is dedicated to advancing veterinary care through innovative imaging solutions. Our products are designed to meet the highest standards of quality and performance, empowering healthcare professionals worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Revolutionizing Imaging with Precision and Reliability
-
Product Overview:
Elevate your diagnostic capabilities with GoldHealth Medical's cutting-edge Wireless X-Ray Flat Panel Detector. Designed for unparalleled performance, this Class II medical instrument combines advanced imaging technology with robust engineering to deliver exceptional clarity and reliability in diverse healthcare environments. -
Key Features and Specifications:
- Material: Durable metal construction ensures longevity and resilience in demanding settings.
- Receptor Type: High-sensitivity a-Si technology for superior image capture.
- Scintillator Options: Choose between GOS or CsI:TI for optimal imaging performance tailored to your needs.
- Active Area: Generous 430 x 430 mm detection area for comprehensive coverage.
- Resolution: Impressive 3072 x 3072 resolution for razor-sharp imaging.
- Pixel Pitch: Precise 139 ΞΌm pixel pitch for detailed visualization.
- A/D Conversion: Advanced 16-bit conversion for enhanced image depth and accuracy.
- Limiting Resolution: Achieves 3.5 LP/mm for superior diagnostic precision.
- Energy Range: Versatile 40-160 kV compatibility to meet varied imaging requirements.
- Dynamic Range: β₯84 dB for exceptional contrast and clarity.
-
Acquire Time: Rapid wireless data transfer ensures efficient workflow.
-
Quality Assurance:
-
Backed by GoldHealth Medicalβs commitment to excellence, this detector is CE-certified, guaranteeing compliance with international safety and quality standards.
-
Warranty and Support:
- Comprehensive 1-year warranty for peace of mind.
-
Access to online technical support, ensuring seamless operation and troubleshooting assistance.
-
Packaging and Delivery:
- Compact and secure packaging (43 x 43 x 15 cm) with a gross weight of 4.000 kg per unit.
-
Ships from Guangzhou, ensuring timely delivery to your facility.
-
Supply Capability:
- GoldHealth Medical boasts a robust production capacity of 1000 sets per month, ensuring consistent availability to meet your demands.
Experience the future of medical imaging with GoldHealth Medicalβs Wireless X-Ray Flat Panel Detector β where precision meets innovation.
