LTSI09 Clinical Syringe Pump
Reference: 1601370955835
Emergency & Clinics Apparatuses
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

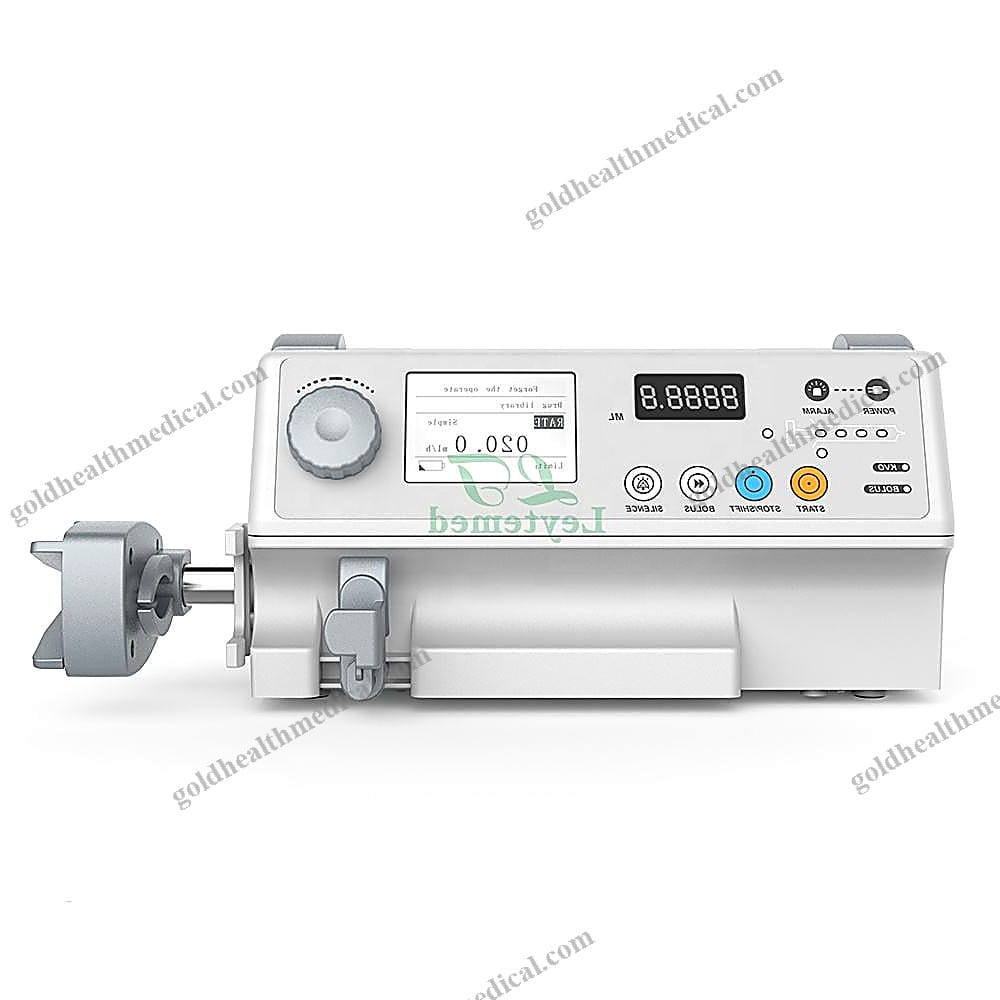

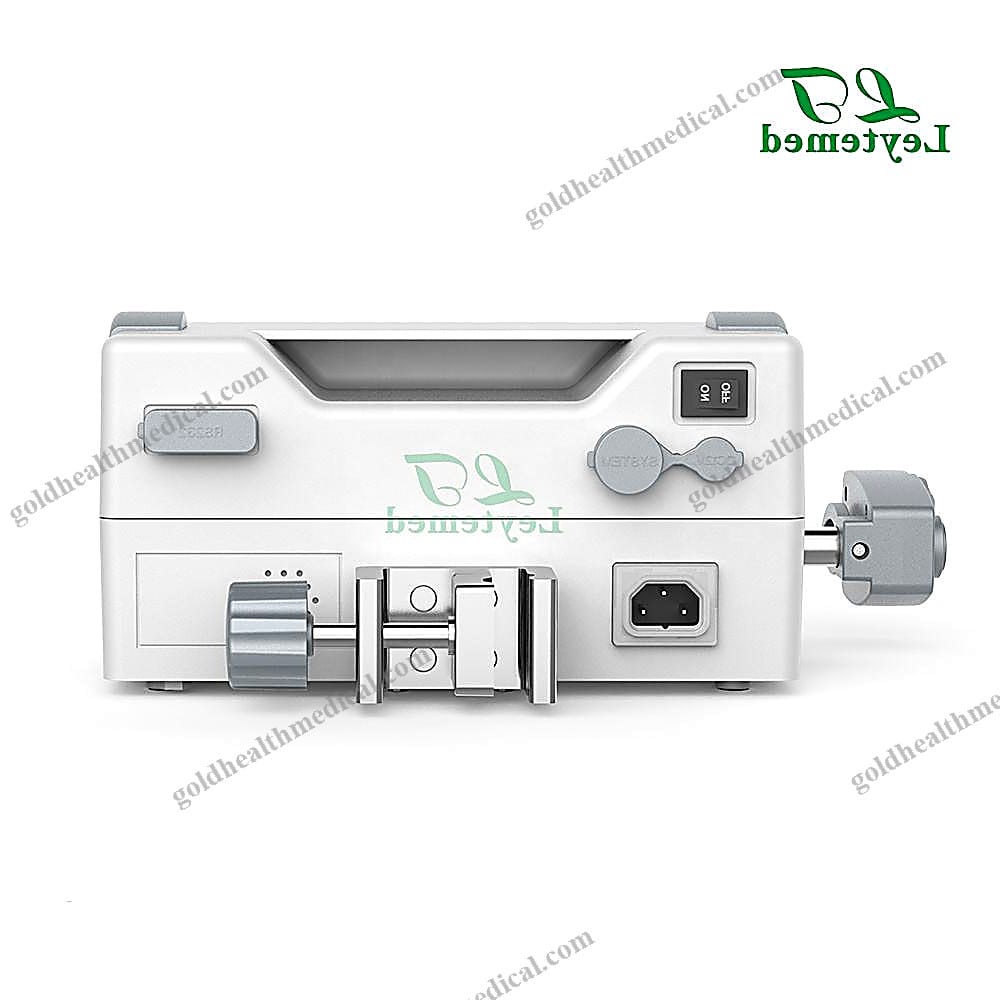

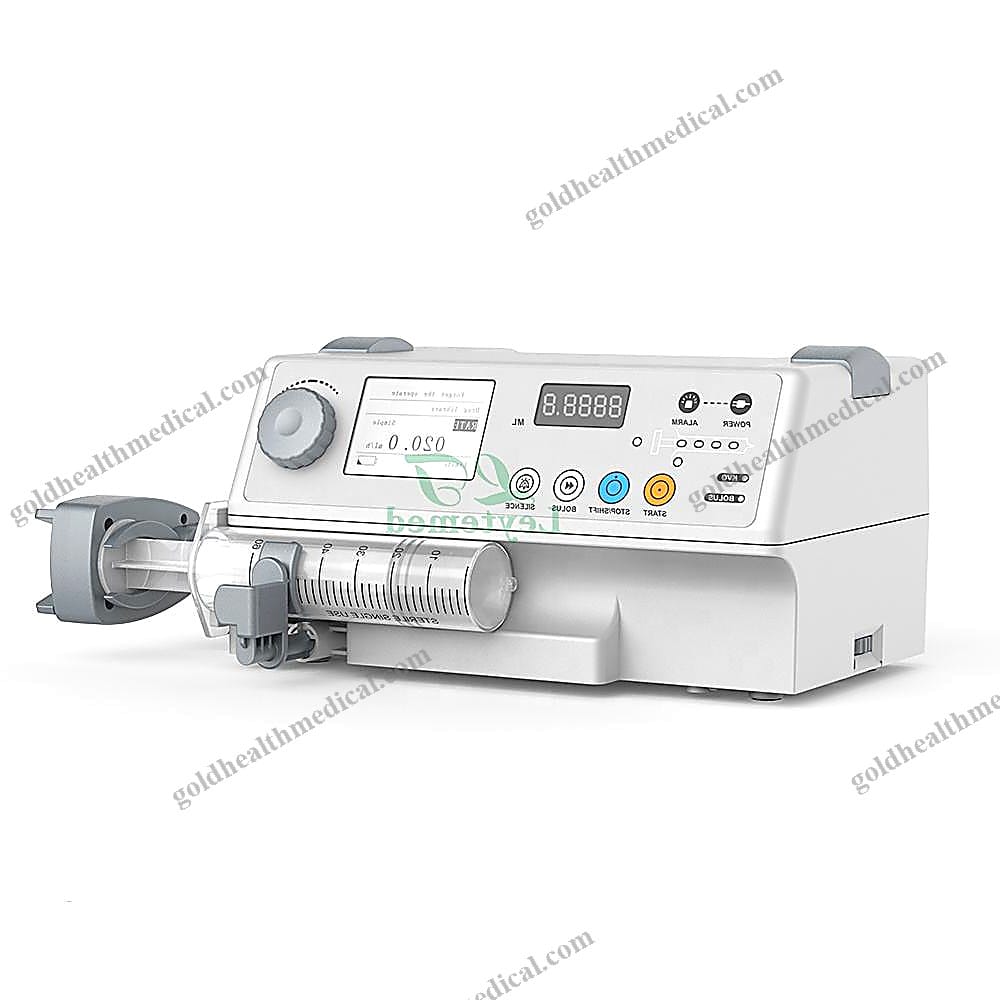

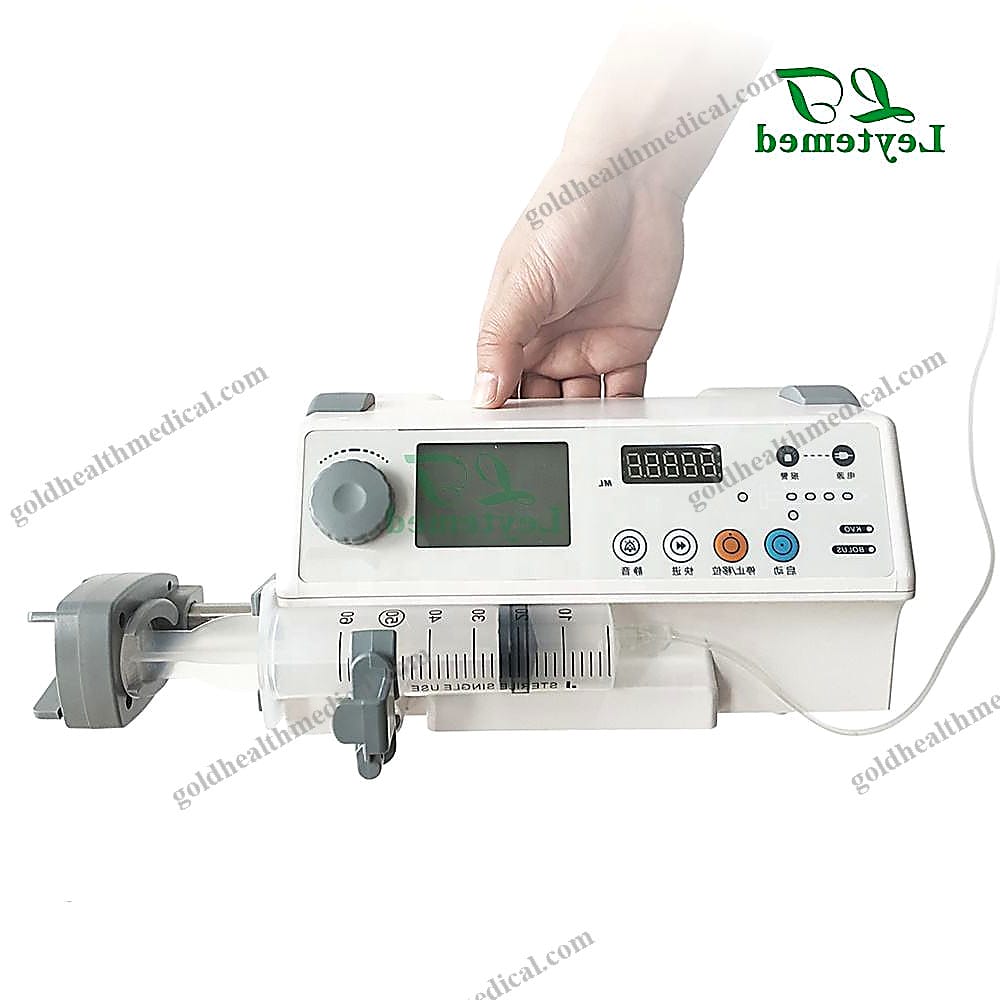

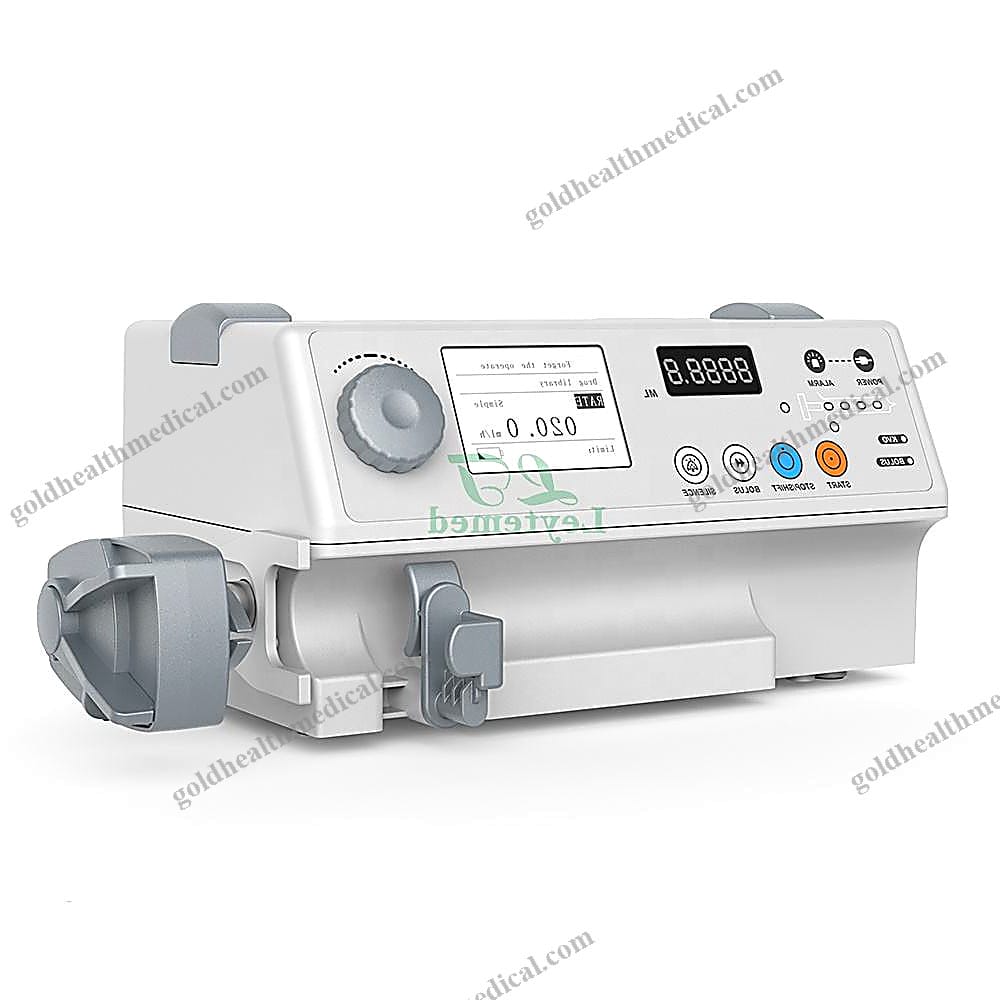

GoldHealth Medical Syringe Pump: Revolutionizing Precision and Reliability in Infusion Therapy
The GoldHealth Medical Syringe Pump is a groundbreaking innovation designed to meet the diverse needs of modern healthcare environments. Engineered with precision and versatility in mind, this stackable syringe pump delivers exceptional performance, making it an indispensable tool for clinical applications.
Key Features and Functions

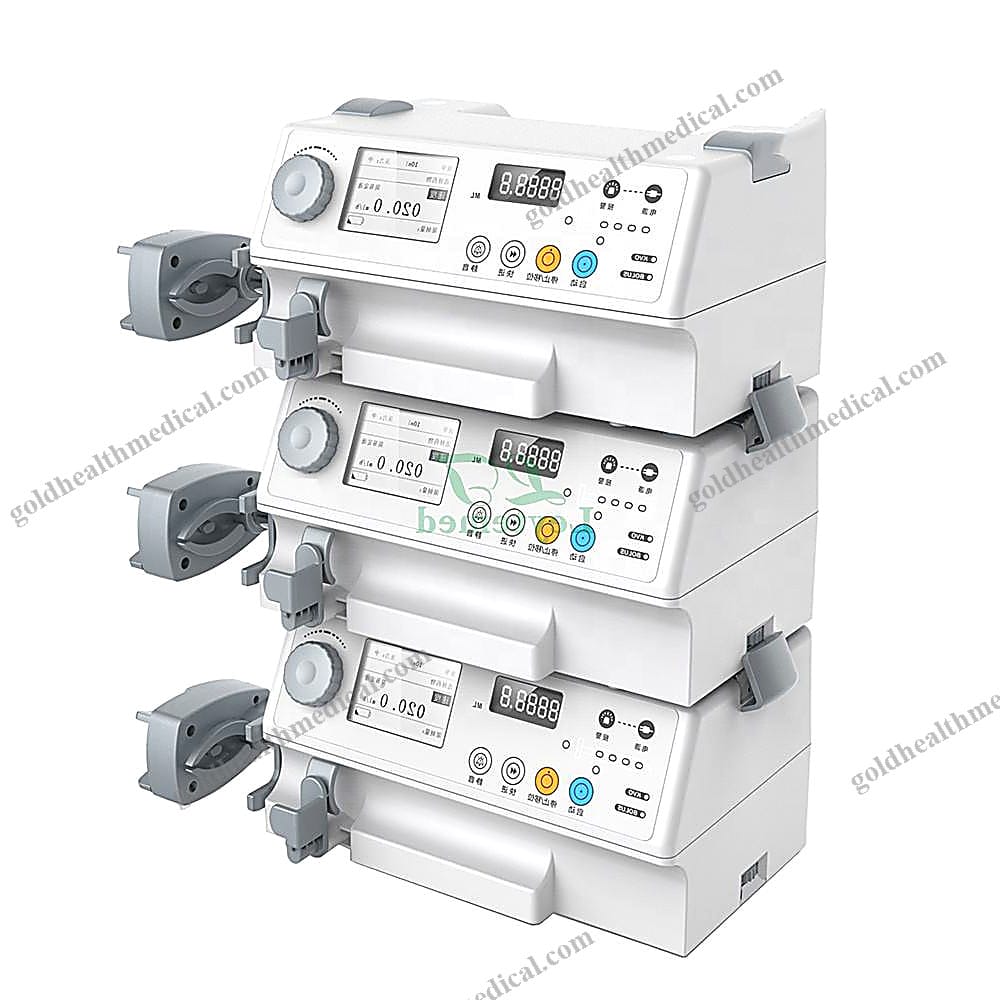

- Freely Stackable Design: Seamlessly stack up to 8 pumps for multi-channel infusion solutions, offering unmatched flexibility in clinical settings.
- Intelligent Nurse-Call Integration: Enables real-time communication between the nurse-call system and the pumps, ensuring timely alerts and streamlined workflows.
- Three Advanced Working Modes:
- Rate Mode
- Time-Volume Mode
- Dosage-Weight Mode
- Unique Voice Alarm System: Automatically triggers voice prompts and halts infusion during malfunctions, enhancing safety and reliability.
- Universal Syringe Compatibility: Automatically calibrates and supports multiple syringe brands, ensuring precise and consistent performance.
- Large LCD Display: Provides clear visibility of operational status, ensuring ease of monitoring.
- KVO and Bolus Functions: Delivers continuous low-flow infusion and rapid medication delivery when required.
Technical Specifications
- Flow Rate:
- 50ml syringe: 0.1~1500ml/h
- 30ml syringe: 0.1~900.0ml/h
- 20ml syringe: 0.1~600.0ml/h
- 10ml syringe: 0.1~300.0ml/h
- Limiting Volume Range: 0~999.9ml
- Injected Volume Range: 0~9999.9ml
- Flow Rate Accuracy: Within ±3% (excluding syringe-specific errors)
- Purge Rate:
- 50ml syringe: 1500ml/h
- 30ml syringe: 900.0ml/h
- 20ml syringe: 600.0ml/h
- 10ml syringe: 300.0ml/h
- Alarm and Warnings: Alerts for injection completion, blockage, syringe dislodgement, improper installation, setting errors, power disconnection, and low battery.
- Occlusion Alarm Pressure: Adjustable to High, Medium, or Low settings based on clinical requirements.
- KVO Rate: 1ml/h
- Fuse Specification: F1AL/250V, dual fuses (internally installed)
- Operating Power:
- AC100~240.0V, 50/60Hz, ≤30VA
- Internal Rechargeable Battery: DC 11.1V, ≥1600mAh, supports over 4 hours of operation at medium speed after a 10-hour charge.
- Operating Environment:
- Temperature: +5~+40°C
- Relative Humidity: 20~90%
- Storage Environment:
- Temperature: -30°C~+55°C
- Relative Humidity: ≤95% (non-condensing)
- Atmospheric Pressure: 860hPa~1060hPa
- Safety Level: Class II with insulated enclosure, internal power supply, BF-type equipment for continuous normal operation.
- IP Grade: IPX1
- Dimensions: 280(L)×210(W)×130(H) mm
- Weight: 2.2kg
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical solutions that prioritize safety, precision, and user experience. Our syringe pump stands out with its innovative stackable design, universal compatibility, and advanced safety features, ensuring optimal performance in hospitals, clinics, research labs, and home care environments.
With a focus on quality and reliability, GoldHealth Medical is your trusted partner in advancing healthcare delivery.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Product Overview:
The GoldHealth Medical Infusion Pump is a state-of-the-art device designed to deliver precision, reliability, and versatility in medical fluid delivery. Engineered for both clinical and home care environments, this infusion pump ensures exceptional accuracy and ease of use, making it an indispensable tool for healthcare professionals.
Key Features:
- Large LCD Display: Clear and intuitive interface for effortless monitoring and operation.
- Advanced Flow Control: Ensures infusion accuracy within ±5%, with a flow rate range of 0.1ml/hr to 1200ml/hr.
- High Precision Delivery: Accuracy of flow rate within ±3%, guaranteeing consistent and reliable performance.
- Multiple Working Modes: Supports rate mode, time-volume mode, and dosage-weight mode for tailored treatment plans.
- KVO and Bolus Functions: Includes a Keep Vein Open (KVO) rate of 1ml/h and bolus functionality for enhanced patient safety.
- Volume Limit (VTBI): Configurable from 0 to 999.9ml, with an injected volume capacity of up to 9999.9ml.
Technical Specifications:
- Power Source: Electric
- Shelf Life: 1 year
- Quality Certification: CE
Packaging Details:
- Selling Units: Single item
- Package Dimensions: 35 x 29 x 19 cm
- Gross Weight: 4.000 kg
Warranty & Support:
- Warranty Period: 1 year
- After-Sale Service: Comprehensive online technical support to ensure seamless operation and troubleshooting.
Unique Selling Points:
- Combines cutting-edge technology with user-centric design for unparalleled performance.
- Suitable for a wide range of applications, including hospitals, clinics, research labs, and home healthcare.
- Delivers unmatched precision and adaptability, empowering healthcare providers to administer treatments with confidence.
Place of Origin: Guangdong, China
Experience the future of infusion technology with GoldHealth Medical – where innovation meets reliability.
