LTSD13 Portable AED Automatic External Defibrillator
Reference: 1601359403308
Emergency Medical Supplies & Training
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

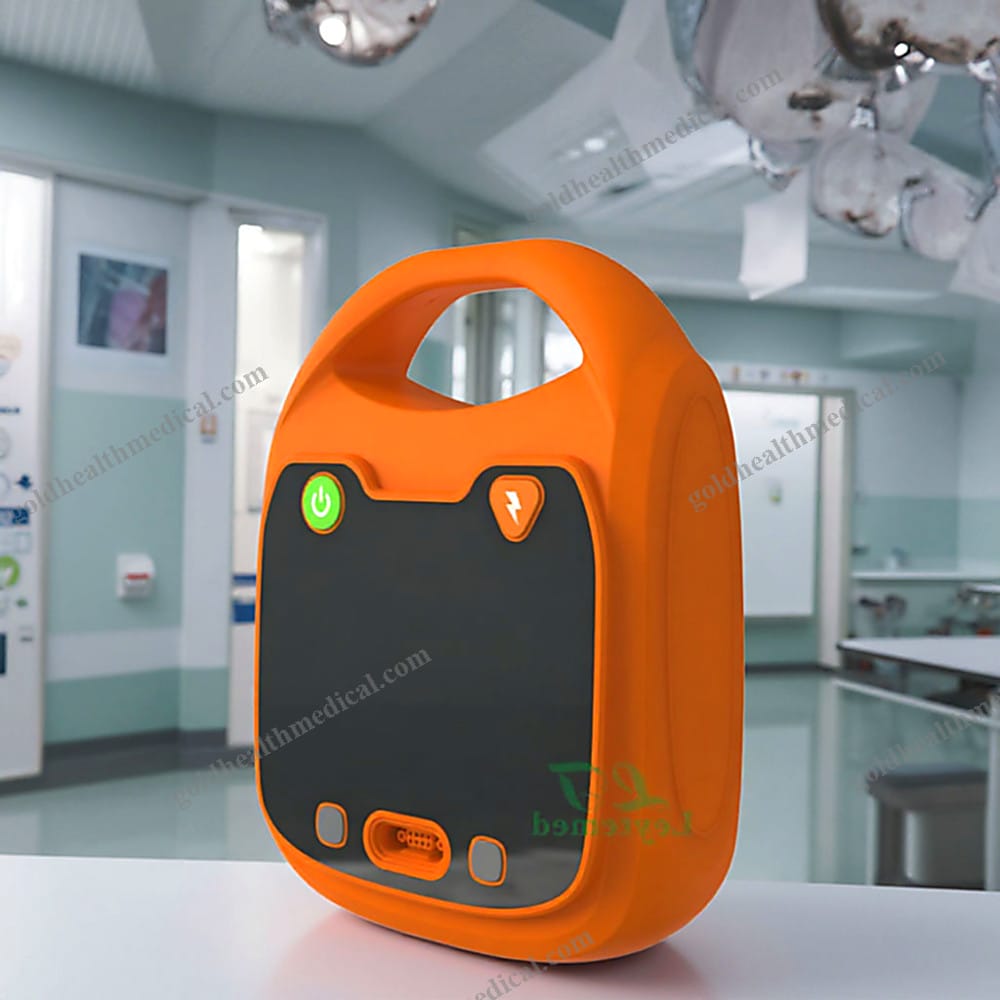

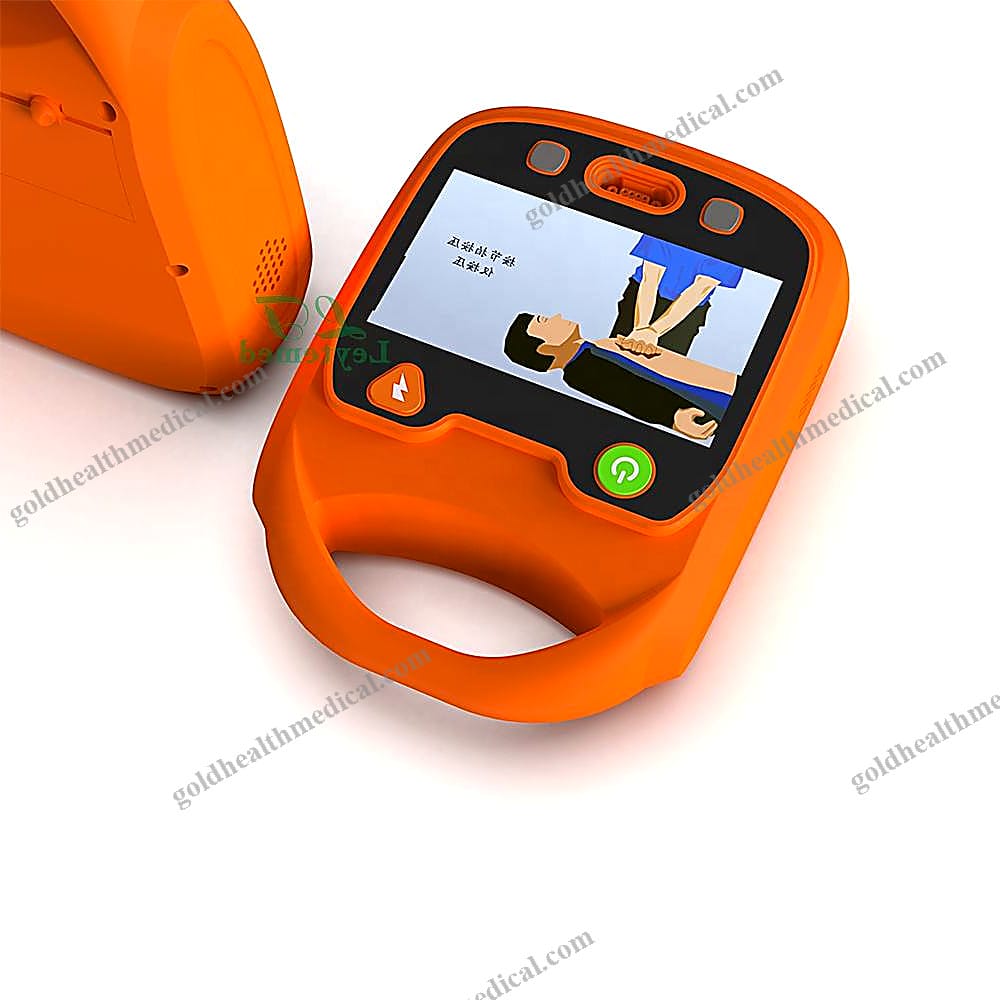

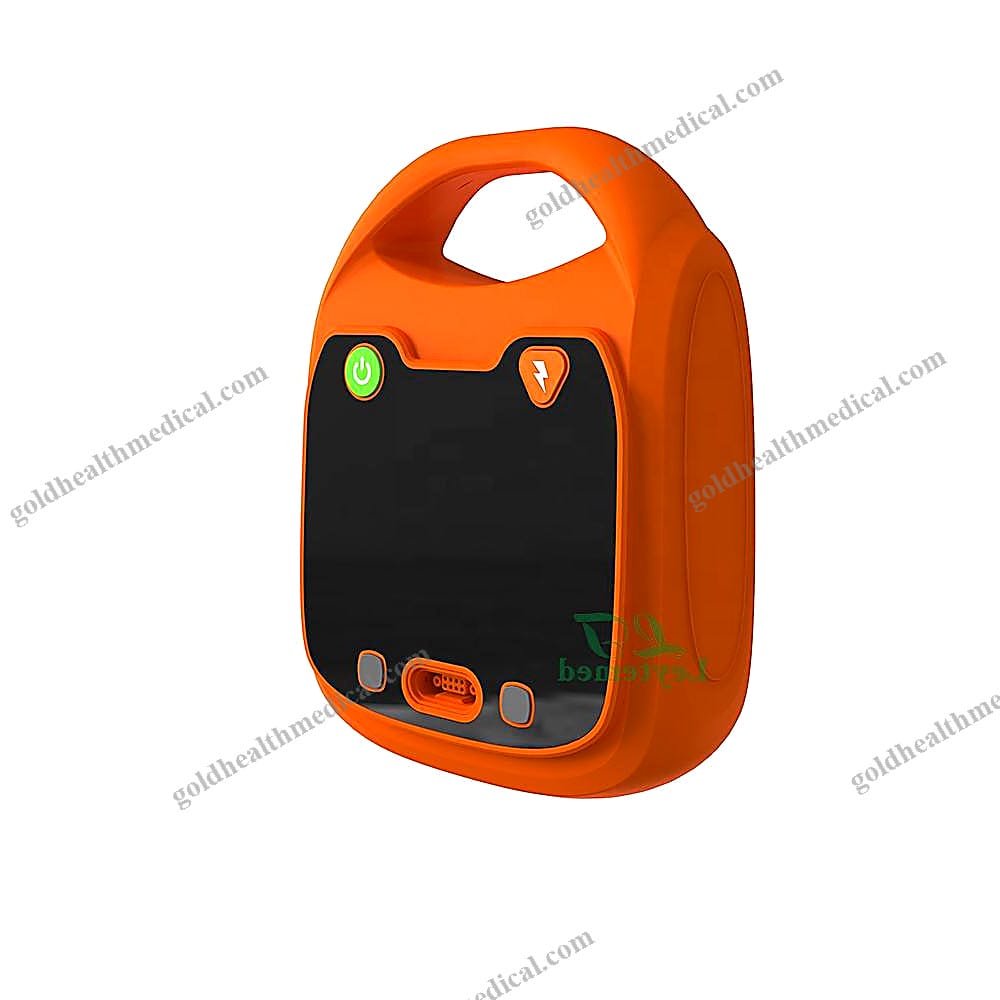

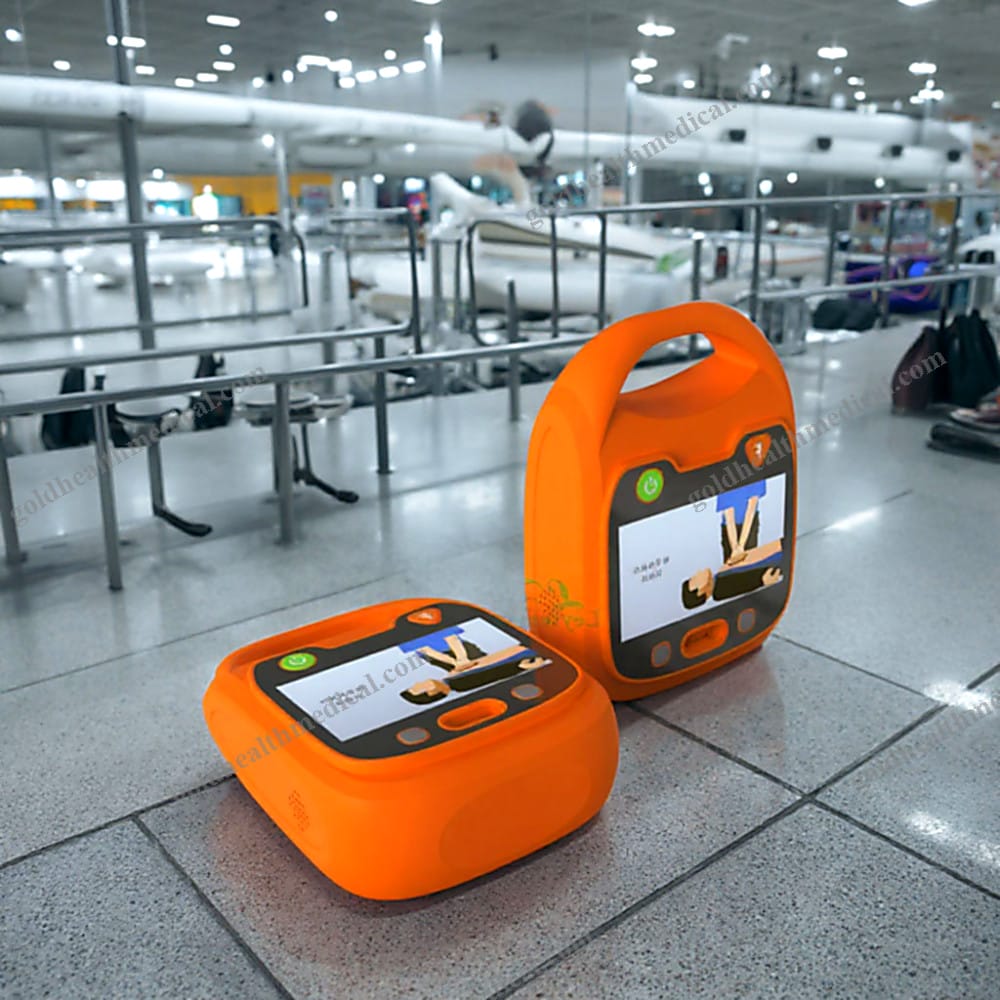

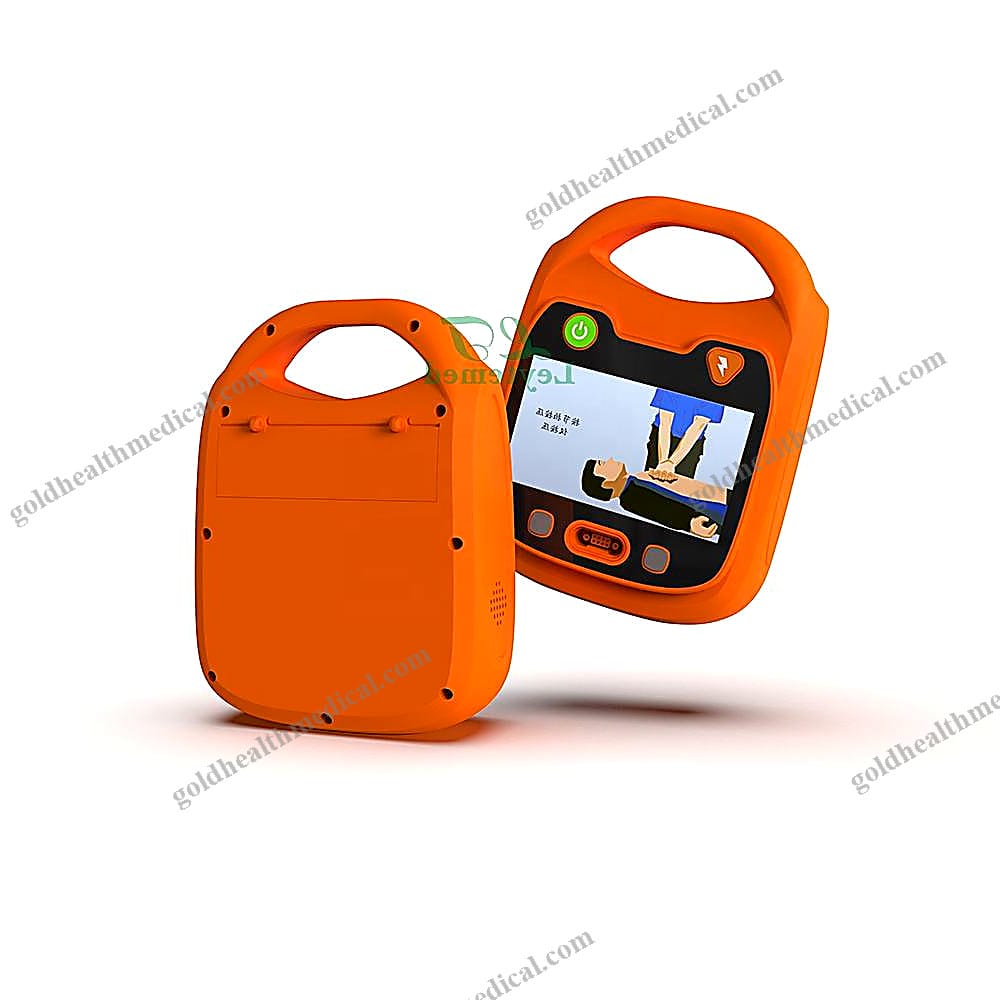

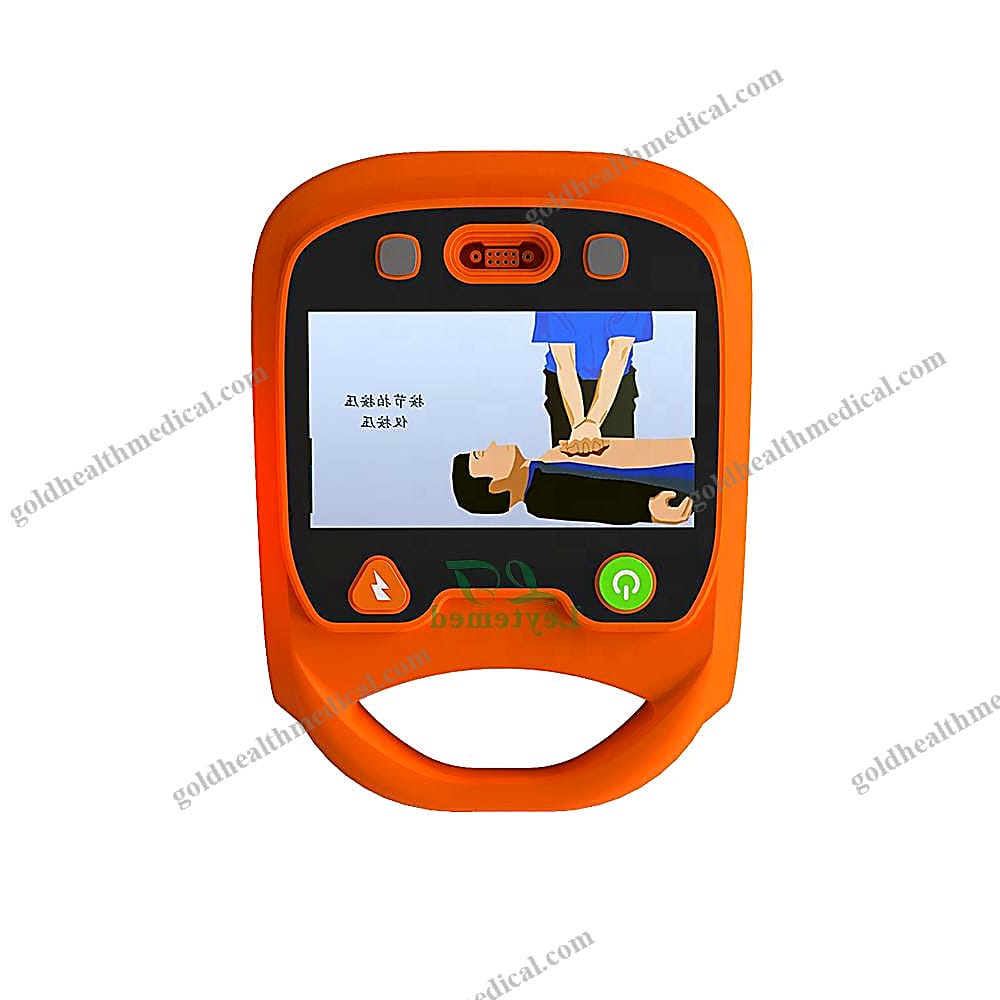

GoldHealth Medical Automatic External Defibrillator
Revolutionary Design for Life-Saving Precision
GoldHealth Medical presents an advanced Automatic External Defibrillator (AED), meticulously engineered for portability, ease of use, and exceptional reliability. Designed for both professional and lay rescuers, this AED is a critical tool in emergency cardiac care, ensuring rapid response and optimal outcomes.
Key Features and Technical Specifications
- Output Technology: Biphasic Truncated Exponential waveform for efficient defibrillation.
- Energy Sequence: Delivers 150J, 150J, and 200J in sequence to adapt to patient needs.
- Charge Time:
- 8 seconds to reach 150J with a new battery.
- 10 seconds to reach 200J with a new battery.
- Analysis Time: Completes rhythm analysis in just 9 seconds.
- Rapid Response Times:
- Less than 20 seconds from rhythm analysis initiation to discharge readiness with a new battery.
- Less than 25 seconds after delivering 6 shocks.
- Less than 30 seconds from power-on to discharge readiness.
- Guidance System:
- 22 clear audible prompts to guide users through the process.
- LED visual prompts for intuitive operation.
- Self-Testing: Automatic self-test functionality ensures the device is always ready for use.
- User Controls: Simplified interface with only two buttons—On/Off and Shock.
- Energy Accuracy: ±15% across impedances from 25 to 175Ω.
- Maximum Voltage: 1200±50V, with automatic output disabling for out-of-range patient impedance.
- Battery Performance:
- Non-rechargeable CR123A-4x2 battery with a capacity of 2.8 Ah.
- Delivers up to 100 discharges at 200J or 120 discharges at 150J.
- 7-year standby life after installation.
- Compact and Lightweight:
- Dimensions: 280 x 209 x 80 mm.
- Weight: Just 2.5 kg for effortless portability.
- Environmental Tolerance:
- Operating Temperature: 0°C to 40°C.
- Operating Humidity: 30% to 95% (non-condensing).
- Storage Temperature: -20°C to 55°C (without battery).
- Storage Humidity: Up to 93% (non-condensing).
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical solutions designed to save lives. Our AED stands out with its:
- Unmatched Speed: Rapid analysis and charge times ensure critical interventions happen without delay.
- User-Centric Design: Intuitive controls and clear guidance make it accessible for all users, regardless of experience.
- Reliability: Rigorous testing and durable components guarantee consistent performance in any environment.
- Portability: Lightweight and compact, it’s perfect for hospitals, clinics, ambulances, and even home use.
Related Products
- Portable ECG Device: A 12-lead, 3-channel electrocardiogram with a 7-inch touch screen for precise diagnostics.
- AED Training Unit: A first-aid training device for practicing emergency response scenarios.
- Medical LED Surgical Lights: Ceiling-mounted shadowless lamps for optimal visibility during procedures.
GoldHealth Medical is your trusted partner in advancing healthcare solutions. With a focus on innovation, quality, and customer satisfaction, we empower healthcare providers worldwide to deliver exceptional care.
Choose GoldHealth Medical for equipment that meets the highest standards of performance and reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Product Category: First-Aid Devices
Product Overview
GoldHealth Medical presents a state-of-the-art first-aid device designed to deliver unparalleled performance and reliability in critical situations. Engineered with precision, this device is ideal for hospitals, clinics, research institutions, and home users seeking advanced life-saving technology. Its user-friendly interface, combined with cutting-edge features, ensures swift and accurate responses during emergencies.
Key Features
- Output Technology: Biphasic Truncated Exponential Waveform for optimal energy delivery
- Energy Sequence: 150J, 150J, 200J – tailored for effective defibrillation
- Analysis Time: Rapid 9-second analysis for time-sensitive scenarios
- Audible Prompts: 22 clear and intuitive voice instructions to guide users step-by-step
- Visual Prompts: LED indicators for enhanced clarity and ease of use
- Automatic Self-Test: Ensures the device is always ready for action with minimal maintenance
Technical Specifications
- Power Source: Electricity
- Output Energy Accuracy: ±15% across impedances ranging from 25 to 175Ω
- Maximum Voltage: 1200±50V for consistent and reliable performance
- Controls: Simplified two-button operation – On/Off and Shock – designed for ease of use under pressure
Packaging Details
- Package Dimensions: 40 x 30 x 18 cm
- Gross Weight: 3.500 kg
- Minimum Order Quantity (MOQ): 1 Set
After-Sale Support
- Warranty: Comprehensive 1-year warranty for peace of mind
- Service: Access to online technical support for seamless assistance
GoldHealth Medical’s first-aid device combines innovation, precision, and reliability to empower healthcare professionals and caregivers. Designed to meet the demands of modern medical environments, this device is your trusted companion in saving lives.
