HE12D Portable 12Channel Digital ECG Machine
Reference: 1600251394485
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

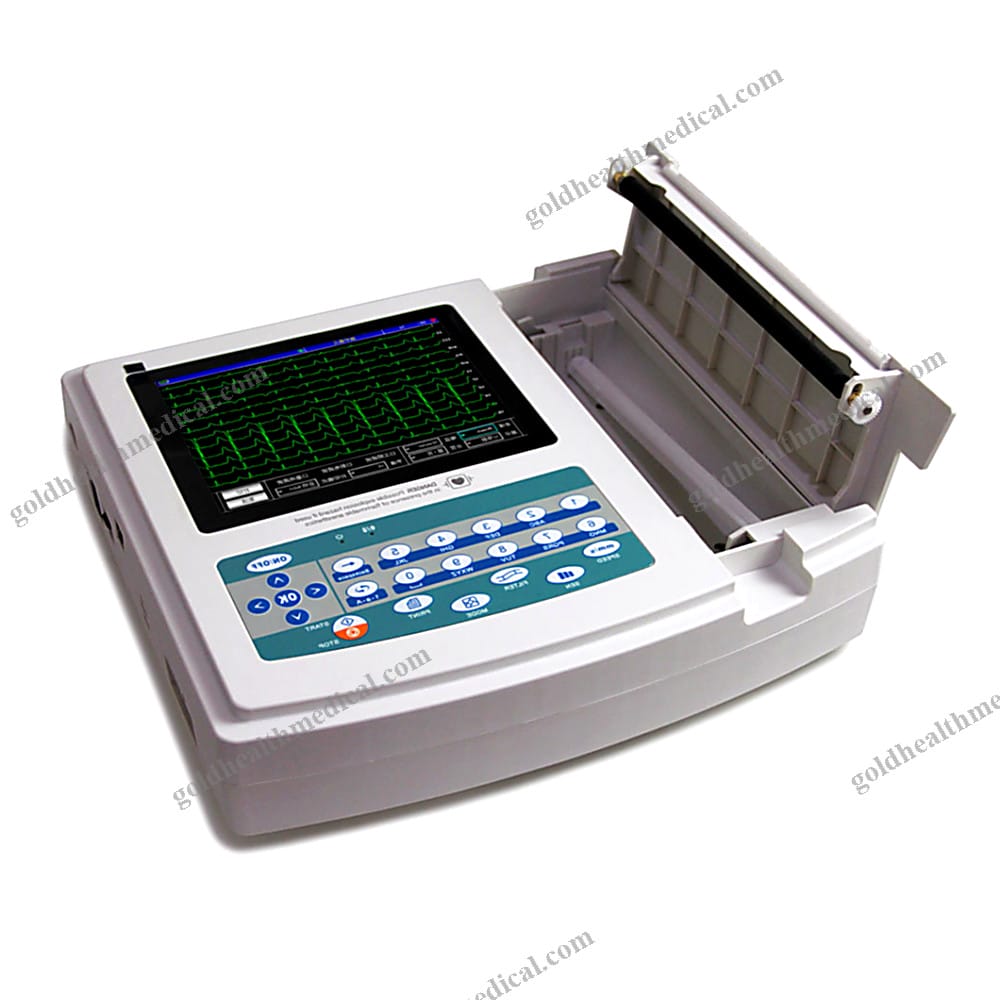

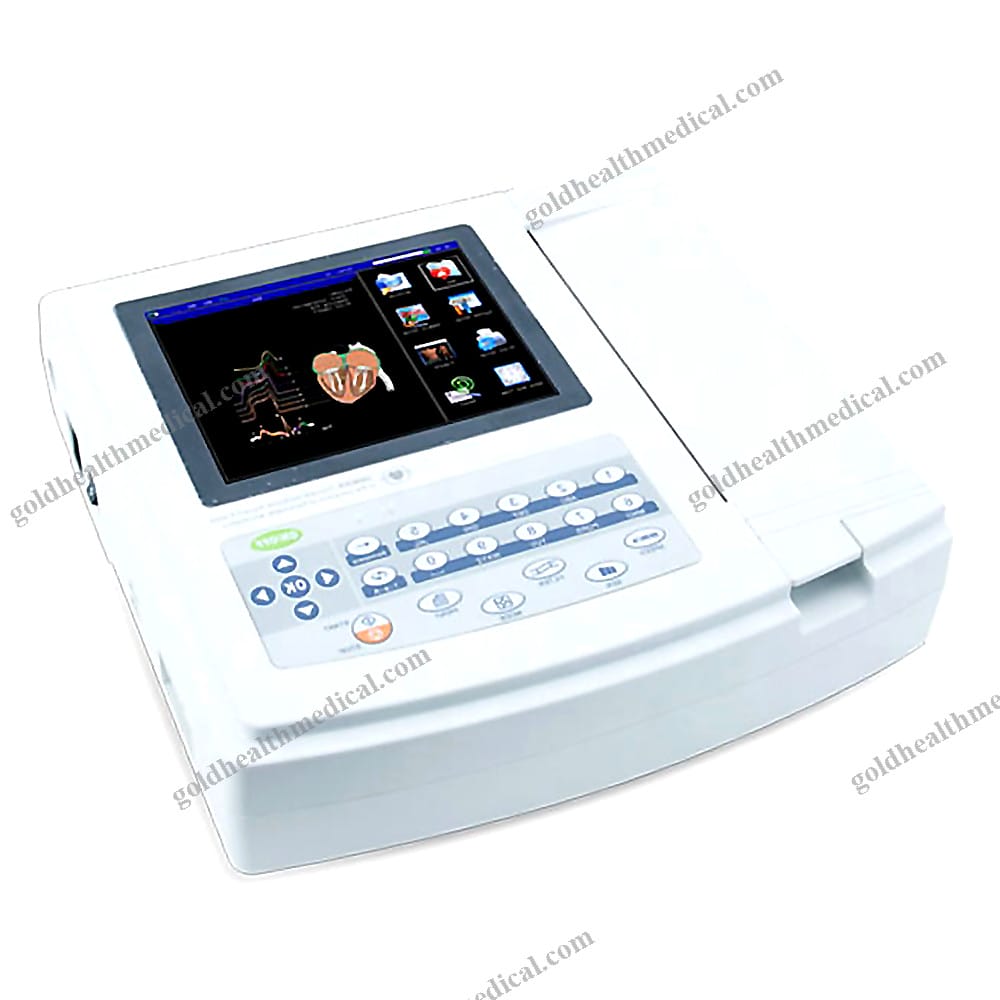

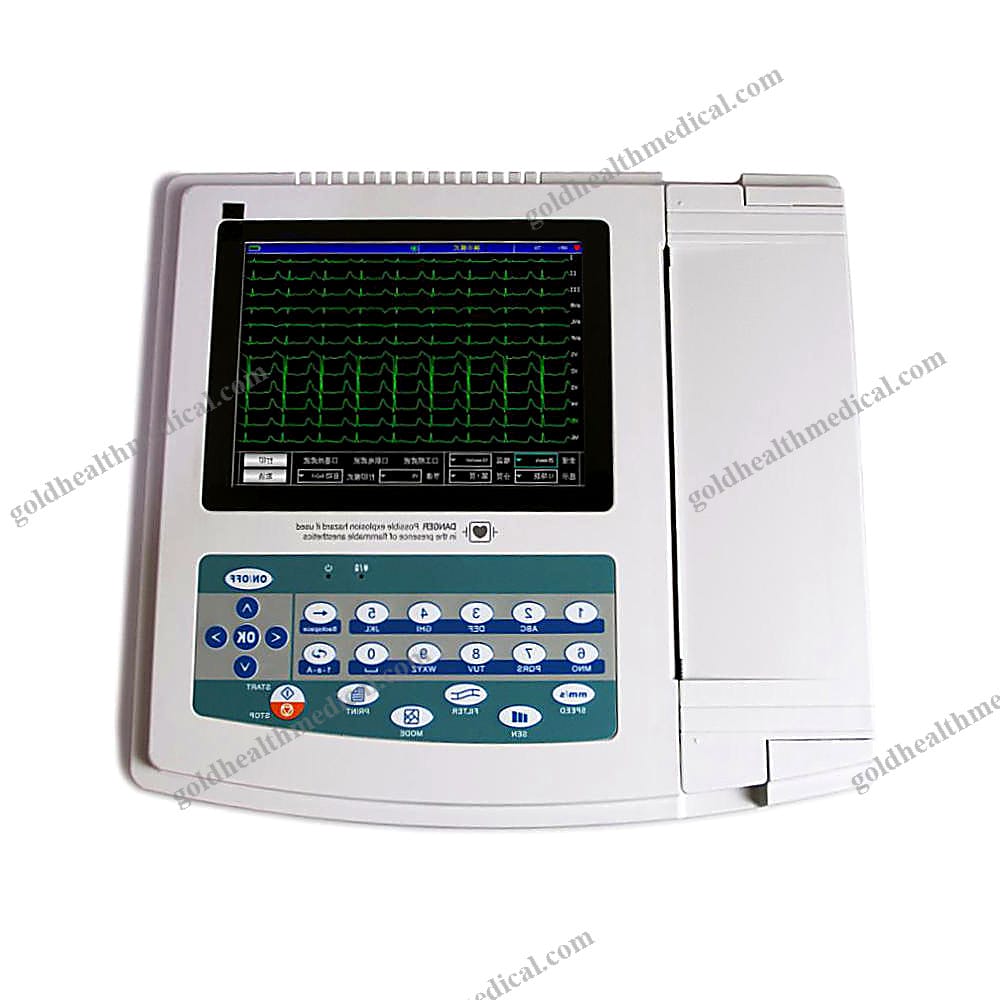

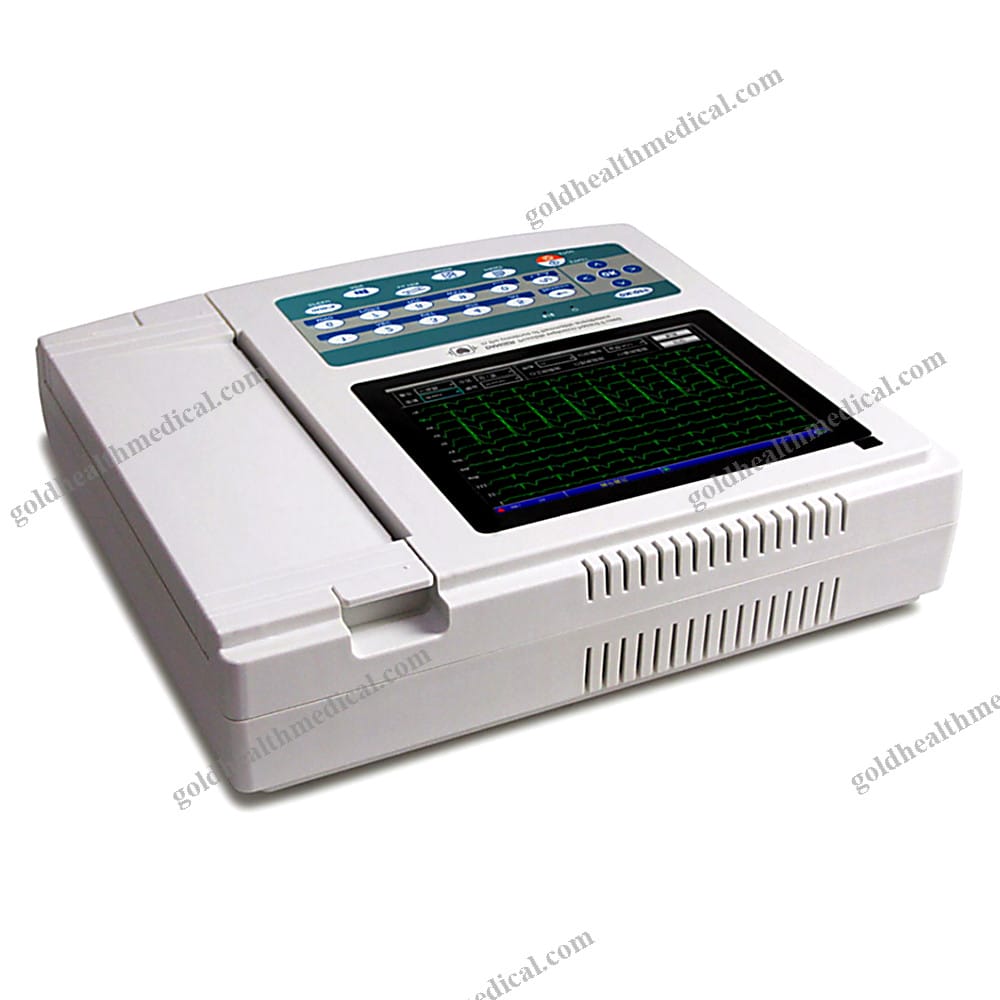

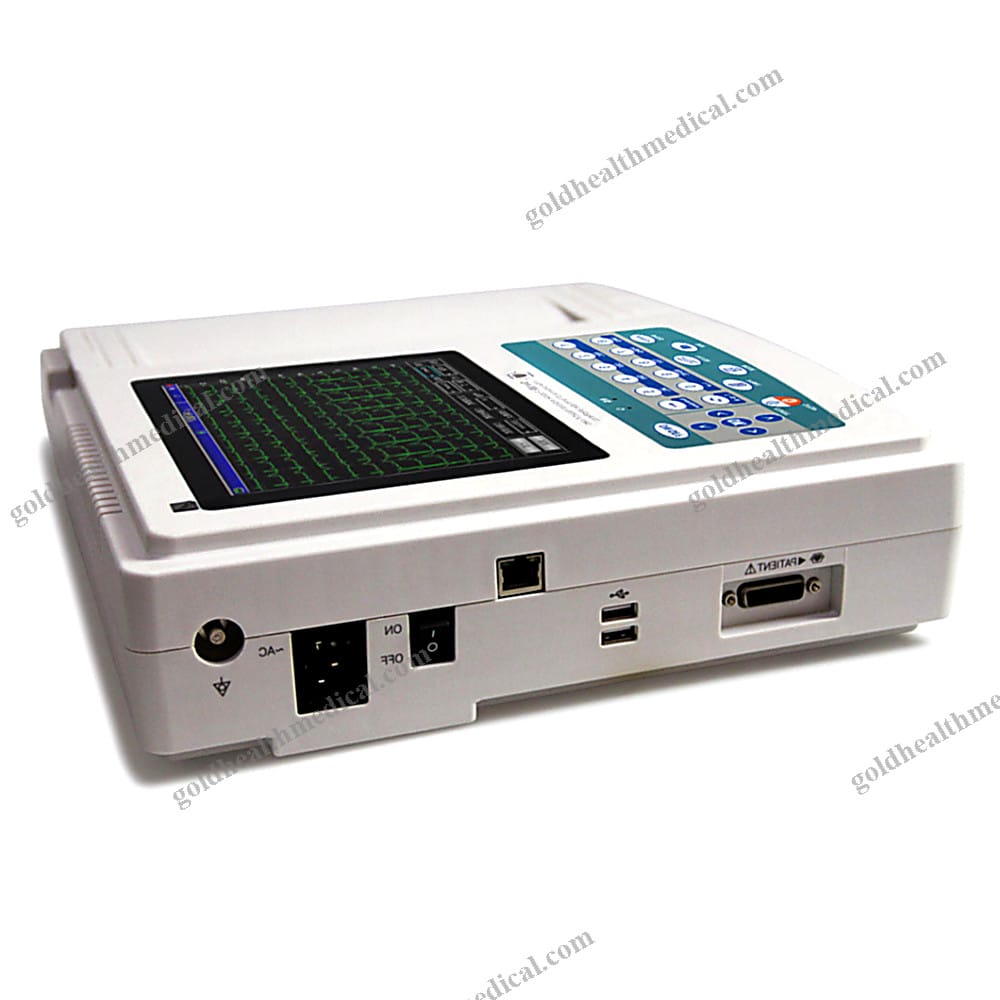

GoldHealth Medical Portable 12-Channel Digital ECG Machine
Revolutionary Precision and Portability for Enhanced Cardiac Diagnostics
GoldHealth Medical proudly presents a cutting-edge 12-channel digital ECG machine designed to elevate cardiac diagnostics with unparalleled precision and ease of use. This advanced device simultaneously captures 12-lead ECG signals and utilizes a thermal printing system to deliver clear, accurate ECG waveforms. Engineered for both clinical and mobile environments, it is the ideal solution for healthcare professionals seeking efficiency and reliability.
Key Features
- 8" TFT Color LCD Display: Provides real-time visualization of ECG waveforms and operational status, allowing users to verify waveforms before printing to conserve paper.
- Simultaneous 12-Lead Signal Acquisition: Employs advanced digital signal processing with AC, DFT, and EMG filtering to produce high-quality ECG waveforms.
- Flexible Display Options: Supports simultaneous viewing of 3, 6, or 12-lead ECG waveforms, along with settings like print mode, sensitivity, speed, and filters for enhanced diagnostic accuracy.
- Versatile Printing Modes: Offers multiple formats, including 12x1, 6x2+1 (rhythm lead), 6x2, rhythm 12, rhythm 10, and more. Adjustable waveform length and periodic printing functionality cater to diverse clinical needs.
- Automated Analysis and Diagnosis: Delivers precise measurements of key parameters such as heart rate (HR), P-R interval, QRS duration, QT interval, and axis orientations. Auto-diagnosis conclusions reduce clinician workload.
- Dual Power Supply: Operates on AC power or a built-in rechargeable lithium polymer battery, offering up to 10 hours of standby time and the ability to print 300 ECG waveforms on a single charge.
- Mass Storage Capability: Equipped with an internal memory system capable of storing over 1000 cases, facilitating efficient case review and data management.
- Multilingual Interface: Supports multiple languages, including Chinese, English, Spanish, Turkish, German, Portuguese, Kazakh, and Russian, ensuring global usability.
- Customizable Print Speeds: Offers speeds of 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, and 50mm/s with ±5% accuracy, along with summary graph printing for concise reporting.
Technical Specifications
- Input Method: Floating design with defibrillation protection.
- Sampling Precision: 12-bit resolution.
- Leads: Standard 12-lead configuration.
- Patient Leak Current: <10μA.
- Input Impedance: ≥50MΩ.
- Frequency Response: 0.05Hz to 150Hz (-3dB to +0.4dB).
- Time Constant: ≥3.2 seconds.
- Common Mode Rejection Ratio (CMRR): >60dB, >100dB with filter.
- EMG Filter: 25Hz/35Hz (-3dB).
- AC Filter: 50Hz/60Hz (≥20dB).
- Recording System: High-speed thermal printing.
- Recording Paper: 210mm (W) x 20m (L).
- Paper Speeds: Auto, rhythm, and manual modes with speeds ranging from 5mm/s to 50mm/s (±5% accuracy).
- Sensitivity Options: 2.5, 5, 10, 20, 40mm/mV (±5% accuracy).
- Measurement Parameters: HR, P-R interval, QRS duration, QT interval, axis orientations, and more.
- Safety Classification: Class I CF applied part with defibrillation and pacing protection.
- Noise Level: ≤15μVp-p.
- Dimensions: 340mm (L) x 320mm (W) x 85mm (H).
- Weight: 3.2kg.
What Sets Us Apart
GoldHealth Medical’s ECG machine combines portability, precision, and versatility to meet the demands of modern healthcare. Its intuitive design, advanced signal processing, and robust storage capabilities make it an indispensable tool for hospitals, clinics, and mobile healthcare providers. Whether used for routine diagnostics or intensive care, this device ensures reliable performance and exceptional clarity in every waveform.

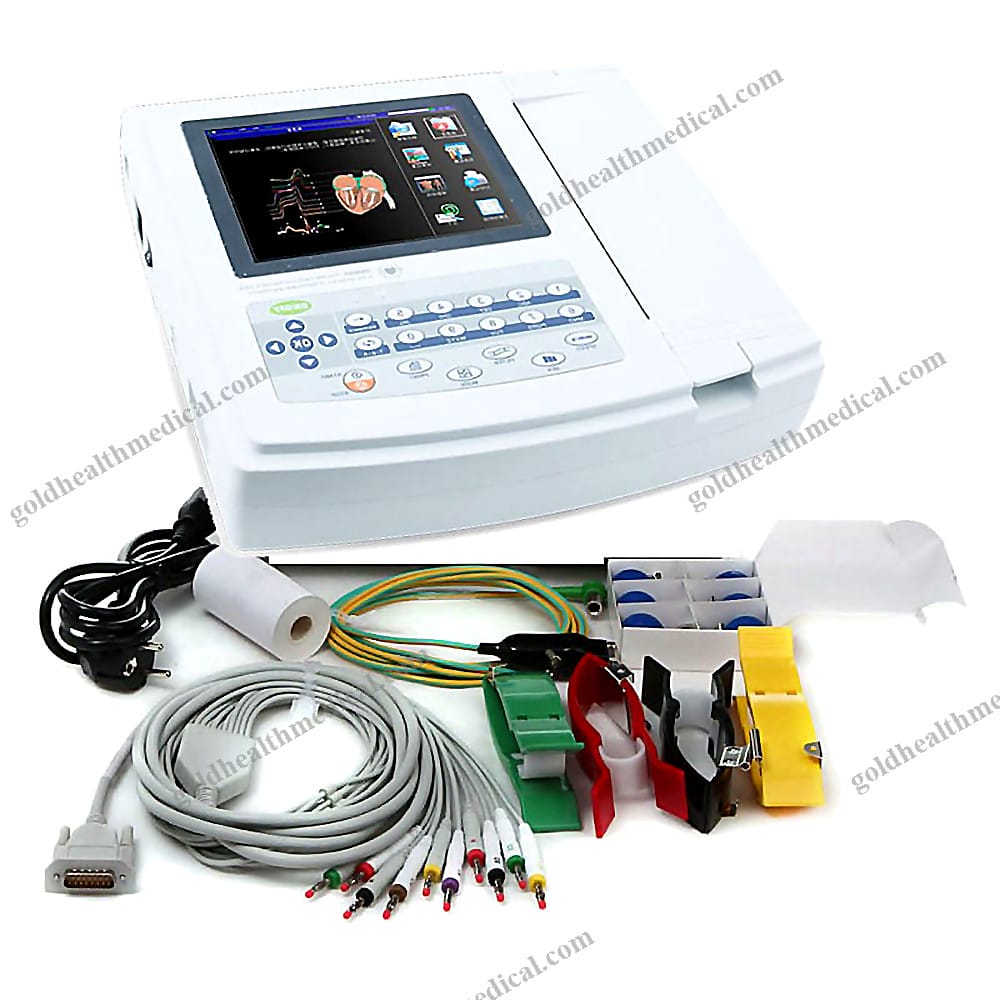

Accessories Included
- ECG lead wire set
- Limb electrode clamp set
- Chest electrode set
- Power cord
- Ground wire
- Thermal recording paper
- User manual
GoldHealth Medical is committed to delivering innovative solutions
