CHINCAN LS100HD Digital Autoclave Steril

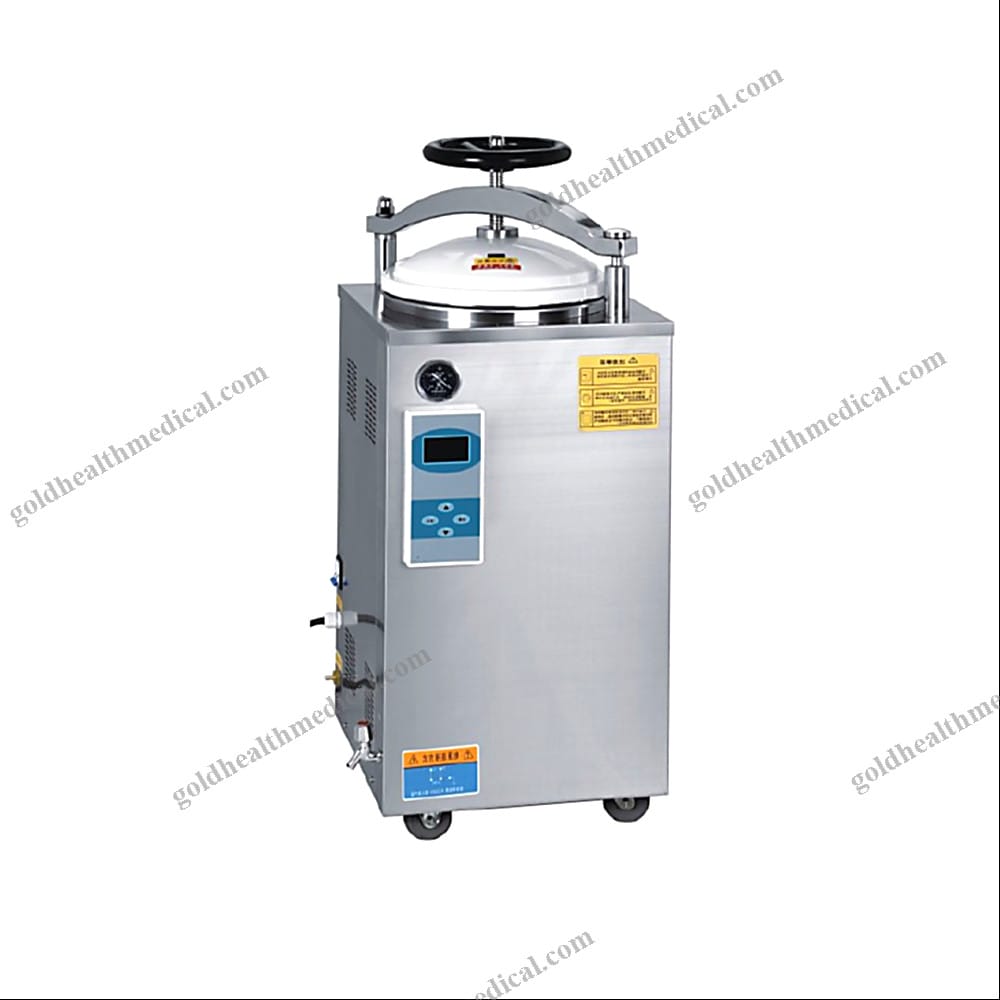

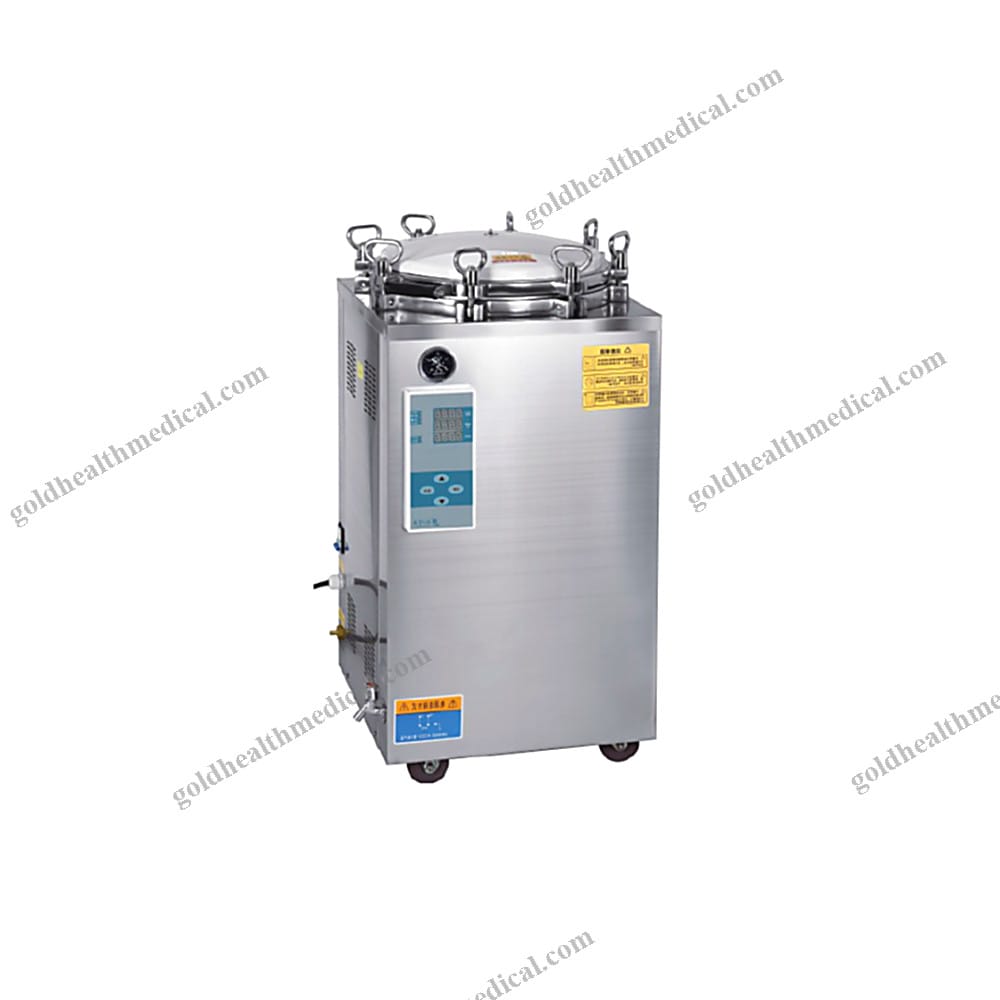

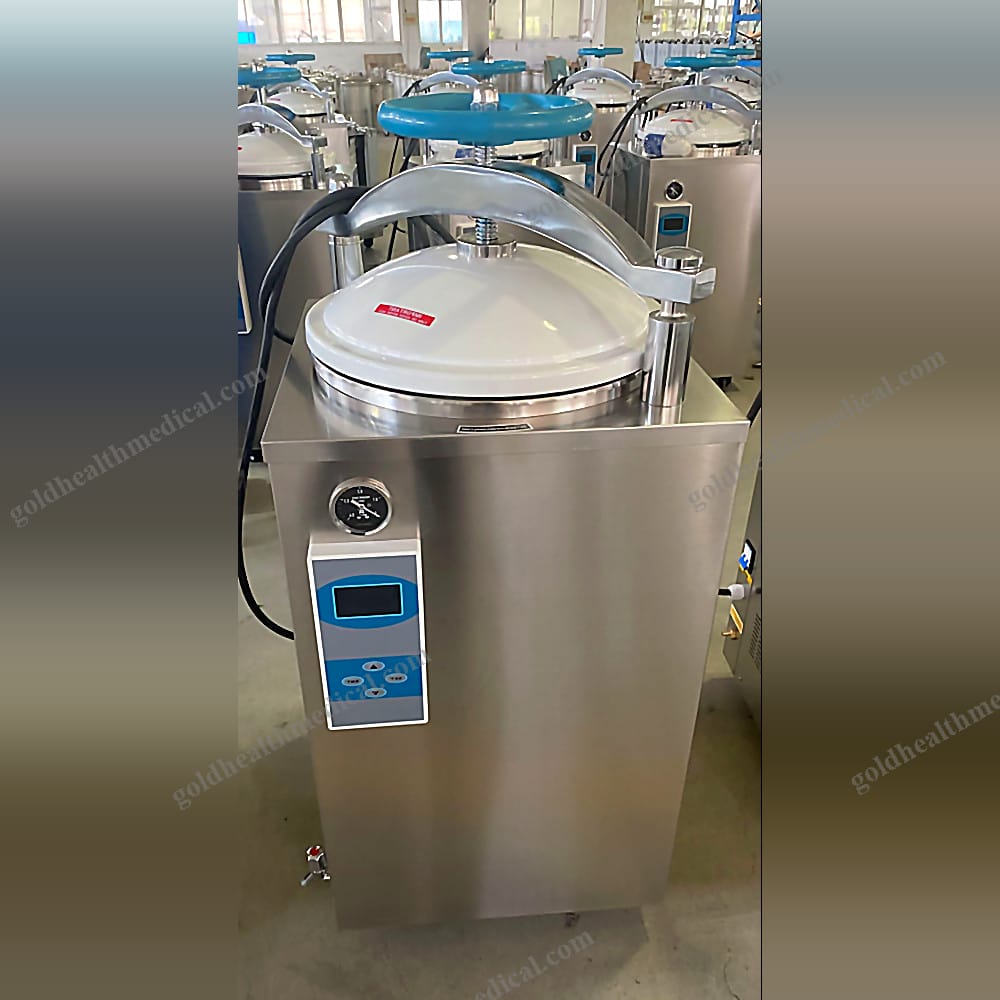

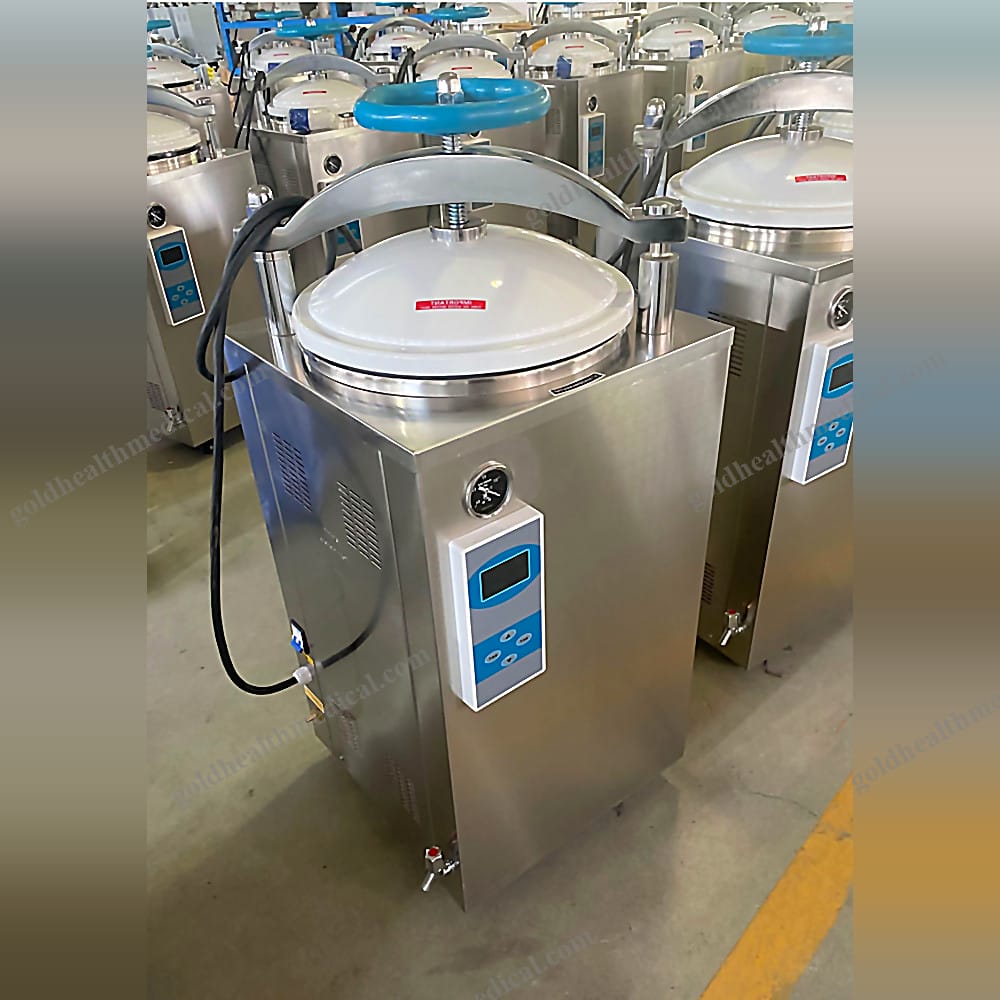

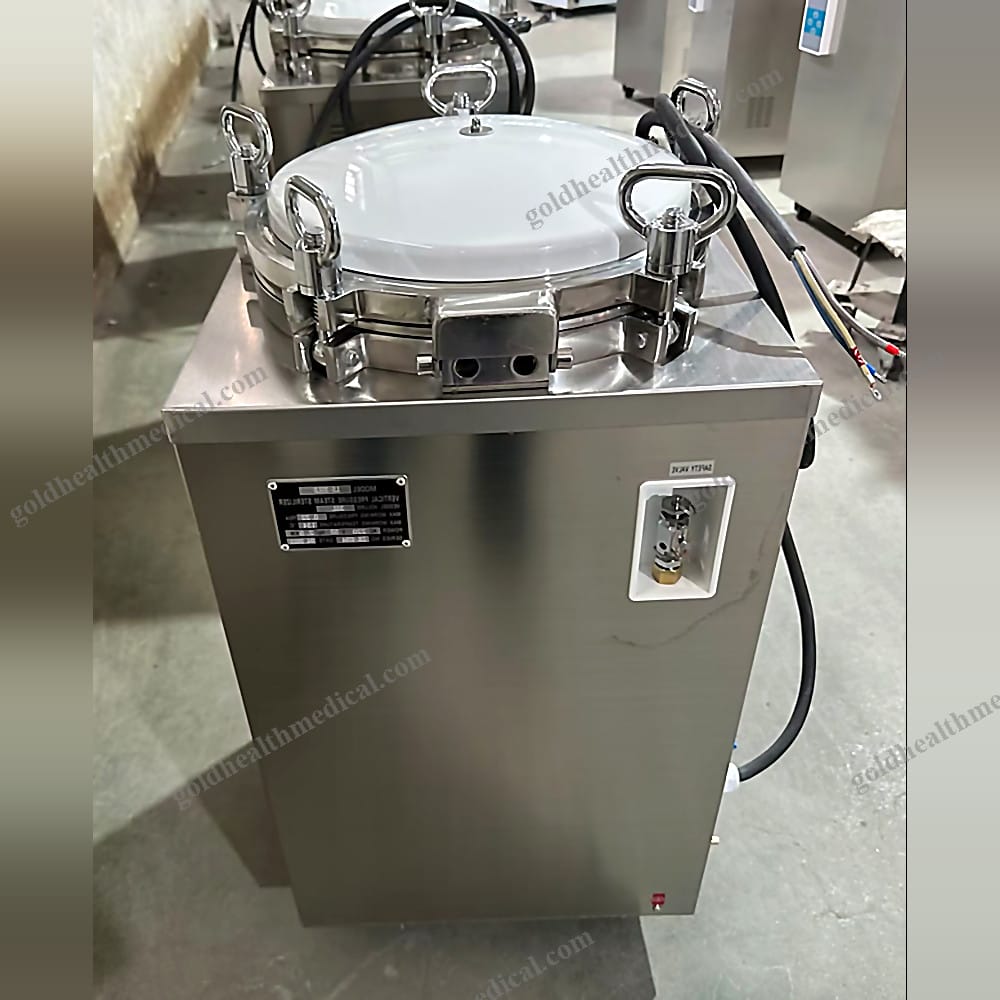

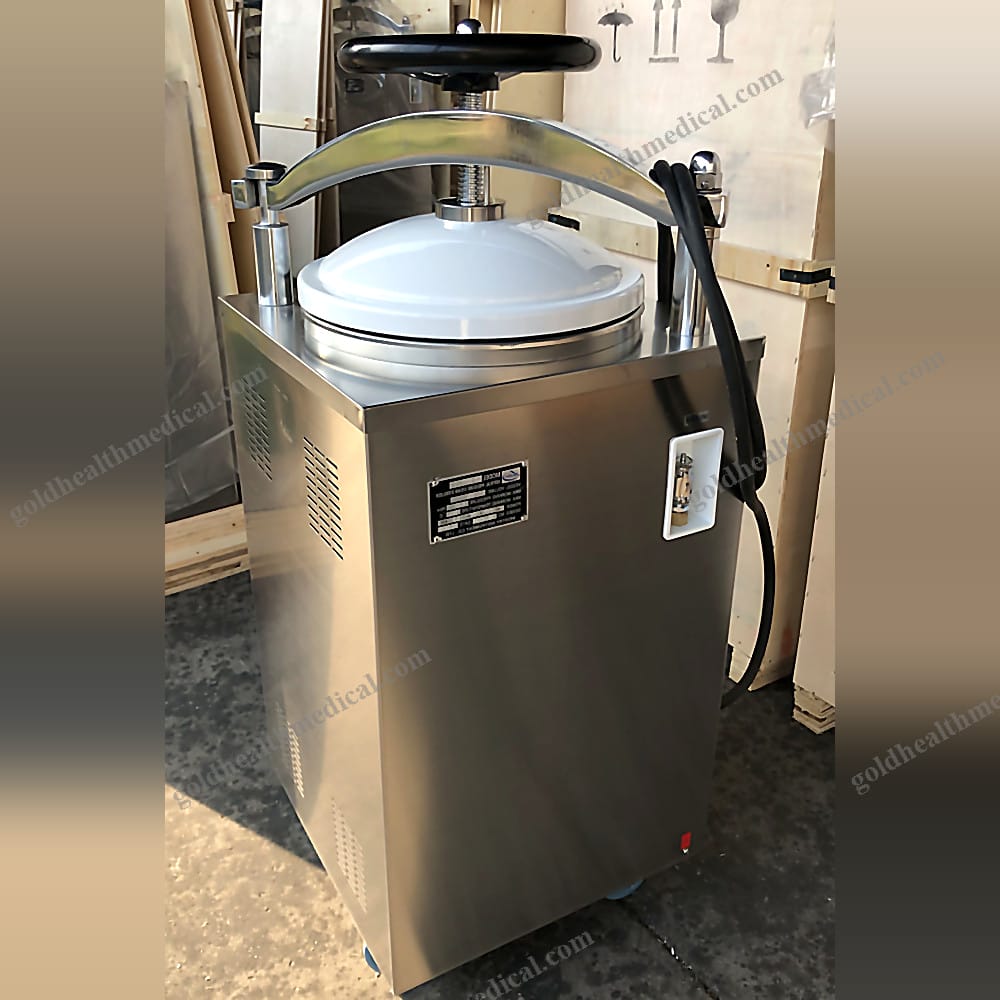

GoldHealth Medical Vertical Pressure Steam Sterilizer / Autoclave
Experience unparalleled sterilization performance with GoldHealth Medical’s Vertical Pressure Steam Sterilizer. Designed for precision, durability, and safety, this autoclave is a trusted solution for medical, laboratory, and research environments.
Key Features
- Fully Stainless Steel Construction: Built with premium SUS304/AISI 304 stainless steel (3mm thickness), ensuring exceptional durability and corrosion resistance.
- Quick-Open Door with Handwheel Design: Effortlessly open and close the chamber with a secure handwheel mechanism.
- Advanced Safety Systems: Equipped with a door safety lock, over-temperature, over-pressure, and water-lacking protection for maximum operational safety.
- Intuitive Digital Display: Monitor working status and control settings with a responsive touch-key interface.
- Automated Air and Steam Management: Automatically discharges cool air during operation and vents steam post-sterilization for optimal results.
- Self-Inflating Seal: Ensures a tight, reliable seal to maintain pressure and temperature consistency.
- Sterilization Completion Alert: Audible beep and automatic shut-off notify users when the cycle is complete.
- Versatile Applications: Ideal for sterilizing medical instruments, cotton products, and other critical materials.
- Optional Drying System: Customizable with an optional drying system to meet specific operational needs.
- Extended Warranty: Backed by a 24-month warranty for peace of mind.
Technical Specifications
- Chamber Volume Options:
- 35L (φ318×450 mm)
- 50L (φ340×550 mm)
- 75L (φ400×600 mm)
- 100L (φ440×650 mm)
- Working Pressure: 0.22 MPa
- Working Temperature: 134°C
- Maximum Working Pressure: 0.23 MPa
- Temperature Uniformity: ≤±1°C
- Timer Range: 0–99 minutes or 0–99 hours 59 minutes
- Temperature Adjustment Range: 105–134°C
- Power Options:
- 2.5 kW / AC220V / 50Hz
- 3 kW / AC220V / 50Hz
- 4.5 kW / AC220V / 50Hz
- Overall Dimensions:
- 35L: 450×450×1010 mm
- 50L: 510×470×1130 mm
- 75L: 560×560×1120 mm
- 100L: 540×560×1250 mm
- Transport Dimensions:
- 35L: 570×550×1150 mm
- 50L: 590×590×1280 mm
- 75L: 650×630×1280 mm
- 100L: 680×630×1370 mm
- Weight (Gross/Net):
- 35L: 72 kg / 56 kg
- 50L: 88 kg / 68 kg
- 75L: 100 kg / 80 kg
- 100L: 110 kg / 85 kg
Why Choose GoldHealth Medical?
GoldHealth Medical’s Vertical Pressure Steam Sterilizer combines cutting-edge technology with meticulous engineering to deliver unmatched reliability. Whether you’re managing a hospital, clinic, laboratory, or research facility, this autoclave ensures precision, safety, and efficiency in every sterilization cycle.
For more information or to explore customization options, contact GoldHealth Medical today.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Product Type: Pressure Steam Sterilization Equipment
Product Overview
GoldHealth Medical presents a state-of-the-art Pressure Steam Sterilization Equipment designed to deliver unparalleled performance and reliability. Engineered with precision, this sterilizer is ideal for hospitals, clinics, laboratories, and research facilities seeking efficient, dependable, and hygienic sterilization solutions. Its robust stainless steel construction ensures durability, while its advanced temperature and pressure controls guarantee optimal sterilization results for a wide range of medical and laboratory instruments.
Key Features
- Large Capacity Chamber: 100L (Diameter: 440mm x Depth: 650mm) – Perfect for sterilizing large volumes of equipment in a single cycle.
- Precise Temperature Control: Adjustable range of 105°C to 134°C for versatile sterilization needs.
- Optimized Working Pressure: Operates at 0.22MPa for efficient and consistent sterilization.
- Intelligent Timer Functionality: Offers flexible timing options (0–99 minutes or 0–99 hours 59 minutes) to suit various sterilization protocols.
- Durable Build: Constructed from premium-grade stainless steel for long-lasting performance and resistance to corrosion.
- Compact Design: Dimensions of 540mm x 560mm x 1250mm make it suitable for spaces with limited room.
- Lightweight Yet Sturdy: Weighs only 85kg, ensuring ease of installation and mobility without compromising stability.
Warranty and Support
- Comprehensive Warranty: Backed by a 1-year warranty for peace of mind.
- Exceptional After-Sales Service: Includes free spare parts to ensure uninterrupted operation and long-term reliability.
Technical Specifications
- Chamber Volume: 100L (Diameter: 440mm x Depth: 650mm)
- Working Pressure: 0.22MPa
- Temperature Range: 105°C to 134°C
- Timer Settings: 0–99 minutes or 0–99 hours 59 minutes
- Material: High-grade stainless steel
- Dimensions: 540mm x 560mm x 1250mm
- Weight: 85kg
Packaging Details
- Selling Unit: Single item
- Package Weight: XX kg
GoldHealth Medical’s Pressure Steam Sterilization Equipment is the ultimate solution for achieving superior sterilization outcomes while maintaining operational efficiency. Elevate your facility’s standards with a product designed to meet the demands of modern healthcare and research environments.
