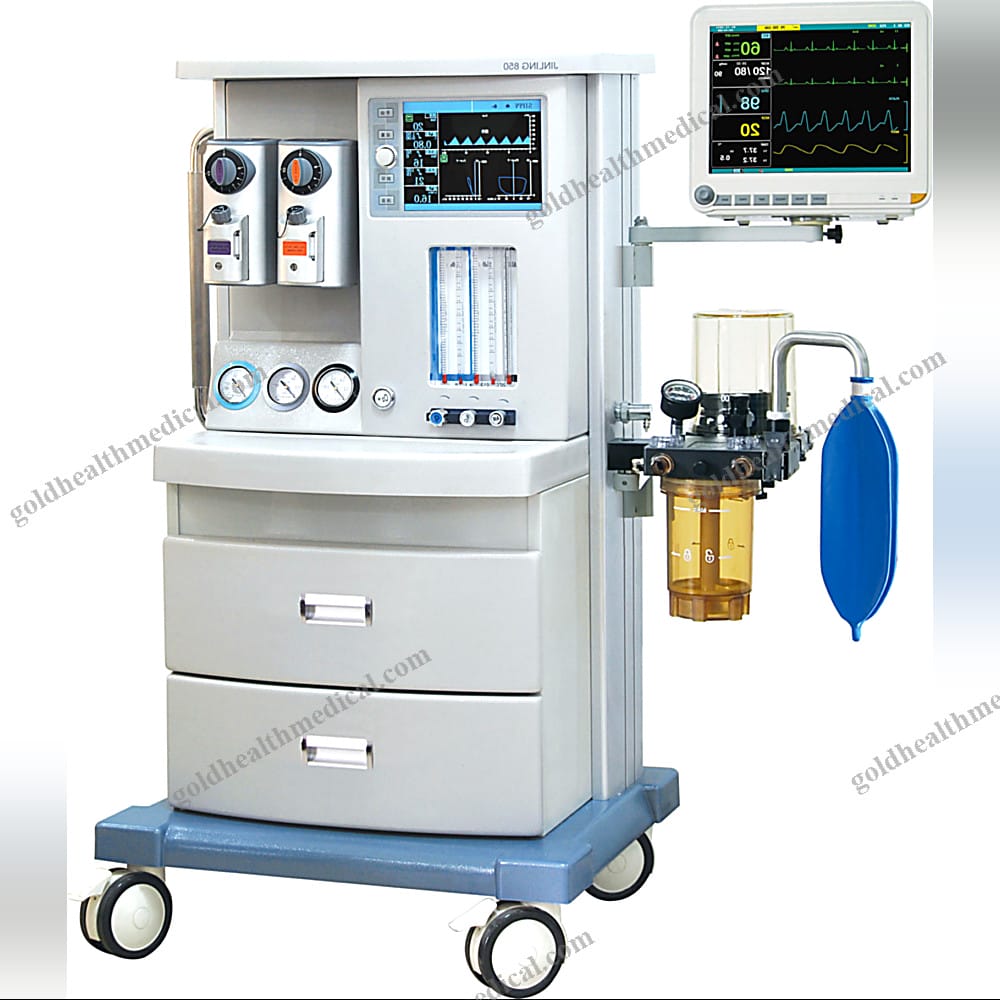

Advanced Medical Anesthesia Machine with Integrated Patient Monitor
Reference: 1601055221841
Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

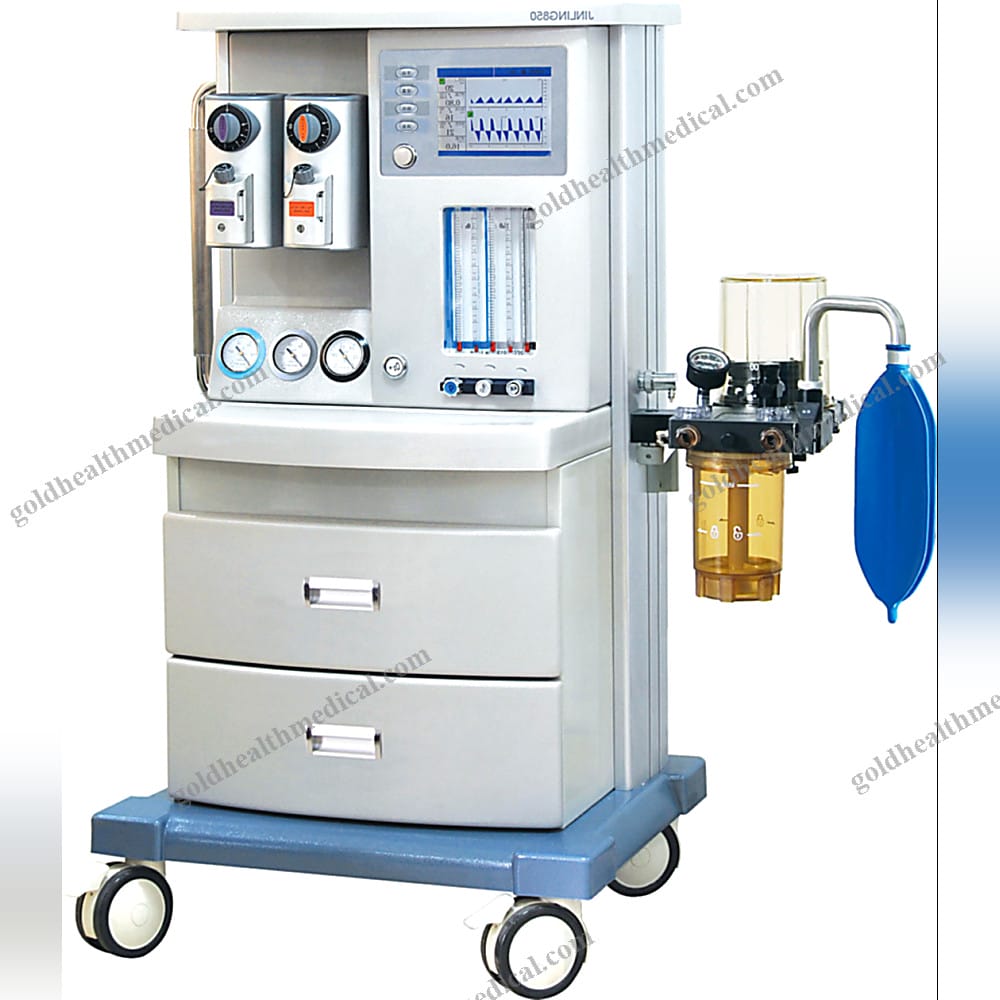

GoldHealth Medical presents a cutting-edge Anesthesia Ventilator designed to redefine precision and reliability in medical environments.
Product Highlights
- Advanced Ventilation Modes: Operates in pneumatic drive with electronic control, supporting closed, semi-closed, and semi-open systems.
- Intuitive Display: Features an 8.4-inch color TFT screen capable of showcasing Pressure-Time, Flow-Time, Pressure-Volume, and Flow-Volume waveforms. Instant waveform cycling is available at the touch of a button.
- Respiratory Circuit: Equipped with a durable metallic modular respiratory circuit that ensures gas sealing even under high-temperature disinfection. Designed for effortless cleaning and maintenance.
- Power Resilience: Automatically switches to backup power mode during AC outages, ensuring uninterrupted performance.
- Precision Sensors: Includes an electronic pressure differential flow sensor and an imported respiratory control valve for stability, rapid response, and consistent performance.
- Flowmeter Technology: High-precision five-tube flowmeter with interlocking oxygen-nitrous oxide supply, guaranteeing oxygen output never drops below 21%.
- Eco-Friendly Design: Constructed with environmentally safe materials, offering elegant aesthetics and precise engineering. Features automated self-checking and self-calibrating sensors during startup.
Safety and Monitoring
- Comprehensive Alarms: Audible and visual alerts for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure, and more. Includes an alarm query function for enhanced diagnostics.
- Vaporizer Excellence: Locally assembled with imported components, compatible with Enflurane, Isoflurane, and Sevoflurane (Halothane optional). Features self-compensating functionality for consistent performance.
- APL Valve: Advanced Adjustable Pressure Limiting (APL) valve optimized for low and ultra-low flow anesthesia.
- Na-lime Tank: Rotating design crafted from imported PPSU material, temperature-resistant up to 134°C, and operable with one hand.
Technical Specifications
- Flowmeter Range:
- Oxygen (O₂): 0.1–10 L/min
- Nitrous Oxide (N₂O): 0.1–10 L/min
- Air: 0.1–10 L/min
- Ventilation Modes: IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
- Backup Power Supply: Lasts at least 4 hours
- Tidal Volume: Adjustable range: 20–1500 mL; Display range: 0–2000 mL
- Respiratory Rate: 1–100 bpm
- I:E Ratio: 8:1 to 1:10 (supports inverse ratio ventilation)
- PEEP Range: 0–20 cm H₂O (electronically controlled)
- Inspiratory Pressure Trigger: -10 to 10 cm H₂O (electronically controlled)
- SIGH Function: 1 sigh breath every 80–120 breaths
- Inhaled Oxygen Concentration Monitor: 21–100%
- SIMV Rate: 1–20 bpm
- Inspiratory Plateau: 0–1 second
- Vaporizer Concentration Ranges: 0–5%
- Vaporizer Slots: Double PA-I type slots
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and high-performance medical equipment. Our products are designed with precision engineering and user-centric features, ensuring seamless integration into hospitals, clinics, research labs, and home care settings. With a focus on quality and sustainability, we provide solutions that meet the evolving needs of healthcare professionals worldwide.
Experience the future of medical technology with GoldHealth Medical—where innovation meets excellence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
Experience the pinnacle of medical innovation with our state-of-the-art medical instrument, designed to deliver unparalleled precision and reliability. Engineered for a wide range of healthcare environments, this Class III medical device is crafted to meet the highest industry standards, ensuring safety, durability, and exceptional performance. Whether in hospitals, clinics, or research facilities, this product is your trusted partner in achieving superior patient outcomes.
Key Features and Specifications:
- Material Composition: Constructed with premium-grade metal, steel, and high-quality plastic for enhanced durability and hygiene.
- Instrument Classification: Class III medical device, designed for advanced medical applications.
- Safety Standards Compliance: Fully compliant with MFDS regulations, guaranteeing safety and reliability.
- Place of Origin: Proudly manufactured in Jiangsu, China, known for its world-class manufacturing capabilities.
- Power Source: Powered by advanced machinery for consistent and dependable operation.
- Shelf Life: Up to 3 years, ensuring long-term usability and value.
- Quality Certifications: CE-certified, meeting stringent international quality benchmarks.
Packaging Details:
- Package Dimensions: 94 x 79 x 127 cm, optimized for secure and efficient transportation.
- Gross Weight: Lightweight yet robust design ensures ease of handling and installation.
Warranty and Support:
- Warranty Period: Comprehensive 1-year warranty for peace of mind.
- After-Sales Service: Access to online technical support, ensuring seamless operation and quick resolution of any queries.
Unique Selling Points:
- Combines cutting-edge engineering with user-centric design for maximum efficiency.
- Versatile application across hospitals, clinics, laboratories, rehabilitation centers, and home healthcare settings.
- Backed by GoldHealth Medical’s commitment to excellence and innovation in medical technology.
Elevate your medical practice with a device that redefines precision, safety, and reliability. Choose GoldHealth Medical for a smarter, more effective healthcare solution.
