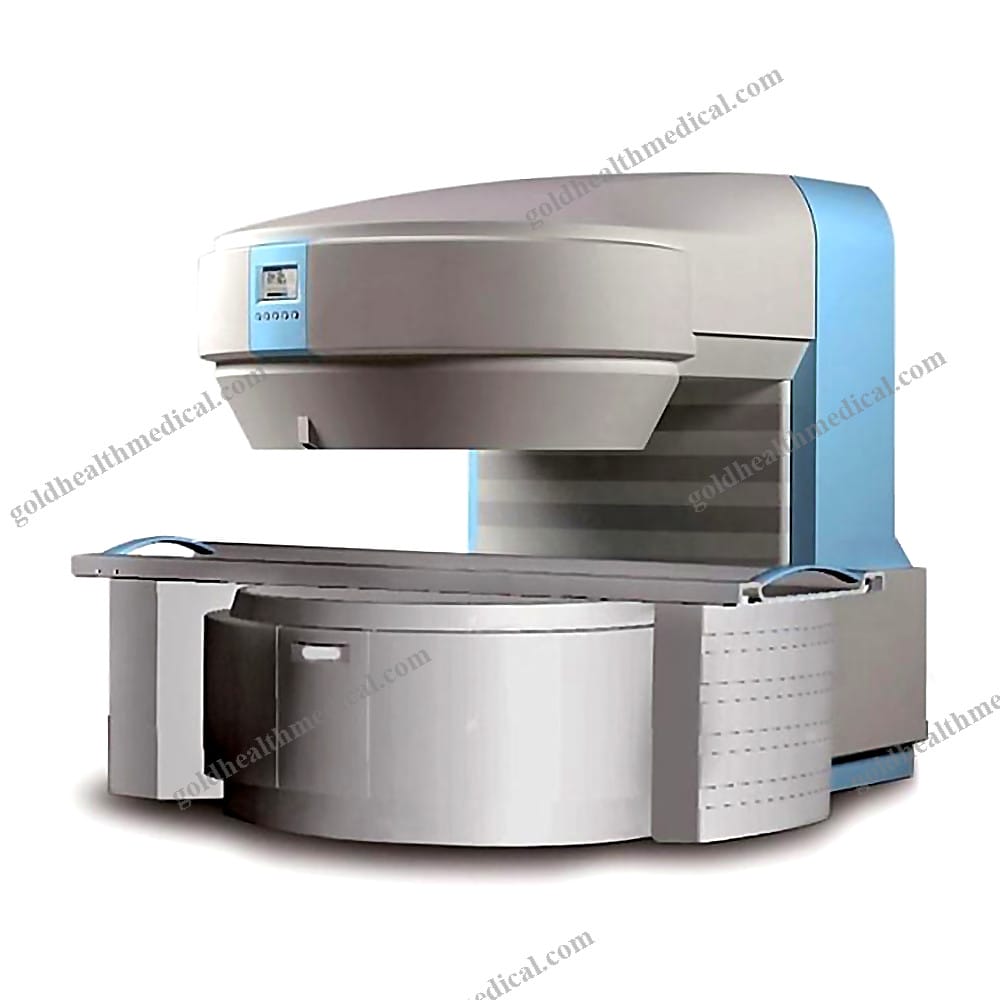

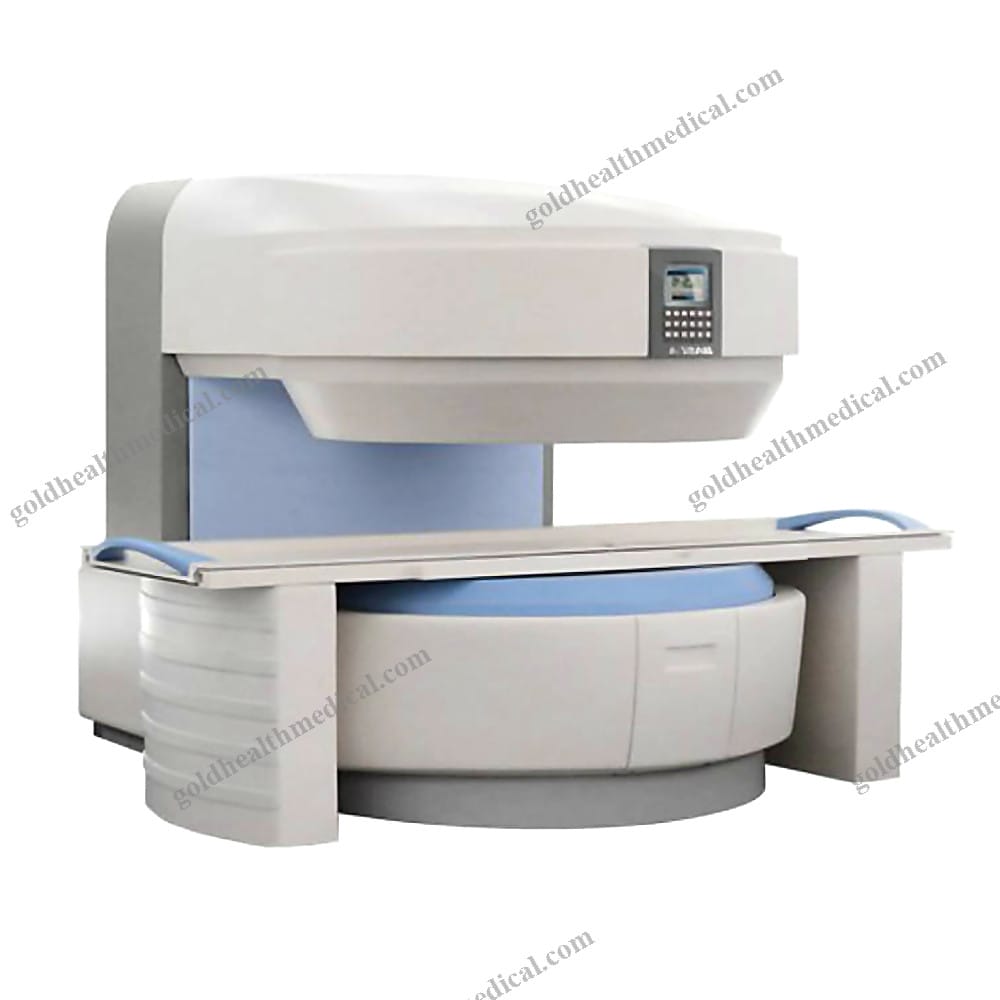

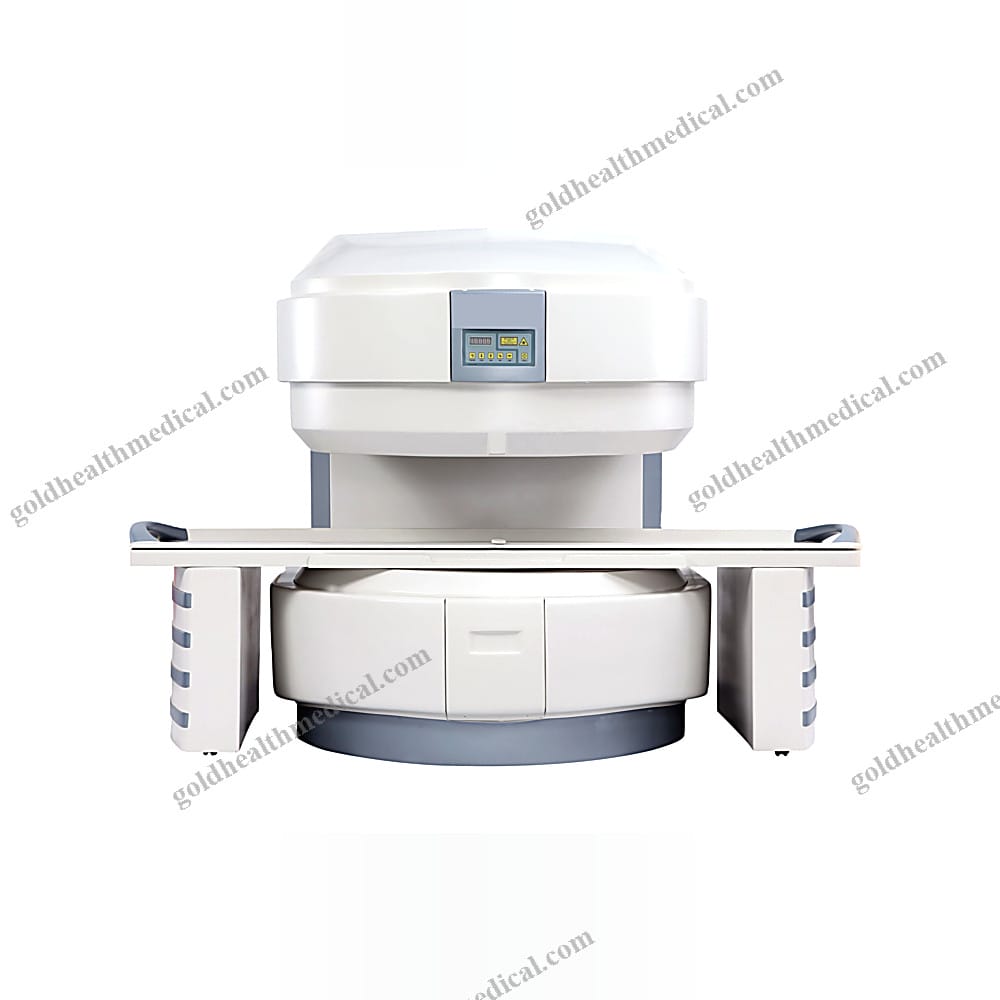

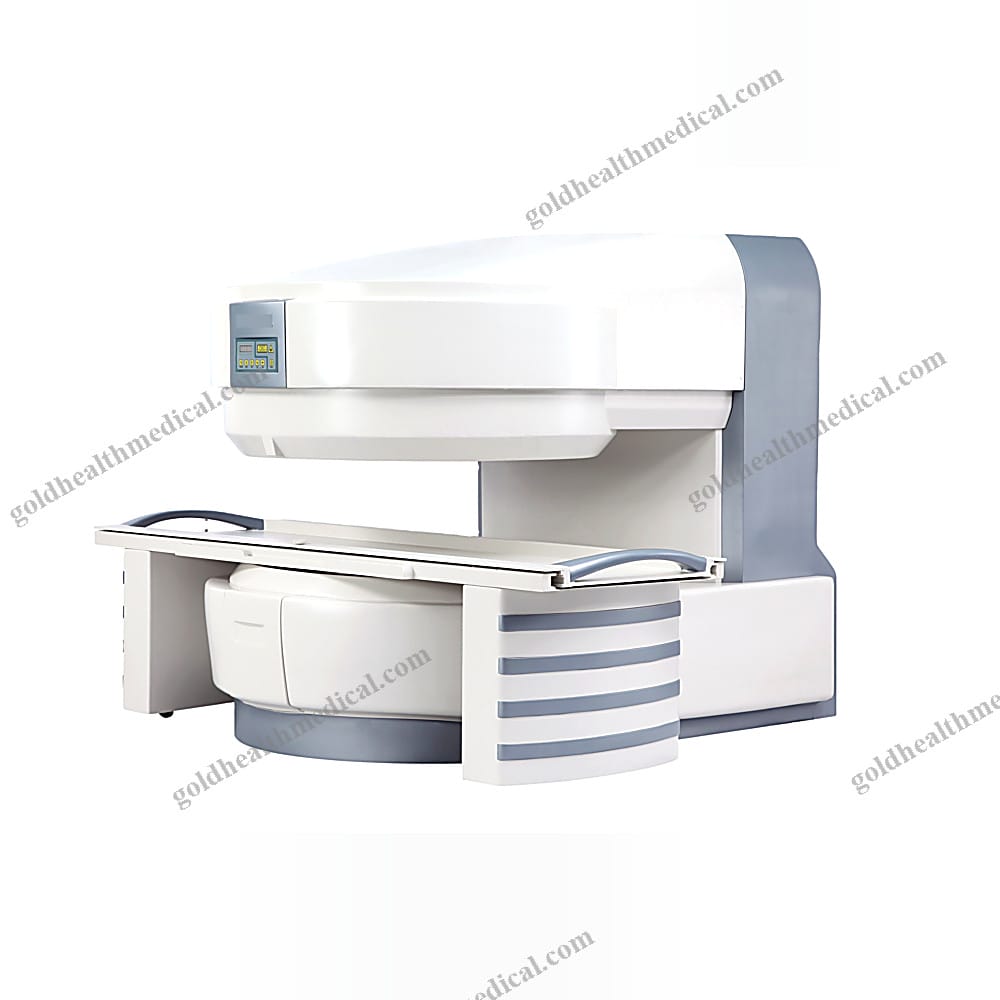

GoldHealth Medical MRI System
Product Highlights
GoldHealth Medical presents a cutting-edge MRI system designed to deliver unparalleled imaging precision and clinical versatility. Engineered with advanced technology, this system ensures exceptional performance for a wide range of medical applications.
Key Features
- Magnet System:
- Permanent Nd-Fe-B magnet with automatic constant temperature control for consistent performance.
- Field strength of 0.42T, ensuring high-quality imaging.
- C-shaped magnet design with 250° horizontal opening for enhanced patient accessibility.
- Homogeneity of 2ppm (40cm DSV, VRMS) for precise imaging.
- Active, passive, and dynamic shimming methods for optimal field uniformity.
-
Vertical gap of 40cm and a 5 Gauss fringe field of 2.5m x 2.5m x 2.5m.
-
Gradient System:
- Gradient field strength of 31mT/m (single axis).
- Gradient slew rate of 107mT/m/ms (single axis).
- Rise time of 0.29ms for rapid imaging.
-
Air-cooled gradient coils and power electronics for reliable operation.
-
RF System:
- Fully digital spectrometer for advanced signal processing.
- Digital transmit and receive RF system with 4 channels.
- Transmitter amplifier peak power of 6kW.
- RF bandwidth of 400kHz per channel and a dynamic range of 80dB.
- Noise factor of 0.3dB for superior image clarity.
-
Phase array coil technology with dedicated coils for head, neck, body (small and large), knee, ankle, and optional shoulder and soft coils.
-
Patient Communication and Comfort:
- Maximum patient weight capacity of 210kg.
- High-accuracy positioning assist with 1mm precision.
- Localizer and position accessories for streamlined workflows.
-
Emergency call and communication systems for enhanced patient safety.
-
Computer System:
- Dual-core industrial computer with MRI software V30.
- Windows 7 operating system, 3.0GHz CPU clock rate, and 4GB main memory.
- 24” color LCD monitor and 500GB hard disk for efficient data management.
-
DICOM 3.0 and Ethernet compatibility for seamless integration.
-
Scanning Parameters:
- Maximum field of view (FOV) of 400mm and minimum FOV of 10mm.
- Minimum 2D thickness of 1mm and 3D thickness of 0.1mm.
-
Maximum image matrix of 1024×1024 for high-resolution imaging.
-
Advanced Imaging Techniques:
- Comprehensive scanning sequences including spin echo, gradient echo, fast spin echo, and inversion recovery.
- Cutting-edge technologies such as diffusion-weighted imaging (DWI), magnetization transfer (MTC), and flow compensation.
- Parallel acquisition, thin imaging, and artifact suppression technologies for superior image quality.
- Real-time image filtration, post-processing, and movie playback capabilities.
Why Choose GoldHealth Medical?
GoldHealth Medical’s MRI system is designed to meet the diverse needs of hospitals, clinics, research institutions, and rehabilitation centers. With its innovative features, robust performance, and patient-centric design, this system sets a new standard in medical imaging.
Applications
- Hospitals and clinics for diagnostic imaging.
- Research institutions for advanced studies.
- Rehabilitation centers and home healthcare for specialized patient care.
GoldHealth Medical is committed to delivering excellence in medical technology, empowering healthcare professionals to achieve the best outcomes for their patients.
Specifications Summary
- Magnet System: Permanent magnet with automatic constant temperature system, 0.42T field strength, C-shape, 2ppm homogeneity.
- Gradient System: 31mT/m field strength, 107mT/m/ms slew rate, 0.29ms rise time.
- RF System: Fully digital, 4 RF channels, 6kW transmitter power, 400kHz bandwidth.
- Patient System: 210kg weight capacity, 1mm positioning accuracy, emergency communication.
- Computer System: Dual-core industrial PC, Windows 7, 24” monitor, 500GB storage.
- Scanning: 400mm max FOV, 0.1mm min 3D thickness, 1024×1024 image
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Company Name: GoldHealth Medical
Product Introduction:
GoldHealth Medical presents a cutting-edge Permanent MRI System designed to deliver unparalleled precision and reliability in medical diagnostics. Engineered with advanced technology, this system is tailored for clinical applications, offering superior imaging capabilities to support accurate diagnosis and treatment planning.
Key Features and Specifications:
- Magnet Type:
- Self-constant temperature for consistent performance
- Non-eddy current free design to minimize interference
- Full open Permanent Nd-Fe-B magnet for enhanced accessibility and patient comfort
- Field Strength: 0.42T, ensuring high-resolution imaging for detailed clinical analysis
- Spectrometer: Fully digital system for precise data acquisition and processing
- Receiving Coil: Phase array coil technology for superior signal reception and image clarity
- Application: Optimized for clinical application systems, supporting a wide range of diagnostic needs
- Functionality: Specifically designed for medical diagnosis, providing accurate and reliable results
Technical Details:
- Instrument Classification: Class II medical device
- Safety Standard Compliance: MFDS certified for safety and performance
- Power Source: Electric, ensuring stable and efficient operation
- Shelf Life: 3 years, maintaining optimal functionality over time
- Quality Certification: CE certified, meeting international standards for medical equipment
Warranty and Support:
- Warranty Period: 3 years, offering peace of mind and long-term reliability
- After-Sales Service: Comprehensive online technical support to ensure seamless operation and troubleshooting
Packaging and Delivery:
- Selling Units: Single item
- Package Dimensions: 50 x 50 x 50 cm
- Gross Weight: 50.000 kg
GoldHealth Medical’s Permanent MRI System combines innovation, precision, and reliability to meet the demands of modern healthcare facilities. Whether for hospitals, clinics, or research institutions, this system sets a new standard in diagnostic imaging.
