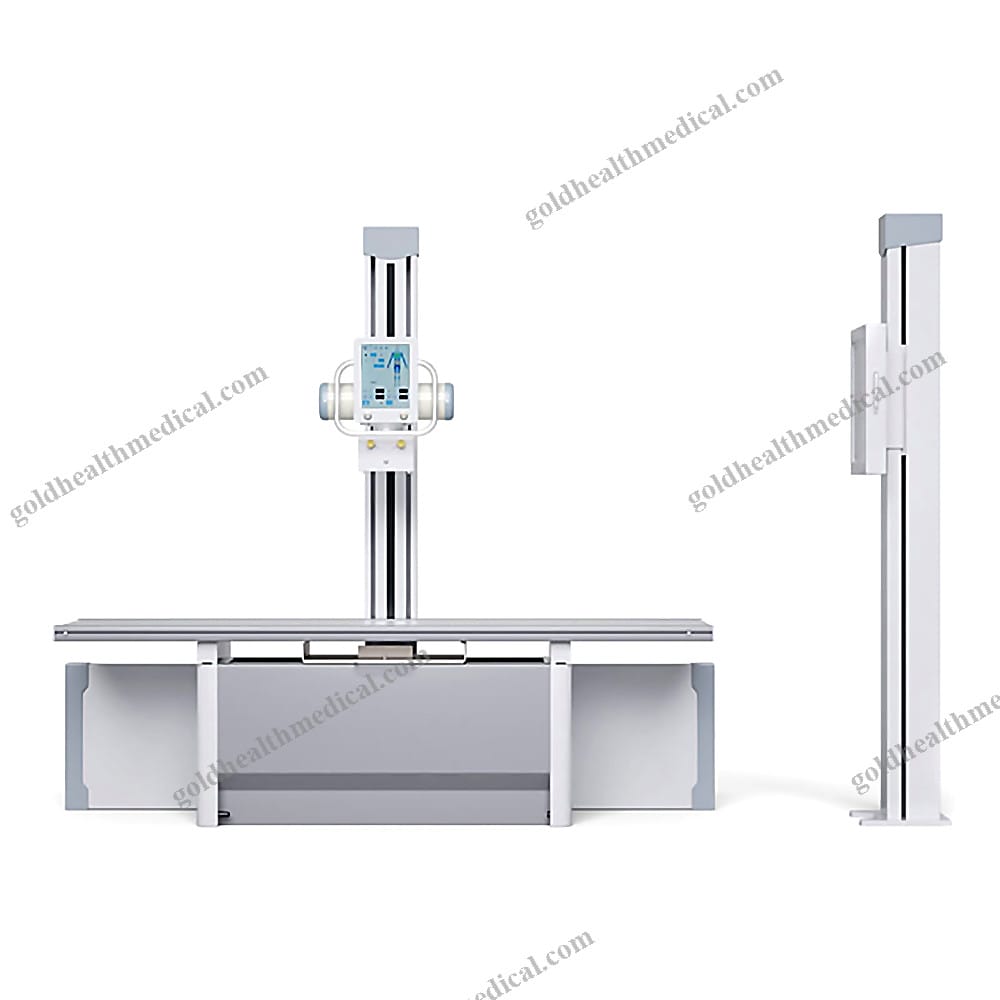

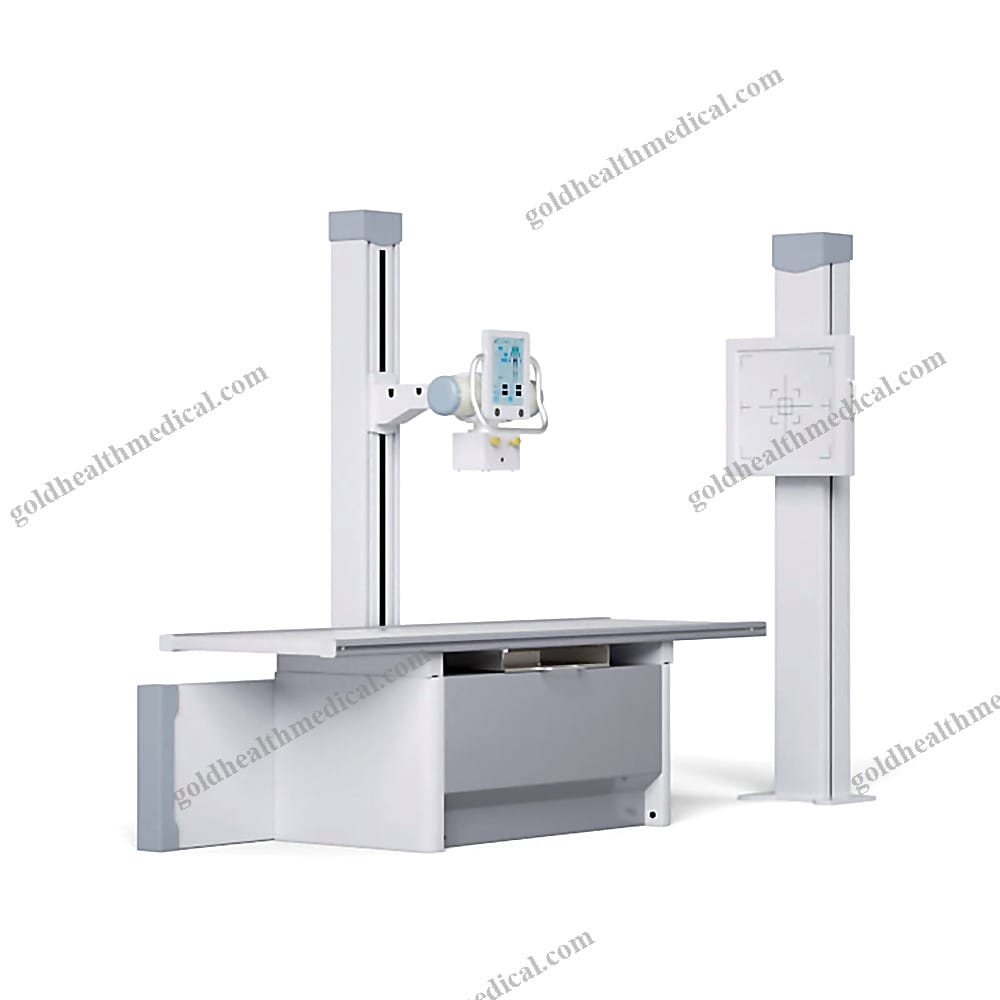

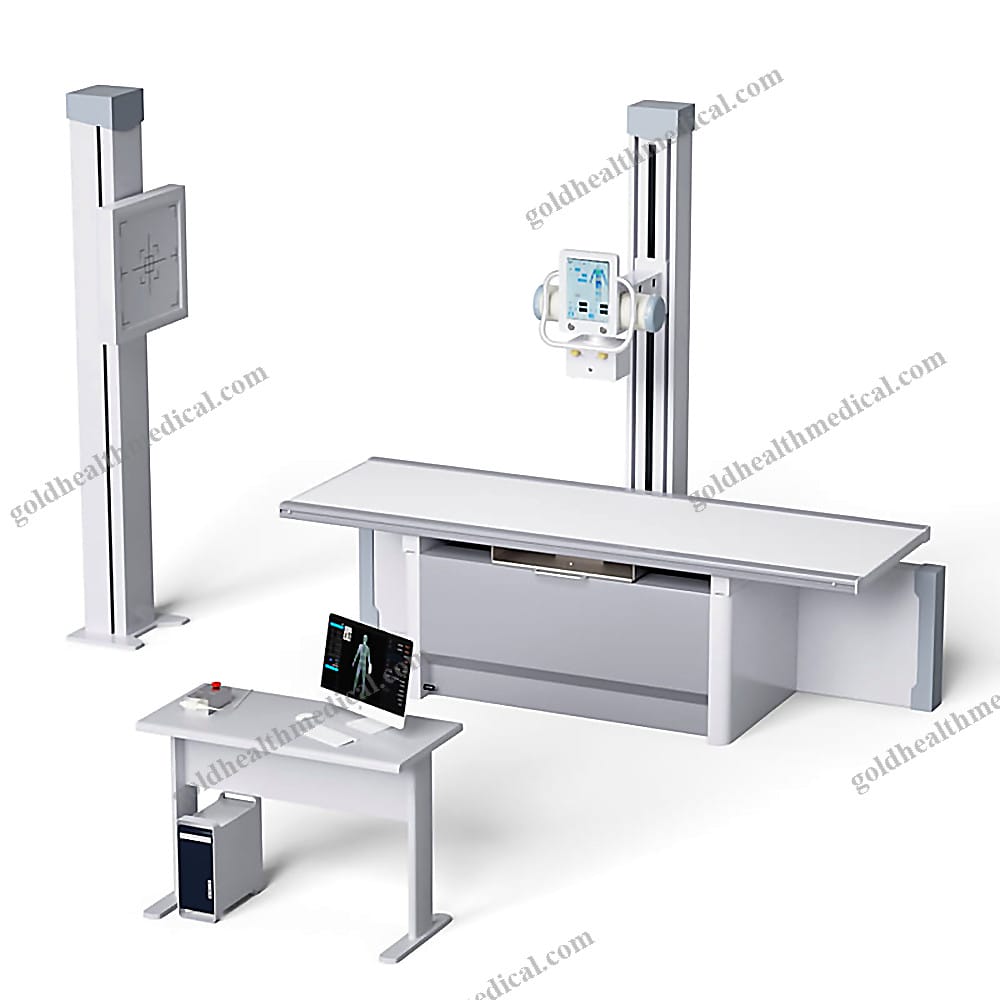

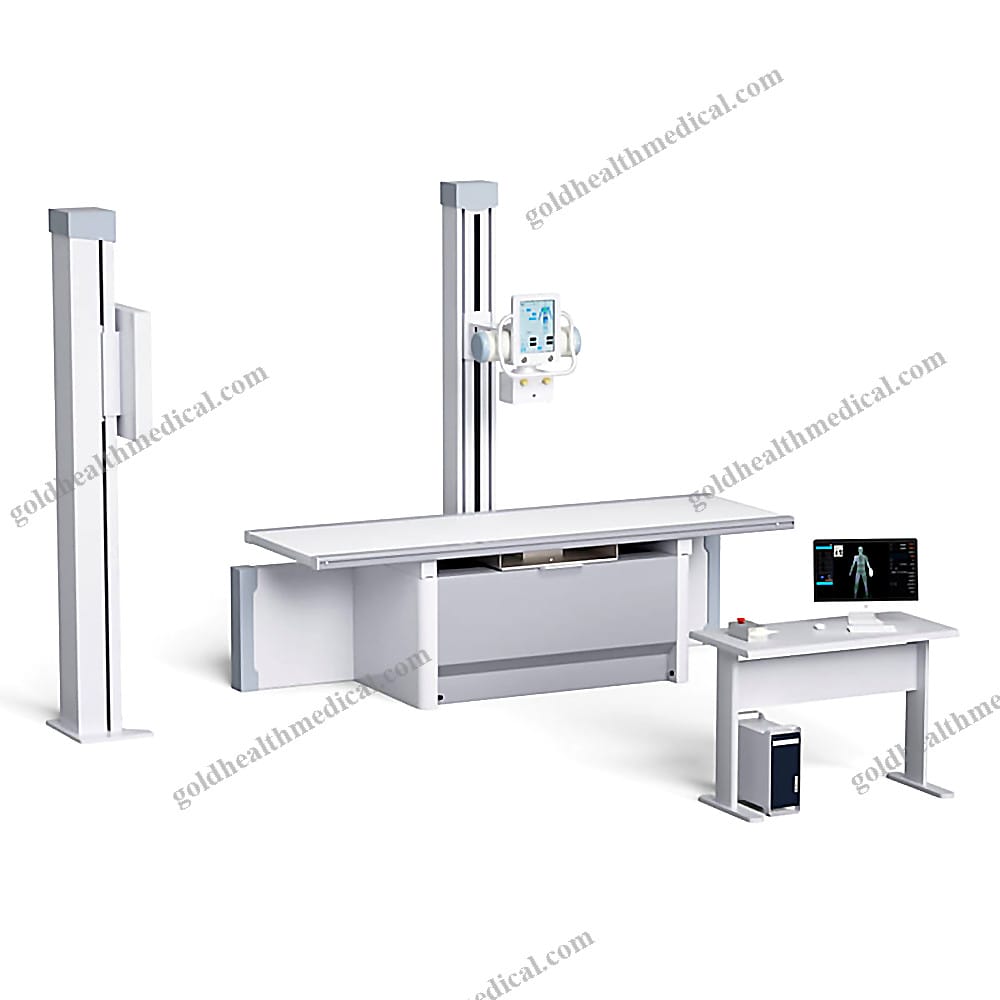

GoldHealth Medical High Frequency X-ray System

High Frequency Generator

• Functions: Delivers advanced imaging with digital X-ray radiography, X-ray filter radiography, buck stand radiography, ARP, and AEC.
• Nominal Electric Power: 50 kW for exceptional performance.
• Tube Voltage: Adjustable range from 40kV to 150kV.
• Tube Current: Precise control from 10mA to 630mA.
• Exposure Time: Ranges from 2ms to 10s for diverse applications.
• mAs Range: Fine-tuned from 0.1mAs to 630mAs.
• Working Frequency: Operates at ≥400kHz for high efficiency.
• Control Panel: Intuitive LCD touch screen interface.

X-ray Tube

• Maximum Tube Voltage: 150kV for deep penetration.
• Focus: Small focus of 0.6mm and big focus of 1.2mm for detailed imaging.
• Anode Input Power: Small focus at 19kW, big focus at 50kW.
• Target Angle: 12° for optimal beam alignment.
• Anode RPM: 2800rpm ensuring consistent performance.
• Heat Capacity: 150kHU for extended operation.

Flat Panel Detector

• Scintillator: GOS & CsI for superior image quality.
• Size: 35×43cm (14×17 inch) for comprehensive coverage.
• Pixel Size: 140μm for high-resolution images.
• Pixel Matrix: 2560×3072 for detailed visualization.
• A/D Conversion: 16Bit for precise digital output.

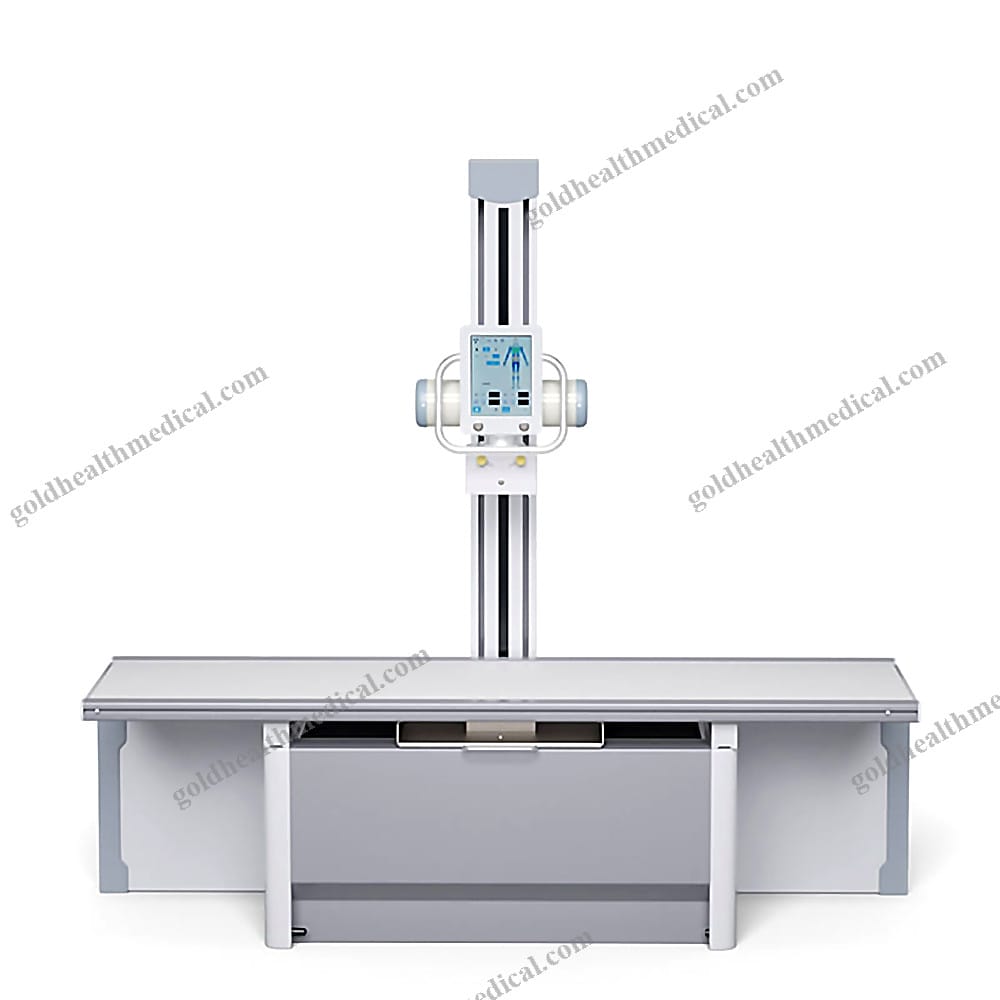

Radiography Table

• Dimensions: 2100mm×825mm×655mm (LxWxH).
• Horizontal Movement: ≥250mm for flexible positioning.
• Lengthwise Movement: ≥825mm for extensive reach.
• Table Top Lock: Electromagnetic lock with ≥100N braking force, controlled by a pedal switch.
• Control: Electric or manual with automatic alignment tracking.
• Grid Specifications: Size ≥15″×18″, focus distance f0=100cm, ratio r=10:1, density N=103Lines/Inch.

Tube Column

• Structure: Secure and robust design.
• Column Rotation: ≥±180° for versatile positioning.
• Movement Along Table: ≥1575mm with lockable points.
• Tube Height Adjustment: 930mm±10mm with lockable points.
• Tube Rotation: ≥±180° for optimal angles.
• Maximum Focus to Film Distance: ≥1200mm.

Bucky Stand

• Vertical Movement: ≥1200mm.
• Maximum Height: ≥1500mm from floor to box center.
• Grid Specifications: Size 18×18″, focus f0=180cm, ratio r=10:1, density N=103Lines/Inch.

Collimator

• Operation: Flexible and convenient, allowing any rectangular radiography field size.

GoldHealth Medical is dedicated to providing innovative and reliable medical imaging solutions. Our systems are designed to meet the rigorous demands of modern healthcare environments, ensuring precision, durability, and ease of use. Choose GoldHealth Medical for cutting-edge technology that enhances diagnostic capabilities and patient care.
