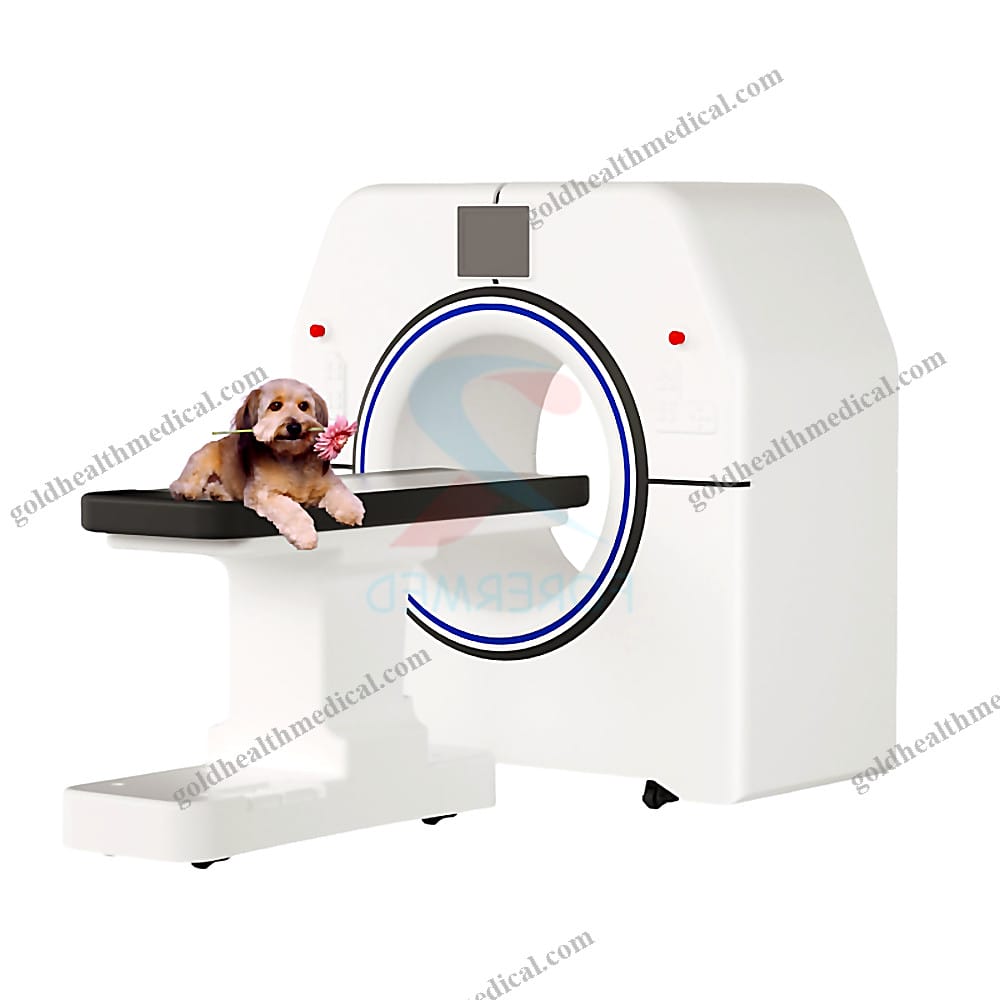

Revolutionizing Veterinary Imaging with GoldHealth Medical

GoldHealth Medical introduces a cutting-edge digital imaging solution powered by advanced 3D imaging technology and AI intelligence. Designed for unparalleled precision, this system accurately detects and diagnoses conditions in pets across all critical body regions, including the head, neck, chest, and abdomen.

Key Features

• Expansive Imaging Coverage
  Equipped with a large amorphous silicon panel, this system captures intricate details in a single scan, ensuring comprehensive imaging for complex diagnostics.

• Versatile Shooting Modes
  Supports multiple imaging modes such as CT, DR, dynamic DR, and small C, offering flexibility to meet diverse diagnostic needs.

• Unmatched Imaging Precision
  Leveraging an independent core algorithm and AI-driven analysis, the system delivers high-definition images rapidly, enabling accurate and reliable diagnostics.

• Ultra-Large Field of View
  With a 31.5° x 31.5° field of view, this solution provides extensive anatomical coverage, capturing more in a single scan for enhanced efficiency.

• Multi-Region Imaging Capability
  Streamlines the imaging process by efficiently capturing multiple areas, including the head, neck, chest, and abdomen, ensuring a seamless diagnostic experience.

• Rapid Scanning Performance
  Achieves fast imaging in under 30 seconds, minimizing the need for anesthesia and improving the safety and comfort of pets.

System Highlights

• AI-Powered Diagnosis
  Delivers precise lesion identification and localization, ensuring efficient and accurate animal diagnostics.

• Streamlined Digital Workflow
  Optimizes pet hospital management with standardized, traceable processes for enhanced operational efficiency.

• All-in-One Functionality
  Integrates image collection, transmission, storage, querying, diagnosis, and reporting into a unified platform.

• Remote Image Management
  Access imaging data anytime, anywhere, ensuring effortless and efficient management without spatial or temporal constraints.

Technical Specifications

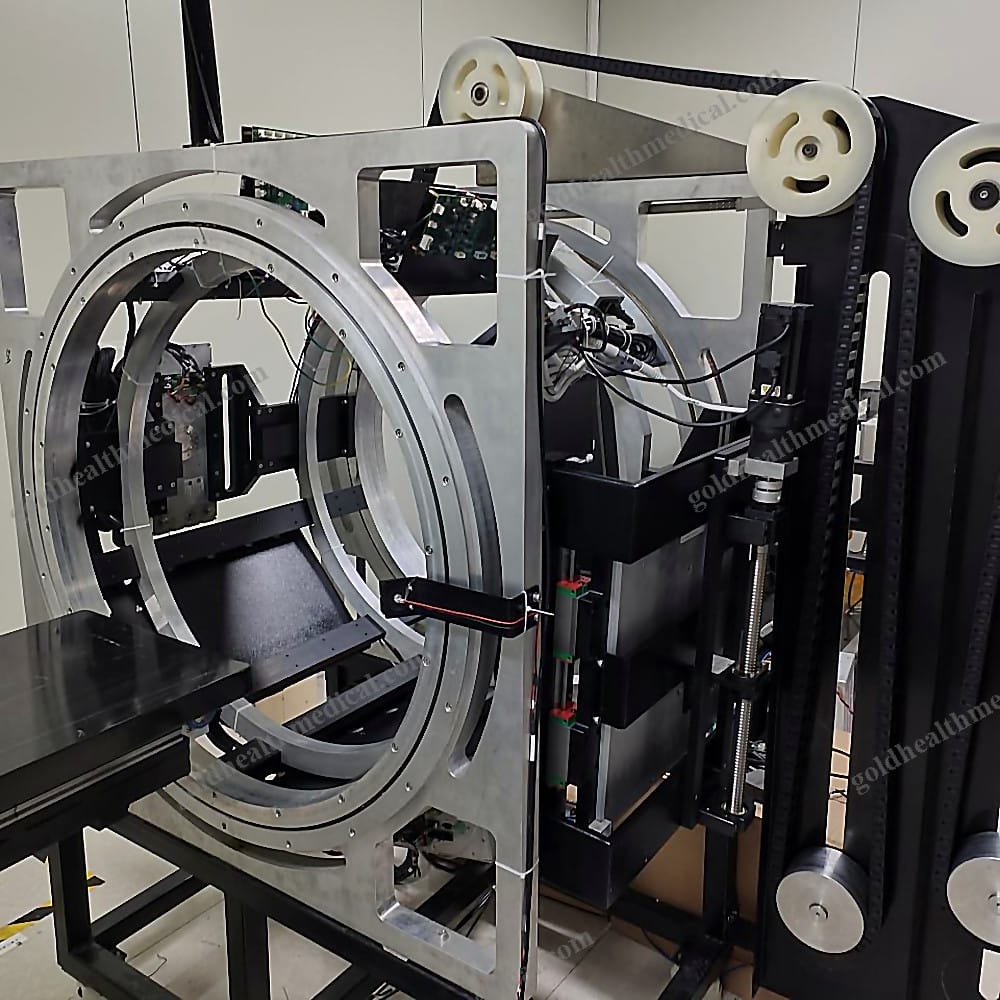

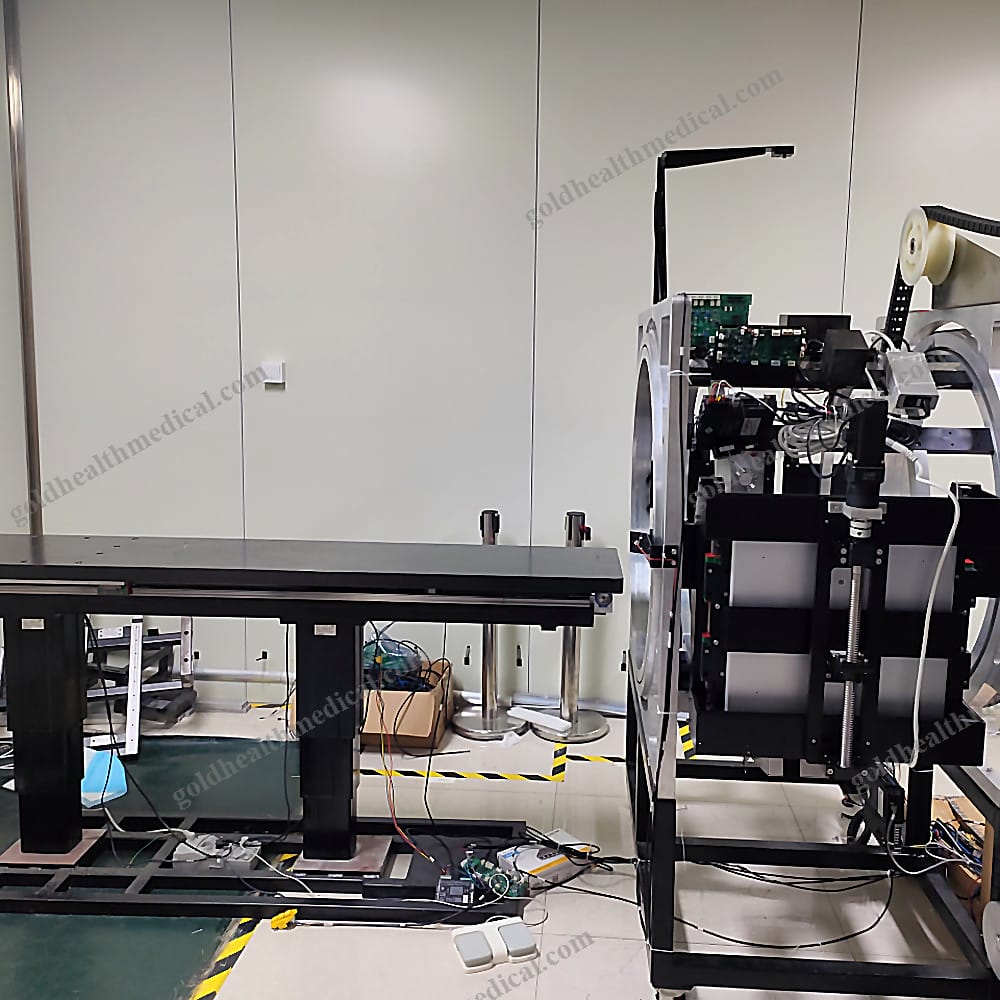

• Frame
• Rotating center aperture: 700mm
• Dimensions: 3100x2100x2100mm
• Positioning: Laser positioning
• Bed movement: E-prop, lift & lower

• Bed load capacity: 100kg

• Detector

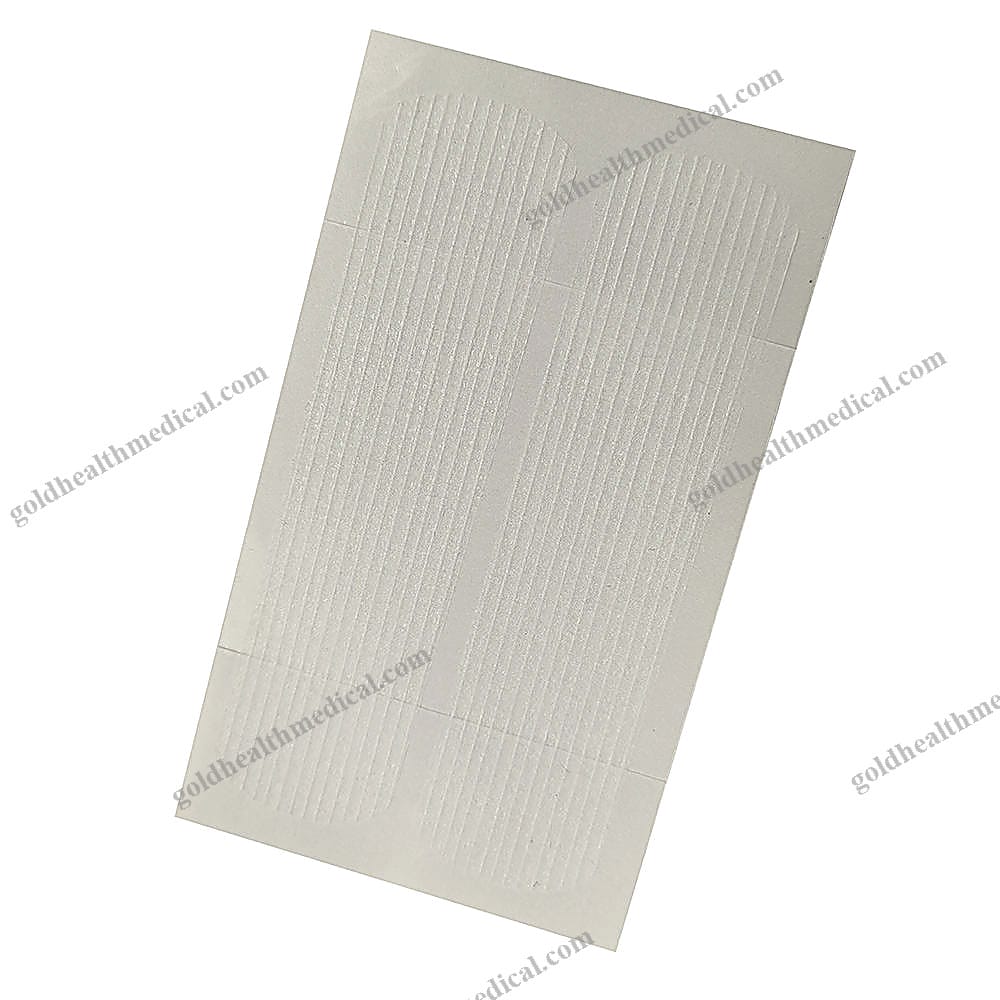

• Material: Amorphous silicon cesium iodide
• Size: 427mm x 427mm
• Pixel size: 139μm

• Maximum frame rate: 20 frames per second

• Radiation Source

• Anode heat capacity: 225kJ
• Focal spot: 0.3/0.6mm
• Tube voltage: 40kV-125kV
• Tube current: 250mA

• Maximum HV power: 25KW

• Imaging

• Functional modes: CT, DR, dynamic DR, small C
• CT scan time (acquisition + reconstruction): <30s
• CT imaging field of view: 21x21mm, 31.5×31.5mm
• Maximum Z-direction field of view: 80cm

• Minimum layer thickness: 0.2mm

• Software

• 3D software package: MIP, MPR, VR

GoldHealth Medical’s advanced imaging solution redefines veterinary diagnostics with its precision, speed, and versatility. Designed for professionals who demand excellence, this system ensures superior outcomes for pets and practitioners alike.
