THRSY02LED35 Professional Shadowless Surgical Light
GoldHealth Medical LED Shadowless Operating Lamp
Unparalleled Performance with Advanced Lighting Technology
GoldHealth Medical presents an innovative LED shadowless operating lamp that combines precision, durability, and efficiency. Designed for both surface and deep cavity procedures, this lamp delivers precise, uniform, and homogeneous lighting through its cutting-edge shadow control technology.
Key Features
-
Unmatched Shadow Management
Harnessing the potential of a multi-lens matrix, this lamp virtually eliminates shadows. Overlapping fields of light and multiple selectable patterns minimize shadows and redirect full intensity to the surgical site, optimizing concentration and team efficiency. -
Sterile Control Operations
The ergonomic and intuitive sterile control concept allows the surgical team to manage all essential functions effortlessly. Controls are accessible either directly on the light heads or via a wall panel, ensuring quick and simple operation. - On/off switch
- Dimming with integrated Endo mode
-
Advanced shadow management
-

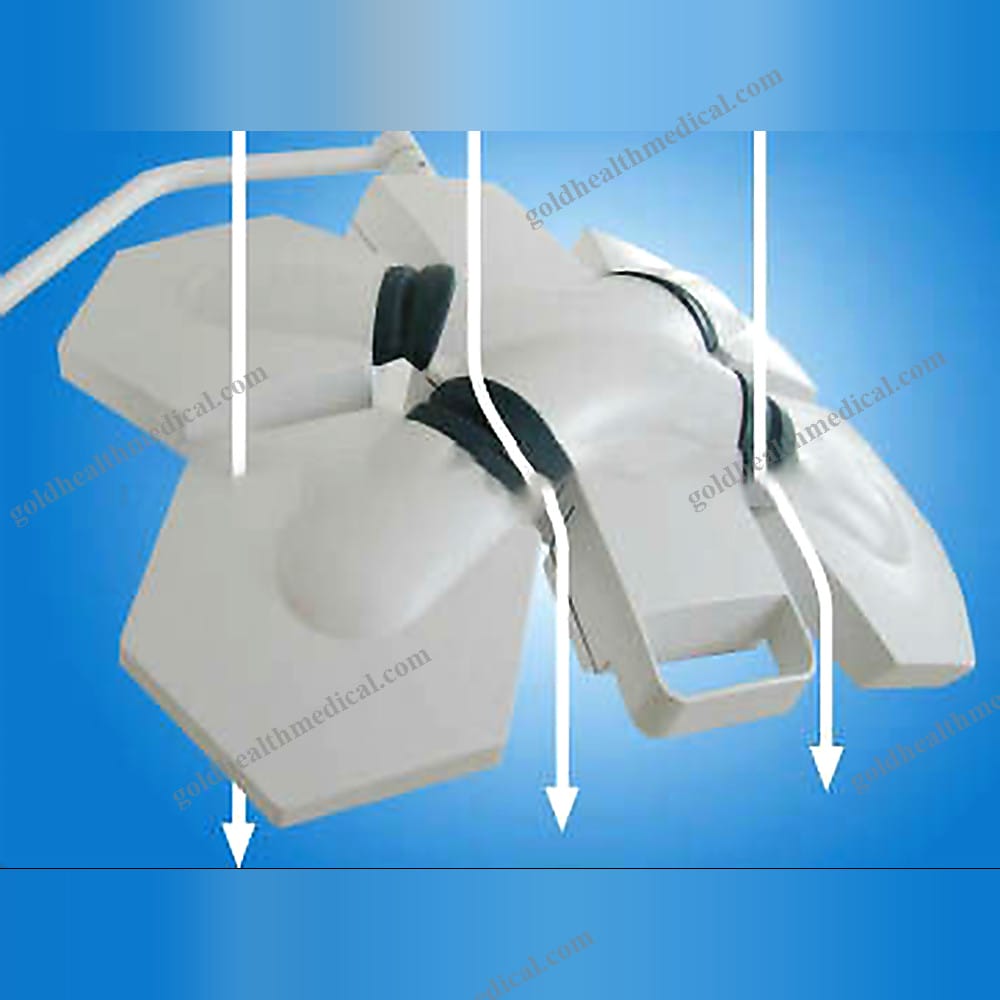

Optimized Airflow Design for Enhanced Hygiene
Featuring an open design and superior ventilated ceiling tolerance, this lamp ensures ideal operating conditions while meeting stringent hygiene requirements. Minimal airflow surface under the ventilated ceiling and reduced heat generation create a low-turbulence displacement stream under the light head. -
Exceptional Longevity
With an LED light source life of up to 30,000 hours, this lamp offers unparalleled reliability and investment protection. Each LED can be individually replaced, ensuring maximum economic use. -
Perfect Cold Light Effect
The LED light source produces no infrared radiation, keeping the temperature rise above the surgeon’s head below 2°C. This minimizes fluid loss in patients and addresses issues of unsatisfactory wound healing caused by heat from traditional lamps. -
Color Temperature Adjustment Technology
Composed of four types of colored LED lenses, the lamp allows color temperature adjustment from 3500K to 5000K. This ensures optimal contrast ratios for human tissue, enabling surgeons to distinguish different tissues with precision. Gradual color temperature adjustments during long operations also help reduce fatigue and enhance focus.
Technical Specifications
- Illuminance:
- LED3: ≥100,000 Lux
-
LED5: ≥140,000 Lux
-
Color Temperature:
-
Adjustable: 3500±200K, 4000±200K, 4500±200K, 5000±200K
-
Color Reduction Index: 96
-
Total Irradiance: 510 W/m²
-
Spot Diameter: 200–350 mm
-
Illuminance Depth: 1020 mm / 1150 mm
-
Lamp Head Diameter: 700 mm / 800 mm
-
Rated Power of Bulb: 3.2V / 1W
-
LED Service Life: 30,000 hours
-
Lowest Installation Height: 3100 mm

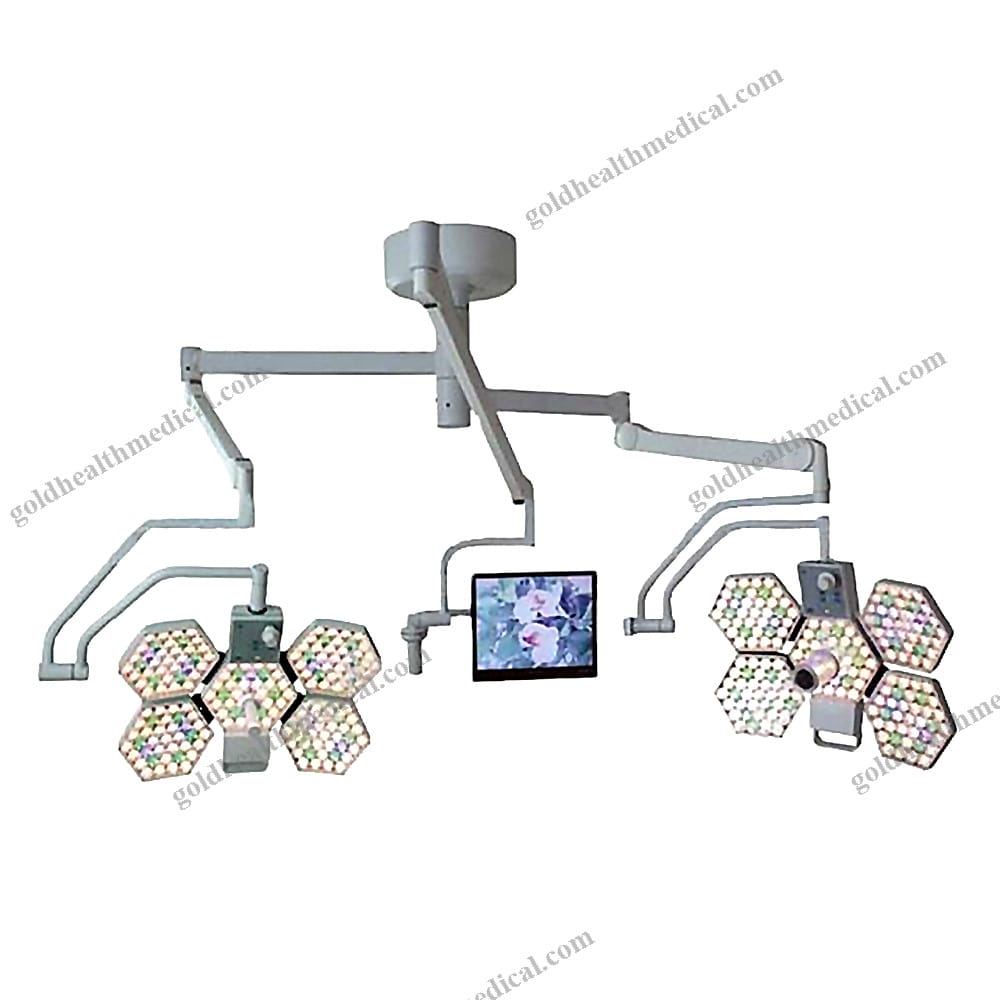

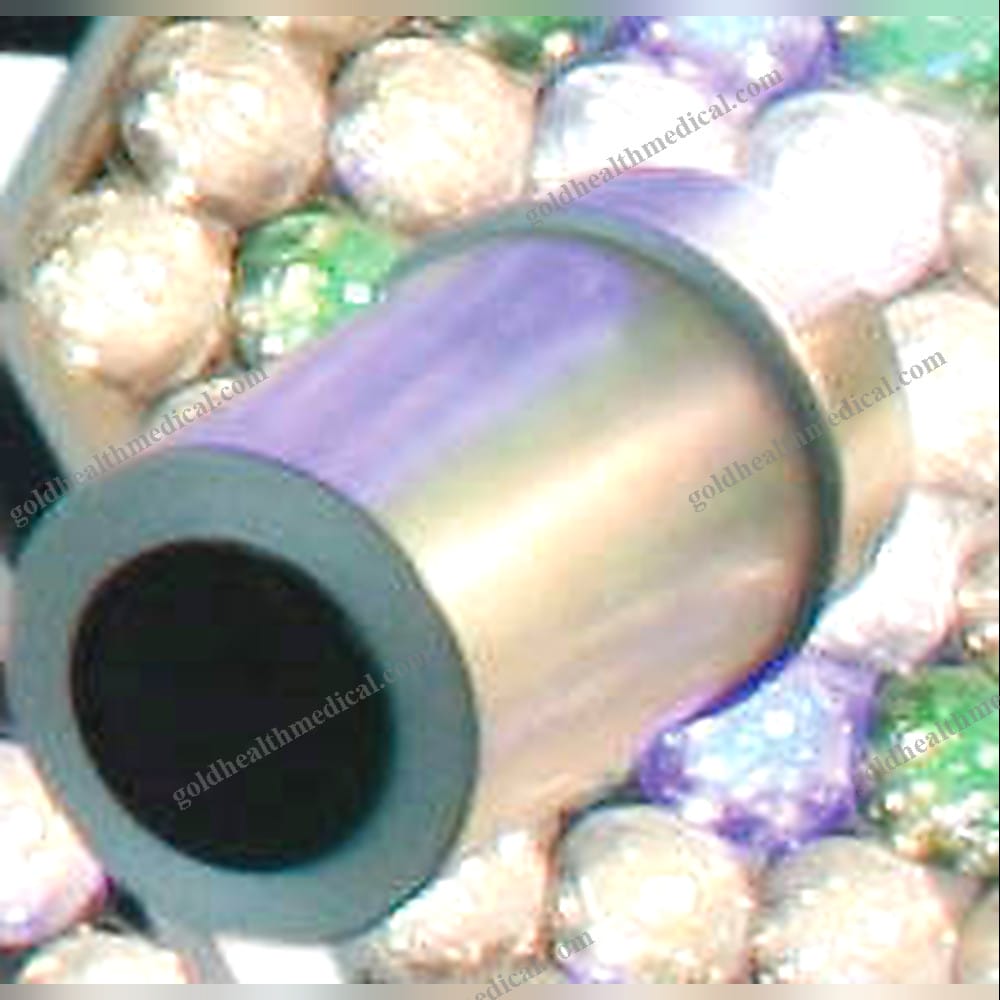

Integrated Camera System for Enhanced Communication
For institutions requiring advanced documentation and teaching capabilities, an optional high-quality camera system is available. Features include:
– Definition: ≥600 TVL
– Shooting Distance: 0.8–2 m
– Signal-to-Noise Ratio (SNR): ≥46 dB
– Focal Length: F3.66–91.36 mm
– Vidicon Power Supply: 12V DC ±10%
Cameras can be integrated into the light heads or mounted on a separate support arm, offering flexibility for research, teaching, and procedural documentation.
GoldHealth Medical’s LED shadowless operating lamp is engineered to meet the demands of modern surgical environments, delivering unmatched performance, reliability, and adaptability.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
GoldHealth Medical presents an advanced surgical lighting solution designed to elevate precision and reliability in medical environments.
- Material: Crafted with a robust combination of high-grade metal and durable plastic, ensuring longevity and stability in demanding settings.
- Instrument Classification: Class II medical device, engineered for safety and performance.
- Safety Standard Compliance: Meets the rigorous requirements of GB/T 32610, guaranteeing optimal safety for both patients and practitioners.
- Place of Origin: Proudly manufactured in China with global standards in mind.
- Power Source: Fully electric operation, providing consistent and reliable performance.
- Shelf Life: Designed for a serviceable lifespan of 1 year under recommended usage conditions.
- Quality Certifications: Backed by CE and ISO certifications, ensuring adherence to international quality and safety benchmarks.
Technical Specifications:
- Illuminance: Delivers exceptional brightness with two tiers of performance:
- 100,000 Lux
- 140,000 Lux
- Color Temperature Options: Adjustable settings to suit diverse procedural needs:
- 3500±200K
- 4000±200K
- 4500±200K
- 5000±200K
- Illuminance Depth: Provides a focused lighting depth of 1150mm, ensuring clarity and precision during intricate procedures.
Optional Features:
- Integrated camera system for enhanced documentation and training purposes.
- Monitor compatibility for real-time visualization and improved workflow efficiency.
- UPS (Uninterruptible Power Supply) system to ensure uninterrupted operation during critical procedures.
Warranty and Support:
- Comprehensive 1-year warranty, offering peace of mind and assurance of quality.
- Access to online technical support, ensuring prompt assistance whenever needed.
Packaging:
- Securely packed in two durable plywood cases, designed to protect the equipment during transit and storage.
GoldHealth Medical’s surgical lamps are meticulously engineered to meet the needs of modern healthcare facilities, delivering unparalleled illumination, flexibility, and reliability for every medical professional.
