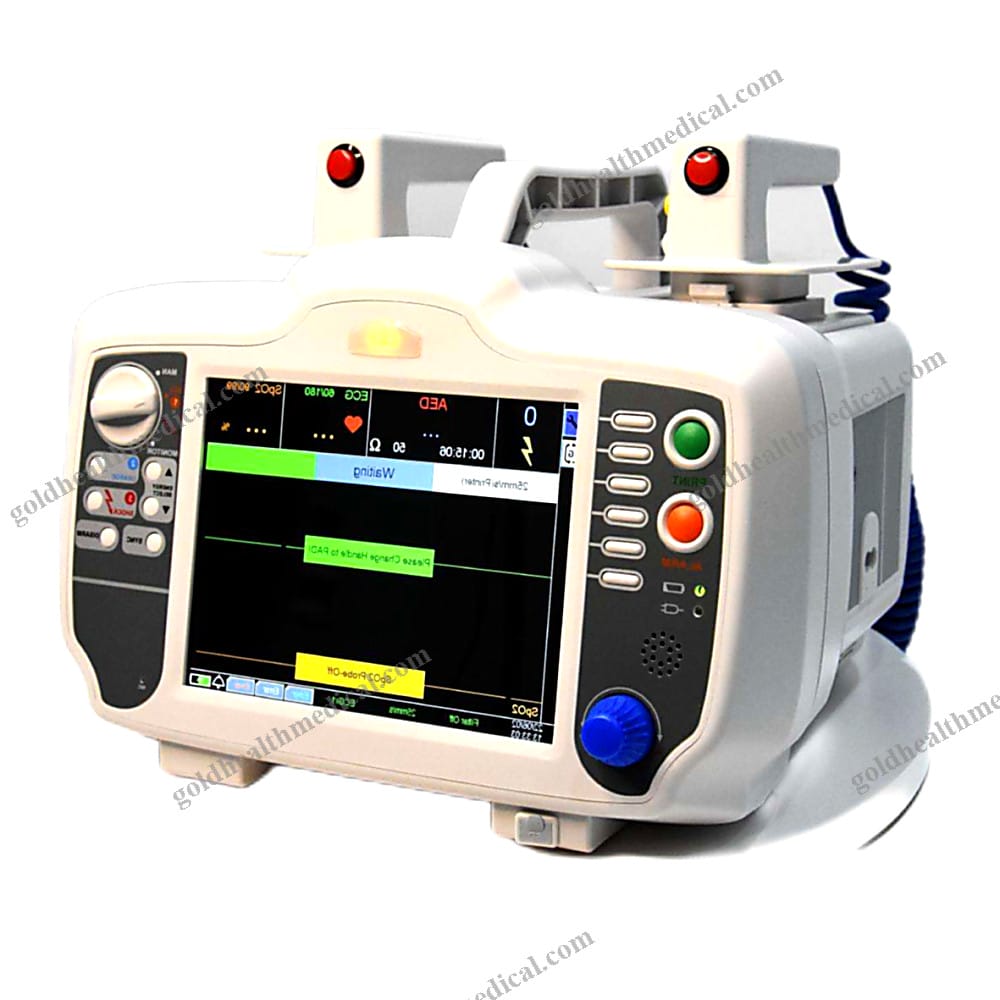

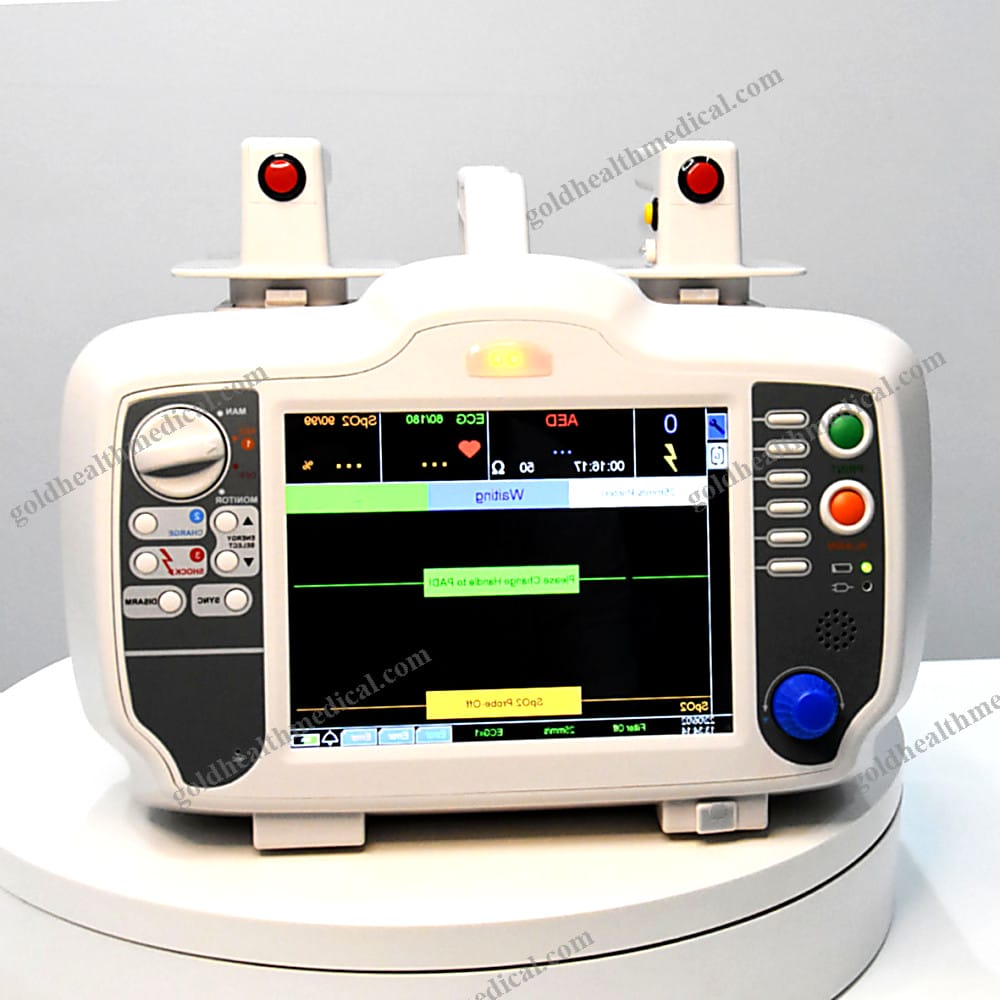

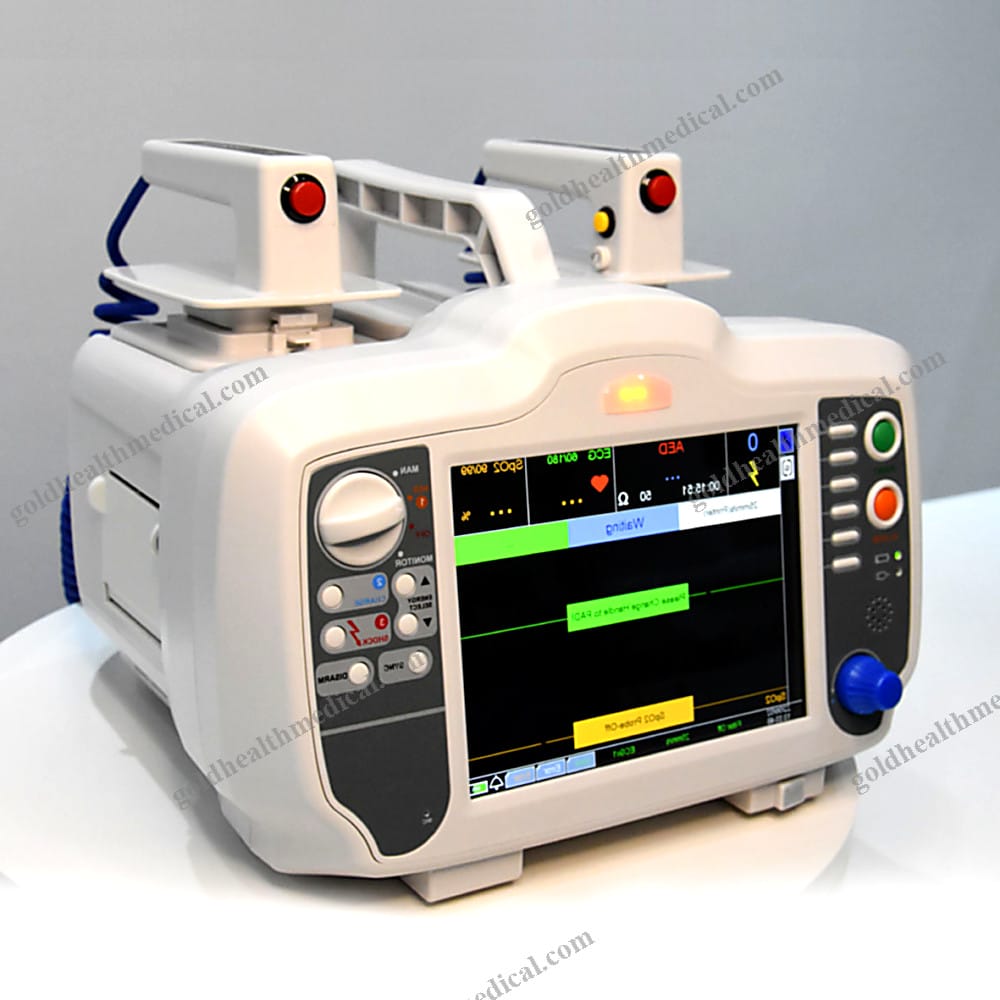

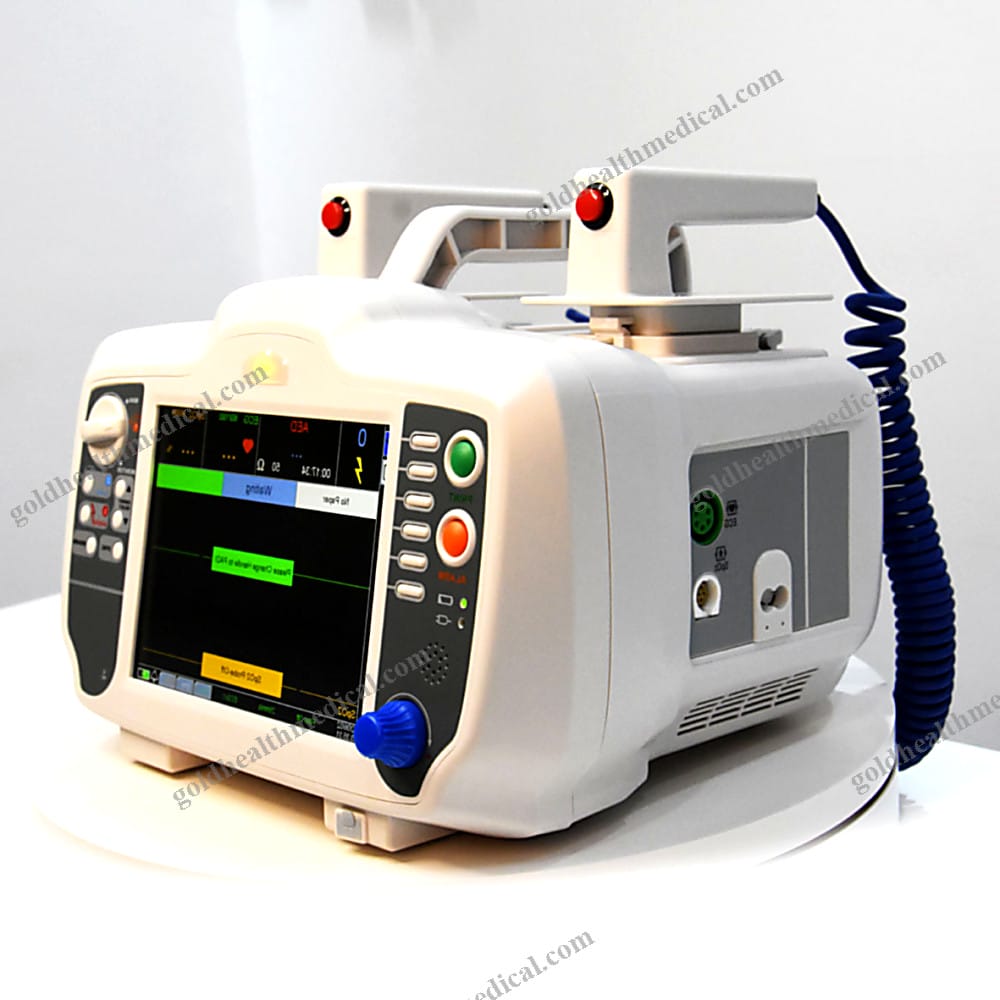

SM7000 Portable AED Defibrillator
Revolutionizing Emergency Care with GoldHealth Medical’s Portable Defibrillator
GoldHealth Medical presents a state-of-the-art Portable Automatic External Defibrillator (AED) designed to deliver exceptional performance in critical moments. Engineered with precision, this device is a reliable companion for hospitals, clinics, and emergency responders.
Display and Interface
– 8-inch High-Resolution LCD Display: Ensures clear visibility of vital information.
– Sweep Speed: 25mm/sec for accurate waveform representation.
– Displayed Information: Heart Rate (HR), Lead/Pads status, On/Off Alarm, SpO2, AED Functions and Prompts, Alarm Selection, and Delivered Energy.
Defibrillator Specifications
– Waveform: Advanced Biphasic technology for effective defibrillation.
– Charge Time: Less than 7 seconds with a fully charged battery.
– Energy Display: Monitor shows both selected and delivered energy levels.
– Charge Prompts: Voice and visual guidance for seamless operation.
– Electrode Impedance Measurement: Range of 0-250 ohms.
ECG Monitoring
– Patient Connection: Compatible with 5-lead or 3-lead ECG cables and paddles.
– Lead Selection: Displayed on monitor (I, II, III, AVR, AVL, AVF, V).
– ECG Size: Adjustable display settings (0.25, 0.5, 1, 1.5, 2, 4 cm/mV).
– Heart Rate: Monitors between 20-300 BPM.
– Heart Rate Alarm: User-configurable On/Off settings.
– Smart Alarms: Beeper and voice prompts for shockable rhythms.
Recorder Capabilities
– Paper Type: 50mm thermal paper.
– Speed Options: 12.5mm/sec, 25mm/sec, 50mm/sec (user-selectable with 6-second delay).
– Printing Method: High-resolution thermal print head.
– Print-out Modes: Manual or automatic configurations.
– On/Off Control: Accessible from front panel and paddles.
– Automatic Function: 9-second recording triggered by alarm, charge, or discharge.
Battery Performance
– Type: Rechargeable Ni-MH battery (12V).
– Operating Time: Up to 60 defibrillator discharges at maximum energy or 3 hours of continuous ECG monitoring.
AED Mode
– Auto Analyze and Charge: Programmable energy levels with screen and voice prompts.
– Shockable Rhythms: Detects ventricular fibrillation (amplitude ≥200µV), ventricular tachycardia (rates ≥140bpm), and QRS complex wave duration ≥140ms.
– Charge Control: Front panel and paddle key activation.
– Prompts: Voice and visual guidance.
Manual Mode
– Energy Selection: Adjustable settings from 2 to 360 joules.
– Synchronized Mode: Precise synchronization for specific applications.
Optional Pacer Specifications
– Type: VVI.
– Pulse Type: Rectangular, constant current.
– Pulse Amplitude: 0 to 180 mA ±10% or 5 mA (whichever is greater).
– Pacing Rate: Variable from 30 ppm to 180 ppm ±1.5% (increments or decrements by 2 ppm).
– Multi-Function Electrode (MFE) Pads: Multipurpose defibrillation/pacing electrodes.
– Pause Feature: Reduces pacing pulse frequency by a factor of 4 when activated.
– Refractory Period: Not applicable for VVI demand.
– Pulse Width: 20±1.5 ms.
– Output Protection: Fully defibrillator protected and isolated.
GoldHealth Medical’s Portable Defibrillator stands out with its advanced features, user-friendly interface, and reliable performance. Designed to meet the diverse needs of healthcare professionals, it ensures precision and efficiency in every use. Elevate your emergency response capabilities with this cutting-edge device.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Product Overview
GoldHealth Medical proudly presents the Automated External Defibrillator (AED), a cutting-edge device designed to deliver life-saving emergency care with precision and reliability. Engineered for both professional and non-professional users, this AED combines advanced technology with intuitive design to ensure rapid response in critical situations.
Key Features
- Emergency-Ready Design: Compact, lightweight, and easy to operate, ensuring swift intervention during cardiac emergencies.
- Durable Construction: Crafted from high-quality ABS material, offering robustness and long-lasting performance.
- Intuitive Operation: Simplified interface for seamless use in high-pressure environments, empowering first responders and healthcare professionals alike.
- Portable and Versatile: Ideal for hospitals, clinics, research labs, rehabilitation centers, and home use.
Technical Specifications
- Power Source: Electric
- Instrument Classification: Class II
- Color: Sleek white finish for a professional aesthetic
- Shelf Life: 1 year
- Application: Emergency cardiac care and first-aid support
- Functionality: Specifically designed for emergency care scenarios
Certifications and Compliance
- Quality Certifications: CE, ISO
- Safety Standards: Meets rigorous international medical device requirements
Packaging Details
- Package Dimensions: 38 x 28 x 28 cm
- Gross Weight: 10.000 kg
- Selling Unit: Single item
After-Sales Support
- Warranty: Comprehensive 1-year warranty for peace of mind
- Technical Assistance: Access to online technical support for troubleshooting and guidance
Why Choose GoldHealth Medical's AED?
Our Automated External Defibrillator stands out with its user-centric design, reliable performance, and global certifications. Whether you're equipping a medical facility or preparing for emergencies at home, this device ensures you're ready to act with confidence and precision.
Ordering Information
- Minimum Order Quantity (MOQ): 1 unit
GoldHealth Medical is committed to advancing healthcare solutions that save lives and enhance patient outcomes. Choose excellence, choose reliability—choose GoldHealth Medical.
