RealTime PCR Analyzer System for Fast Testing
GoldHealth Medical Real-Time POCT PCR Analyzer System
Product Overview
GoldHealth Medical introduces a cutting-edge Real-Time POCT PCR Analyzer System designed to deliver unparalleled performance and precision. Engineered with advanced technologies, this system is ideal for hospitals, clinics, research institutions, and more, offering rapid, reliable, and highly sensitive results.
Key Features
- Revolutionary Peltier Technology: Achieves an impressive ramping rate of up to 7°C/s, ensuring faster thermal cycling.
- Enhanced Sample Block Capacity: Supports 48 wells across 2/4 channels. Compatible with white PCR tubes, which maximize sensitivity and minimize background interference in quantitative PCR experiments.
- T-Optical Technology: Minimizes background noise while significantly improving fluorescence signal sensitivity and signal-to-noise ratio.
- Simultaneous Well Detection: Ensures all wells are analyzed at once, eliminating sequential delays.

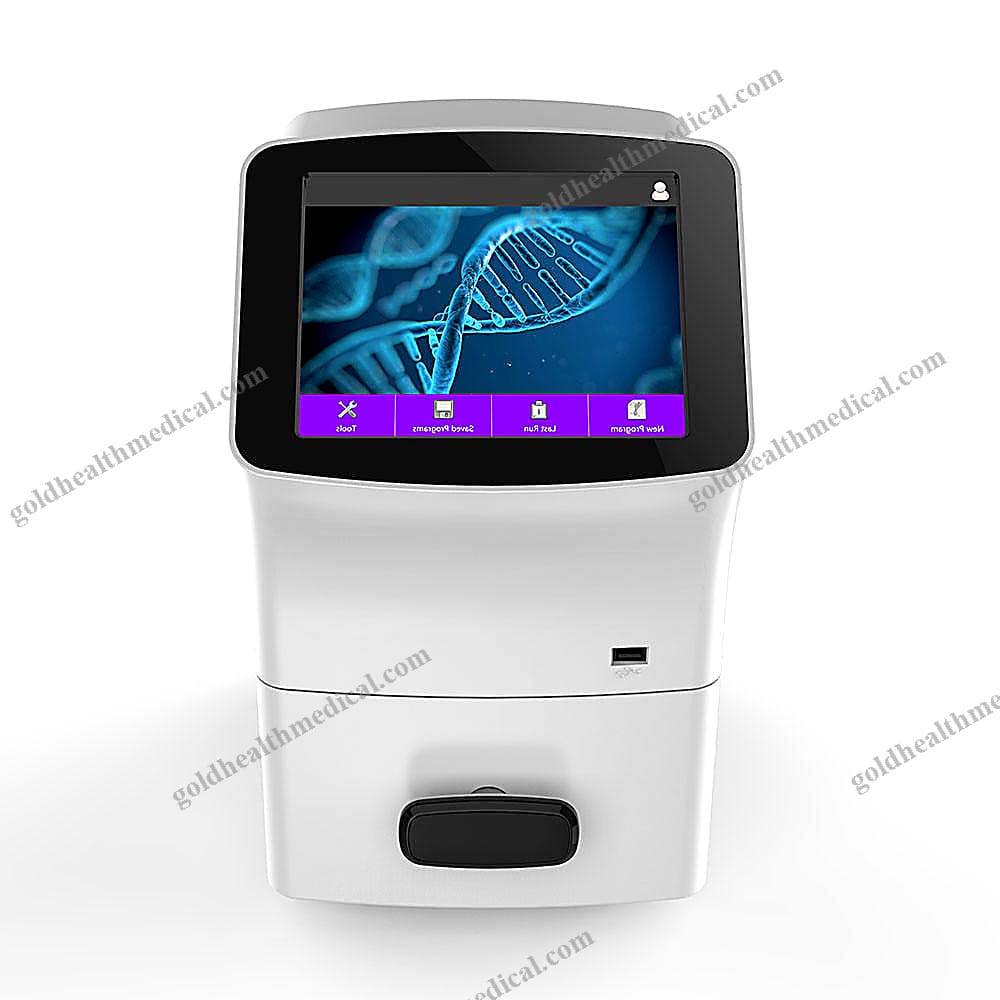

- Intuitive Interface: Equipped with a 7″ TFT LCD touch screen for seamless operation and real-time qPCR process monitoring.
- Advanced Optical System: Specially designed for qPCR, eliminating moving parts to prevent overheating, wear, and misalignment. No optical fiber dependency ensures durability and reliability.
- Long-Life LED Lamps: Paired with SSLP CCD imaging technology for consistent fluorescence excitation and detection.
- Temperature Gradient Functionality: Optimizes PCR conditions effortlessly with gradient-enabled sample wells.

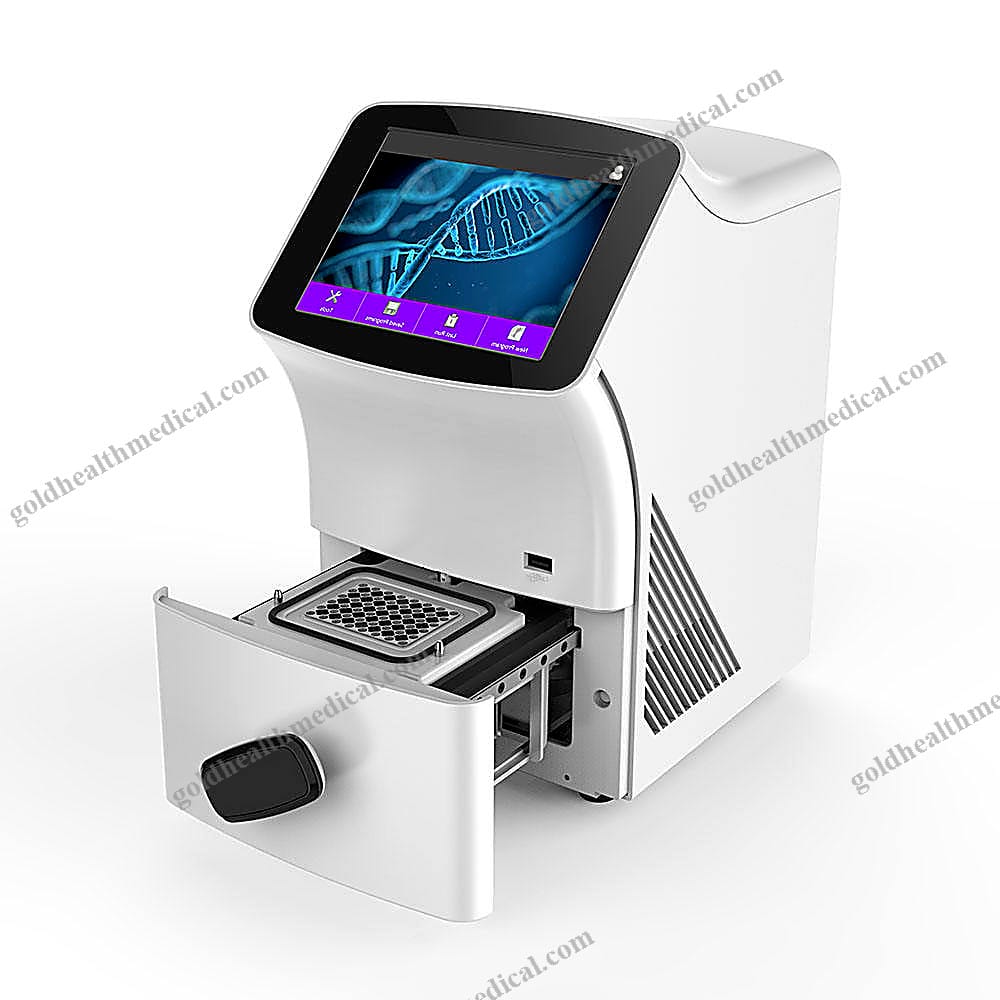

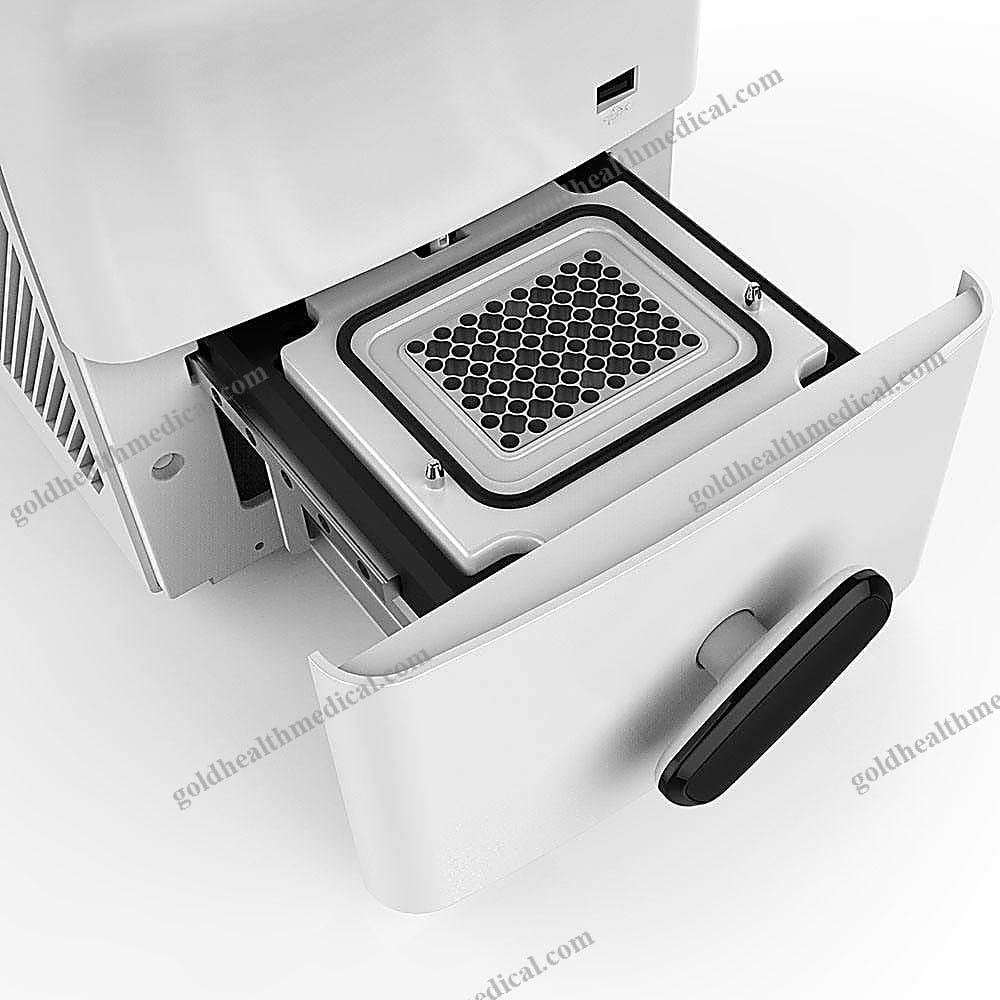

- User-Friendly Drawer Design: Simplifies the loading and unloading of PCR tubes and plates.
- Free Software Upgrades: Ensures your system remains up-to-date with the latest advancements in qPCR analysis.
Technical Specifications
Performance
– Sample Block Capacity: 48 wells (0.1ml)
– Reaction Volume: 10-50µl
– Tube Options: Low-profile white or clear 0.1ml PCR tubes/8-tube strips with optical flat caps
– Heating & Cooling: Next-generation Peltier technology supporting up to 1,000,000 cycles
– Control Methods: Operable via PC or limited functionality directly on the instrument
– Language: English
– Communication Ports: USB 2.0 & LAN
– Display: 7″ Color TFT Touch Screen
Temperature
– Block Temperature Range: 0°C–105°C
– Maximum Heating Rate: 7°C/sec
– Maximum Cooling Rate: 5°C/sec
– Temperature Uniformity: ±0.2°C at 90°C
– Temperature Accuracy: ±0.1°C (10 seconds after reaching 90°C)
– Display Resolution: 0.1°C
– Heat Lid Temperature Range: 30°C–112°C
– Temperature Control Modes: Block & Sim-tube mode
– Gradient Range: 30°C–100°C
– Temperature Differential Range: 1°C–24°C
Optical Module
– Excitation: Long-life LEDs
– Detection: High-sensitivity photoelectric detector
– Dynamic Range: 1–10¹⁰
– Detection Sensitivity: ≥1 copy
– Calibrated Dyes:
– Channel 1: FAM, SYBR
– Channel 2: VIC, HEX, TET, JOE, CY3, TAMARA, NED
– Channel 3: ROX, TEXAS-RED
– Channel 4: CY5
– Fluorescence Excitation Range: 300–800nm
– Fluorescence Detection Range: 500–800nm
– Data Export Formats: Excel, TXT
Other Features
– Power Supply: Global switch power supply (100V–240V, 50–60Hz)
– Power Consumption: 400W
– Net Weight: 8.2kg
– Dimensions (L×W×H): 320×205×380mm
Computer Compatibility
– Operating Systems: Windows 7, Windows 10, Windows XP
Why Choose GoldHealth Medical?
GoldHealth Medical’s Real-Time POCT PCR Analyzer System stands out with its innovative design, robust performance, and user-centric features. Whether you’re conducting cutting-edge research or managing a high-throughput diagnostic facility, this system ensures precision, reliability, and ease of use. Backed by decades of expertise, GoldHealth Medical is committed to delivering top-tier medical solutions tailored to meet the needs of modern healthcare professionals.
Related Products
- Portable POCT Quantitative Chemiluminescence Fluorescence Immunoassay Analyzer
- Portable Auto POCT Urine Analyzer Machine
- Rapid Diagnostic Hemoglobin Test Equipment and HCT Analyzer
- Fully Automatic Urine Analyzer for
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
GoldHealth Medical presents the cutting-edge PCR Thermal Cycler, designed to elevate your molecular diagnostics and research capabilities.
- Product Name: PCR Thermal Cycler
- Sample Block Capacity: 48 wells x 0.1ml
- Reaction Volume: 10-50ul (Optimized for 20ul reactions)
- Heating and Cooling Technology: Advanced Peltier system for rapid and precise temperature control
- Communications: Seamless connectivity via USB 2.0 or LAN
- Display: Intuitive 7" Color TFT LCD with responsive touch screen interface
- Block Temperature Range: Precise control from 0°C to 105°C
- Max. Heating Rate: Exceptional speed at 7°C per second
- Max. Cooling Rate: Efficient cooling at 5°C per second
- Instrument Classification: Class II medical device for reliable performance
- Warranty: Comprehensive 12-month warranty for peace of mind
- After-Sale Service: Dedicated online technical support to ensure uninterrupted operations
Why Choose GoldHealth Medical's PCR Thermal Cycler?
Our thermal cycler combines innovative engineering with user-centric design, delivering unmatched accuracy, speed, and reliability. Whether you're conducting clinical diagnostics, academic research, or high-throughput screening, this device is engineered to meet the demands of modern laboratories and healthcare facilities.
Packaging and Delivery
- Packaged securely in durable cartons for safe transportation
- Available for shipment from major ports: Shanghai, Ningbo, Guangzhou
- Monthly supply capacity of up to 5,000 units to meet your growing needs
GoldHealth Medical is committed to empowering healthcare professionals and researchers with tools that redefine precision and efficiency. Choose excellence—choose GoldHealth Medical.
