Portable Ultrasound for Abdomen and OBGYN Use
GoldHealth Medical Portable Ultrasound Machine
Advanced Imaging Technologies for Unparalleled Diagnostics
GoldHealth Medical’s Portable Ultrasound Machine integrates cutting-edge imaging technologies to deliver exceptional diagnostic performance:
- Full Digital Imaging Technology: Ensures high-resolution, distortion-free images for precise diagnostics.
- Digital Beam Forming (DBF): Provides pinpoint signal focus, enhancing image clarity.
- Real-Time Dynamic Aperture Imaging (RDA): Delivers detailed imaging depth for comprehensive analysis.
- Dynamic Real-Time Acoustic Apodizer (DRA): Maintains consistent clarity across all imaging fields.
- Dynamic Receiving Focus (DRF) and Dynamic Frequency Scanning (DFS): Improve edge sharpness and image richness for superior detail.
Ergonomic and Intuitive Design
Engineered for ease of use and efficiency:

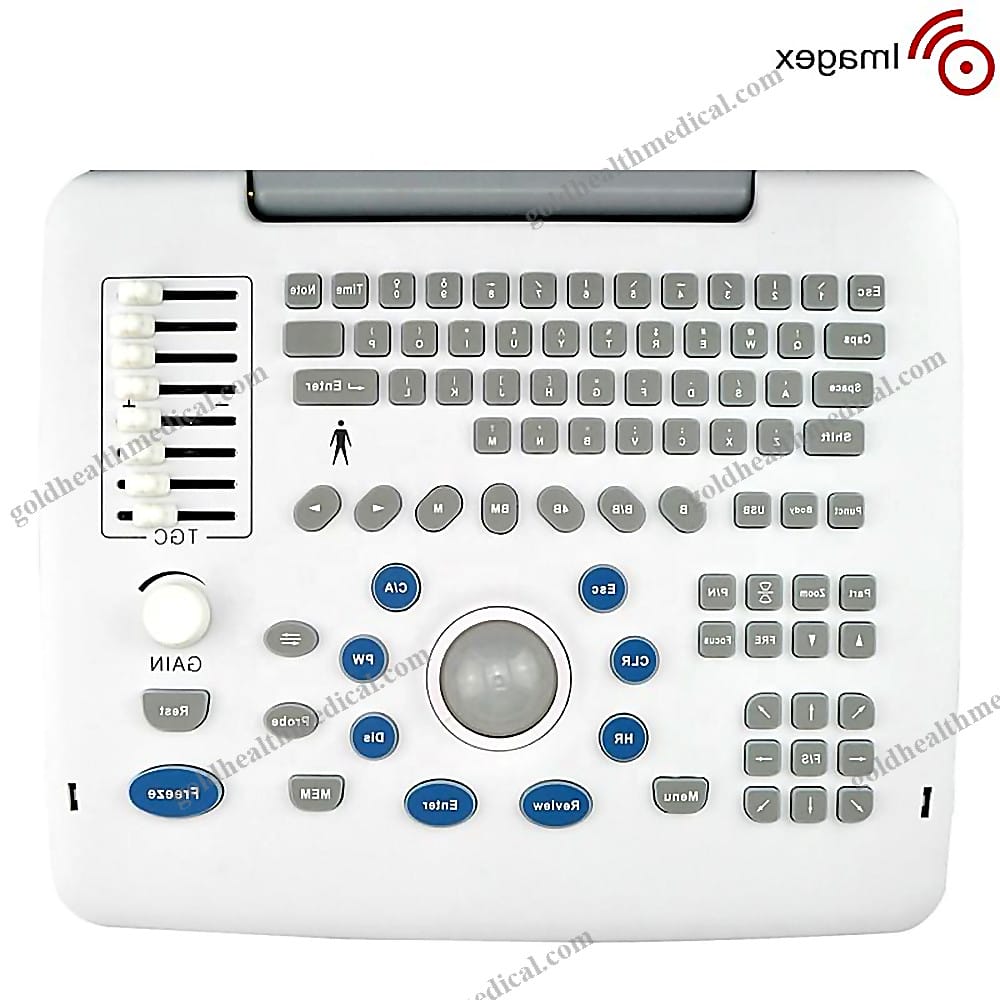

- Eight-section TGC gain adjustment ensures precise control for optimized imaging.
- Built-in software packages support a wide range of clinical applications.
- Comprehensive measurement tools cater to diverse clinical needs, including OB/GYN, cardiology, and general imaging.
- Dual or triple probe connectors (optional) offer compatibility with various probes, maximizing functionality and flexibility.
Exceptional Value and Performance
- Advanced VLSI technology ensures stable and reliable performance.
- A cost-effective design achieves an ideal balance between affordability and high-quality performance.
Standard Configuration

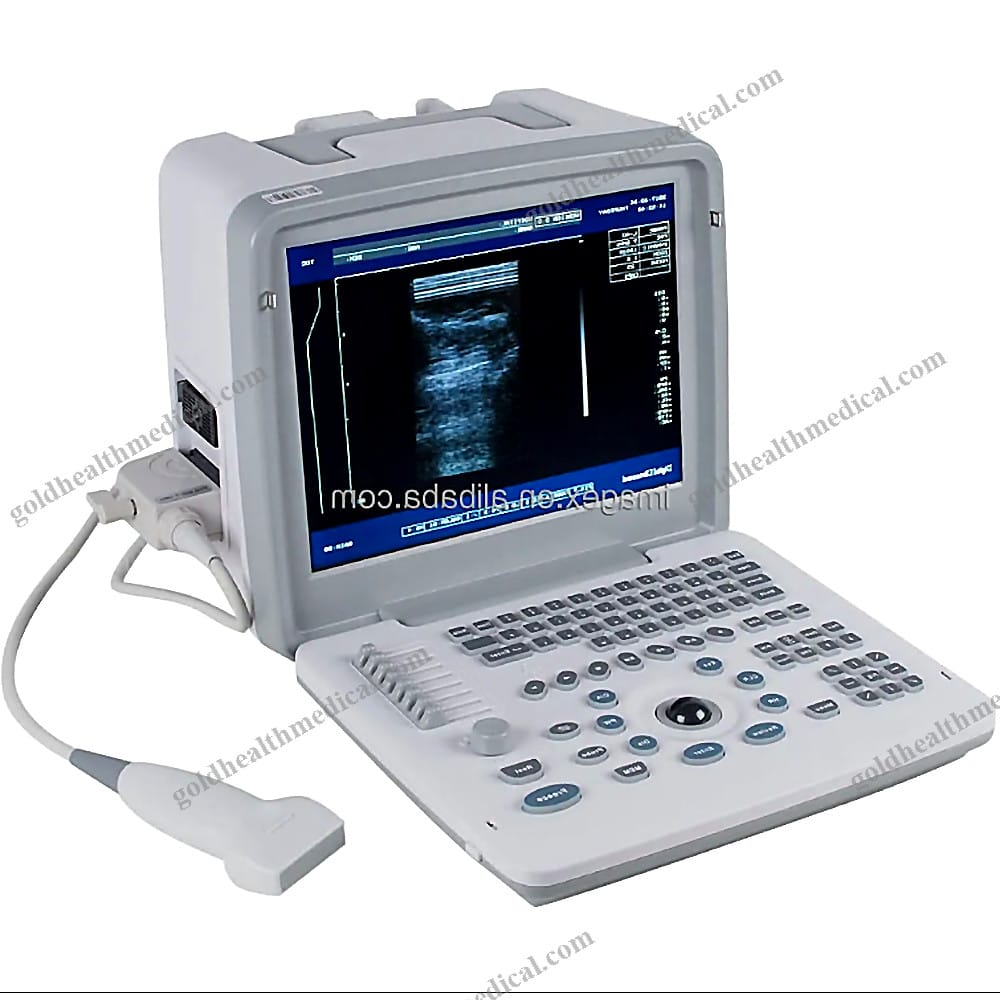

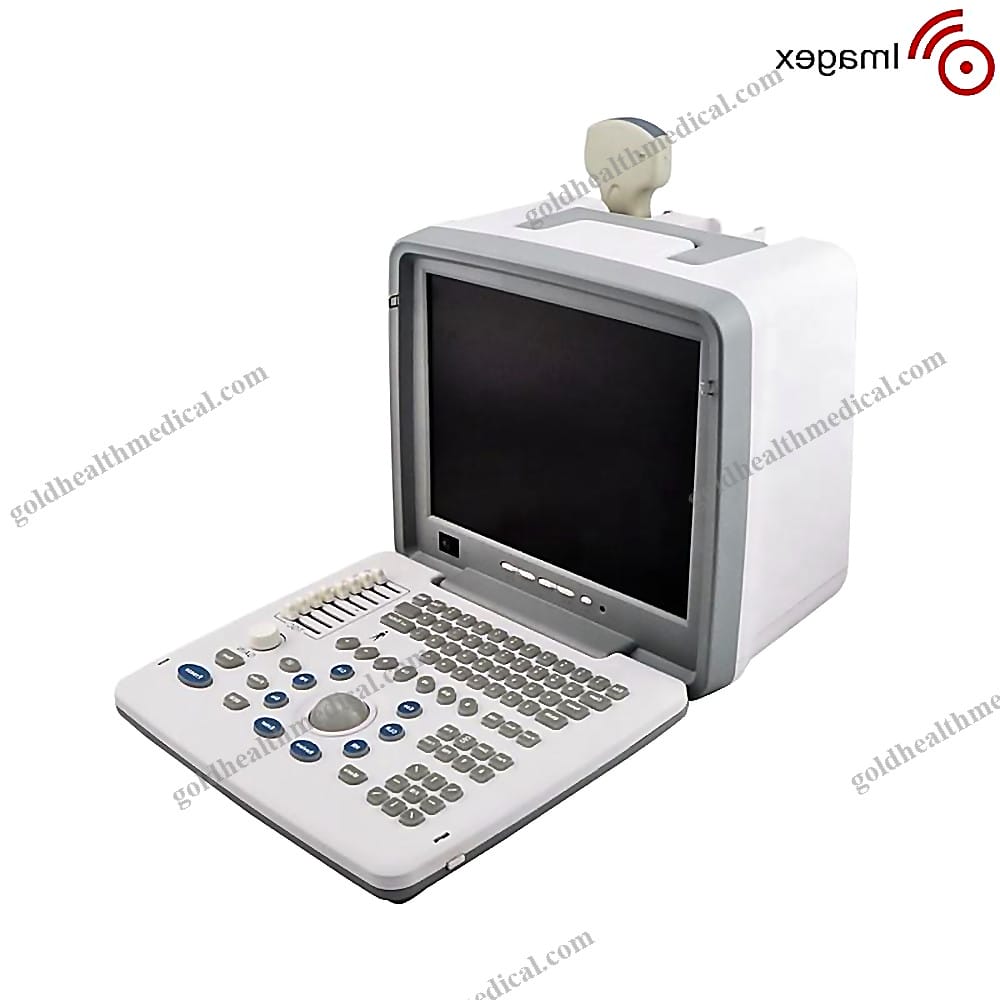

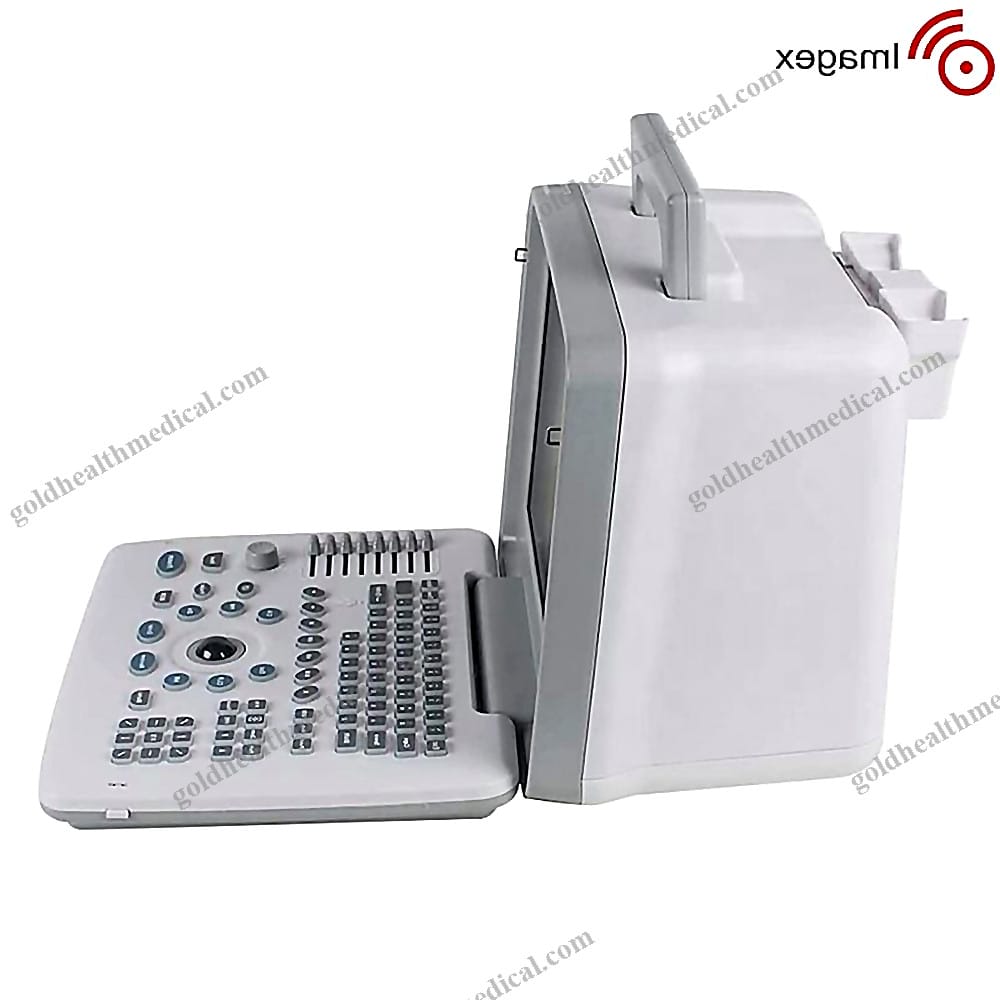

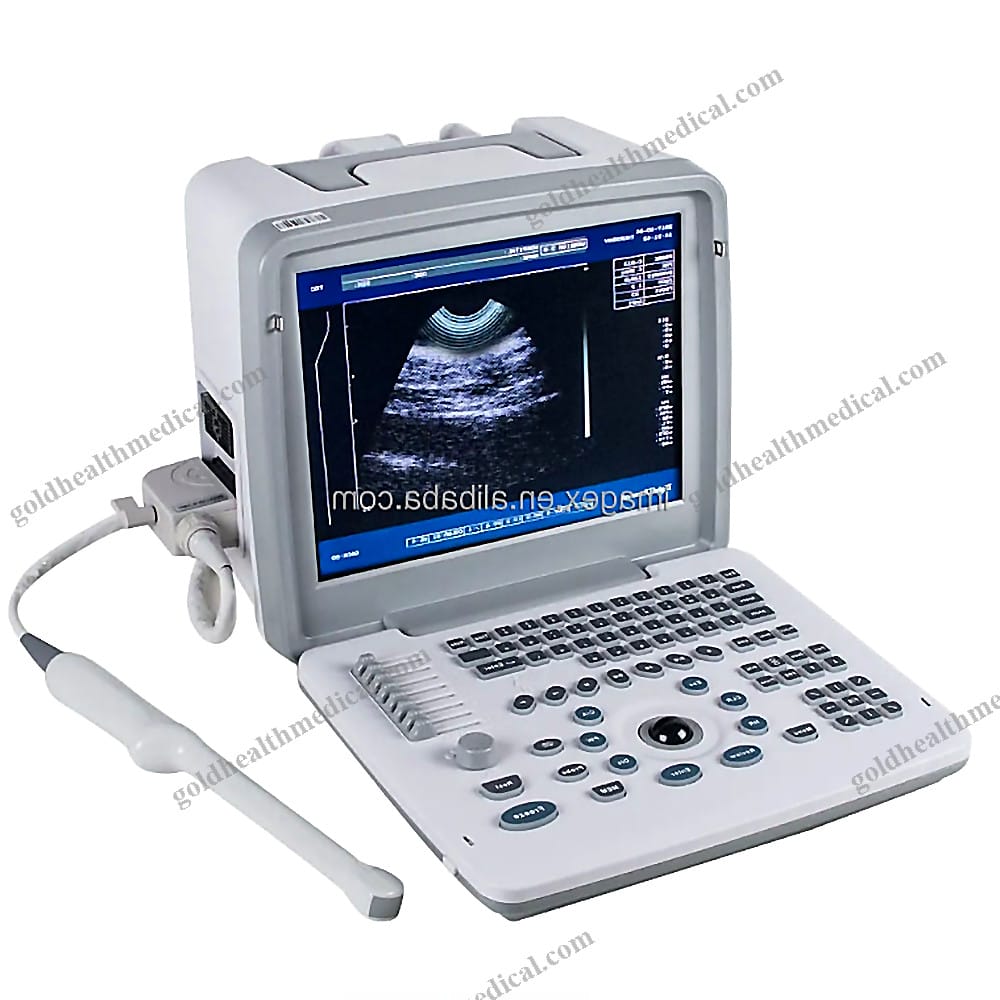

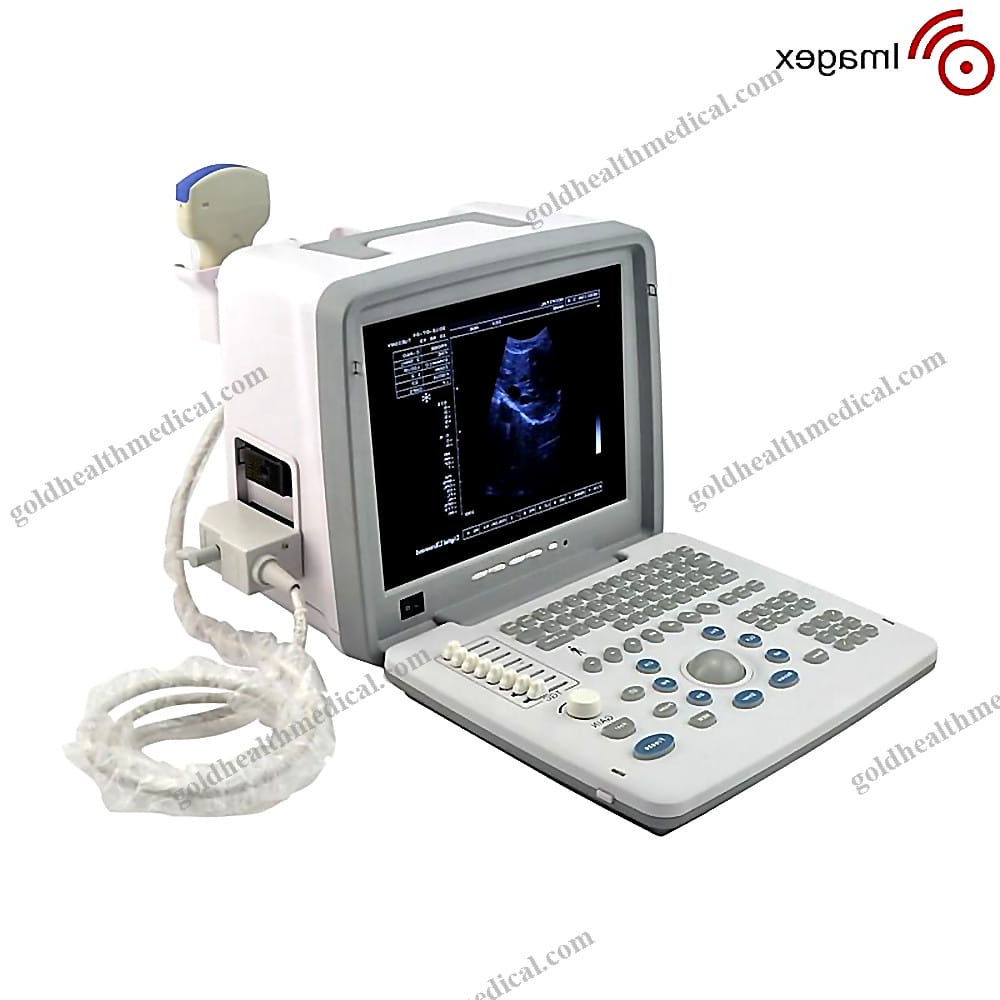

- A 12-inch LCD monitor delivers clear, high-definition images.
- Two probe connectors provide versatile imaging options.
- One USB port enables seamless data transfer and connectivity.
- Includes a 3.5MHz multi-frequency convex probe with 80 elements R60, ideal for abdominal and general-purpose imaging.
Optional Accessories
Customize the system to meet your clinical needs with these optional accessories:
- High-frequency linear probe for vascular and musculoskeletal imaging.
- Electronic trans-vaginal probe for specialized OB/GYN diagnostics.
- Rectal probe for veterinary or urological applications.
- Video thermal recorder for streamlined documentation.
Why Choose GoldHealth Medical’s Portable Ultrasound Machine?
This powerful, portable solution is designed to meet the diverse needs of modern healthcare professionals. Its advanced imaging technologies, user-friendly design, and customizable options make it a versatile and reliable choice for any clinical setting.
Experience the perfect combination of innovation, efficiency, and value with GoldHealth Medical’s Portable Ultrasound Machine.
Display Modes
- 3.5MHz/R60 Convex Array Probe: B, B/B, 4B, B+M, M
- 6.5MHz/R13 Dimpling Array Probe: B
- 7.5 MHz/L40 Line Array Probe: B
Image Multiplying Factor
- 3.5MHz/R60 Convex Array Probe: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0 (6 modes), ×0.8, ×2.0 (display penetration depth)
- 6.5MHz/R13 Dimpling Array Probe: ×0.8, ×1.0, ×1.2, ×1.5 (4 modes)
- 7.5MHz/L40 Line Array Probe: ×0.8, ×1.0, ×1.2, ×1.5 (4 modes)
E-zoom
Magnifies real-time images by 2 times.
Dynamic Range
Adjustable from 0~120dB.
Focus Position
1, 2, 3, and 4-segment dynamic electron focusing.
Image Processing
Includes γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement, and pseudo-color processing. Parameters are automatically set and saved based on user preferences and can be modified in the menu.
Frequency Conversion
Five periods of frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz. Frequency range applies to 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz for high-frequency probes.
Measuring Function
Distance, circumference/area (ellipse method, loci method), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, AC), expected date of confinement, and fetus weight.
Annotation Function
Hospital name, patient’s name, age, gender, 64 body marks (with probe’s position), full-screen character annotation, and real-time clock display.
Puncture Guide
3.5MHz convex array probe displays puncture guide line in B mode.
Gain Control
Eight segments TGC and overall gain can be adjusted respectively.
Image Polarity
Left and right flip, black and white flip, up and down flip.
Capacity
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Product Name: Portable Ultrasound Machine by GoldHealth Medical
Key Features and Benefits:
- Unmatched Portability: Designed for ultimate convenience, this compact ultrasound machine is perfect for medical professionals on the move.
- Advanced Imaging Technology: Delivers high-resolution images, ensuring precise diagnostics in any setting.
- Plug-and-Play Simplicity: Powered by an electric source with a plug-in mode, it’s ready to use wherever you need it.
- Durable and Lightweight Design: Crafted with high-quality plastic materials, weighing just 10 kg, making it easy to transport.
- Versatile Application: Ideal for hospitals, clinics, research labs, rehabilitation centers, and even home healthcare.
Technical Specifications:
- Power Source: Electric
- Power Supply Mode: Plug-in
- Material: High-grade plastic
- Instrument Classification: Class II medical device
- Quality Certification: CE certified for safety and reliability
- Shelf Life: 1 year
Packaging Details:
- Package Dimensions: 45 x 35 x 35 cm
- Gross Weight: 10.000 kg
Warranty and Support:
- Comprehensive Warranty: Backed by a 1-year warranty for peace of mind.
- Customer-Centric After-Sales Service: Includes hassle-free return and replacement options.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical solutions that empower healthcare providers worldwide. Our portable ultrasound machine combines innovation, durability, and precision to meet the demands of modern medicine. Whether you’re conducting fieldwork, managing a busy clinic, or providing care at home, this device ensures exceptional performance and reliability.
Applications:
- Hospitals and Clinics
- Diagnostic Laboratories
- Research Institutions
- Rehabilitation Centers
- Home Healthcare Settings
Experience the future of portable medical imaging with GoldHealth Medical’s Portable Ultrasound Machine.
