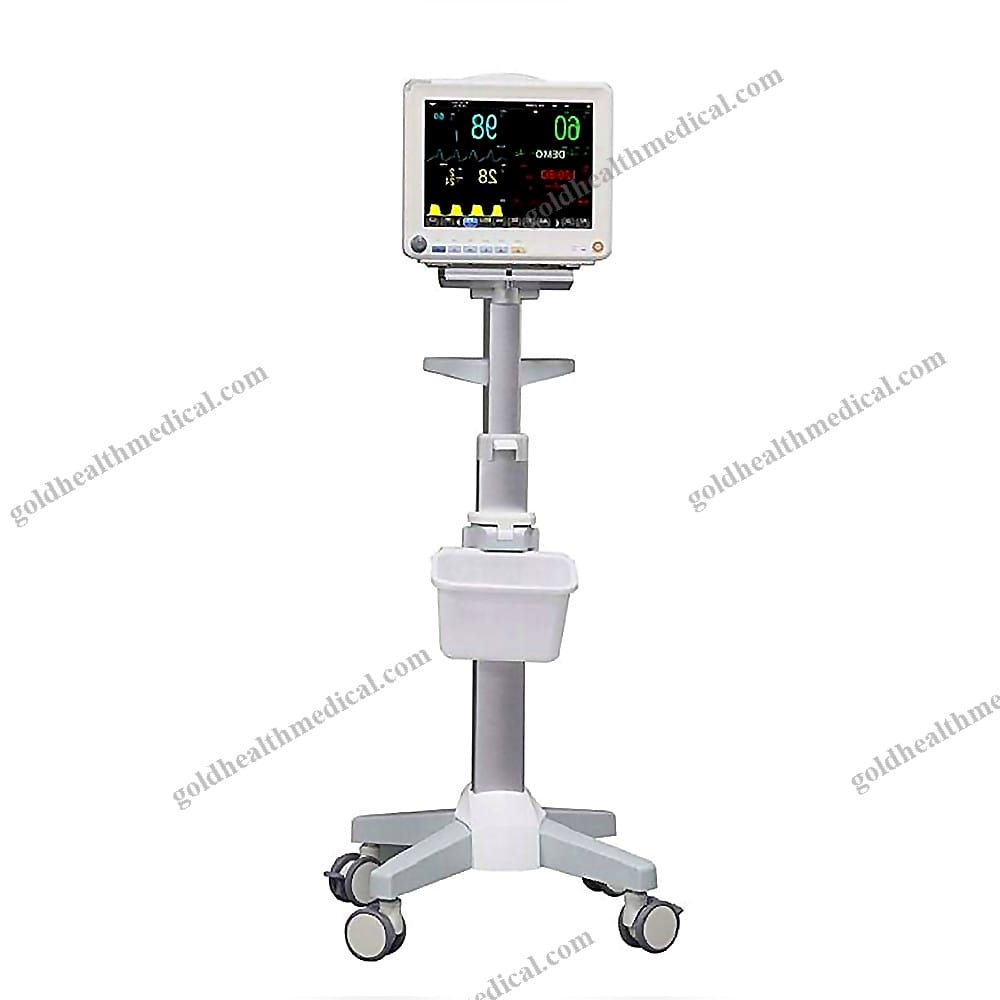

Portable MultiParameter Patient Monitor with Cart Surgery and Diagnosis Support
GoldHealth Medical presents a revolutionary Portable Multi-Parameter Patient Monitor designed for versatility across adult, pediatric, and neonatal care. This state-of-the-art device delivers comprehensive monitoring of vital signs, including ECG, Respiratory Rate, SpO2, NIBP, TEMP, and IBP. Combining advanced parameter modules, an intuitive display, and a built-in recorder, this monitor is engineered for precision, portability, and ease of use. Its compact and lightweight design, complemented by a replaceable built-in battery, ensures seamless patient transport. The large high-resolution display offers crystal-clear visualization of up to five waveforms and all monitoring parameters, empowering healthcare professionals with actionable insights.
Key Features

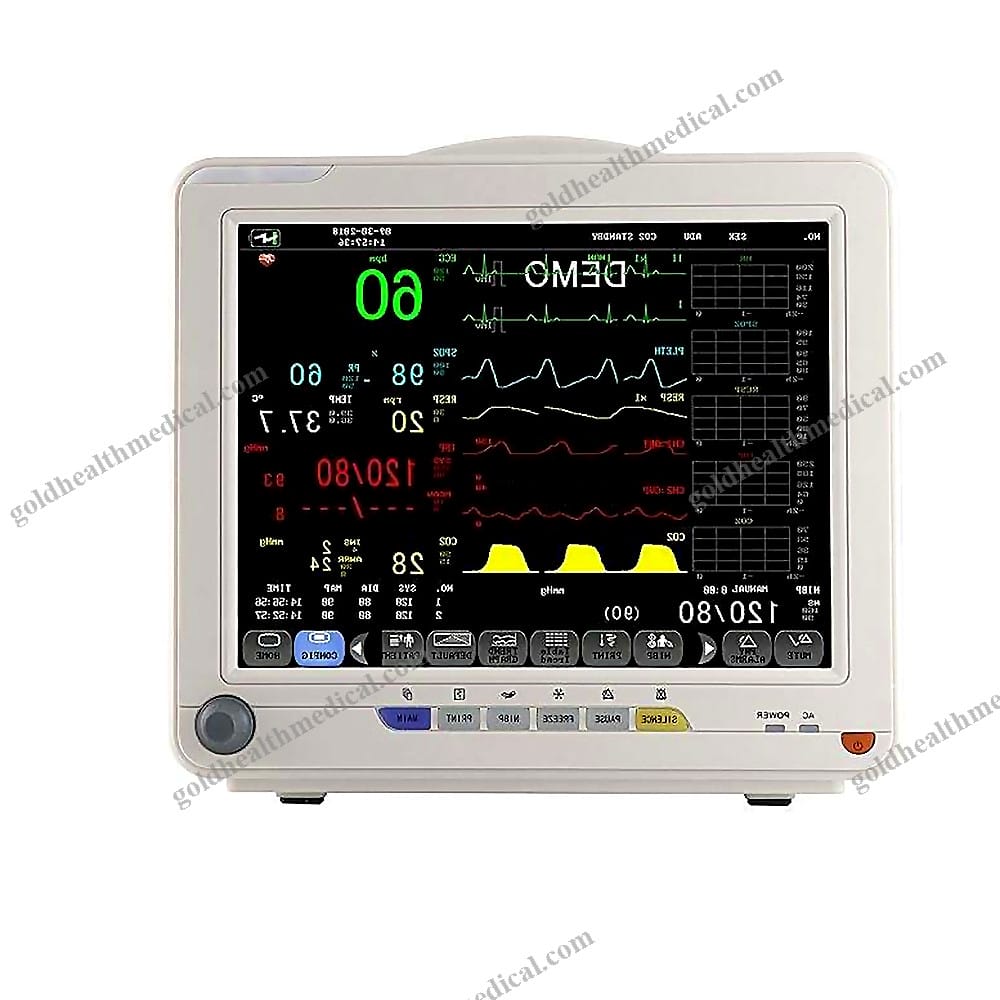

- 12.1-inch color display with 800×600 resolution for exceptional clarity.
- Three versatile working modes: Monitoring, Surgery, and Diagnosis, tailored to diverse clinical needs.
- Intuitive user interface with multiple display modes, including Standard Interface, Large Font, ECG Full Display, OXY, Trend Table, and BP Trend.
- Built-in rechargeable lithium battery supporting up to 2 hours of continuous operation, ensuring uninterrupted care during transport.

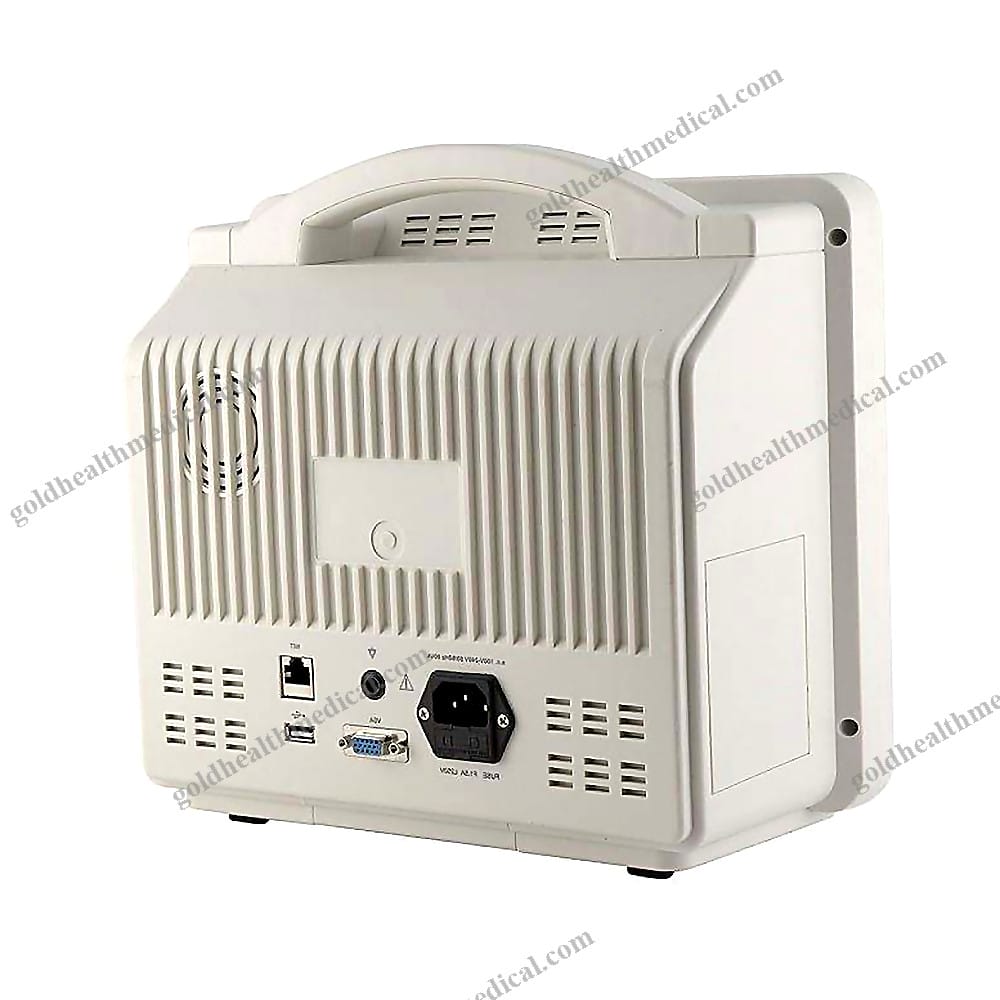

- VGA output for seamless connection to external displays, enhancing visibility in critical scenarios.
Technical Specifications
ECG
- Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V).
- Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV.
- Heart Rate:
- Adult: 15-300 BPM.
- Neonatal: 15-350 BPM.
- Resolution: 1 BPM.
- Accuracy: ±1%.
- ST Measurement Range: -2.0 ~ +2.0 mV.
- Sweep Speed: 12.5 mm/s, 25 mm/s, 50 mm/s.
- Bandwidth:
- Diagnostic: 0.05~130 Hz.
- Monitor: 0.5~40 Hz.
- Surgery: 1~20 Hz.
SpO2
- Measuring Range: 0 ~ 100%.
- Resolution: 1%.
- Accuracy: 70% ~ 100% (±2%).
- Pulse Rate: 20-250 BPM.
- Resolution: 1 BPM.
- Accuracy: ±3 BPM.
NIBP
- Method: Oscillometry.
- Modes: Manual, Auto, STAT.
- Units: mmHg, kPa.
- Measurement and Alarm Range:
- Adult Mode:
- SYS: 40 ~ 280 mmHg.
- DIA: 10 ~ 225 mmHg.
- MEAN: 20 ~ 240 mmHg.
- Pediatric Mode:
- SYS: 40 ~ 220 mmHg.
- DIA: 10 ~ 160 mmHg.
- MEAN: 20 ~ 170 mmHg.
- Neonatal Mode:
- SYS: 40 ~ 135 mmHg.
- DIA: 10 ~ 100 mmHg.
- MEAN: 20 ~ 110 mmHg.
- Resolution: 1 mmHg.
- Accuracy: ±5 mmHg.
RESP
- Method: Impedance between RA-LL or RA-LA.
- Measurement Range:
- Adult: 10 ~ 120 BrPM.
- Neonatal/Pediatric: 7 ~ 150 BrPM.
- Resolution: 1 BrPM.
- Accuracy: ±2 BrPM.
TEMP
- Measurement and Alarm Range: 0 ~ 50°C.
- Resolution: 0.1°C.
- Accuracy: ±0.1°C.
Standard Parameters
- ECG, RESP, TEMP, NIBP, SpO2, PR.
Optional Parameters
- Recorder (Printer).
- Central monitoring system.
- Dual IBP.
- EtCO2.
- 12-lead ECG.
- Nellcor SpO2.
- SunTech NIBP.

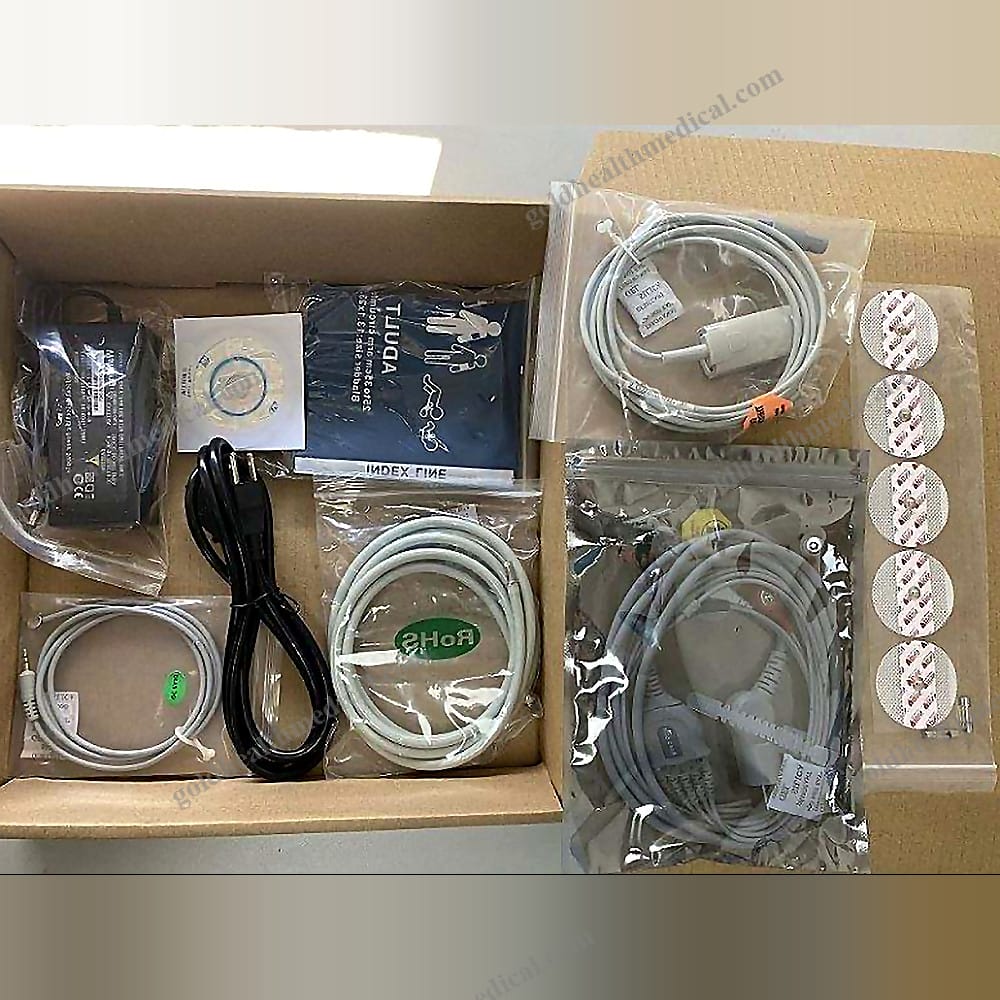

Standard Configuration
- Main Unit: 1.
- 5-lead ECG cable:
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Company Name: GoldHealth Medical
Item Name: Multi-Parameter Patient Monitor
Product Overview:
The Multi-Parameter Patient Monitor by GoldHealth Medical is a cutting-edge solution designed to deliver precision, reliability, and ease of use in medical environments. Engineered for versatility, this device seamlessly integrates into hospitals, clinics, research labs, and home care settings, providing real-time monitoring of critical patient parameters. Its sleek design and advanced functionality make it an indispensable tool for healthcare professionals seeking accuracy and efficiency.
Key Features and Specifications:
- Materials: Crafted with a robust combination of acrylic, metal, plastic, and steel for durability and a modern aesthetic.
- Instrument Classification: Class II medical device, ensuring compliance with rigorous safety and performance standards.
- Safety Standard: Certified to EN 149-2001+A1-2009, guaranteeing the highest level of protection and reliability.
- Power Source: Electric, offering consistent and uninterrupted performance.
- Shelf Life: 3 years, ensuring long-term usability and value.
- Quality Certification: CE-certified, meeting international standards for safety and quality.
Warranty and Support:
- Warranty: 3-year comprehensive warranty for peace of mind and long-term reliability.
- After-Sales Service: Access to online technical support, ensuring prompt assistance whenever needed.
Packaging Details:
- Selling Units: Single item
- Single Package Size: XX cm
- Single Gross Weight: XX kg
Unique Selling Points:
- Precision Monitoring: Delivers accurate, real-time data to support informed clinical decisions.
- Durability and Design: Combines premium materials with a sleek, ergonomic design for both functionality and aesthetics.
- Versatility: Suitable for a wide range of medical environments, from intensive care units to home healthcare settings.
- Compliance and Safety: Meets stringent international standards, ensuring patient and operator safety.
GoldHealth Medical’s Multi-Parameter Patient Monitor is more than a device—it’s a commitment to advancing healthcare through innovation and excellence.
