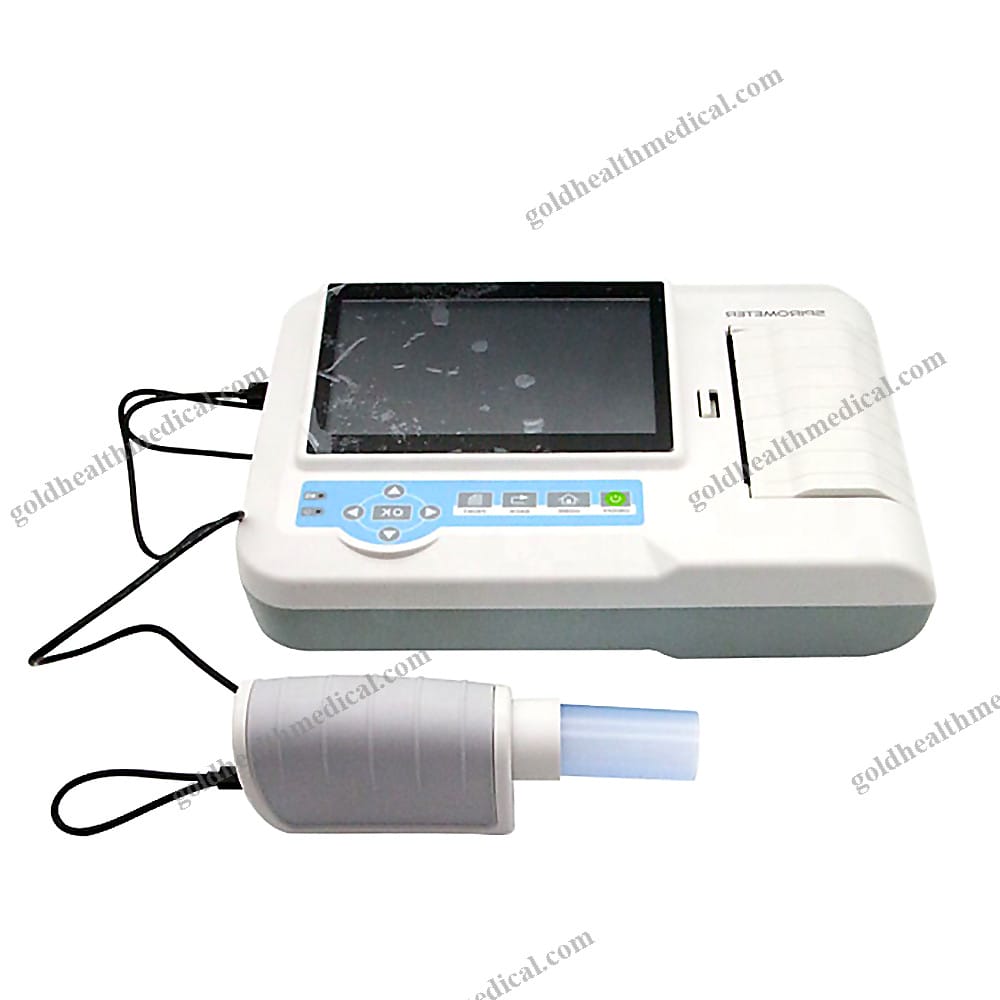

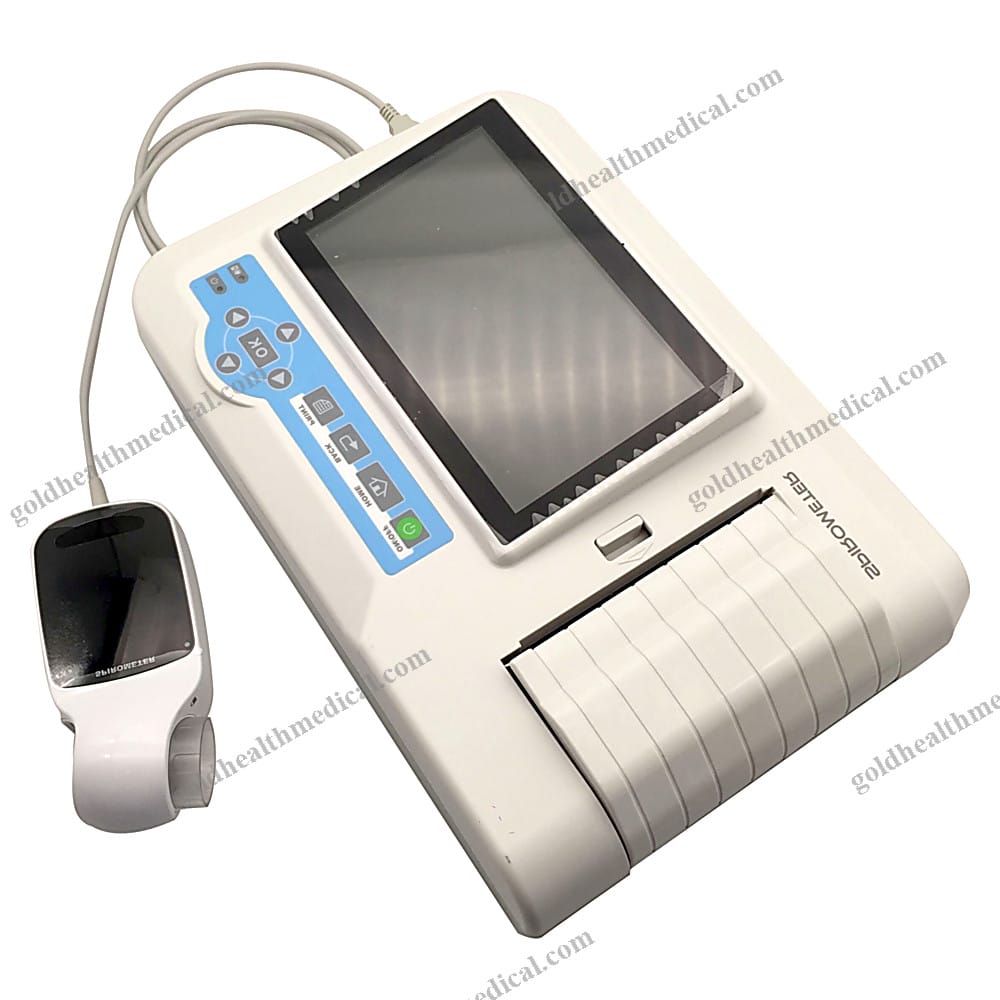

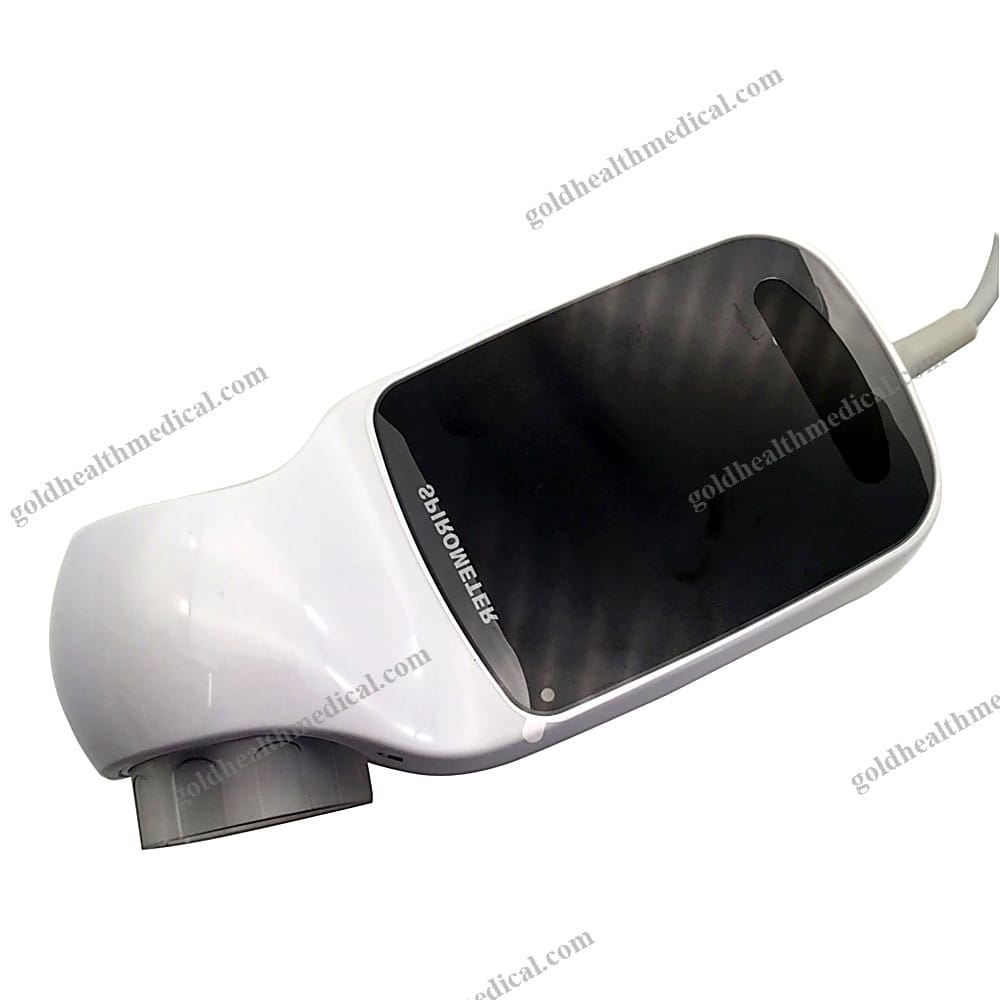

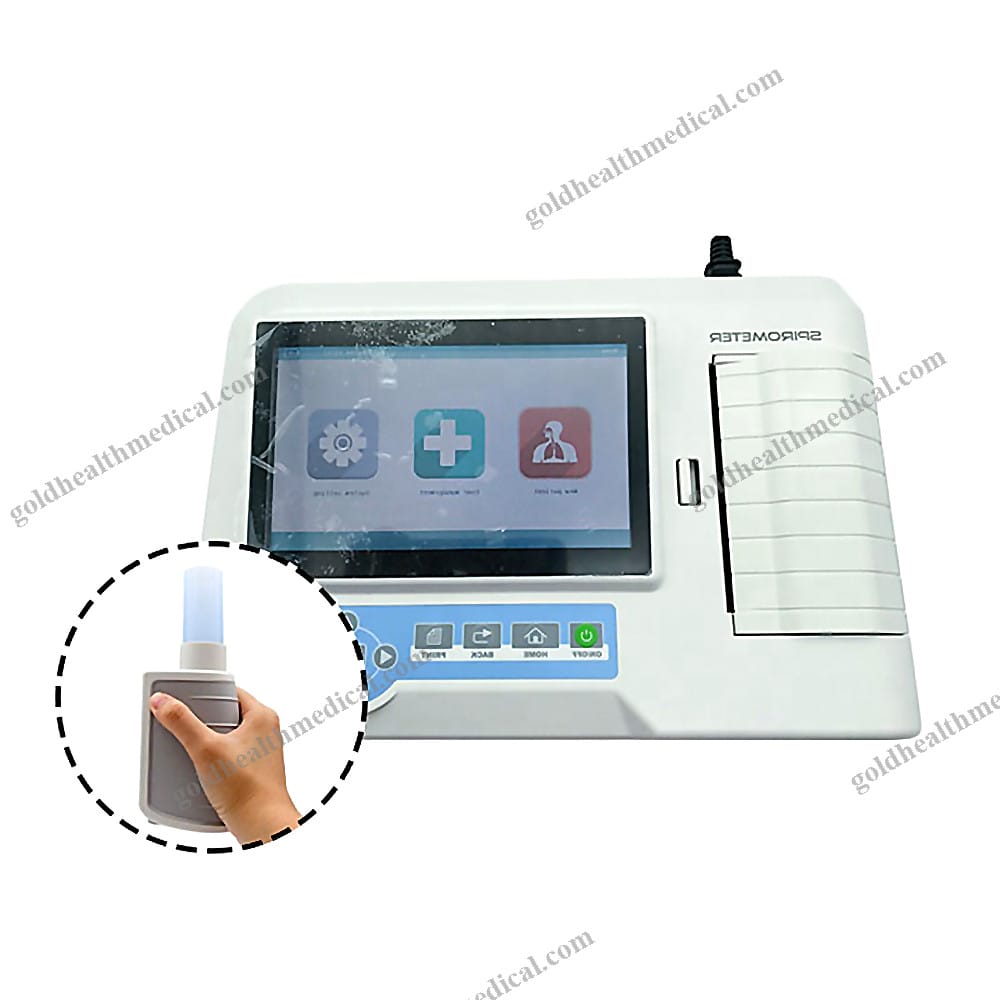

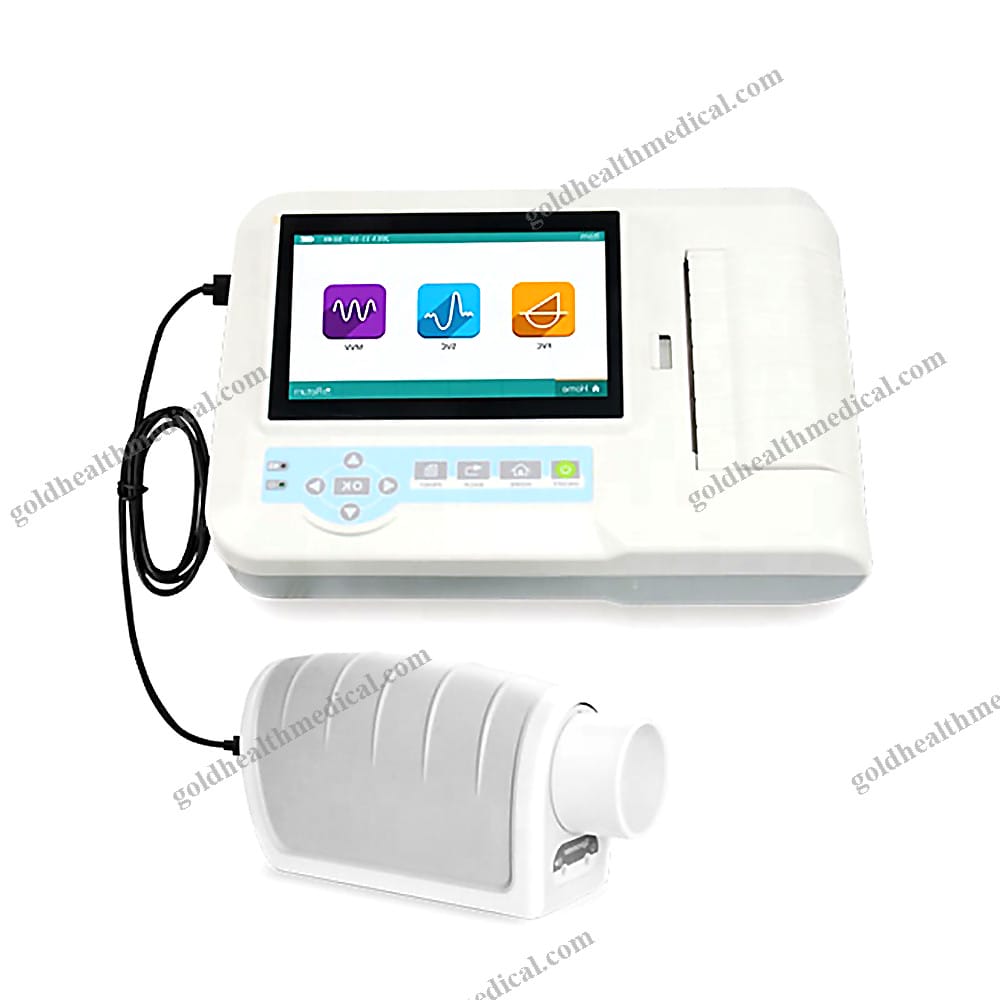

GoldHealth Medical Spirometer
Product Overview
GoldHealth Medical presents a cutting-edge spirometer designed to deliver precise pulmonary function measurements. This device is engineered for versatility, accuracy, and ease of use, making it an indispensable tool for healthcare professionals across various settings.
Key Features
- Comprehensive Measurement Capabilities: Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), Maximum Voluntary Ventilation (MVV), and over 30 additional parameters. Automatically selects the optimal result from multiple measurements and compares measured values to predicted norms.
- Extensive Parameter List:
- Forced Vital Capacity (FVC): FVC, FEV1, PEF, (FEV1/FVC), FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV
- Vital Capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tE, TV/tI, tI/ttot
- Maximum Ventilatory Volume (MVV): MVV
- Real-Time Visualization: Displays flow-volume loops and volume-time curves for immediate analysis.
- Intuitive Interface: Equipped with a 7″ color LCD touch screen and physical buttons for seamless operation.
- User-Friendly Guidance: Features incentive animation to assist users, including children and the elderly, in performing tests accurately.
- Integrated Thermal Printer: Enables instant printing of test results for convenience.
- Advanced Correction Technology: Includes BTPS automatic correction to adjust for environmental variations.
- Precision Calibration: Ensures consistent measurement accuracy.
- Customizable Predicted Values: Offers multiple prediction models tailored to diverse populations.
- Extensive Data Storage: Stores over 10,000 data sets for comprehensive patient tracking.
- Lung Age Estimation: Provides an innovative lung age estimation feature for enhanced patient engagement.
- Dual Power Options: Powered by a built-in lithium battery, supporting both AC and DC power sources.
Performance Specifications
- Volume Range: ±10 L
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: ±16 L/s
- Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
- Power Supply: 100 V-240 V~ 50 Hz/60 Hz
- Input Power: 60 VA
- Safety Classification: Class I equipment, type BF applied part
- LCD Screen: 7″ color TFT touch screen
- Printing Paper: 112 mm(W) × 20 m(L) high-speed thermal paper
Physical Characteristics
- Dimensions: 315 mm(L) × 215 mm(W) × 92 mm(H)
- Weight: 1.8 kg

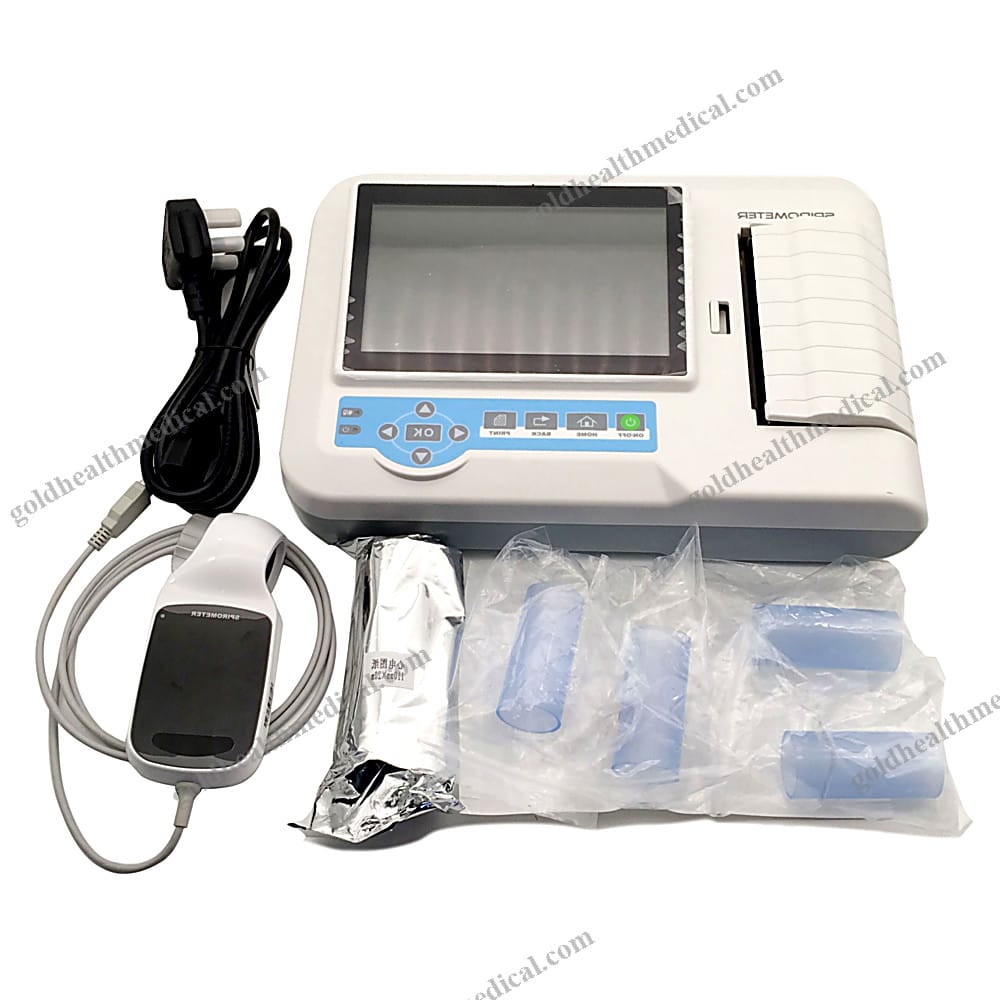

Accessories
- Spirometer unit
- Mouthpieces (4 pcs)
- Nose clip
- USB cable
- Recording paper
- Power cord
- User Manual
Unique Selling Points
GoldHealth Medical’s spirometer stands out with its advanced BTPS correction, user-friendly interface, and dual power flexibility. Its ability to store extensive data and provide lung age estimation makes it a versatile tool for both clinical and home use. Designed with precision and ease in mind, this device ensures reliable pulmonary function testing for all users.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Product Overview
GoldHealth Medical proudly presents the Spirometer, a cutting-edge device designed to deliver precision and reliability in respiratory diagnostics. Engineered for medical professionals and healthcare facilities, this Class II medical instrument combines advanced technology with user-friendly functionality, ensuring accurate measurements and seamless integration into any clinical or research environment.
Key Features and Specifications
- Material: Constructed with high-grade metal and durable plastic for long-lasting performance.
- Power Source: Electrically powered with an input power of 60 VA, ensuring consistent operation.
- Volume Range: ±10 L, offering exceptional accuracy for diverse respiratory assessments.
- Flow Range: ±16 L/s, enabling precise measurement of rapid airflow dynamics.
- Weight: Lightweight at just 1.8 kg, making it portable and easy to transport.
- Dimensions: Compact design measuring 15 mm (L) x 215 mm (W) x 92 mm (H).
- Printing Paper: Utilizes 112 mm (W) x 20 m (L) high-speed thermal paper for efficient data recording.
Certifications and Compliance
- Safety Standard: Compliant with MOL regulations, ensuring the highest safety standards.
- Quality Certifications: CE and ISO certified, guaranteeing reliability and global acceptance.
Performance and Usability
- Shelf Life: 1 year, ensuring long-term usability and reliability.
- Warranty: Backed by a comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support, ensuring uninterrupted performance.
Packaging and Delivery
- Packaging Details: Securely packaged in durable cartons or wooden cases to protect against transit damage.
- Port of Origin: Guangzhou, China, facilitating efficient global shipping.
- Supply Ability: Capable of delivering 500 sets per month, ensuring timely availability for bulk orders.
Why Choose GoldHealth Medical's Spirometer?
The Spirometer stands out with its robust construction, precise measurement capabilities, and compliance with international safety standards. Designed for both professional and home use, it is the ideal solution for hospitals, clinics, research institutions, and rehabilitation centers. With GoldHealth Medical, you are investing in a device that combines innovation, durability, and accuracy to meet the demands of modern healthcare.
Color Options: Available in the color shown in product images.
Experience the next level of respiratory diagnostics with GoldHealth Medical’s Spirometer – where precision meets reliability.
