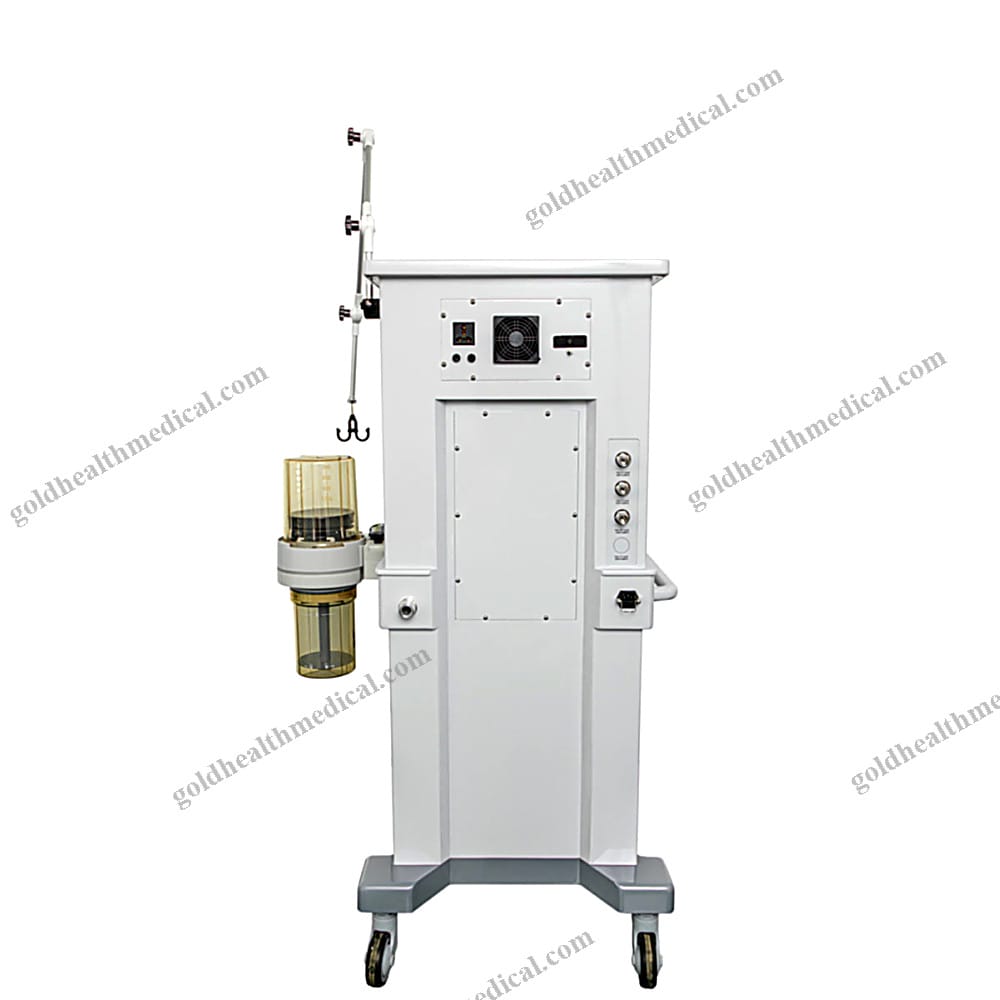

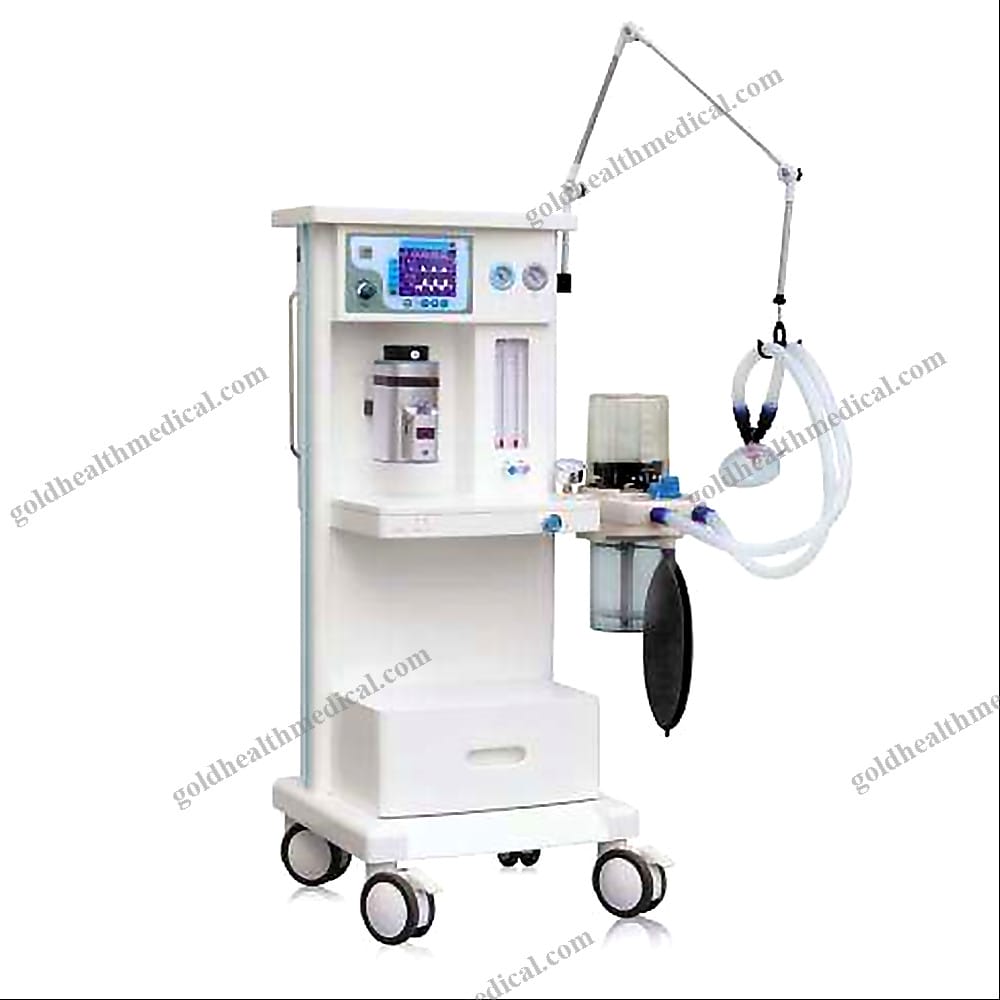

GoldHealth Medical Anesthesia Machine with Ventilator

Engineered with cutting-edge technology, the GoldHealth Medical Anesthesia Machine with Ventilator is a pinnacle of utility and performance. Designed to meet the needs of modern medical environments, this device combines precision, versatility, and affordability, offering unparalleled value for healthcare professionals.

Key Features

• Advanced Microcomputer-Controlled Ventilator: Equipped with a high-definition 5.7” LCD display, the ventilator seamlessly integrates respiratory control and real-time monitoring of critical parameters. Its intuitive interface ensures ease of use while delivering exceptional performance.

• High-Precision Vaporizer: Featuring automatic compensation for pressure, temperature, and flow rate, the vaporizer ensures stable concentration output. Choose from Halothane, Enflurane, Isoflurane, or Sevoflurane to tailor the system to your specific needs, ensuring precise and reliable anesthesia delivery.

• Reliable Pneumatic Transmission System: Built for durability and consistent performance, the pneumatic system ensures smooth operation under varying conditions.

• Customizable and Modular Design: The machine offers flexible configurations to suit individual requirements. Its modular design allows for future upgrades, ensuring long-term adaptability and value.

Technical Specifications

Anesthesia Machine

• Main Body: Constructed from high-strength, corrosion-resistant engineering plastic, the machine is lightweight, durable, and aesthetically pleasing.

• Scope of Application: Suitable for both adult and pediatric use.

• Gas Source:

• Oxygen (O₂): 0.28~0.6MPa

• Nitrous Oxide (N₂O): 0.28~0.6MPa

• Flow Meter:

• Oxygen (O₂): 0.05~1.0L/min, 1.1~10L/min

• Nitrous Oxide (N₂O): 0.05~1.0L/min, 1.1~10L/min

• Oxygen-Nitrous Oxide Linkage and Stopper:

• Ensures oxygen concentration remains above 25% when using nitrous oxide.

• Automatically cuts off nitrous oxide flow if oxygen pressure drops below 0.16±0.02Kpa.

• Rapid Oxygen Supply Flow Rate: 25~75L/min.

• Low Oxygen Pressure Alarm: Audible alert when oxygen pressure falls below 0.2MPa.

• Vaporizer:

• Automatic compensation for pressure, temperature, and flow rate.

• Concentration regulation range: 0~5 vol%.

• Respiratory Circuit:

• Working modes: All-close, Semi-close, Semi-open.
• Releasing pressure: 0.5~7 kPa.
• Bellows for adults and children.
• Tidal volume range: 0~1500 ml.

Ventilator

• Display Mode: High-definition 5.7” LCD screen.

• Ventilation Modes: IPPV, SIPPV, SIMV, PEEP, SIGH, MANUAL.

• Ventilation Parameters:

• Tidal volume: 50~1500 ml.
• Rate: 2~99 bpm.
• SIMV rate: 2~20 bpm.
• I:E ratio: 2:1~1:8.
• Inspiratory trigger pressure: -1.0~2.0 kPa.
• PEEP: 0~2.0 kPa.
• Pressure range: 1.0~6.0 kPa.

• SIGH: 1.5 times the inspiratory time/100 breaths.

• Ventilation Monitoring Parameters:

• Tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E ratio, peak airway pressure, pressure-time waveform, flow rate-time waveform, PEEP, inspiratory trigger pressure.

• Security Alarm System:

• Oxygen concentration alarm: Upper limit (50%~100%), lower limit (15%~50%).
• Airway pressure alarm: Upper limit (1.0~6.0 kPa), lower limit (0.4~2.0 kPa).
• Per-minute ventilation volume alarm: Upper limit (3~20L/min), lower limit (0~10L/min).
• Tidal volume alarm: Upper limit (100~1500ml), lower limit (0~1400ml).
• Sustained high-pressure alarm: Activates if pressure exceeds 25 cmH₂O for 1
