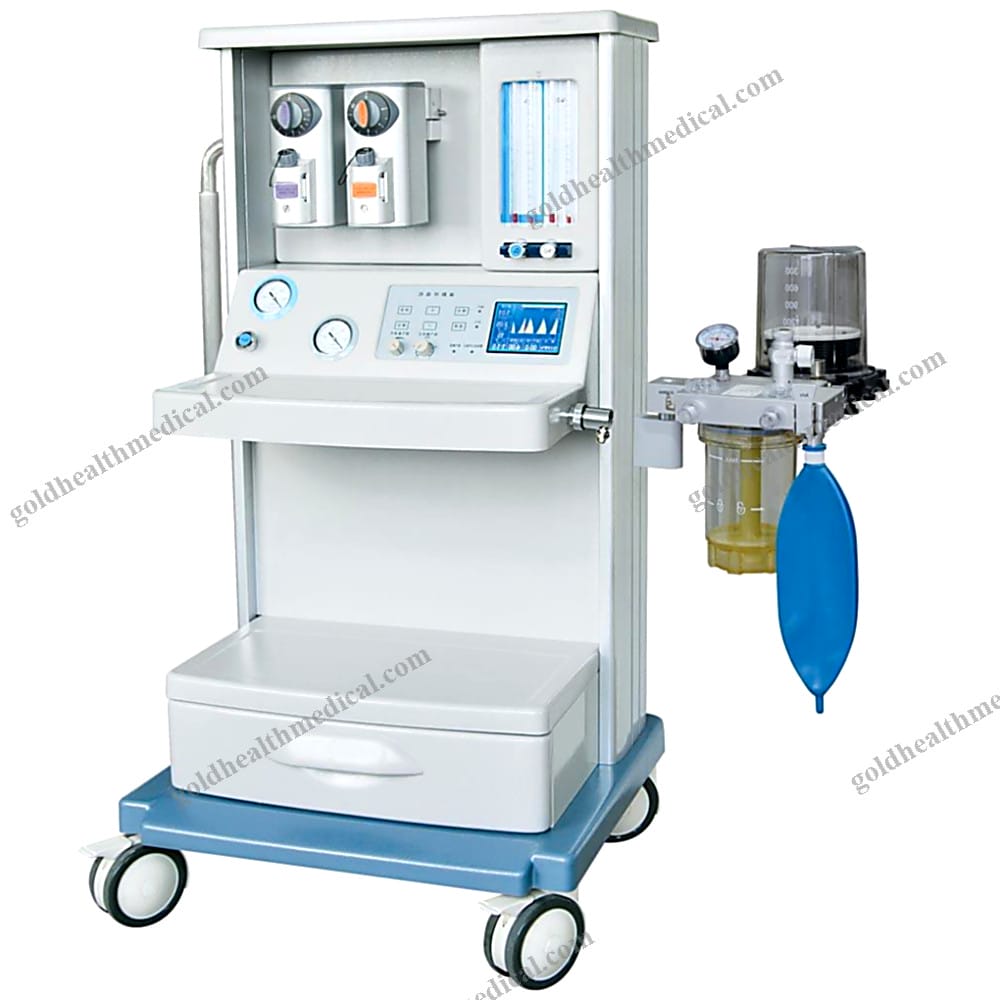

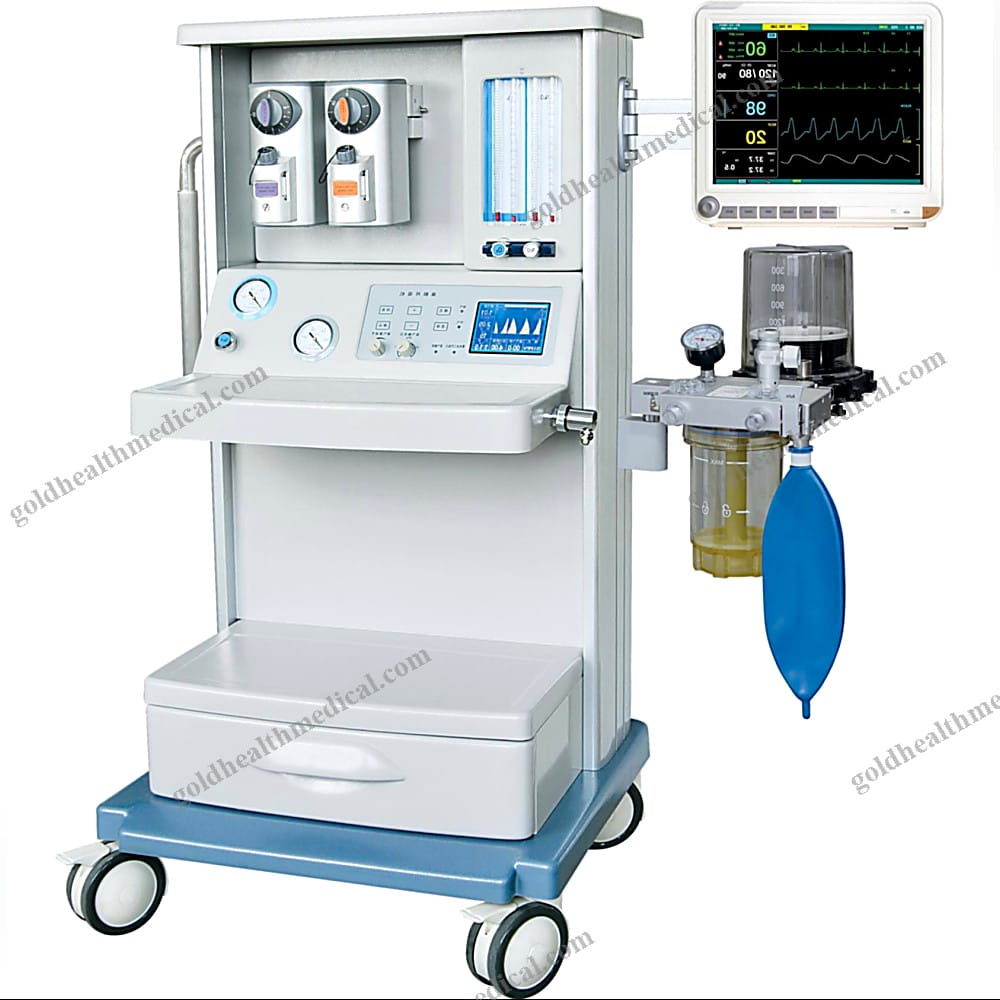

GoldHealth Medical Anesthesia System

Product Overview

GoldHealth Medical presents a cutting-edge anesthesia system designed for precision, reliability, and ease of use. Engineered with advanced technology, this system is ideal for hospitals, clinics, research institutions, and home healthcare environments. Its sleek design and environmentally friendly construction ensure safety, durability, and effortless maintenance.

Key Features and Parameters

• Operating Modes:
  Pneumatically driven and electronically controlled, supporting closed, semi-closed, and semi-open configurations.

• Anesthesia Ventilator:

• Built-in 5.4-inch TFT display for real-time monitoring.

• Instant waveform cycling (Pressure-Time and Frequency-Time) with a single touch.

• Respiratory Circuit:

• Integrated metallic modular design ensures superior gas sealing, even under high-temperature disinfection.

• Easy to clean and environmentally safe.

• Startup and Calibration:

• Automated self-checking during startup.

• Self-calibrating sensors for consistent accuracy.

• Flowmeter:

• High-precision dual-tube design with interlocking oxygen-nitrous oxide supply.

• Guarantees oxygen output never drops below 21%.

• Safety Features:

• Oxygen failure alarm activates when oxygen supply falls below 0.20 MPa, cutting off nitrous oxide.

• Backup power mode automatically engages during AC power outages, ensuring uninterrupted operation.

• Alarm System:

• Audible and visual alerts for tidal volume, airway pressure, power failure, oxygen failure, and more.

• Includes an alarm query function for detailed diagnostics.

• Gas Flow Sensor:

• Equipped with an infrared turbine flow sensor for precise and stable gas flow measurement.

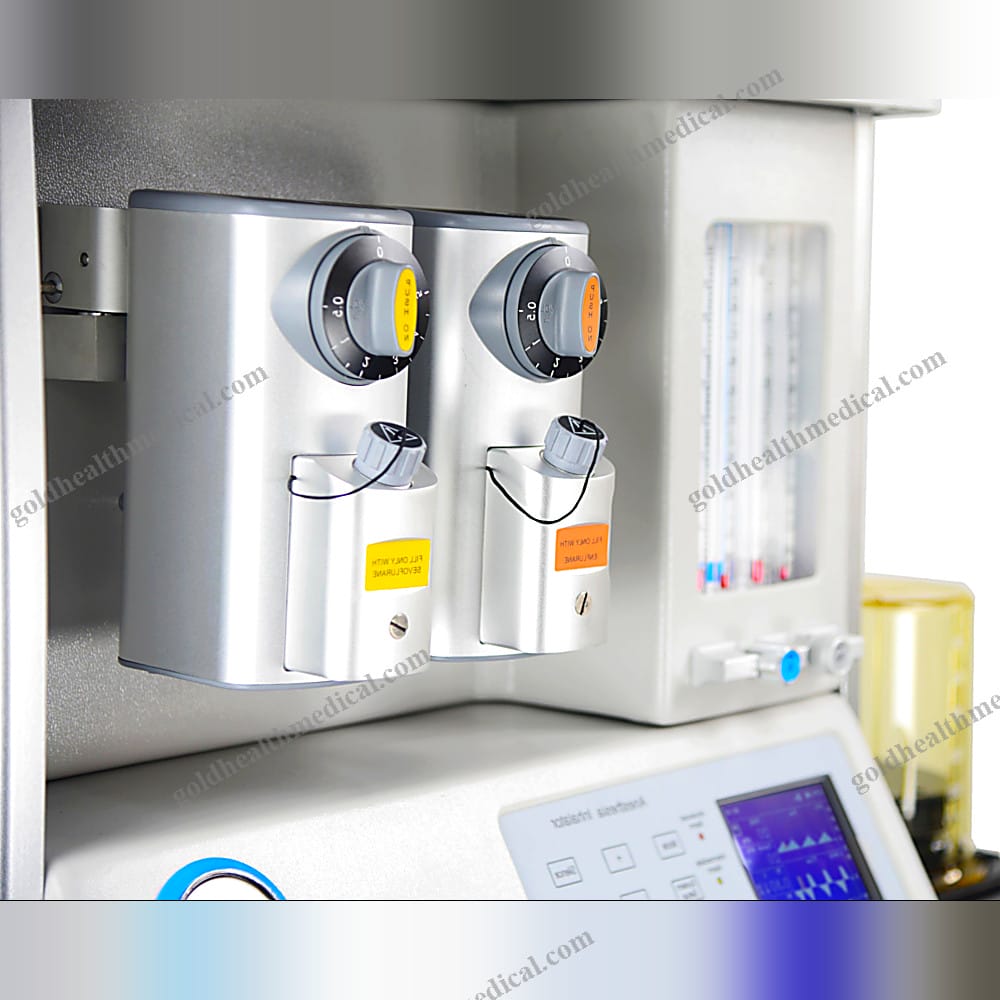

• Vaporizer:

• Locally assembled with imported components, compatible with Enflurane, Isoflurane, Sevoflurane, and optional Halothane.

• Self-compensating functionality for extended surgical procedures.

• Na-lime Tank:

• Advanced rotating design for one-handed operation.

• Constructed from imported PPSU material, resistant to temperatures up to 134°C.

• Ventilation Modes:

• Supports IPPV, SIPPV, IMV, SIMV, and MANUAL modes.

• Adjustable Parameters:

• Tidal Volume: Adjustable range of 50–1500ml, display range up to 2000ml.
• Respiratory Rate: 1–99 breaths per minute.
• Inspiratory/Expiratory Ratio: 4:1 to 1:10, with inverse ratio ventilation capability.
• Inspiratory Pressure Trigger: -10 to 10cmH2O (electronically controlled).

• SIGH Function: 1 sigh breath every 80–160 breaths.

• Monitoring Capabilities:

• Tracks minute volume, tidal volume, breathing frequency, peak pressure, PEEP, spontaneous inspiration rate, airway resistance, oxygen concentration, lung compliance, and power supply status.

• Vaporizer Specifications:

• Concentration range: 0–5%.

• Single or dual PA-l type slots available.

• Gas Supply Pressure:

• Oxygen: 0.32MPa–0.6MPa.

• Nitrous Oxide: 0.32MPa–0.6MPa.

• Backup Power Supply:

• Provides at least 4 hours of operation during power outages.

• Absorber Volume:

• 1.5 liters for efficient gas management.

Unique Selling Points

• Precision Engineering: Advanced sensors and interlocking mechanisms ensure unparalleled safety and performance.
• User-Centric Design: Intuitive controls and a compact, elegant build enhance usability.
• Reliability: Automated self-checks and backup systems guarantee consistent operation in critical scenarios.
• Eco-Friendly Materials: Constructed with non-hazardous, durable materials for long-term sustainability.

GoldHealth Medical’s anesthesia system is the ultimate solution for modern medical environments, combining innovation, safety, and efficiency to meet the demands of healthcare professionals worldwide.
