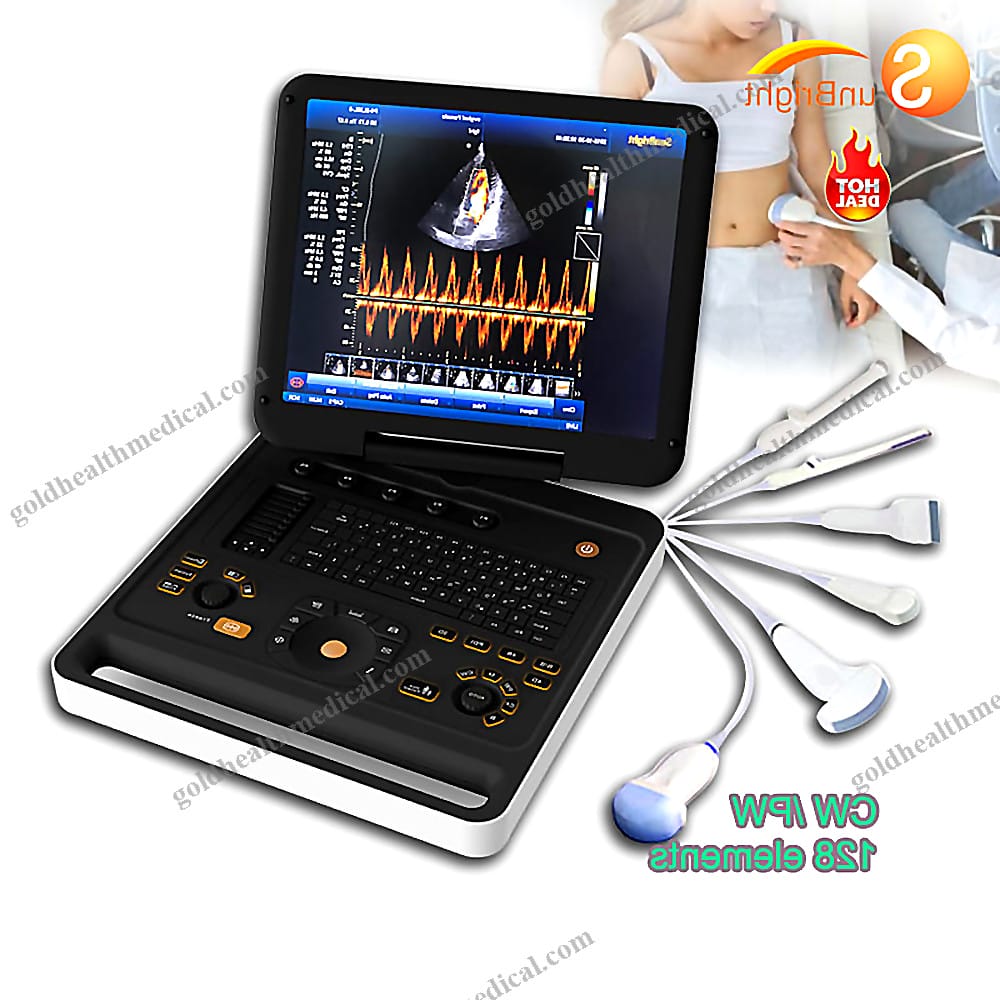

Portable 4D Color Doppler Ultrasound Scanner
Revolutionary Portable Color Doppler Ultrasound by GoldHealth Medical
Experience the future of medical imaging with GoldHealth Medical’s cutting-edge portable color Doppler ultrasound system. Designed for versatility, precision, and ease of use, this device is engineered to meet the demands of modern healthcare environments.
Key Features
- Stunning 15-inch LED Display: A large, high-resolution color screen with a brightness of 230 cd/m² and a contrast ratio of 800:1 ensures crystal-clear imaging. The intuitive interface supports real-time Doppler functionality and offers multiple connectivity options, including USB and VGA ports, as well as dual probe connectors.
- Uninterrupted Mobility: Equipped with a built-in battery, this system provides up to 3 hours of continuous operation, ensuring reliability even in power-sensitive environments.
- Comprehensive Applications: From abdominal and cardiac scans to obstetrics, gynecology, urology, and musculoskeletal imaging, this device is a versatile tool for a wide range of medical specialties.

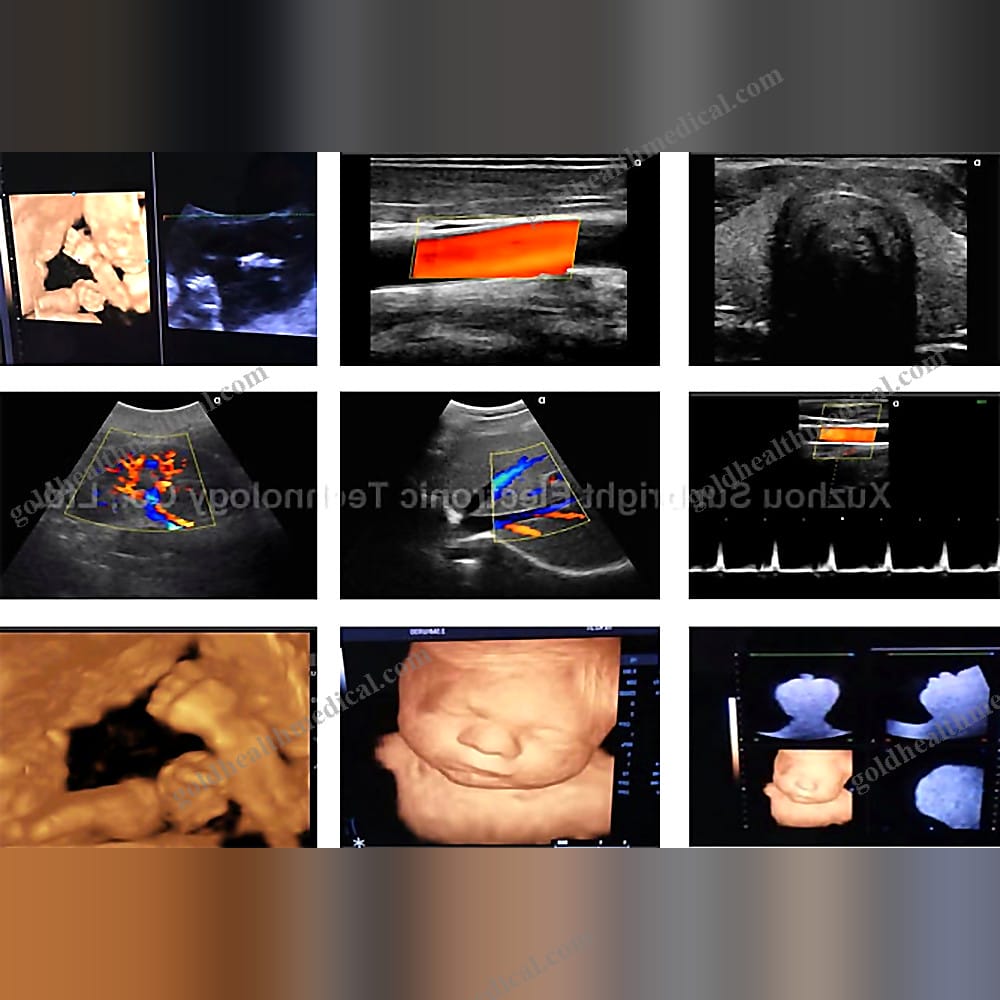

- Advanced Imaging Modes: Featuring B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, and more, this system delivers unparalleled imaging flexibility. Simultaneous 2D/3D/4D color compound imaging, directional PD, and anatomy M modes redefine diagnostic precision.
- PC-Based Innovation: Powered by a Windows operating system, this ultrasound system seamlessly integrates with printers of any brand. Adjustable printing areas allow for customized outputs, including images, reports, or combined formats.
- DICOM 3.0 Compliance: Built-in DICOM 3.0 protocol ensures seamless integration with hospital networks and imaging systems.
- Multilingual Support: With support for over 15 languages, including English, Spanish, French, Arabic, and more, this device is designed for global accessibility.
Technical Specifications
- Physical Dimensions:
- Equipment Size: 375mm x 360mm x 75mm
- Equipment Weight: 5.5kg
- Packing Size: 490mm x 270mm x 490mm
- Packing Weight: 10kg
- Connectivity & Media:

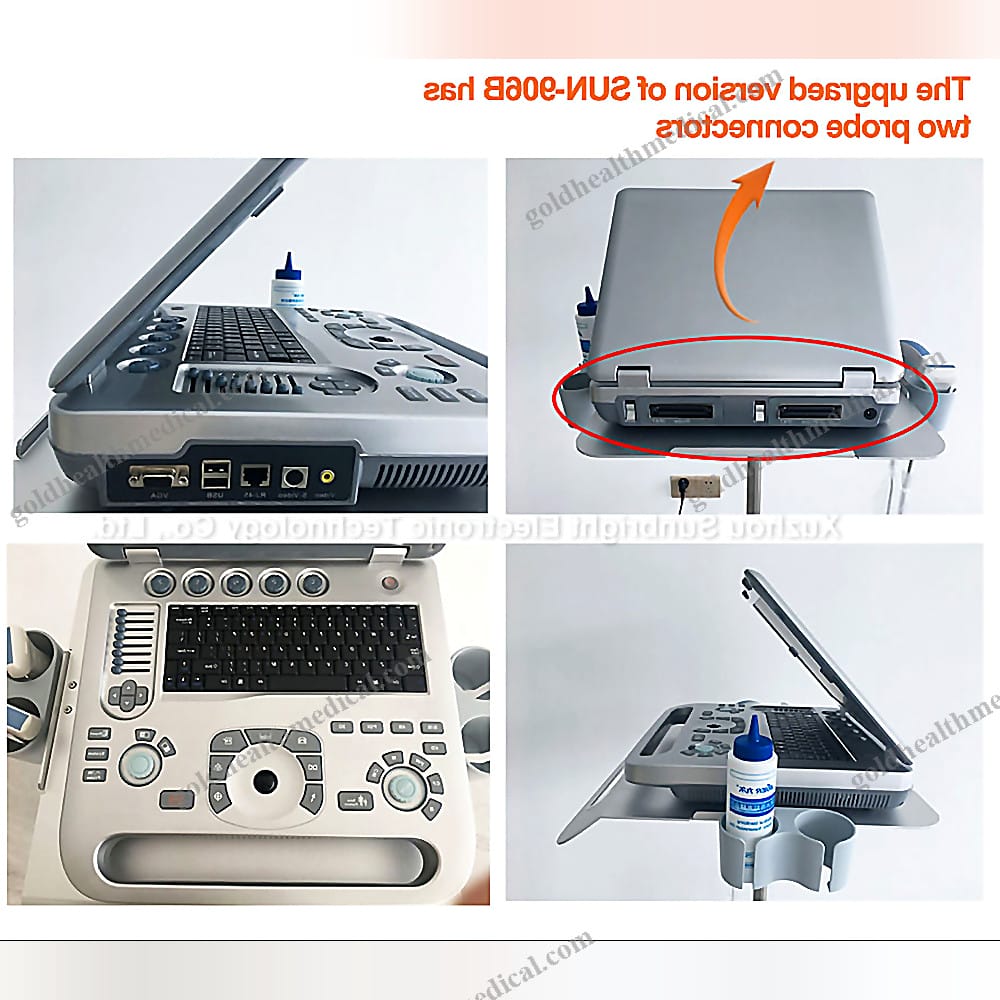

- Transducer Ports: 2
- USB Ports: 2
- Hard Disc: 128GB SSD (Optional upgrades to 120GB or 200GB)
- Ethernet Ports: 2 (100Mb/1000Mb)
- External Display: VGA, HDMI

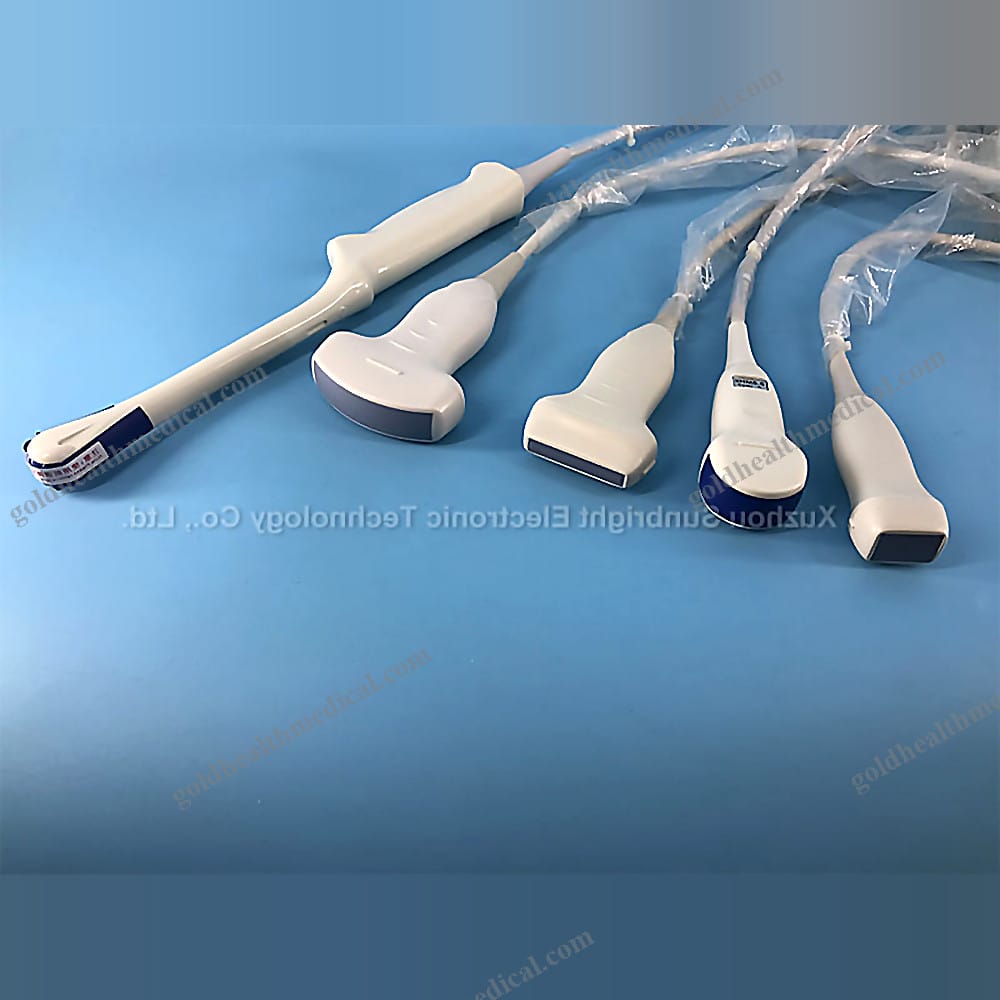

- Transducers:
- Convex Array Probe: Central 3.5 MHz (2.0MHz to 10.0MHz), 96 elements, 0.516mm pitch, 60mm radius
- Linear Array Probe: Central 7.5 MHz (2.0MHz to 10.0MHz), 96 elements, 0.352mm pitch
- Intra-Cavity Probe: Central 6.5 MHz (2.0MHz to 10.0MHz), 96 elements, 0.216mm pitch, 10mm radius
- Micro-Convex Probe: Central 4.0 MHz (2.0MHz to 10.0MHz)
- Performance:
- Digital Broadband: 12,288 channels
- Beam-former: Re-programmable
- Transmit Voltage: Adjustable (15 steps)
- Beam-former Frequency Range: 1~40 MHz
- Real-Time Image Zoom: 100%~400%
- Grey Levels: 256

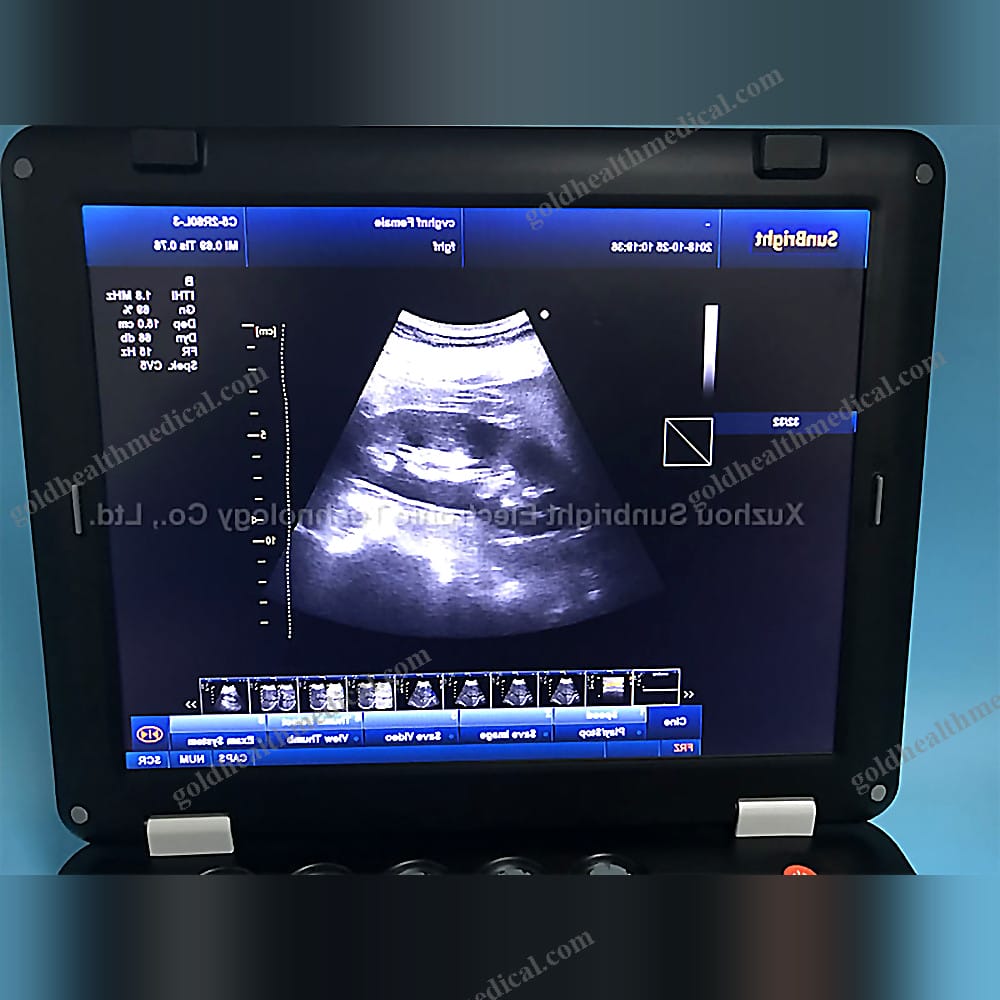

- Monitor:
- Size: 15-inch diagonal
- Resolution: 1024×768 pixels
- Color Depth: 24-bit
- Rotate Angle: ±180°
Software & User Interface
- Built-in 3D/4D Software: Elevate your diagnostics with advanced 3D and 4D imaging capabilities.
- Intuitive Controls: A user-centric control panel with customizable layouts and variable brightness indicators ensures ease of use.
- Comprehensive Tools: Includes cine playback, configurable worksheets, exam review, and pictograms for enhanced functionality.
- Guided Operation: An on-line attention function provides step-by-step guidance for seamless operation.
Standard Configuration
- Portable main unit with 3D/4D capabilities
- One convex probe (128 elements)
- Lithium battery for extended mobility
- High-resolution 15-inch LCD monitor
-
CW and PW functionality
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Company Name: GoldHealth Medical
Product Introduction:
Introducing the next generation of portable color Doppler ultrasound systems, designed to deliver exceptional imaging performance across a wide range of medical applications. Engineered with precision and versatility in mind, this device is the ideal solution for hospitals, clinics, research institutions, and home healthcare environments.
Key Features and Specifications:
- Applications:
- General imaging
- OB/GYN
- Small parts
- Cardiac
- Musculoskeletal (MSK)
- Vascular
-
Urology
-
Display:
-
15-inch high-resolution LED screen for crisp, detailed imaging
-
Imaging Modes:
-
B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, PDI Color, PW, CW, Duplex/Triplex
-
Probes:
-
Advanced 128-element transducer for superior image clarity
-
Transducer Ports:
-
2 ports for seamless multi-probe operation
-
Connectivity:
-
DICOM 3.0 compatibility for streamlined integration with hospital systems
-
Storage:
-
128GB SSD (expandable to 120GB or 200GB optional configurations)
-
Power Source:
-
Built-in lithium battery for uninterrupted portability
-
Ports and Expansion:
-
2 USB ports for data transfer and external device connectivity
-
Instrument Classification:
-
Class II medical device
-
Shelf Life:
-
2 years
-
Quality Certification:
-
CE certified for safety and reliability
-
Packaging Details:
- Single item per package
- Package dimensions: 29 x 50 x 50 cm
- Gross weight: 14.5 kg
Materials:
- Durable metal and high-grade plastic construction for long-lasting performance
Unique Selling Points:
- Compact and portable design for use in diverse clinical and non-clinical settings
- Advanced imaging modes and probe technology for unparalleled diagnostic accuracy
- Long-lasting battery life ensures reliable operation during critical procedures
- Expandable storage and connectivity options for future-proof functionality
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions that empower healthcare professionals to achieve better patient outcomes. This portable ultrasound system represents the perfect blend of cutting-edge technology, versatility, and ease of use.
Warranty and After-Sales Support:
- Comprehensive warranty coverage
- Dedicated after-sales service for technical support and maintenance
- Hassle-free return and replacement policy
Experience the future of medical imaging with GoldHealth Medical’s portable ultrasound system.
