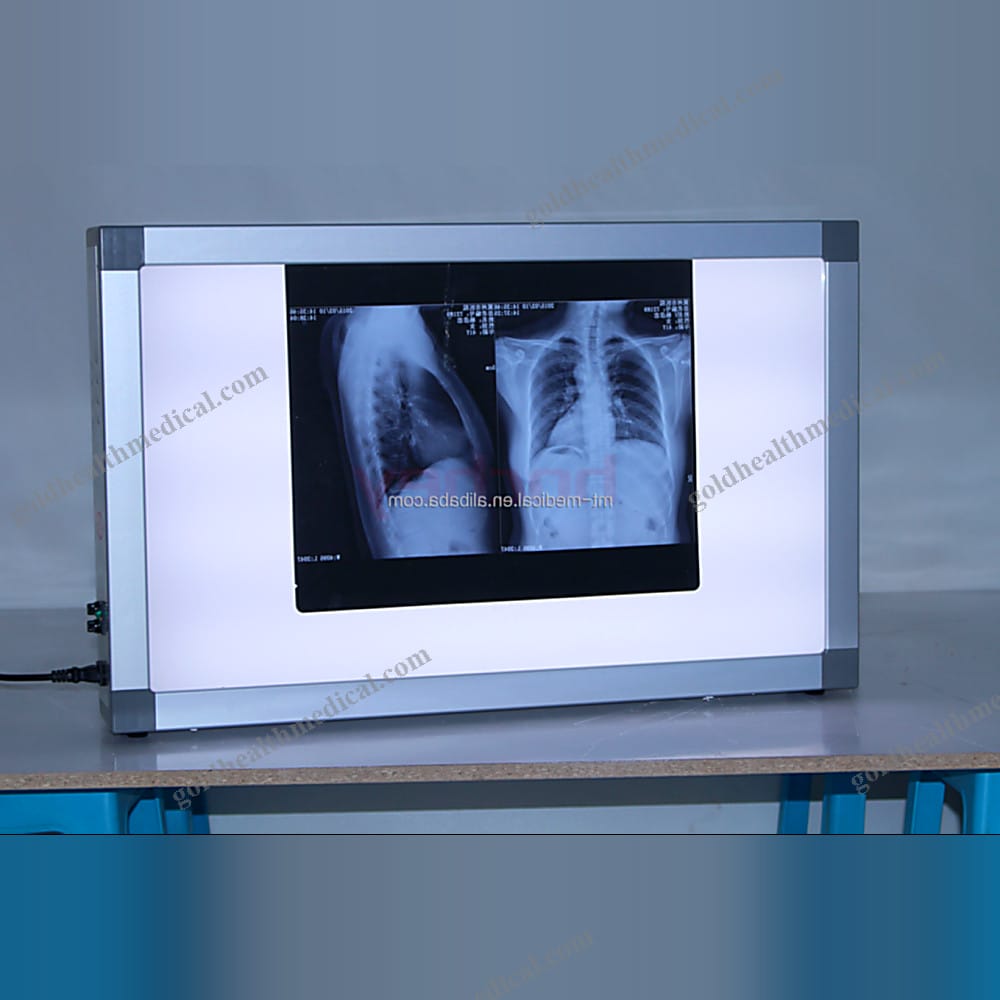

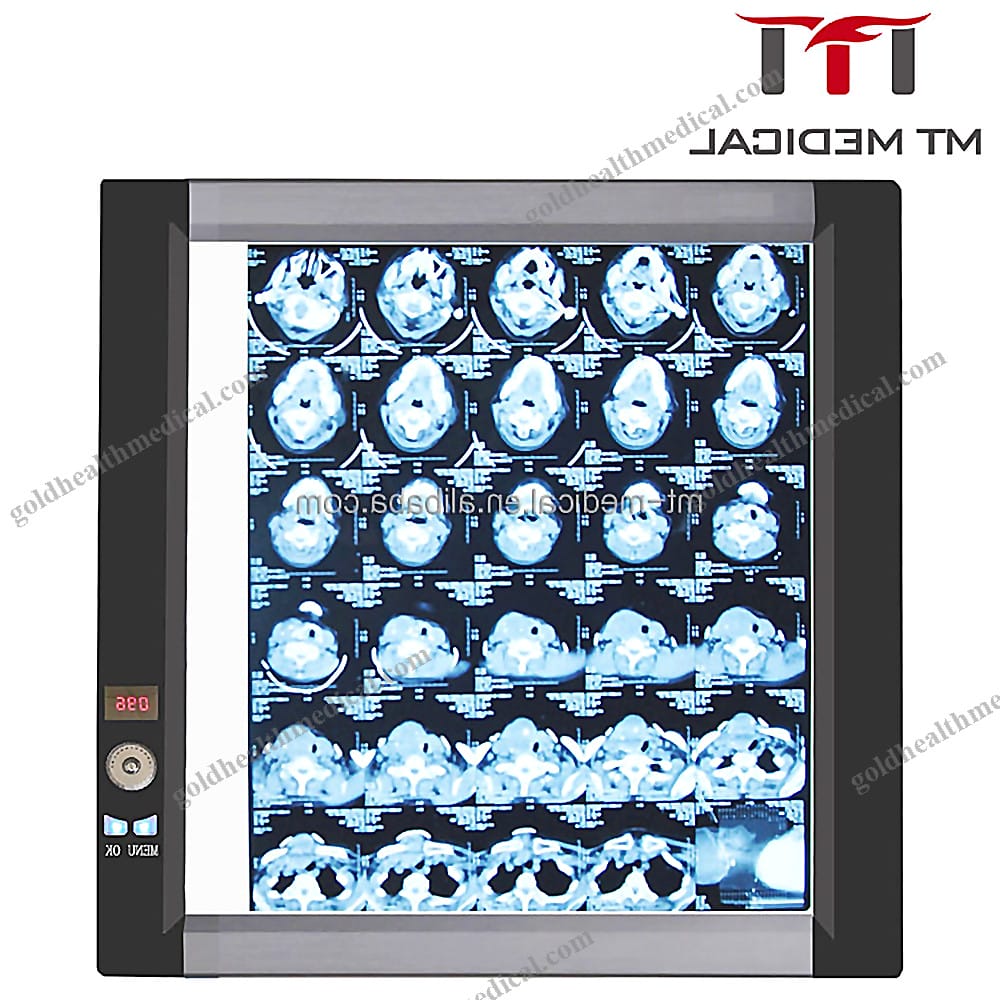

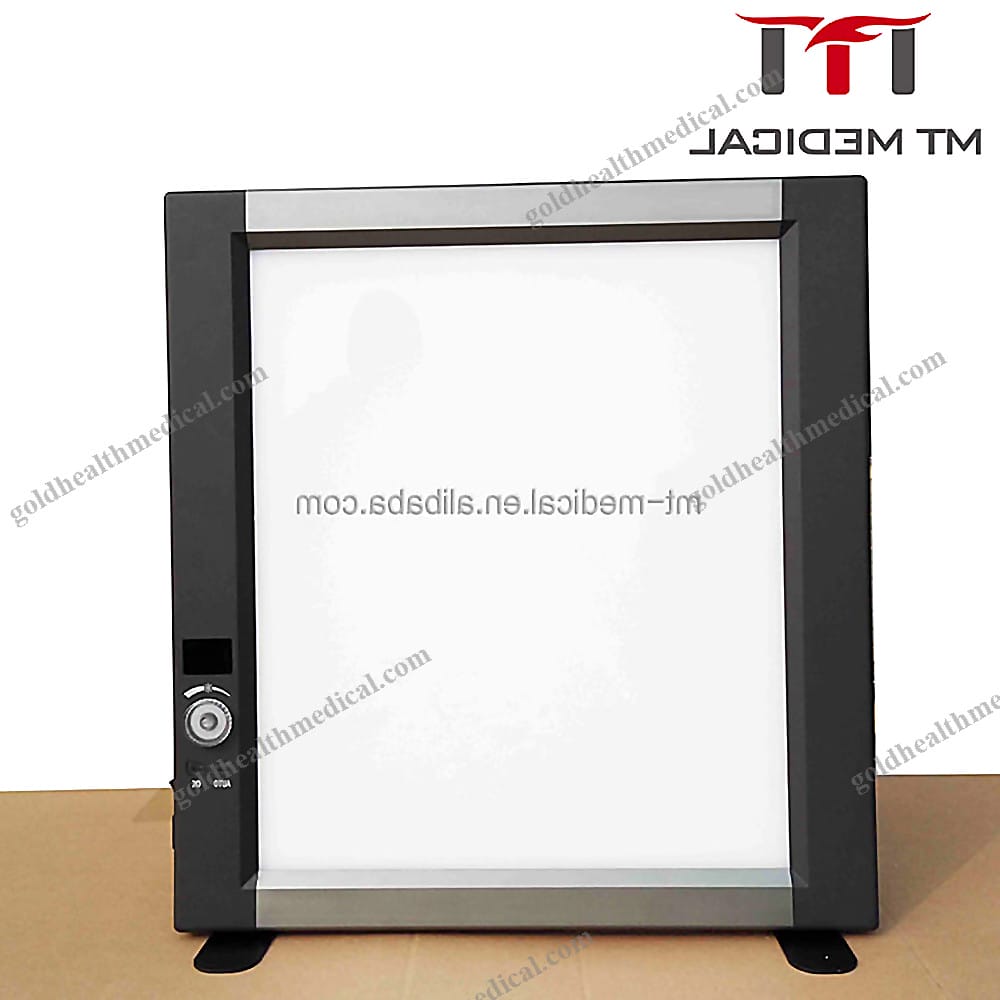

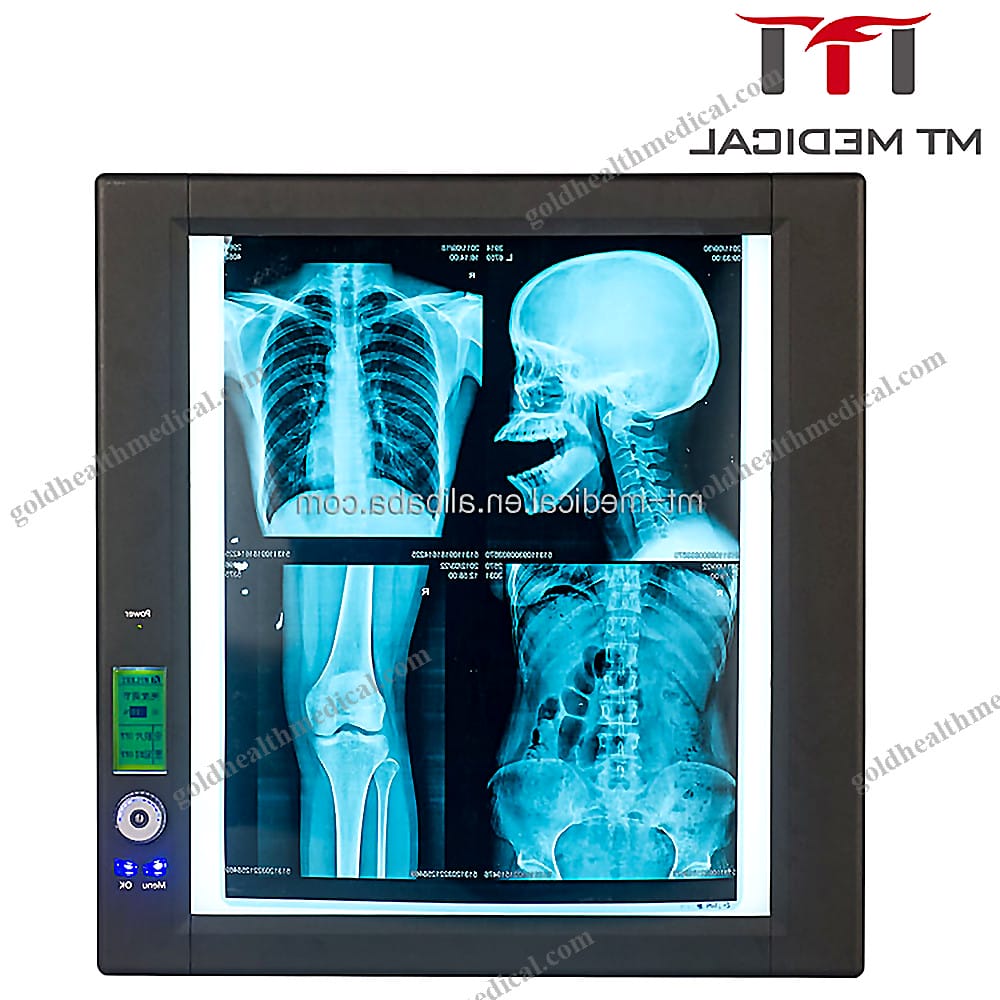

MT MEDICAL LED XRay Film Viewer Single Side
Reference: 1600813128739Radiology Equipment & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Medical Film Viewing
GoldHealth Medical presents an innovative range of medical film viewers, meticulously engineered to deliver unparalleled performance and precision. With over two decades of expertise in the medical equipment industry, we bring you a product line that redefines clarity, durability, and user-centric design.
Product Highlights
- Advanced LED Technology: Featuring super-bright SMD LEDs with 144pcs per bank, these viewers offer a Correlated Color Temperature (CCT) of ≥8000K and an impressive lifespan of ≥100,000 hours.
- Precision Dimming: Equipped with a PWM dimming system, luminance can be continuously modulated from 1% to 100%, with an average luminance of up to 4500 cd/m².
- Automatic Sensor Functionality: The panel lights up automatically upon film insertion and turns off when the film is removed, ensuring energy efficiency and ease of use.
- Superior Uniformity: Achieving ≥90% uniformity, these viewers provide consistent brightness across the entire viewing area.
- Durable Construction: Utilizing Mitsubishi Rayon 3mm acrylic view panels and 4mm light guide plates, our viewers are built to last.
- Versatile Installation: Options include wall mounting and bracket mounting, catering to diverse spatial requirements.
- Comprehensive Application Scope: Suitable for general film, digital film, and breast mammography film, ensuring adaptability across various medical imaging needs.
Technical Specifications

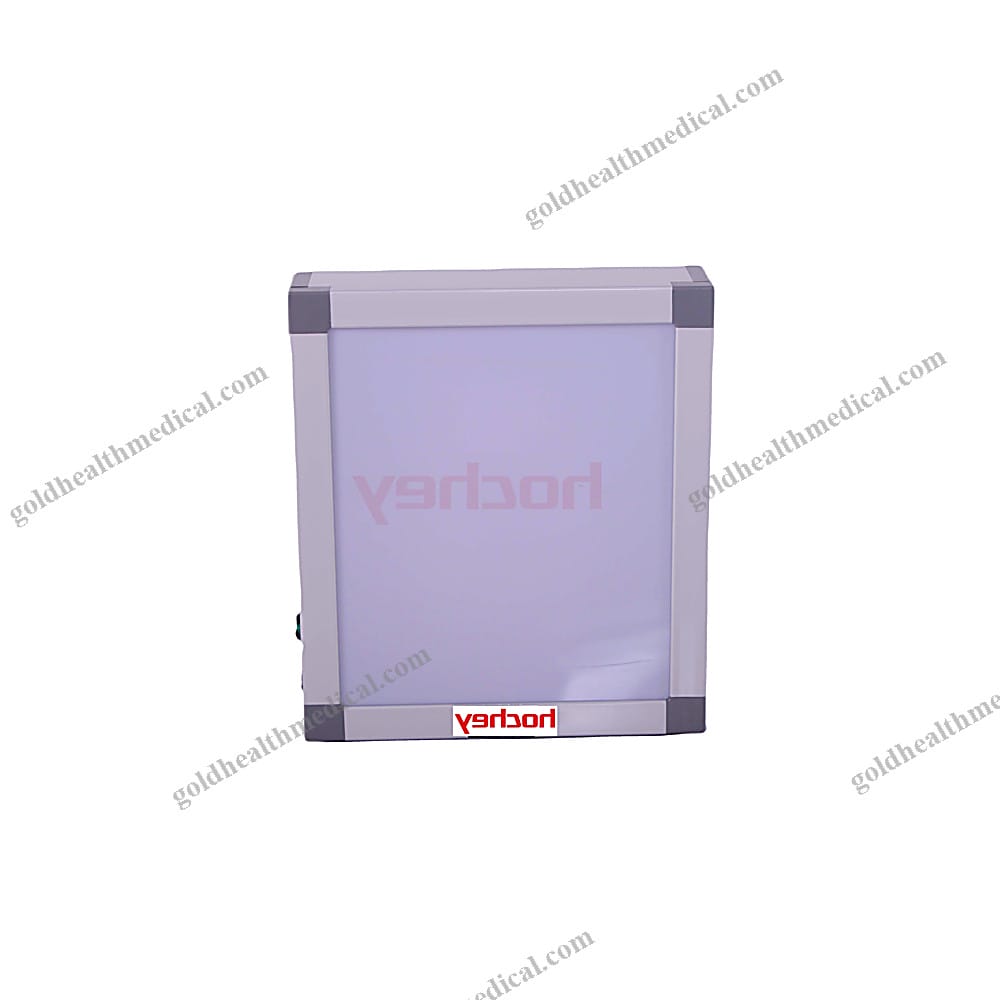

- Single Panel Viewer
- External Size: 475×505×25 mm
- Visual Area: 360×422 mm
- Power: 30W
- CCT: ≥8000K
- Luminance: Up to 4500 cd/m² (dimmable)
- LED Lifespan: ≥100,000 hours
- Driver: Isolated constant current driver
Warranty: 3 years

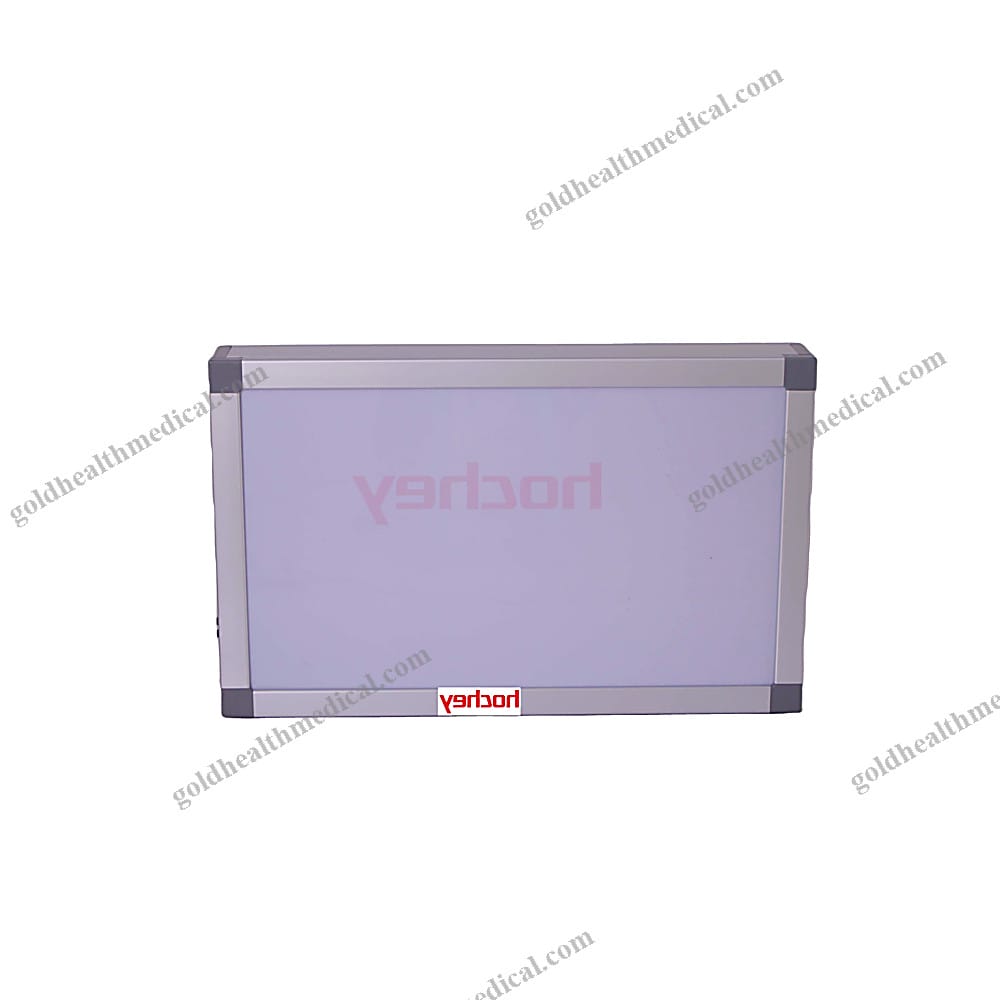

Double Panel Viewer
- External Size: 835×505×25 mm
- Visual Area: 720×422 mm
- Power: 60W
- CCT: ≥8000K
- Luminance: Up to 4500 cd/m² (dimmable)
- LED Lifespan: ≥100,000 hours
- Driver: Isolated constant current driver
Warranty: 3 years
Triple Panel Viewer
- External Size: 1200×505×25 mm
- Visual Area: 1080×422 mm
- Power: 90W
- CCT: ≥8000K
- Luminance: Up to 4500 cd/m² (dimmable)
- LED Lifespan: ≥100,000 hours
- Driver: Isolated constant current driver
Warranty: 3 years
Quadruple Panel Viewer
- External Size: 1555×505×25 mm
- Visual Area: 1440×422 mm
- Power: 120W
- CCT: ≥8000K
- Luminance: Up to 4500 cd/m² (dimmable)
- LED Lifespan: ≥100,000 hours
- Driver: Isolated constant current driver
- Warranty: 3 years
Unique Features
- Full Digital Control: Ensures precise and reliable operation.
- Eye Protection: Designed to reduce eye strain during prolonged use.
- Improved Film Clip: Enhanced fixture for secure film placement.
- Global Adaptive Power: Operates seamlessly with AC90V-240V, 50/60Hz.
GoldHealth Medical is committed to delivering excellence in medical equipment, ensuring that our products meet the highest standards of quality and reliability. Our viewers are ideal for hospitals, clinics, research institutions, and more, providing a seamless blend of innovation and practicality.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: X-ray Film Viewer
Brand Name: GoldHealth Medical
Product Overview
The X-ray Film Viewer by GoldHealth Medical is a cutting-edge solution designed to enhance precision and efficiency in medical diagnostics. Engineered with advanced LED technology, this viewer delivers consistent, high-intensity illumination, ensuring unparalleled clarity for accurate interpretation of X-ray films. Its sleek, ergonomic design and robust construction make it an indispensable tool for radiography departments, X-ray rooms, and medical care facilities.
Key Features
- Advanced LED Light Source: Provides uniform, flicker-free illumination for superior image quality.
- Durable Construction: Crafted from high-quality plastic, ensuring longevity and resistance to wear and tear.
- Compact and Portable: Lightweight design with a single package size of 19x13x12 cm and a gross weight of 35 kg, making it easy to transport and install.
- Energy-Efficient: Powered by an electric source, offering reliable performance while minimizing energy consumption.
- Versatile Application: Ideal for use in radiography departments, X-ray rooms, research labs, and rehabilitation centers.
Technical Specifications
- Instrument Classification: Class I
- Shelf Life: 1 Year
- Warranty: 1 Year (includes free spare parts)
- Quality Certifications: CE, ISO
- Place of Origin: Anhui, China
After-Sales Support
GoldHealth Medical is committed to customer satisfaction. Our comprehensive after-sales service includes:
- Free spare parts during the warranty period
- Dedicated technical support to ensure seamless operation
Supply Capacity
- Monthly Supply Ability: 10,000 pieces
- Packaging Options: Carton or wooden box
Why Choose GoldHealth Medical?
GoldHealth Medical combines innovation, precision, and reliability to deliver medical equipment that meets the highest industry standards. Our X-ray Film Viewer is designed to empower healthcare professionals with the tools they need to provide exceptional patient care. Whether you're outfitting a hospital, clinic, or research facility, this product is your ultimate solution for accurate and efficient diagnostics.
Upgrade your radiography workflow with GoldHealth Medical’s X-ray Film Viewer – where technology meets trust.
