MSLMP10 Multiparameter Vital Signs Monitor with Capnograph
GoldHealth Medical Multiparameter Monitor with Capnograph and IBP
Advanced Monitoring for Every Stage of Care

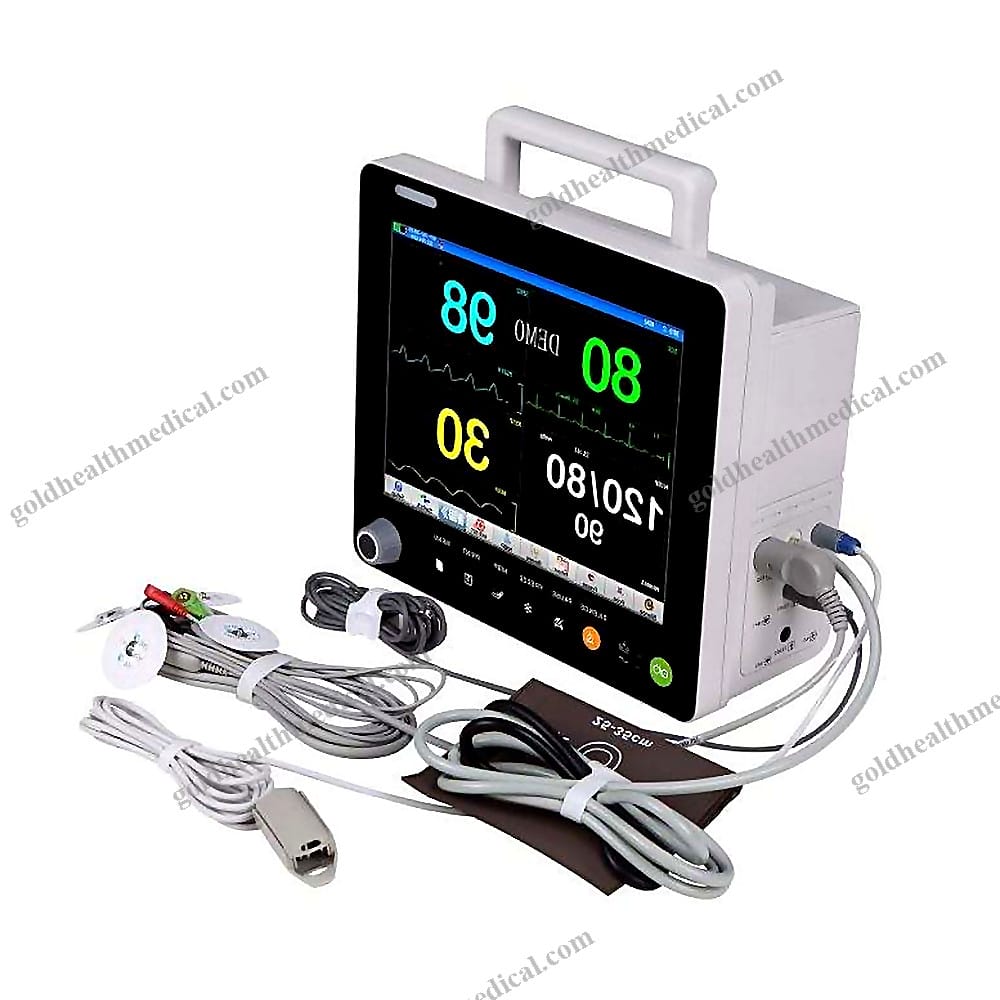

GoldHealth Medical presents a state-of-the-art multiparameter monitor designed to deliver precision and reliability in patient monitoring. Suitable for adult, pediatric, and neonatal patients, this device integrates cutting-edge technology to track vital signs with exceptional accuracy. It supports comprehensive monitoring of key physiological parameters, including ECG, noninvasive blood pressure (NIBP), oxygen saturation (SpO2), respiration rate (Resp), body temperature (Temp), invasive blood pressure (IBP), and CO2 levels. With the ability to display up to 8 waveforms simultaneously, all critical information is presented on a single, intuitive screen.
Key Monitoring Functions
- Electrocardiograph (ECG): Tracks heart rate and displays 6-channel ECG waveforms.
- Oxygen Saturation (SpO2): Monitors oxygen saturation, pulse rate, and pulse wave.

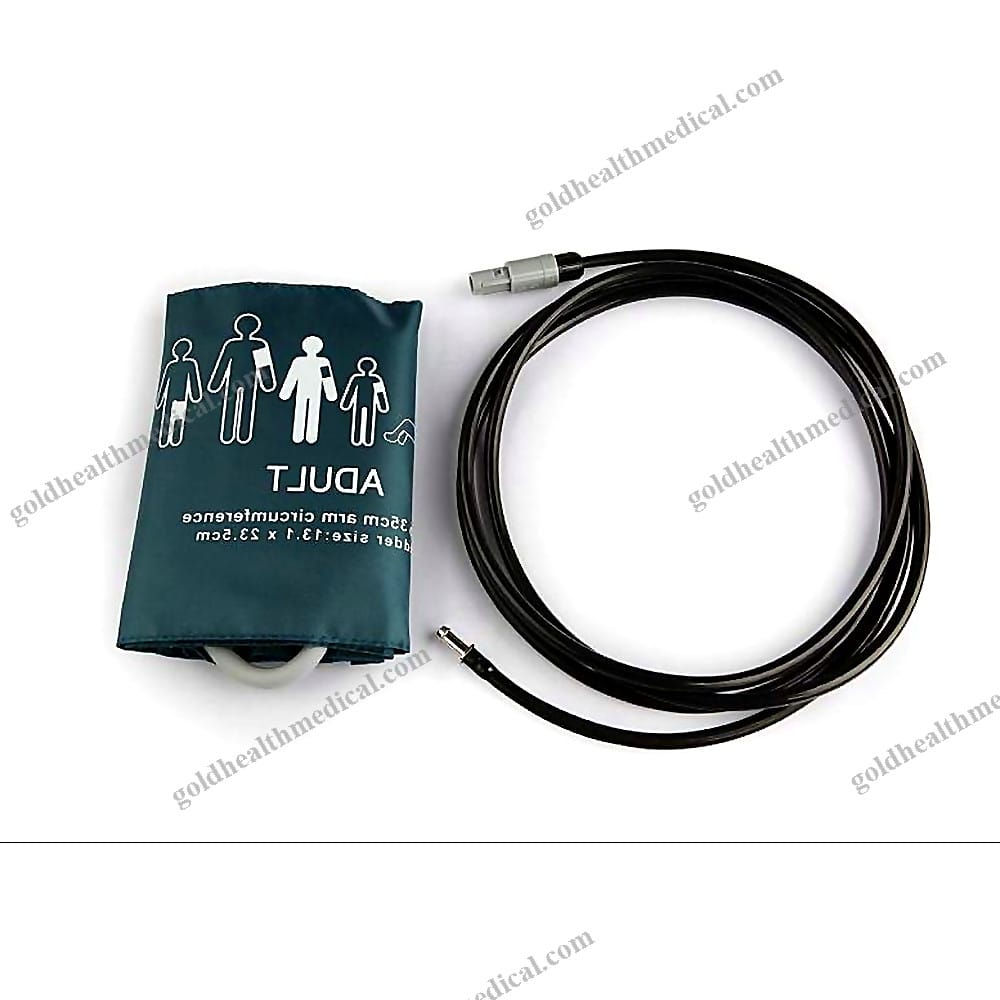

- Noninvasive Blood Pressure (NIBP): Measures systolic, diastolic, and mean arterial pressure.
- Body Temperature (Temp): Captures data from two independent channels.
- Respiration (Resp): Monitors breath rate and displays respiratory waveforms.
- CO2 Monitoring (CO2): Provides Fi/EtCO2, airway respiration rate (AwRR), and CO2 waveforms.
- Invasive Blood Pressure (IBP): Displays two channels of IBP waveforms alongside systolic, diastolic, and mean pressure readings.
Unmatched Features for Enhanced Performance
GoldHealth Medical’s multiparameter monitor is engineered with advanced features to meet the demands of modern healthcare environments:
– Comprehensive Arrhythmic Analysis: Detects 13 types of arrhythmias with multi-lead ECG waveforms displayed in phase.
– Real-Time S-T Segment Analysis: Provides critical insights into cardiac health.
– Pacemaker Detection and Drug Titration Tools: Supports precise clinical decision-making.
– Defibrillator and Electrosurgical Interference Resistance: Ensures uninterrupted performance during procedures.
– High-Sensitivity SpO2 Monitoring: Detects oxygen saturation as low as 0.1%.
– Dynamic Waveform Capture: Offers detailed visualization of physiological trends.
– Extended Battery Life: Equipped with a rechargeable battery providing up to 4 hours of continuous operation.

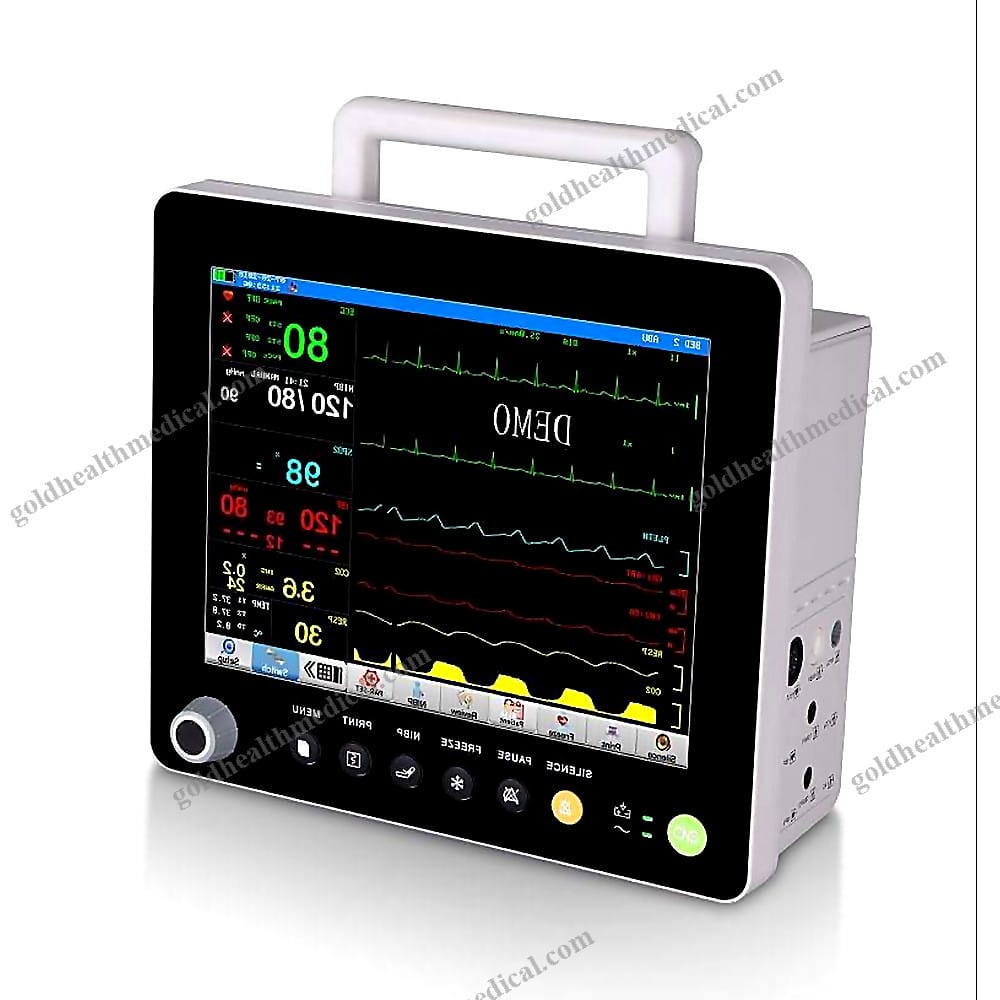

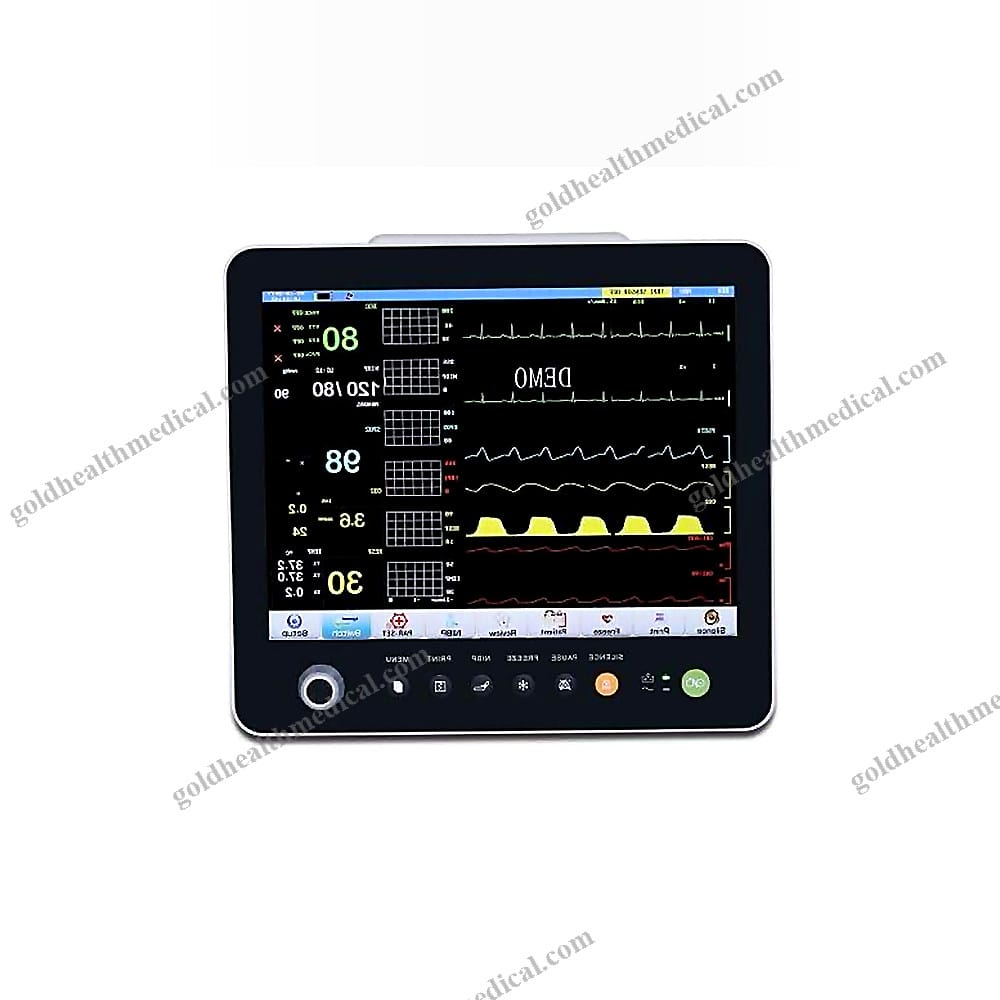

– 15” High-Resolution Color TFT LCD Display: Delivers crisp, clear visuals for enhanced usability.
– Anti-ESU and Anti-Defibrillator Protection: Ensures safety and reliability in demanding clinical settings.
Technical Specifications
Size and Weight
- 15” Model: 353 × 324 × 176 mm, 4.3 kg
Power Supply
- External Power: AC 100V~240V, 50 Hz / 60 Hz
- Maximum Power Consumption: 90VA
- Fuse: T1.5AL 250V
Battery Performance
- Battery Type: 2200 mAh, 14.8V rechargeable
- Operating Time: Up to 1.5 hours (15” model)
- Charging Time: Less than 6 hours

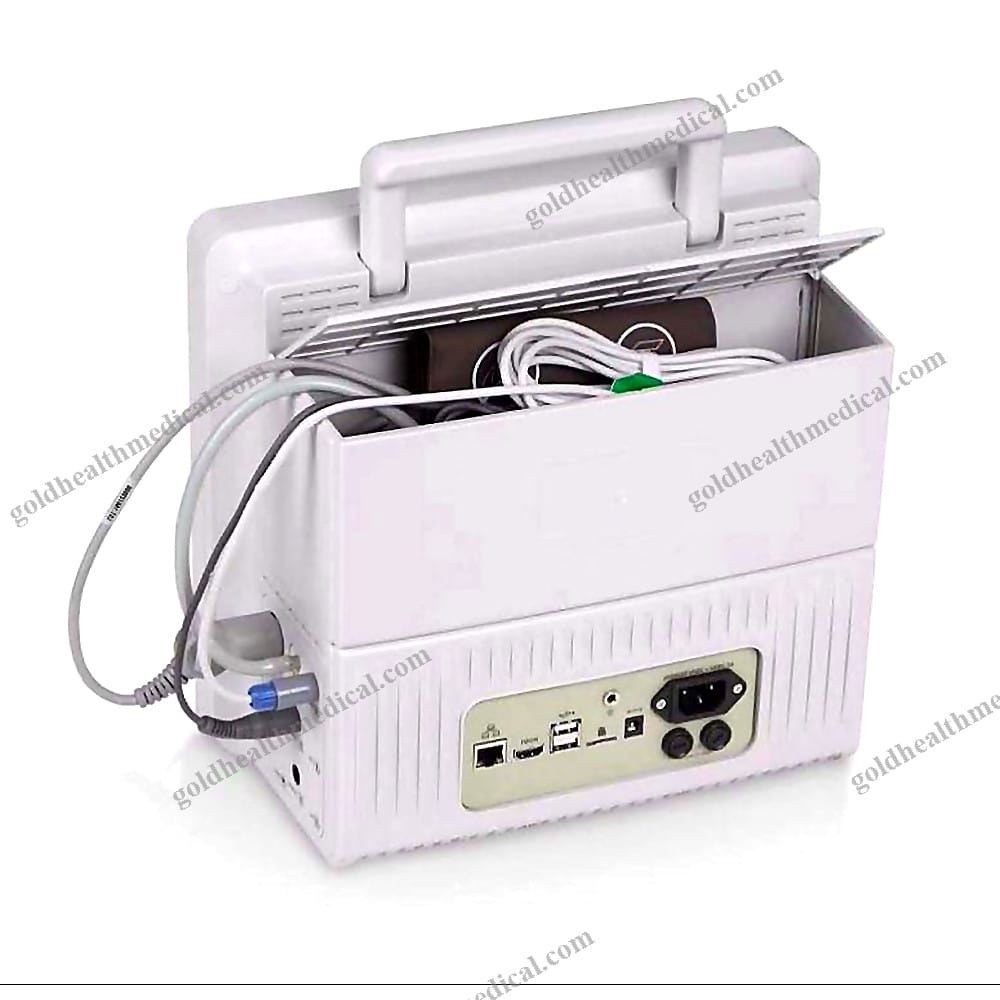

Signal Interface
- Network Interface: Standard RJ45 socket
Data Storage
- Trend Data: 720 hours
- NIBP Review: 1000 NIBP events
- Waveform Review: 2 hours
- Alarm Review: 200 alarm events
- All stored data is non-volatile for reliable record-keeping.
Environmental Conditions
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 50°C
- Humidity: 15% – 90% (non-condensing)
- Atmospheric Pressure: 86.0 kPa to 106.0 kPa
GoldHealth Medical’s multiparameter monitor is designed to empower healthcare professionals with the tools they need to deliver exceptional care. Its combination of advanced features, intuitive design, and robust performance makes it an indispensable asset in hospitals, clinics, research labs, and beyond.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
