HighQuality XRay Flat Panel Detector for Hospital Use

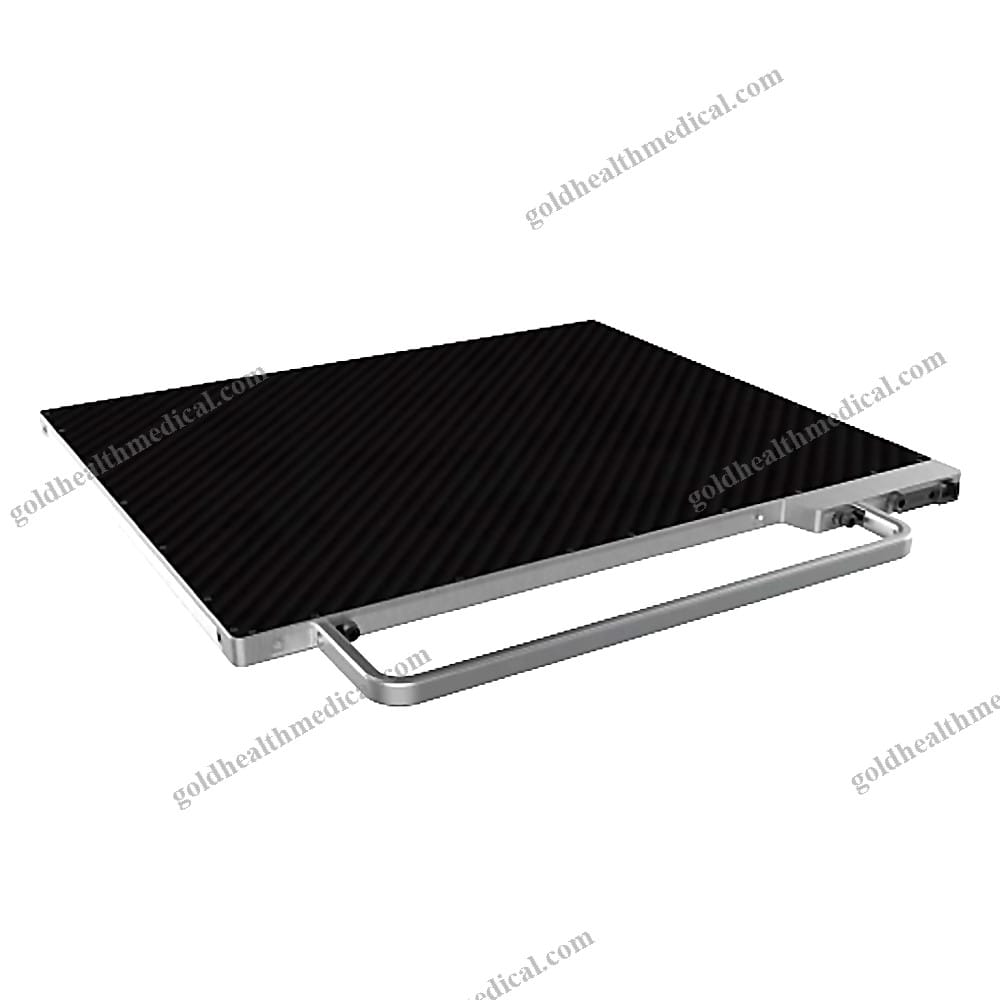

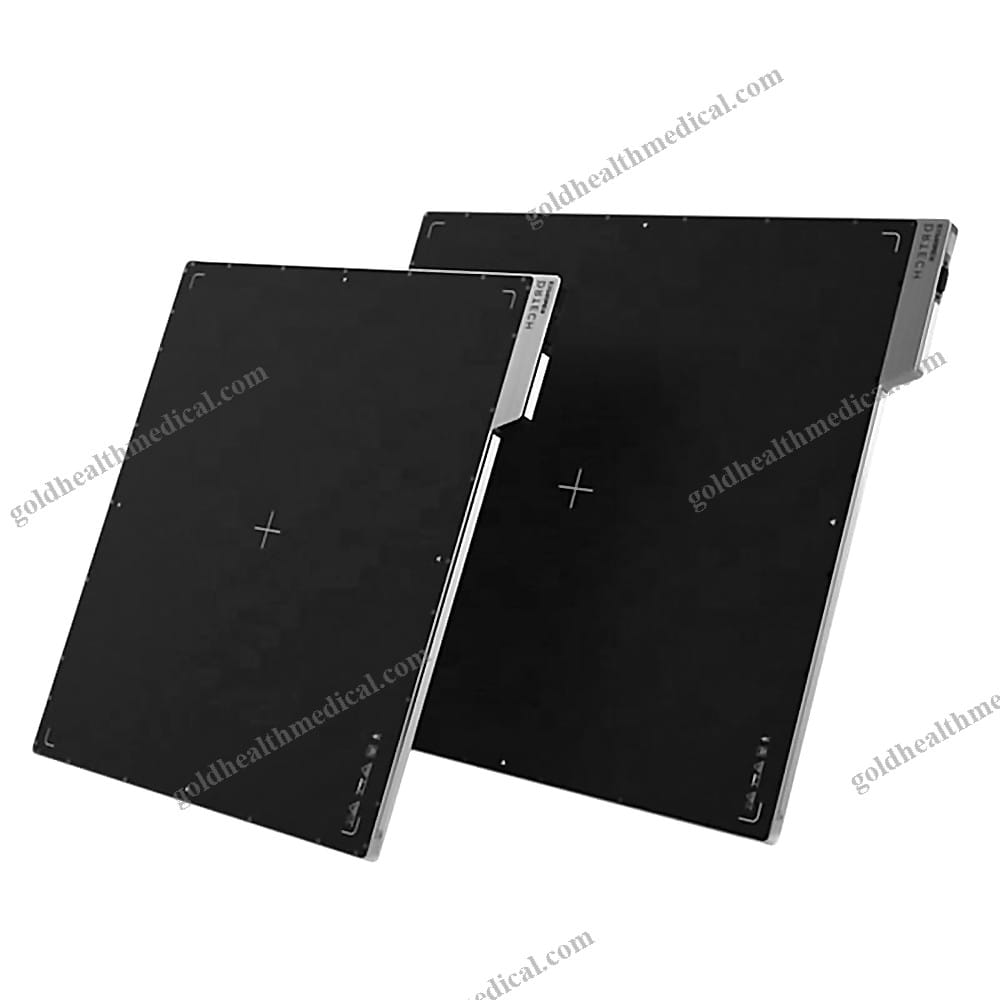

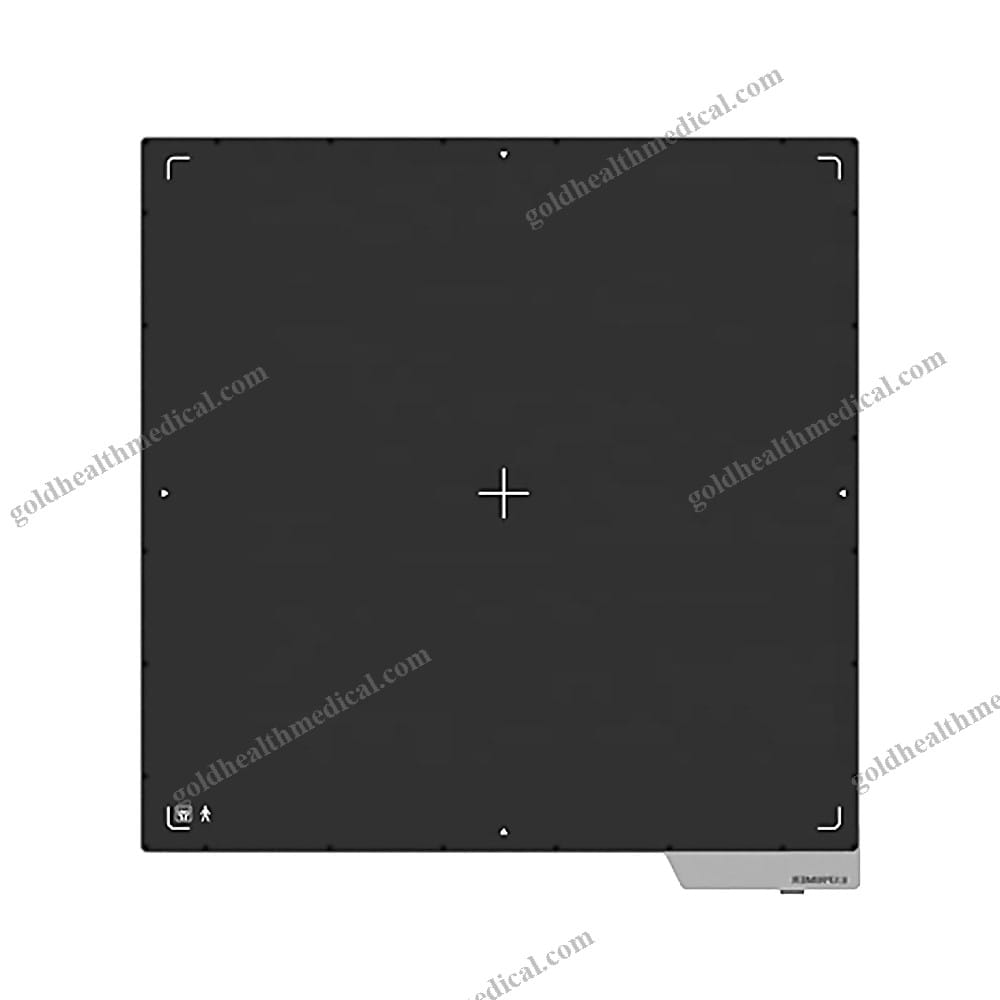

GoldHealth Medical Radiography Flat Panel Detector
The GoldHealth Medical Radiography Flat Panel Detector is a 17×17-inch tethered solution designed for seamless integration into conventional X-ray systems, offering both retrofit and system integration capabilities. Engineered to fit perfectly into existing 17×17″ standard bucky trays, this detector redefines precision and reliability with its Lossless AED/AWC feature, enabling rapid image acquisition and an optimized workflow. It is the ultimate choice for superior image quality and operational convenience.
This high-performance, cassette-sized flat panel detector boasts an extended battery life of up to 8 hours, ensuring uninterrupted performance. With support for IEEE 802.11ac and transmission speeds of up to 1300Mbps, it delivers outstanding images characterized by high Detective Quantum Efficiency (DQE) and resolution. The highly sensitive AED function ensures effortless synchronization with any generator type.
Product Advantages
- Enhanced dose efficiency and image quality powered by Q-Platform
- Improved patient throughput and accelerated workflow
- Exceptional DQE and MTF values for sharper, more detailed images
- TRUVIEW® ART, an advanced reverse filtering technology for superior clarity
- User-friendly and ergonomic design for ease of operation
Imaging Specifications
- Technology: a-Si TFT with photodiode
- Scintillator: CsI:Tl / Gd2O2S:Tb
- Imaging Area Size: 430 x 430 mm
- Pixel Matrix (Resolution): 3,072 (V) × 3,072 (H)
- Pixel Pitch: 140 μm
- Limiting Resolution: > 3.6 lp/mm
- MTF: 81% @ 1lp/mm (TVA), 69% @ 1lp/mm (Raw)
- DQE: ≥ 60% @ 0.5lp/mm
- A/D Conversion: 16-bit
- Energy Range: 40-150 kVp
- Trigger Mode: Lossless AED/AWC
- Preview Image Time: ≤1.0 sec.
- Cycle Time: ≤3.3 sec.
- Input Voltage: DC +12V, 3A MAX
- Power Consumption: 20W (Max)
- Data Interface: Gigabit Ethernet (Single LAN cable)
- External Dimensions: 460 (W) × 483 (L) × 15.5 (D) mm
- Weight: 4.3 kg (9.4 lb)

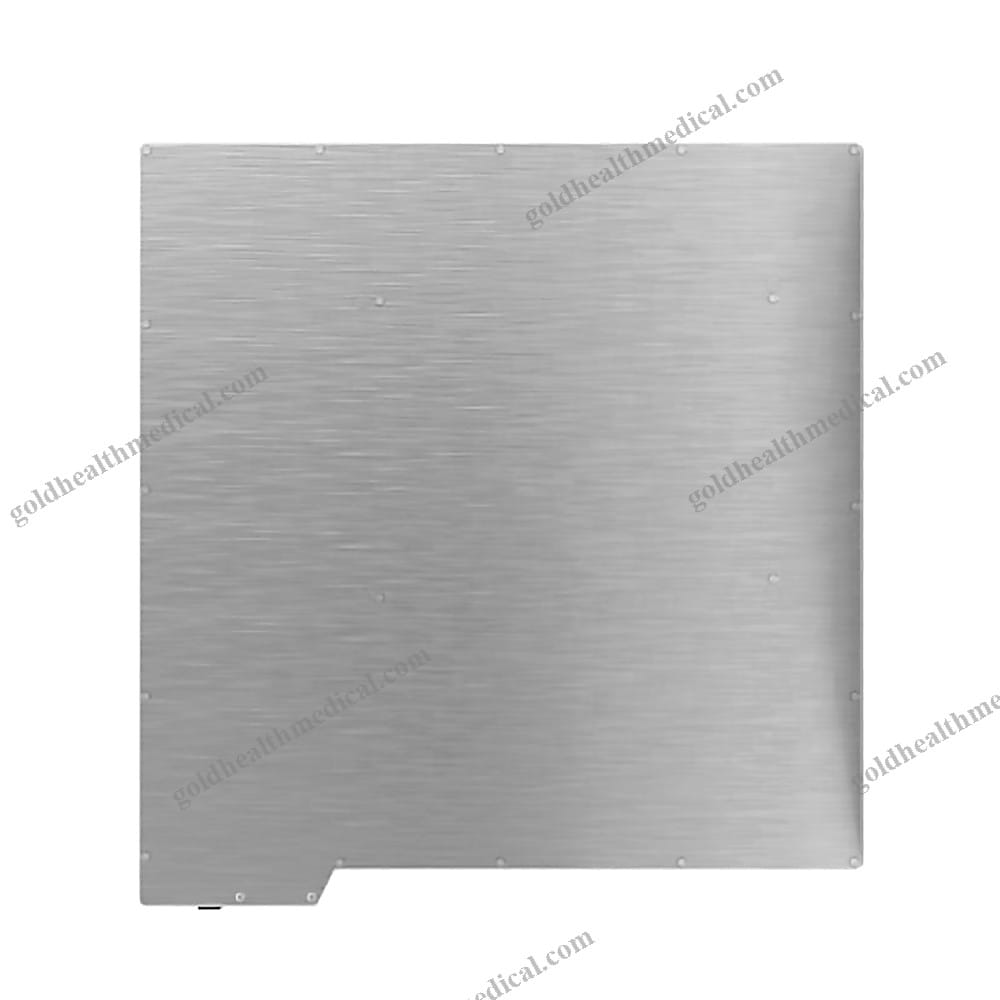

- Detector Housing Material: Aluminum
- Sensor Protection Material: Carbon fiber and aluminum plate
- Weight Limit: Uniform load 150kg, Point load (100kg Φ40mm)
- Ingress Protection: IP53
Operating Console Features
- CPU: Intel i5-6500
- RAM: 8 GB
- Local Storage: 1 TB hard disk, capable of storing over 15,000 full-resolution images
- Operating System: Windows 7 Pro 32 / Windows 8 / Windows 10
- Image Size: Up to 19 MB depending on exam type (no compression)
- Patient Data Input: Keyboard, HIS/RIS connection
- Cycle Time: ≤ 7 sec
- Connectable Sensors: Up to 3 digital detectors with semi-automatic selection
- Image Zoom: Full expand 200%, Partially expand 400%
Exam Preparation and Image Acquisition Features
- Automatic data input via DICOM Modality Worklist query
- Manual patient data input via keyboard
- Automatic selection of exam procedure based on Worklist
- Projection guide for selected projections
- Dose per area product reading displayed on the workstation monitor and embedded in the DICOM header
- APR program and AEC settings with compatible generators
Image Processing Features
- Optimized image processing parameters with APR-specific defaults and manual adjustment options
- Image rotation in 90° steps
- Horizontal/Vertical mirroring
- Automatic and manual image cropping
- Digital markers and annotations (arrows, lines, figures, free text, etc.)
- Measurement tools for angles, distances, and specialized veterinary applications
- Multi-image display options (1×2, 2×1, 2×2, etc.)
- TRUVIEW® ART for improved MTF
- Histogram and manual LUT adjustments
- Image Wizard for previewing 8 types of images based on current parameters
- Rejected image management and statistics
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Brand Name: GoldHealth Medical
Product Name: Radiography Flat Panel Detector
Product Overview
The GoldHealth Medical Radiography Flat Panel Detector is a cutting-edge imaging solution designed for precision, durability, and exceptional performance. Engineered with advanced a-Si TFT technology and high-efficiency photodiodes, this detector delivers unparalleled image clarity and reliability, making it an indispensable tool for medical professionals. Whether in hospitals, radiography departments, or emergency care settings, this device ensures accurate diagnostics and seamless integration into your workflow.
Key Features
- Advanced Imaging Technology: Utilizes a-Si TFT with photodiode and CsI:Tl / Gd2O2S:T scintillators for superior image quality.
- High Resolution: Achieves a pixel matrix of 3,072 (V) x 3,072 (H) with a pixel pitch of 140 μm, ensuring sharp and detailed images.
- Wide Energy Range: Operates efficiently within 40-150 kVp, accommodating diverse diagnostic needs.
- Durable Design: Built to last with a shelf life of 8-10 years, ensuring long-term reliability in demanding environments.
- Compact and Lightweight: Weighing just 9.000 kg with a package size of 30x30x70 cm, it is easy to transport and install.
Technical Specifications
- Imaging Area Size: 430mm x 430mm
- Limiting Resolution: >3.6 lp/mm
- Instrument Classification: Class II
- Power Source: Electricity
- Applications: Hospitals, radiography departments, first aid, and medical diagnosis.
Certifications and Support
- Quality Certifications: CE/ISO compliance ensures safety and reliability.
- Warranty: Backed by a 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support for uninterrupted performance.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative and reliable medical imaging solutions. Our Radiography Flat Panel Detector combines state-of-the-art technology with user-centric design, empowering healthcare providers to deliver accurate diagnoses and exceptional patient care. With its robust build, advanced features, and trusted certifications, this detector is the ideal choice for modern medical facilities.
Usage
Designed for X-ray rooms and radiography departments, this detector is optimized for reading high-quality images, ensuring precise diagnostics and efficient workflows.
Experience the future of radiography with GoldHealth Medical.
