Ginee Medical LED Surgical Lamp
GoldHealth Medical Examination Light
GoldHealth Medical proudly presents our state-of-the-art examination light, meticulously engineered to deliver unparalleled performance and reliability in medical environments. Designed with precision and care, our examination lights cater to the needs of modern healthcare facilities, ensuring optimal illumination for accurate diagnostics.
Key Features
-

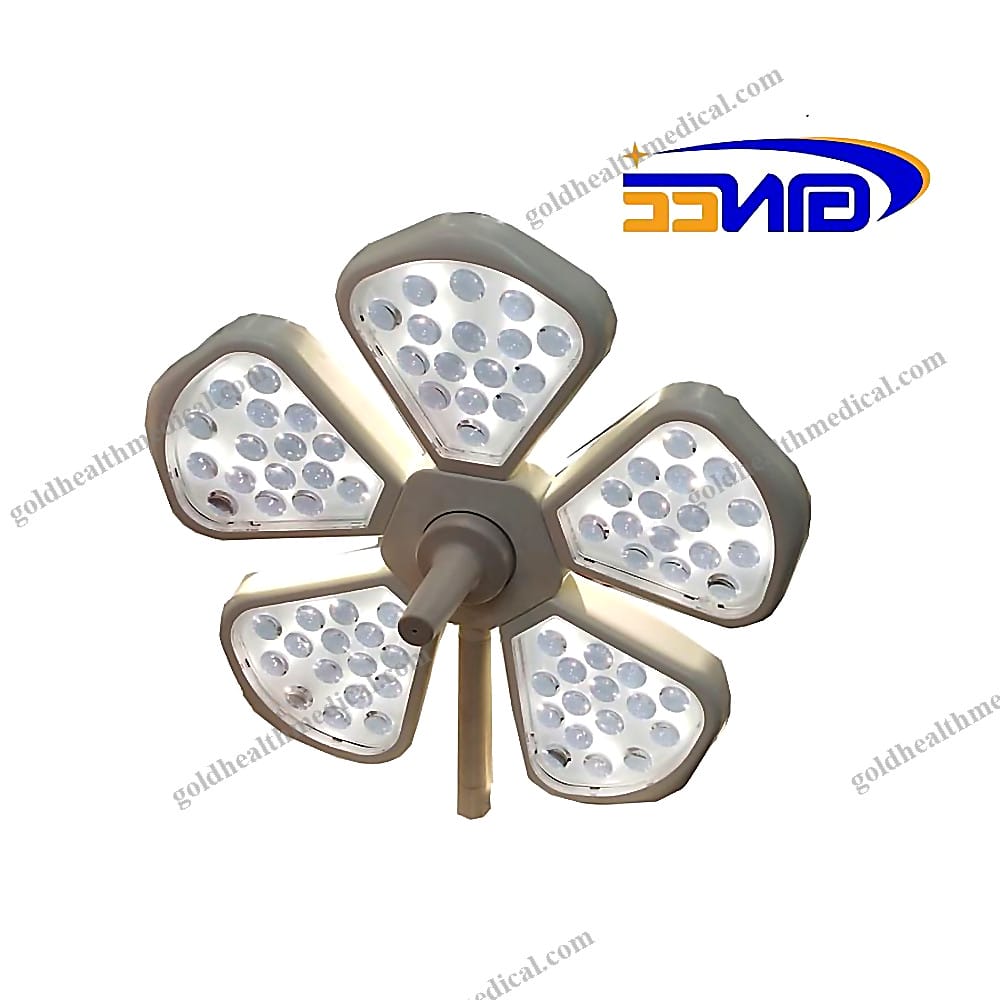

Advanced Lamp Head: The core of our examination light utilizes multiple high-performance LED lamp beads. This design ensures exceptional brightness, energy efficiency, longevity, and minimal heat generation. The lamp head provides uniform and stable illumination, delivering sufficient brightness to the examination area.
-

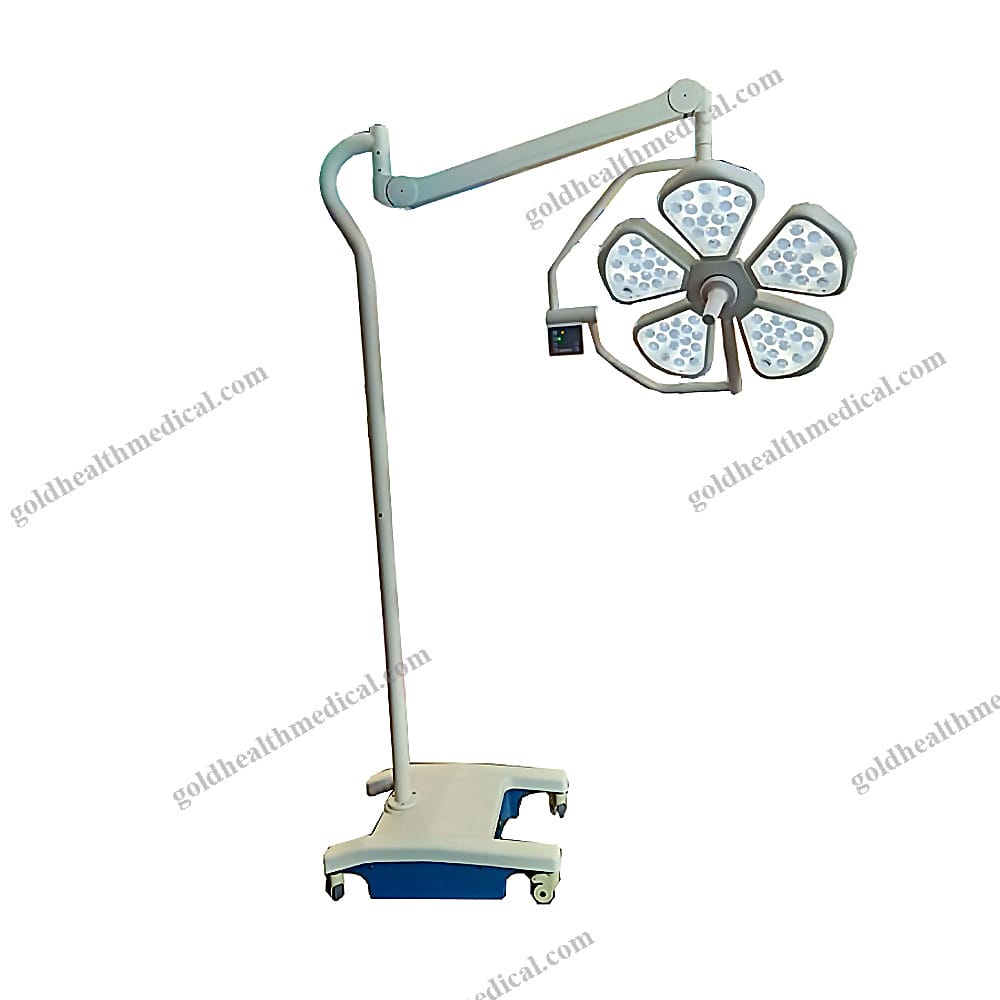

Versatile Bracket Options: Available in floor-standing, wall-mounted, and ceiling-mounted configurations. Floor-standing brackets offer mobility across operating rooms, wall-mounted brackets optimize space in compact areas, and ceiling-mounted brackets provide stable support without occupying floor space.
-
Broad Application Scope: Essential for various medical examinations, including ENT, dentistry, ophthalmology, and more. Our surgical examination lights enable doctors to observe patient conditions with enhanced clarity, improving diagnostic accuracy.
Technical Specifications
Single Head Surgical Light
- Diameter of Head: 620 mm
- Illuminance: 40,000 – 160,000 Lux
- Color Temperature: 3,500 – 5,500 K
- Color Rendering Index (CRI): ≥ 95
- Light Field Diameter: 120 – 350 mm
- Illuminance Depth: ≥ 1,500 mm
- LED Power: 78 W
- Adjustable Illumination: 10-degree adjustment
- Average Life Expectancy: 100,000 Hours

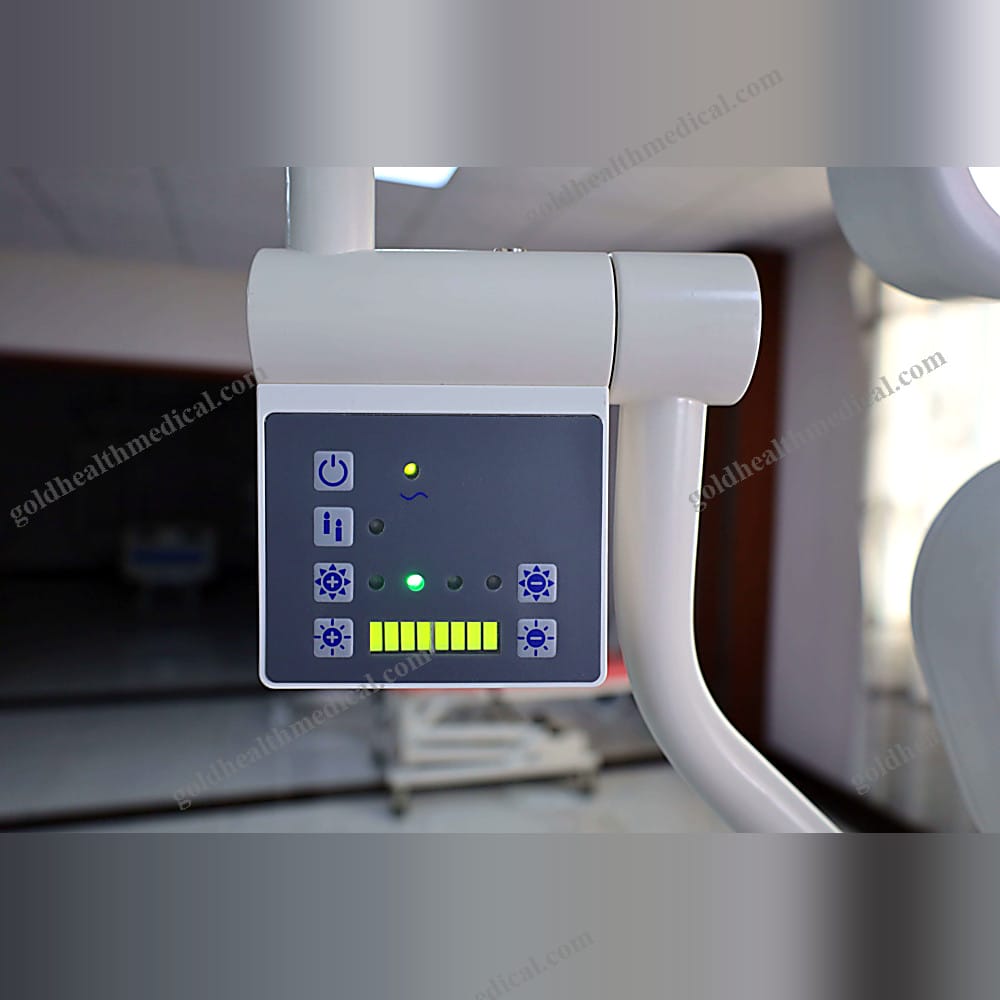

- Control Panel: LCD touch screen
- Optional Features: UPS, Camera System

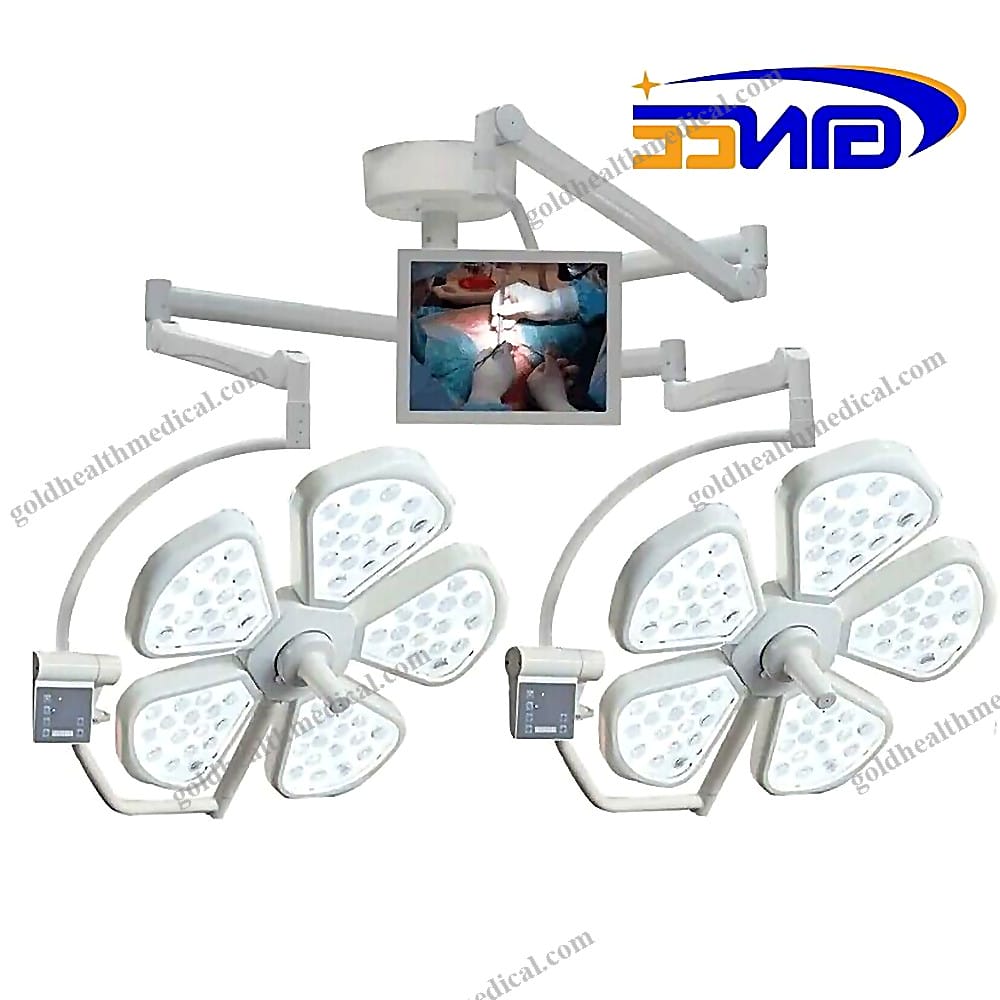

Double Head Surgical Light
- Diameter of Heads: 700 mm / 700 mm
- Illuminance: 160,000 Lux / 160,000 Lux
- Color Temperature: 3,600 – 5,500 K (±500 K)
- Color Rendering Index (CRI): ≥ 95
- Spot Diameters:
- 50% Spot Diameter (D50): 150 mm / 150 mm
- 10% Spot Diameter (D10): 280 mm / 280 mm
- Illumination Depth: 140 cm / 140 cm
- Adjustable Illuminance Range: 25% – 100%
- Ultraviolet Irradiance: ≤ 0.006 W/m² (within 400 nm wavelength)
- Voltage: 220 V
- Frequency: 50 Hz
- Input Power: 100 W / 100 W
- Temperature at Surgeon’s Head: ≤ 1°C
- Average Life Expectancy: 100,000 Hours
- Optional Features: UPS, Camera System
Additional Double Head Configuration
- Diameter of Heads: 700 mm / 500 mm
- Illuminance: 160,000 Lux / 140,000 Lux
- Color Temperature: 3,600 – 5,500 K (±500 K)
- Color Rendering Index (CRI):
- RA: 95
- R9: 90
- R13: 92
- Spot Diameters:
- 50% Spot Diameter (D50): 150 mm / 120 mm
- 10% Spot Diameter (D10): 280 mm / 230 mm
- Illumination Depth: 140 cm / 120 cm
- Ultraviolet Irradiance: 0.002 W/m² (within 40 nm wavelength)
- Focus Mode: Manual
- Power Supply: 220 V, 50 Hz
- Lamp Beads Power: 1W * 80N / 1W * 48N
- Average Life Expectancy: 100,000 Hours
- Optional Features: UPS, Camera System
Certifications
Our products are certified by ISO9001, ISO13485, ISO14001, ISO18
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Product Overview
GoldHealth Medical presents a cutting-edge surgical lighting solution designed to elevate precision and performance in medical environments. Engineered with advanced technology and sleek aesthetics, this surgical lamp is the ideal choice for operating rooms, clinics, and research facilities. Its innovative design ensures optimal illumination while maintaining a modern, professional appearance.
Key Features
- Advanced Illumination Modes: Offers three distinct lighting modes—deep cavity, surface, and background—providing unparalleled adaptability for diverse surgical procedures.
- Color Temperature Options: Available in white and yellow light settings to enhance visibility and reduce eye strain during extended use.
- Streamlined Design: The light body features a smooth, aerodynamic silhouette, ensuring ease of movement and seamless integration into any medical setting.
Technical Specifications
- Material: Constructed from high-grade plastic and steel for durability and longevity.
- Instrument Classification: Class III medical device, ensuring the highest standards of safety and reliability.
- Safety Compliance: Meets GB15979-2002 safety standards, guaranteeing optimal performance and user protection.
- Power Source: Electric-powered for consistent and reliable operation.
- Shelf Life: 1 year, ensuring long-term usability and performance.
Certifications and Standards
- Quality Certification: CE-certified, reflecting compliance with international quality and safety benchmarks.
After-Sale Support
- Warranty: Backed by a 1-year warranty for peace of mind and assurance of quality.
- Complimentary Spare Parts: Free spare parts included to minimize downtime and ensure uninterrupted service.
Place of Origin
- Proudly manufactured in Hefei, Anhui, China, combining local expertise with global innovation.
GoldHealth Medical’s surgical lamp is more than just equipment—it’s a commitment to excellence in healthcare. Designed for professionals who demand precision, reliability, and innovation, this product sets a new standard in medical lighting solutions.
