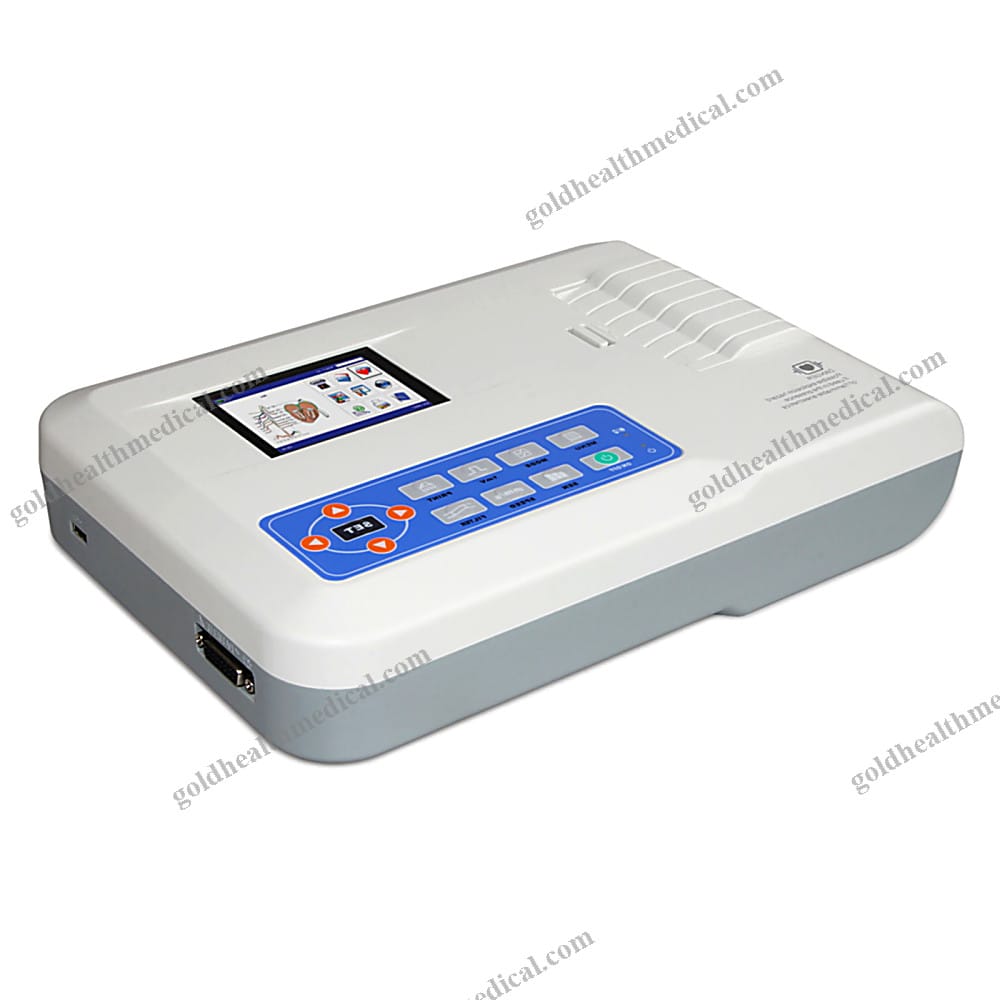

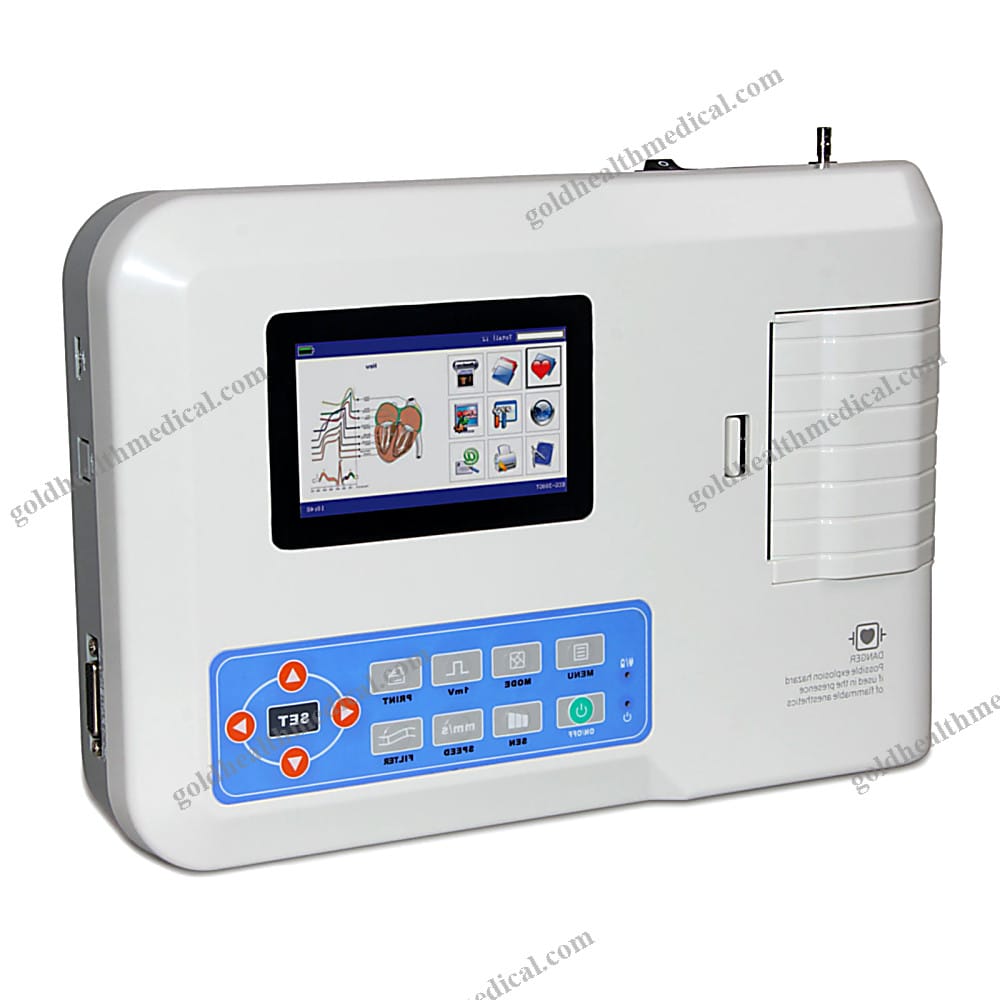

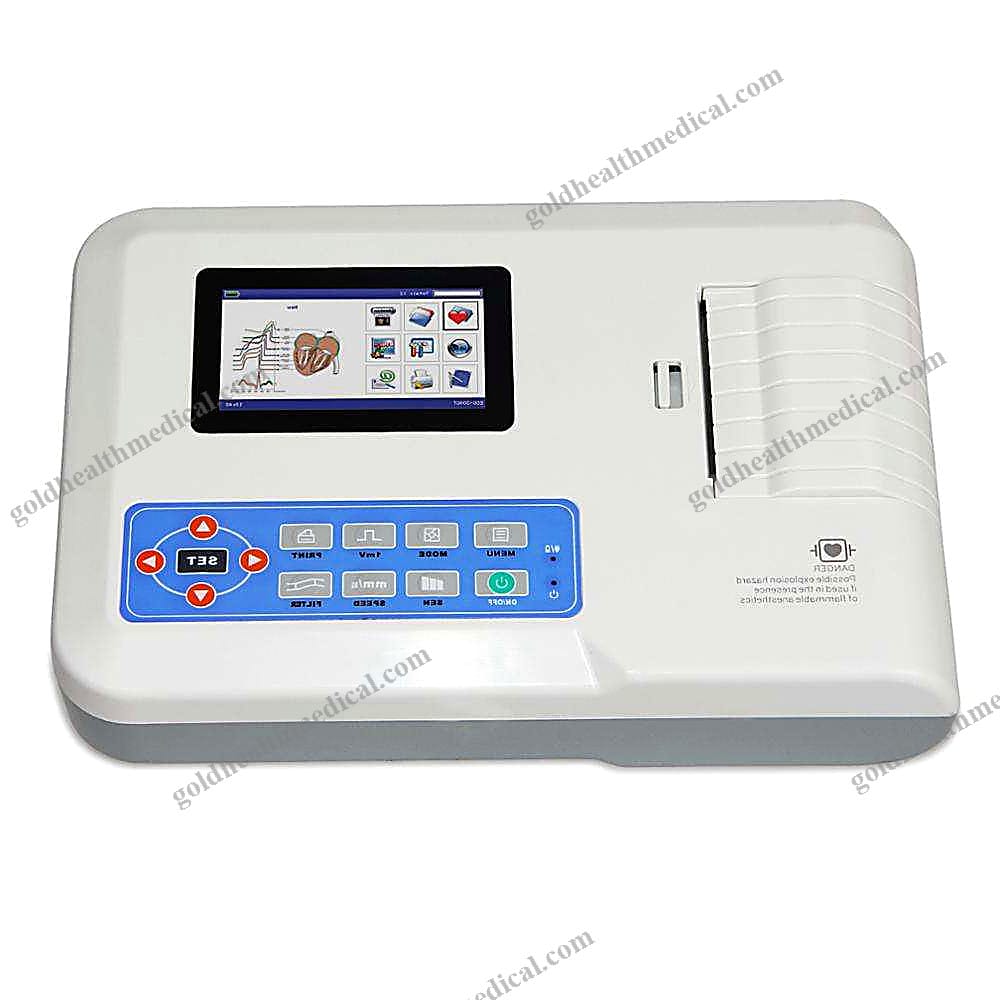

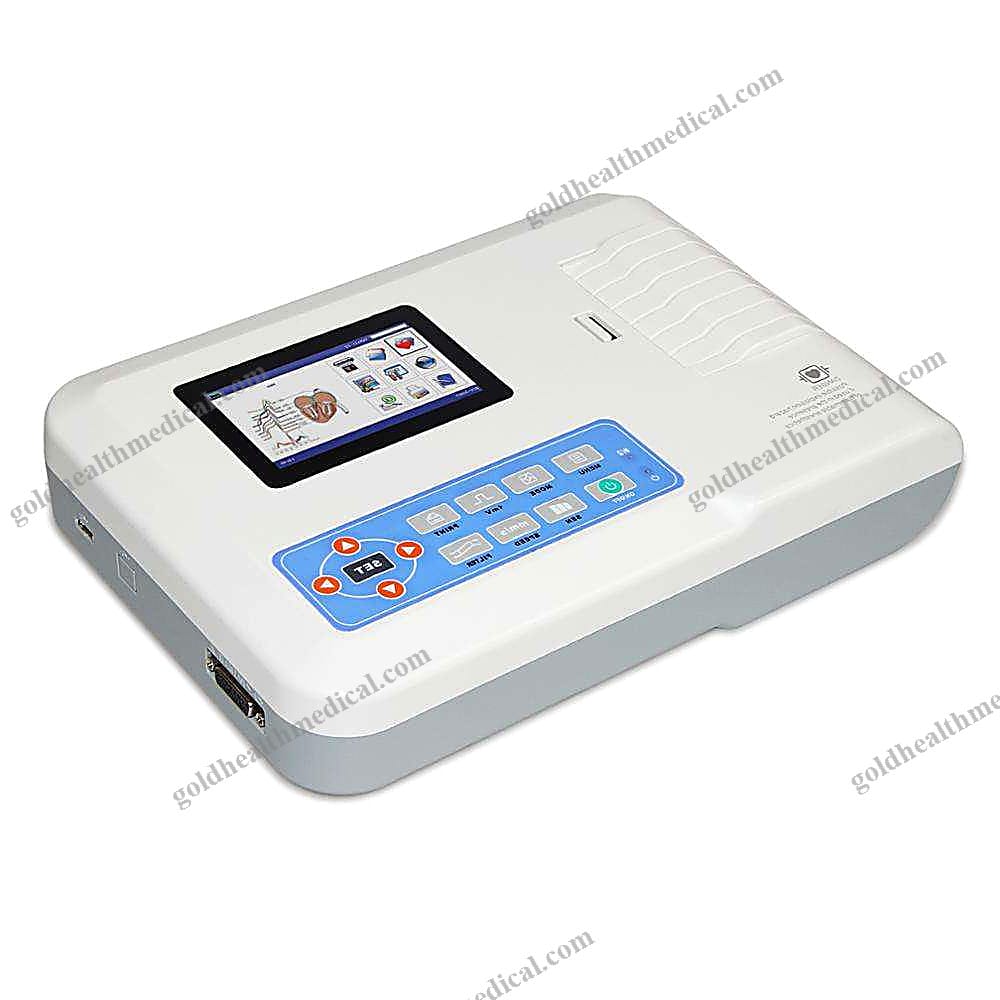

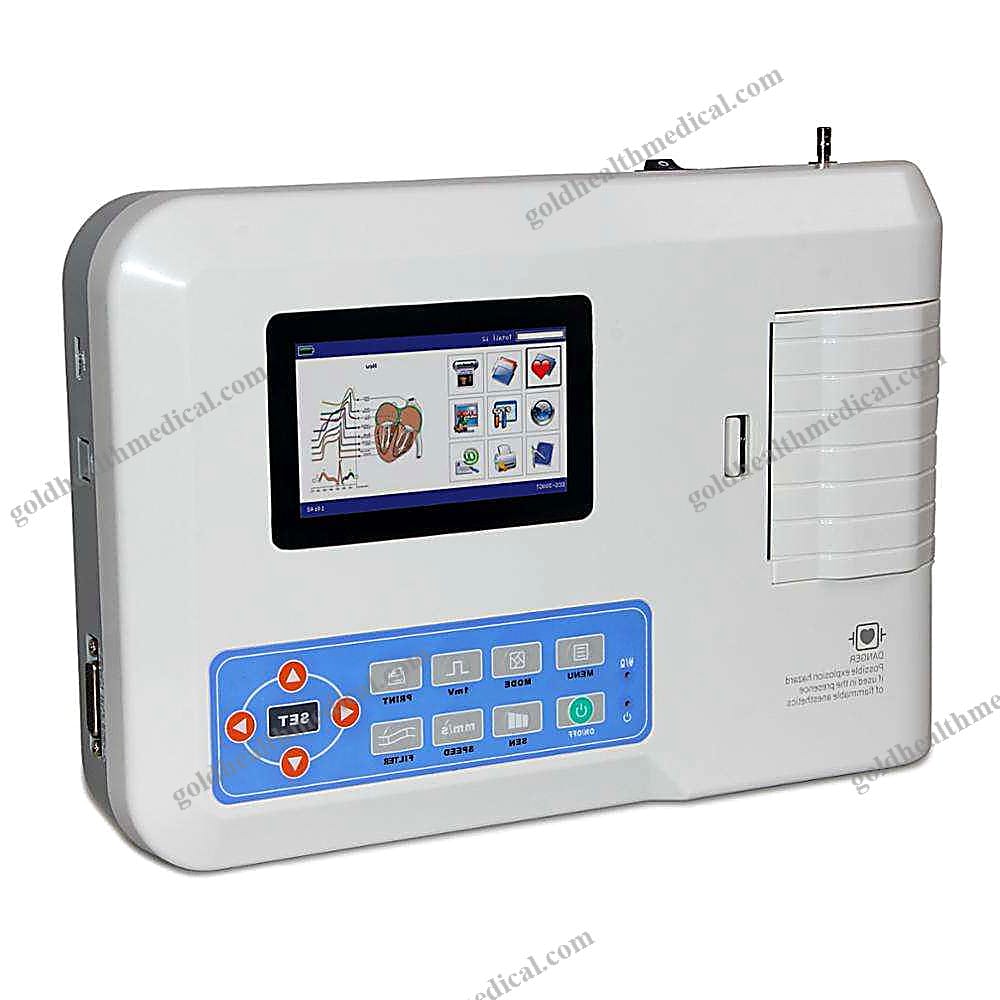

ECG300GT Digital EKG Machine
GoldHealth Medical ECG Machine for Hospitals
Introduction
GoldHealth Medical presents an advanced Electrocardiograph designed to collect 12-lead ECG signals and print waveforms using a high-precision thermal printing system. This device is engineered to deliver exceptional performance with features such as automatic and manual recording modes, real-time ECG waveform display, and automatic measurement and diagnosis of ECG parameters. It also provides intuitive alerts for “Lead off” or “Lack of paper,” a multi-language interface, and robust case database management for seamless operation.
Key Features
– Synchronized 12-Lead ECG Collection: Utilizes advanced digital signal processing technology to deliver high-quality ECG waveforms. Equipped with power frequency, baseline, and EMG filters to ensure clarity and precision.
– Comprehensive Display: Simultaneously showcases 3/6/12-lead ECG waveforms, print modes, sensitivity, paper speed, and filter status on a single screen for efficient comparative diagnosis.
– Flexible Printing Options: Offers multiple printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 2×6+1, rhythm 4, rhythm 3, and more. Adjustable waveform length and time-stamped printing cater to diverse clinical needs.
– Automated Analysis and Diagnosis: Provides precise measurements and diagnostic insights for key ECG parameters such as HR, P-R interval, QRS Duration, QT interval, QTc, P Axis, QRS Axis, T Axis, R(V5), S(V1), and R(V5)+S(V1). This reduces the workload for medical professionals.
– Extensive Memory Capacity: Built-in memory stores up to 1000 cases, enabling easy review and statistical analysis.
– Multi-Language Support: Offers an intuitive interface and reports in multiple languages, including English, Spanish, French, German, Italian, Russian, and more, ensuring global accessibility.
Performance Highlights
– Input Mode: Floating design with defibrillation protection.
– Frequency Response: 0.05Hz ~ 150Hz (-3dB ~ +0.4dB).
– Common Mode Rejection Ratio (CMRR): >60dB, >100dB with filter.
– Time Constant: ≥ 3.2s.
– Patient Leak Current: <10µA.
– Calibration Voltage: 1mV.
– Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV ±2%.
– Noise Level: <15µVp-p.
– Input Impedance: ≥50MΩ.
– Sampling Accuracy: 12-bit.
– Safety Classification: Class I, Type CF, defibrillation-proof applied part.
– Recording Modes: Thermal printing system with auto, rhythm, and manual recording options.
– Measurement Parameters: HR, P-R interval, QRS Duration, QT interval, QTc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1).
– Paper Size: 80mm(W) × 20m(L).
– Sampling Frequency: 1000Hz.
– EMG Interference Filter: 25Hz/35Hz (-3dB).
– Power Frequency Filter: AC 50Hz/60Hz (-20dB).
– Paper Speed: Auto: 25, 50mm/s ±5%; Rhythm: 25, 50mm/s ±5%; Manual: 5, 6.25, 10, 12.5, 25, 50mm/s ±5%.
– Power Supply: AC: 100V~240V (50/60Hz); DC: 7.4V/3500mAh rechargeable lithium battery.
– Fuse Specification: Two AC time-lag fuses (φ5×20mm), T1.6AL250V.
– Waterproof Degree: IPX0.
– Working Mode: Continuous operation.
Accessories
– Standard: Lead cable, limb electrode, chest electrode, thermal recording paper, power cord, earth wire, user manual.
– Optional: ECG-Sync software + USB cable, ECG electrode, bag, conductive gel.
Physical Characteristics
– Working Environment:
– Temperature
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Product Overview
GoldHealth Medical proudly presents an advanced ECG machine designed for precision, reliability, and ease of use. Tailored for healthcare professionals and institutions, this device is a cornerstone of modern health diagnostics, offering unparalleled accuracy in monitoring body health and supporting physiotherapy applications.
Key Features and Specifications
- Usage: Designed for comprehensive body health care and physiotherapy, ensuring accurate and reliable readings for diverse medical needs.
- Instrument Classification: Class II medical device, guaranteeing safety and performance.
- Safety Standard Compliance: Meets GB15979-2002 standards, ensuring the highest level of safety and quality.
- Power Source: Electric, providing consistent and dependable operation.
- Material: Durable, high-quality plastic construction for longevity and hygiene.
- Dimensions: Compact design with a size of 315mm (L) x 215mm (W) x 77mm (H), making it ideal for various clinical and home settings.
- Shelf Life: 1 year, ensuring product integrity and performance.
- Warranty: Backed by a 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support, ensuring seamless operation and troubleshooting.
Packaging and Delivery Details
- Packaging: Securely packed in a protective carton to prevent damage during transit.
- Single Package Size: 40cm x 40cm x 40cm.
- Single Gross Weight: 20.000 kg.
- Customization: OEM support available for custom styles to meet specific branding needs.
- Sample Availability: Samples provided upon request for evaluation.
Applications
This ECG machine is versatile and suitable for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare. Its advanced features make it an indispensable tool for monitoring and managing health conditions effectively.
Quality Assurance
Certified with CE quality certification, this device reflects GoldHealth Medical’s commitment to delivering cutting-edge, reliable, and safe medical equipment.
Why Choose GoldHealth Medical?
GoldHealth Medical combines innovation, precision engineering, and user-centric design to deliver medical devices that redefine healthcare standards. Our ECG machine is a testament to our dedication to quality and excellence, empowering healthcare providers and patients alike.
