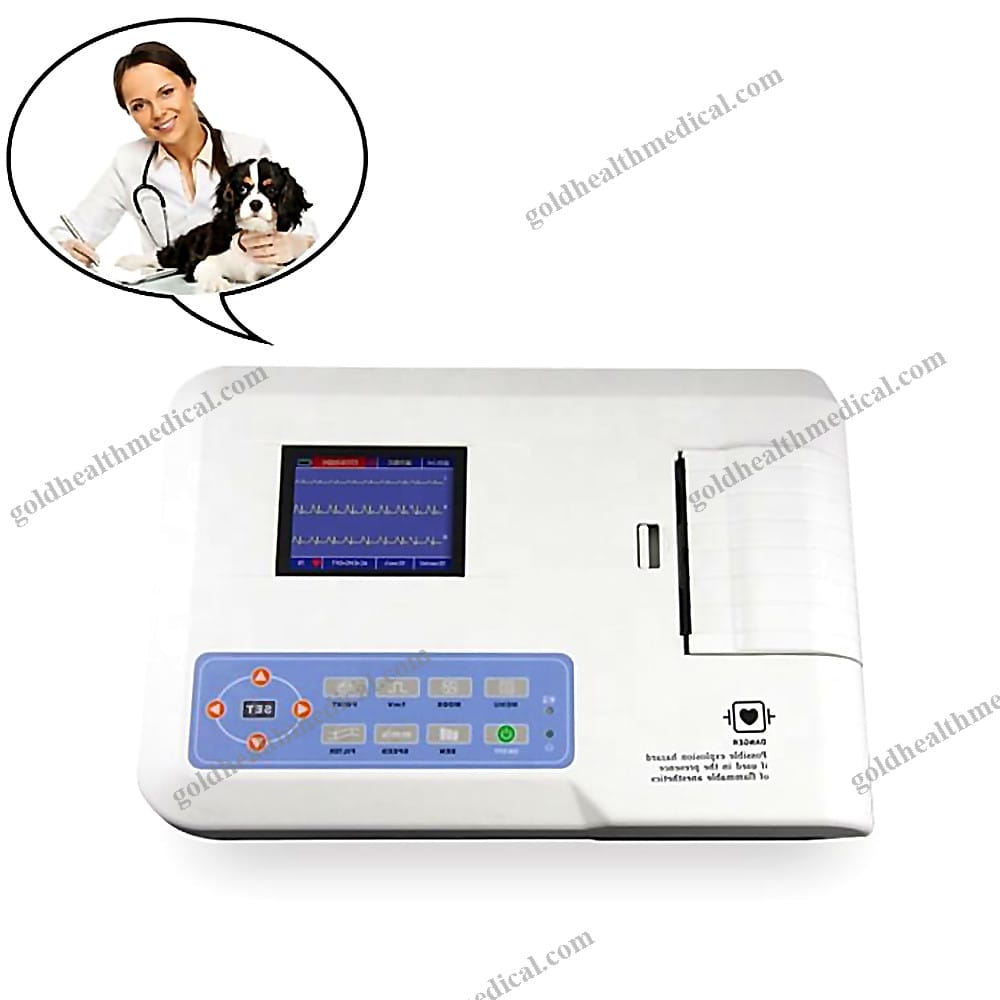

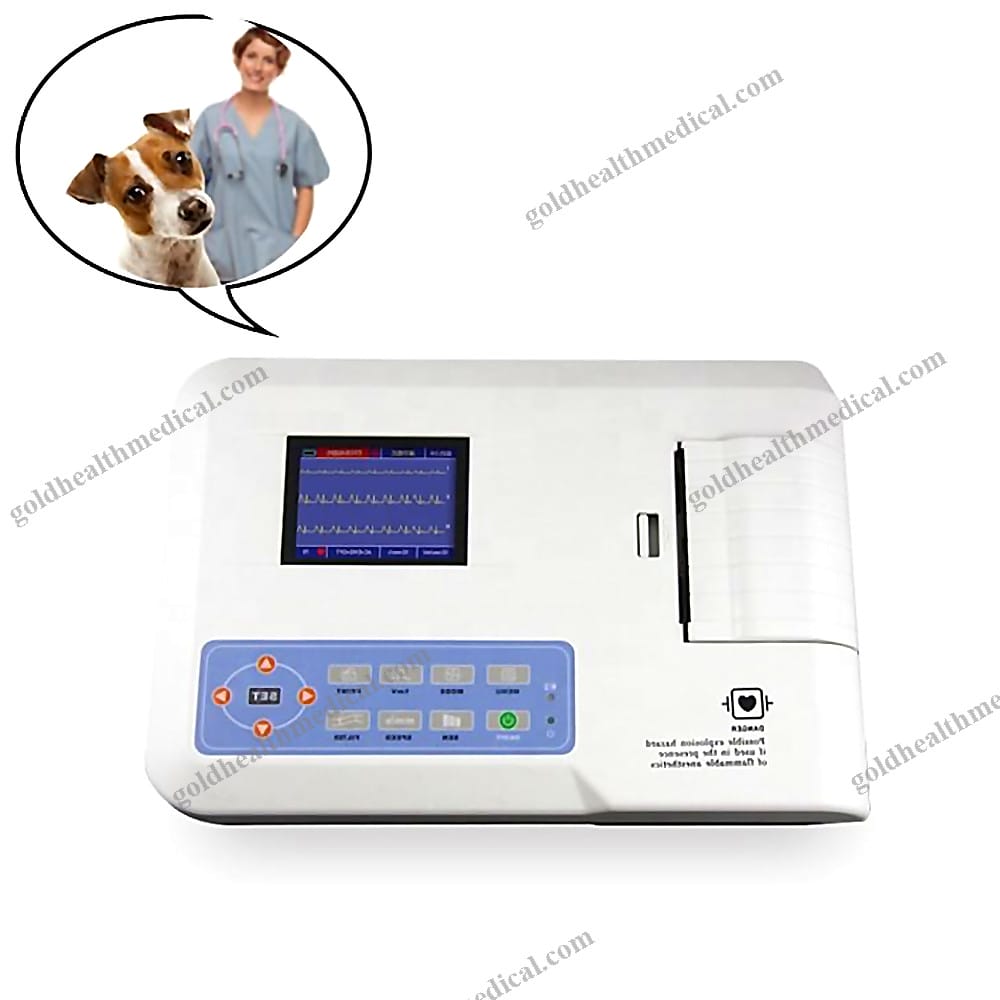

GoldHealth Medical presents an advanced Electrocardiograph designed for precision and versatility in cardiac diagnostics.
This state-of-the-art device captures 12-lead ECG signals simultaneously, delivering exceptional waveform clarity through a high-speed thermal printing system. Engineered for both efficiency and accuracy, it offers multiple operational modes—AUTO and Manual—allowing seamless recording, display, and automatic analysis of ECG waveforms. Key features include intuitive “Lead off” and “Lack of paper” alerts, a multi-language interface, and AC/DC power compatibility. Its optional rhythm lead functionality provides enhanced observation of abnormal heart rhythms, while an integrated case database ensures efficient patient data management.
Key Features and Specifications
- Input Mode: Floating with defibrillation protection
- Frequency Response: 0.05Hz to 150Hz (-3dB to +0.4dB)
- Common Mode Rejection Ratio (CMRR): >60dB, >100dB (with Filter ON)
- Time Constant: ≥3.2 seconds
- Patient Leak Current: <10µA
- Calibration Voltage: 1mV
- Sensitivity Options: 2.5/5/10/20/40mm/mV, with an error margin of ±5%; Standard sensitivity at 10mm/mV, error ±2%
- Noise Level: ≤15µVp-p
- Input Loop Current: ≤50nA
- Input Impedance: ≥50MΩ
- Sampling Accuracy: 12-bit
- Safety Classification: CF Type Class I, anti-defibrillation applied part
- Recording System: High-speed thermal printing
- Auto Record: Automatically switches leads, measures, and analyzes waveforms based on pre-set formats
- Rhythm Record: Captures rhythm waveforms with automatic measurement and analysis
- Manual Record: Customizable recording with manual lead switching
- Recording Paper: 80mm(W) × 20mm(L) high-speed thermal paper
- Sampling Rate: 1000Hz
- EMG Interference Filter: 25Hz/35Hz (-3dB)
- Power Frequency Filter: AC 50Hz/60Hz (-20dB)
- Paper Speed:
- Auto Mode: 5/6.25/10/12.5/25/50mm/s, error ±5%
- Rhythm Mode: 5/6.25/10/12.5/25/50mm/s, error ±5%
- Manual Mode: 5/6.25/10/12.5/25/50mm/s, error ±5%
- Power Supply:
- AC: 100V~240V (50/60Hz)
- DC: Rechargeable lithium battery 7.4V/3700mAh
- Fuse Specification: φ5×20mm, 2 pieces; AC time lag; T1.6AL250V
- Protection Against Fluids: IPX0
- Operating Mode: Continuous operation
- Dimensions: 315mm(L) × 215mm(W) × 77mm(H)
- Weight: 1.6Kg
Standard Configuration

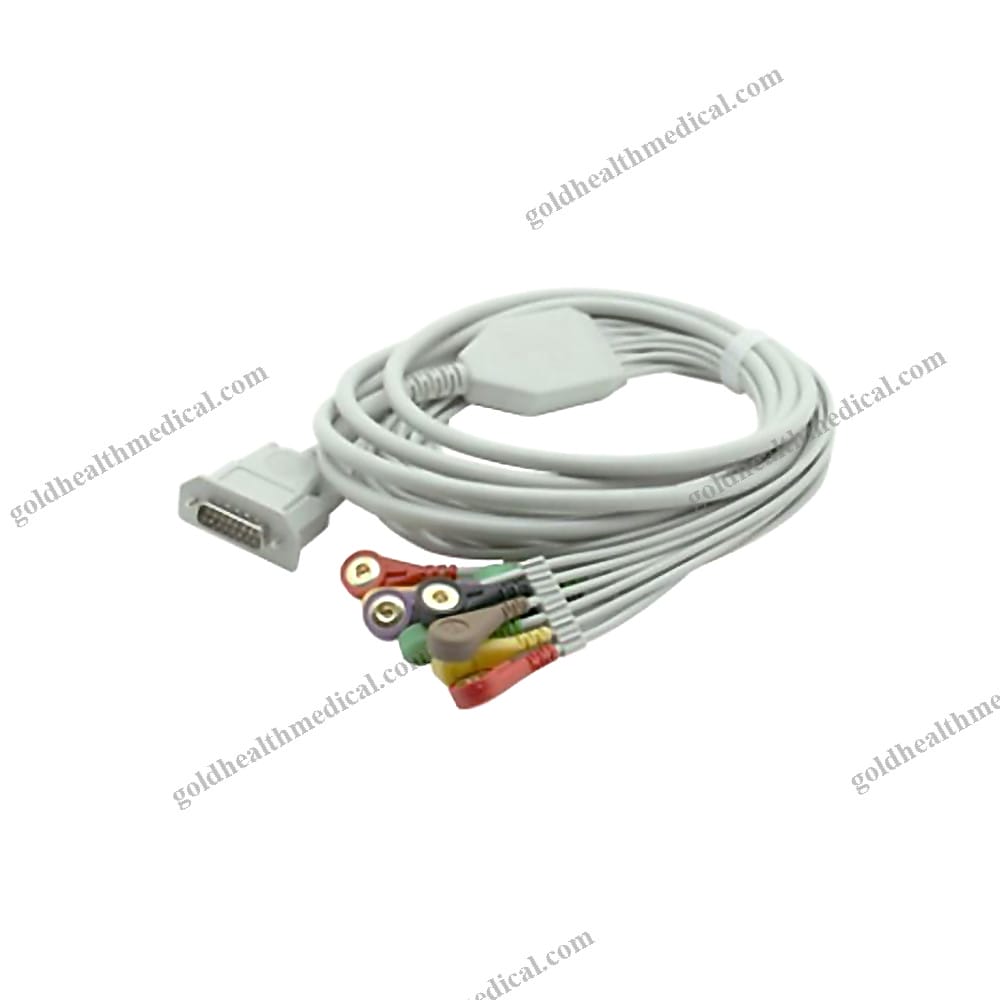

- Lead cable

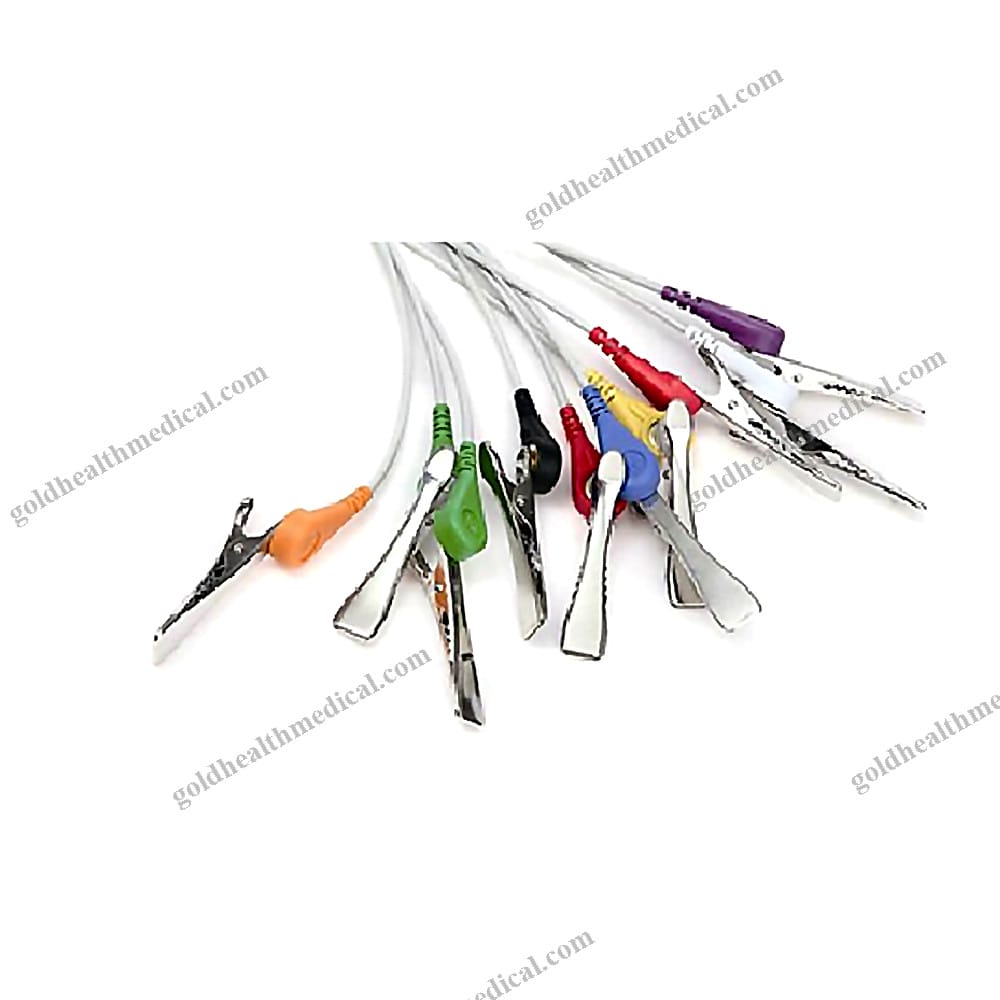

- Limb electrode
- Thermal recording paper
- Power cord
- Earth wire
- User manual
Optional Accessories
- Carry bag
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical solutions tailored for hospitals, clinics, research institutions, and veterinary practices. Our products are designed with precision engineering, ensuring reliability and ease of use. Backed by rigorous quality assurance protocols, our devices meet the highest industry standards, including ISO 9001, ISO 13485, and CE certifications.
With a focus on innovation and customer satisfaction, GoldHealth Medical is your trusted partner in advancing healthcare diagnostics. Explore our range of advanced medical equipment and elevate your practice today.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Product Overview
GoldHealth Medical proudly presents the ECG Machine, a state-of-the-art device designed for precision and reliability in electrocardiogram analysis. Engineered to meet the demands of modern healthcare, this ECG machine is ideal for hospitals, clinics, research institutions, and home healthcare settings. With its advanced pathological analysis capabilities and user-friendly design, it sets a new benchmark for diagnostic excellence.
Key Features and Specifications

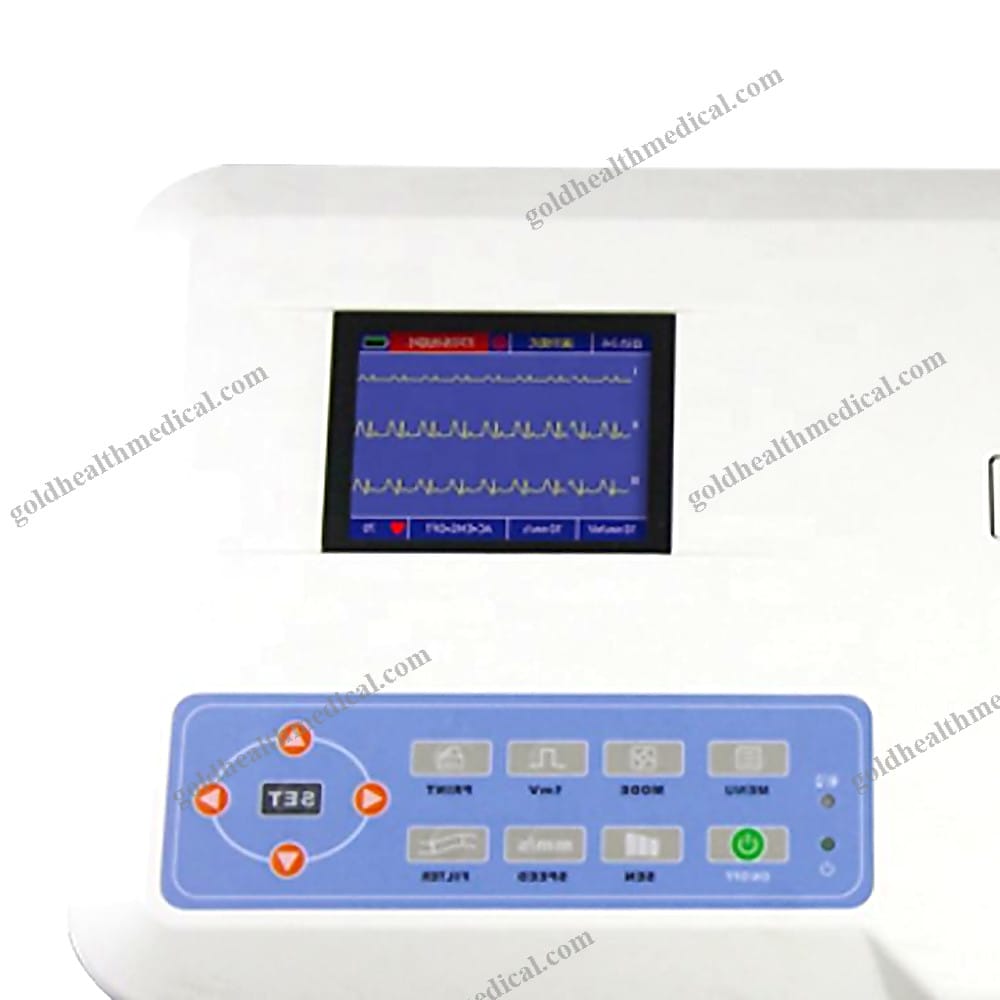

- Display: Equipped with a vibrant 3.5" TFT color LCD for clear and detailed visualization of ECG waveforms.
