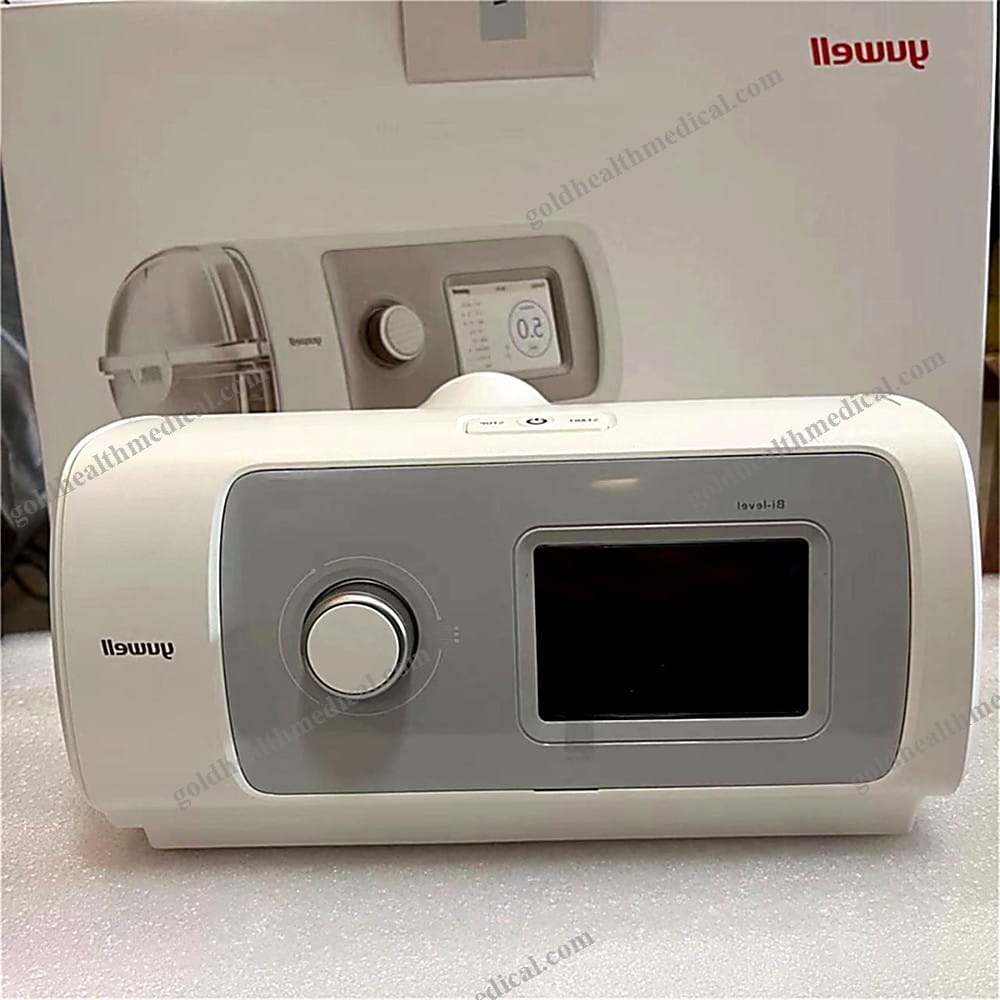

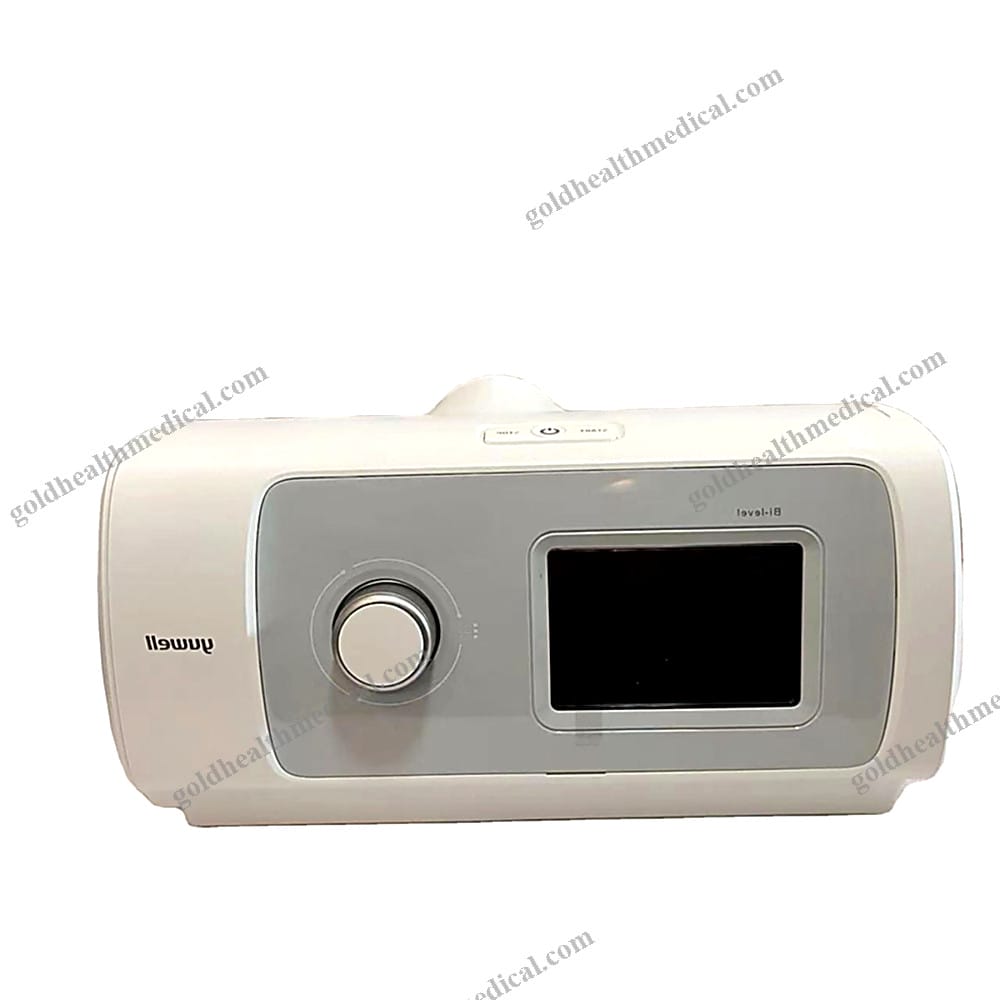

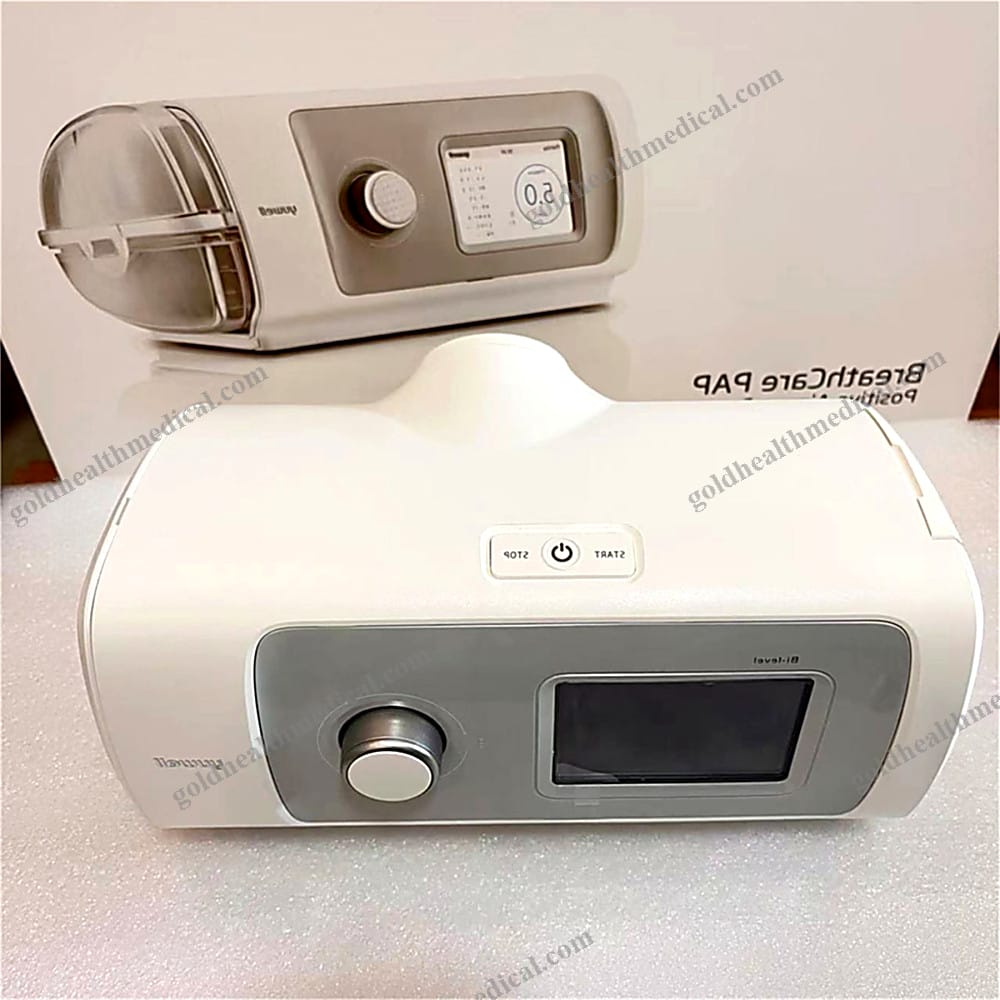

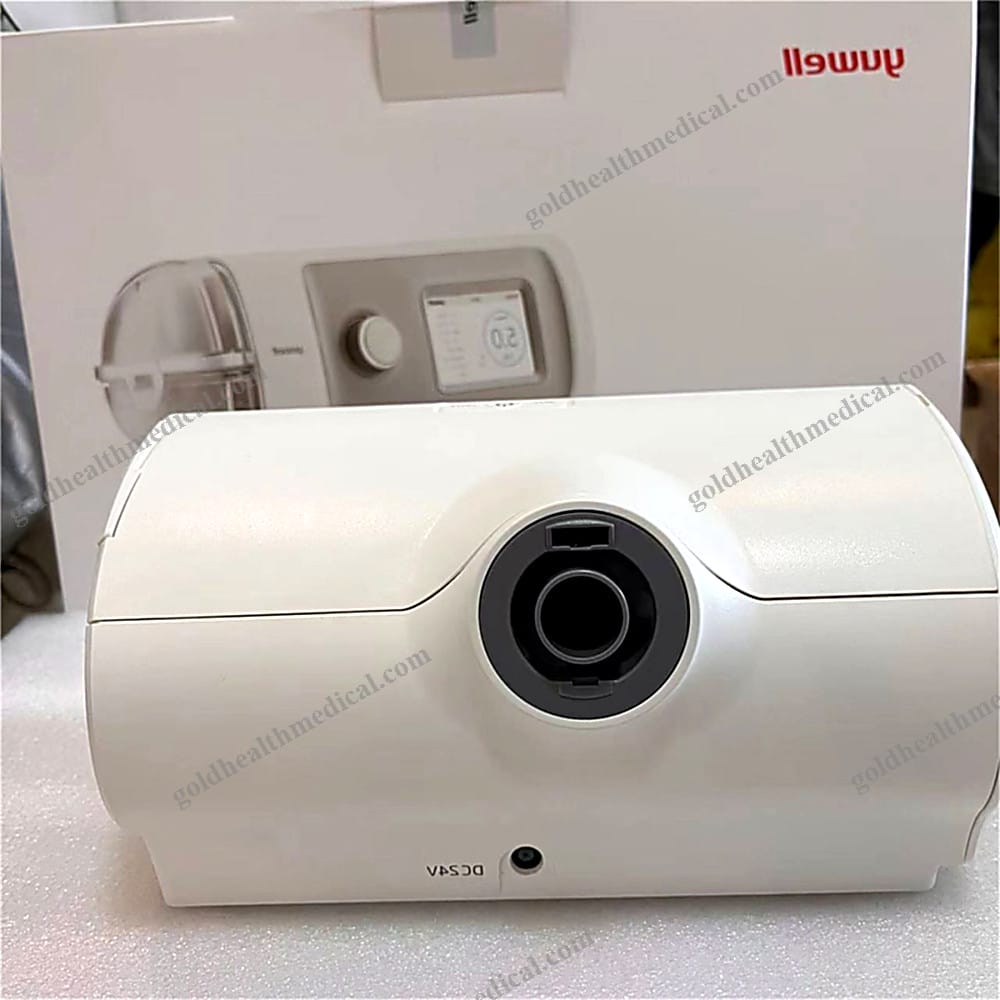

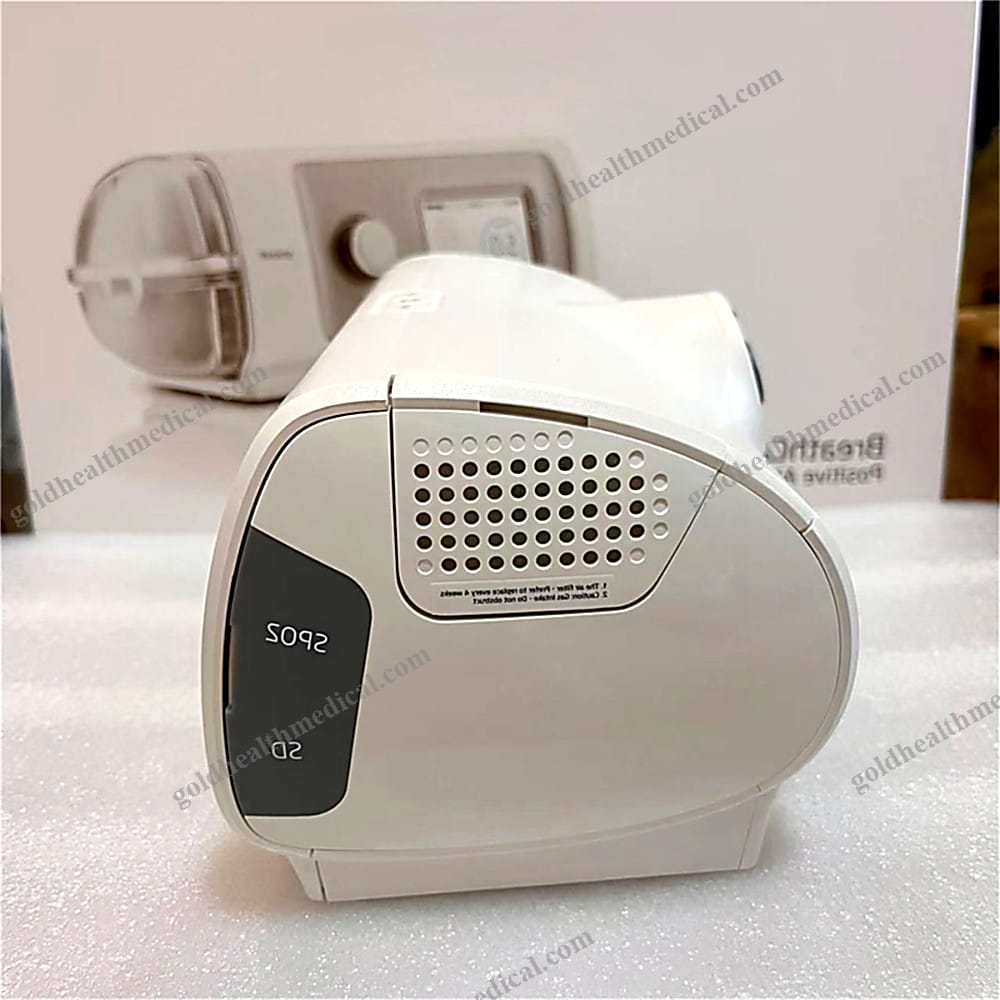

GoldHealth Medical Dual Level Positive Pressure Ventilator

Key Features and Benefits

• Advanced Dual Level Positive Pressure Technology: Delivers consistent and precise airflow to ensure uninterrupted breathing for patients, supporting both inhalation and exhalation phases with exceptional stability.
• Intelligent Respiratory Mode Adaptation: Automatically adjusts airflow pressure based on real-time patient breathing patterns, offering personalized respiratory support tailored to individual needs.
• Comprehensive Safety Alarms: Includes low oxygen, high pressure, and other critical alerts to ensure patient safety during therapy.
• Large LCD Display: Provides clear visibility of respiratory parameters and device status, enabling healthcare professionals to monitor treatment with precision.
• Integrated Humidification System: Reduces respiratory dryness and discomfort, enhancing patient comfort during extended use.
• Silent Operation Design: Engineered for minimal noise, ensuring a restful environment for patients without disturbance.

Technical Specifications

• Suction Pressure: Adjustable from 4 to 25/30 cmH2O in 0.5 cmH2O increments.
• Expiratory Pressure: Adjustable from 4 to 25/30 cmH2O in 0.5 cmH2O increments.
• Treating Stress (CPAP Mode): Adjustable from 4 to 20 cmH2O in 0.5 cmH2O increments.
• Delay Boost: Configurable from 0 to 45 minutes in 5-minute intervals.
• Respiratory Rate: Adjustable from 5 to 50 breaths per minute in 1-breath increments.
• Inhalation-to-Exhalation Ratio (I/E): Adjustable from 10% to 70% in 1% increments.
• Rise Time: 5-level adjustment (Level 1 for rapid rise, Level 5 for gradual rise).
• Inhalation Sensitivity: 5-level adjustment (Level 1 for rapid triggering, Level 5 for slower triggering).
• Breath Sensitivity: 5-level adjustment (Level 1 for rapid triggering, Level 5 for slower triggering).
• Tidal Volume (VGPS Mode): Adjustable from 50 to 1500 ml in 50 ml increments.

Components and Functionality

• Main Unit: Features a control panel, pressure sensors, and an advanced heating humidifier for precise airway pressure adjustments.
• Breathing Tube: Connects the main unit to the mask, ensuring efficient airflow delivery.
• Masks: Available in full-face or nasal options, designed for optimal patient comfort and secure airflow transmission.

Clinical Applications

• Respiratory Failure: Provides effective ventilation support to stabilize breathing.
• Chronic Obstructive Pulmonary Disease (COPD): Enhances ventilation efficiency and oxygenation levels.
• Sleep Apnea Syndrome: Ensures continuous positive airway pressure to prevent interruptions in breathing during sleep.
• Emergency and Intensive Care: Supports critical respiratory functions in high-stakes environments.
• Rehabilitation and Home Care: Compact and user-friendly design makes it ideal for both clinical and home settings.

Selection and Maintenance Considerations

• Pressure Range: Ensure the ventilator’s pressure range aligns with the specific needs of various medical conditions.
• Breathing Modes: Choose from auxiliary control ventilation, pressure support ventilation, and more to match patient requirements.
• Oxygen Concentration Adjustment: Verify the ventilator can deliver the required oxygen levels for patient care.
• Noise Levels: Prioritize low-noise models to enhance patient comfort and rest.
• Ease of Maintenance: Designed for simple cleaning and upkeep, extending the device’s lifespan.
• After-Sales Support: GoldHealth Medical ensures reliable service and support to maintain optimal device performance.

GoldHealth Medical’s Dual Level Positive Pressure Ventilator is a cutting-edge solution for respiratory therapy, combining precision engineering with user-centric design. It empowers healthcare providers to deliver superior care while ensuring patient comfort and safety.
