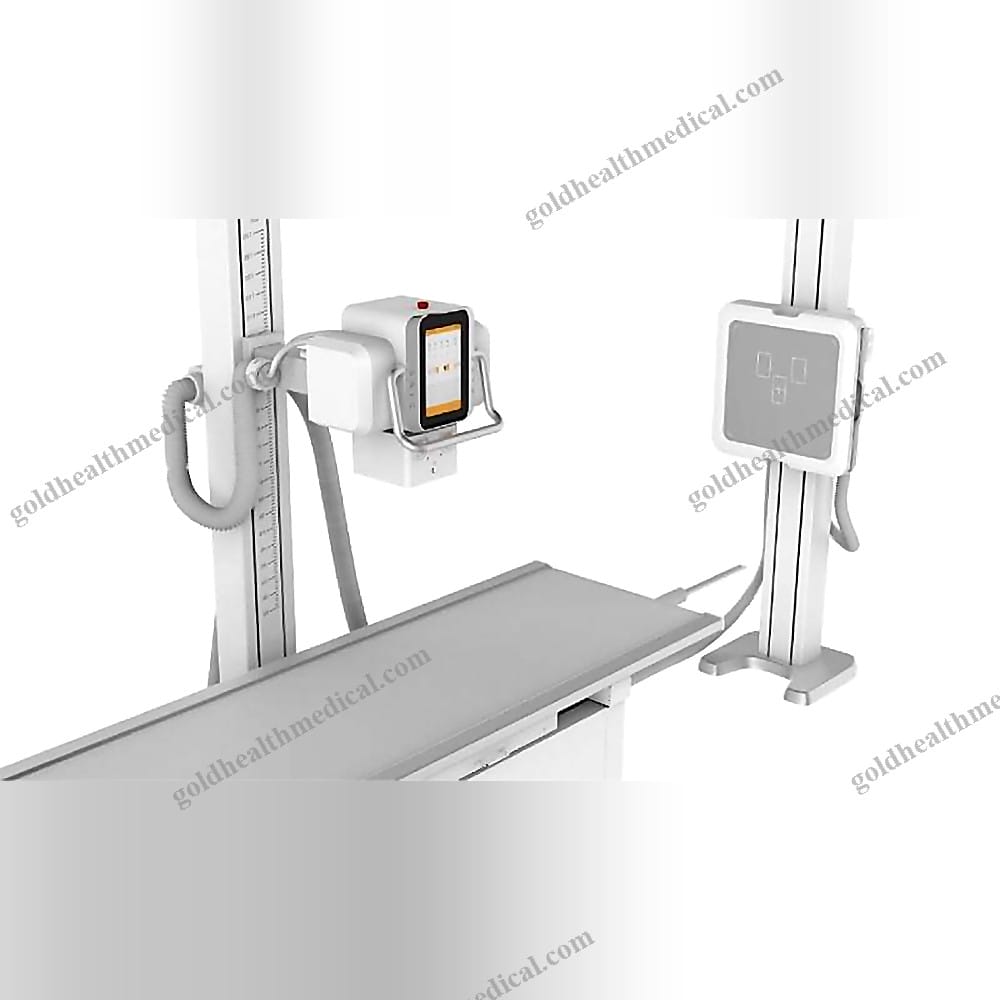

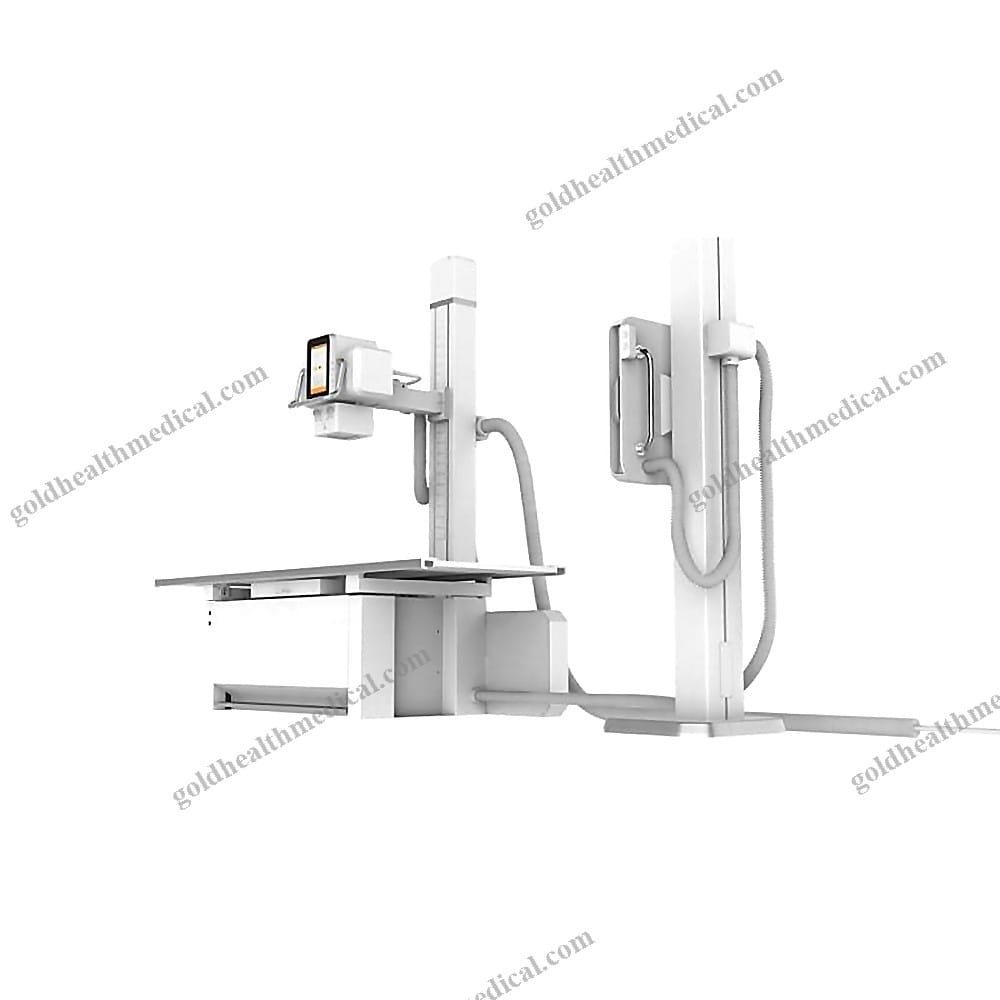

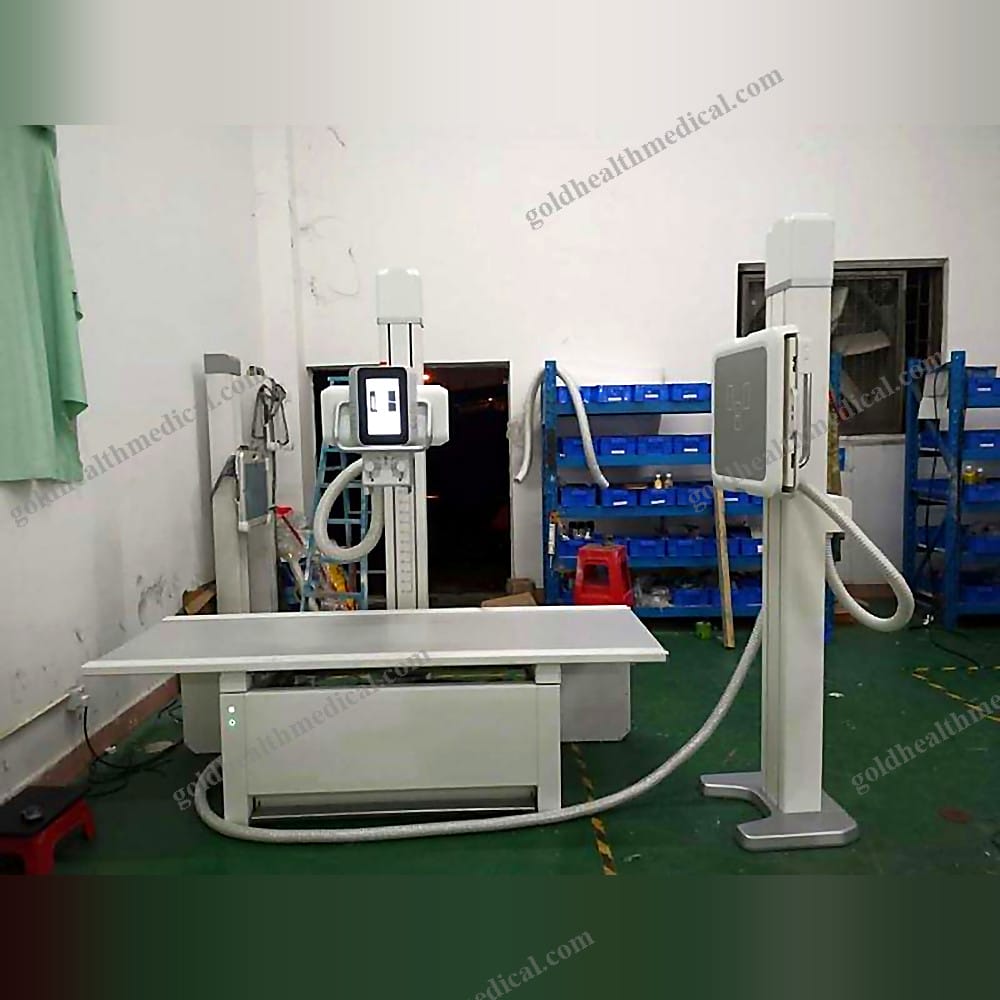

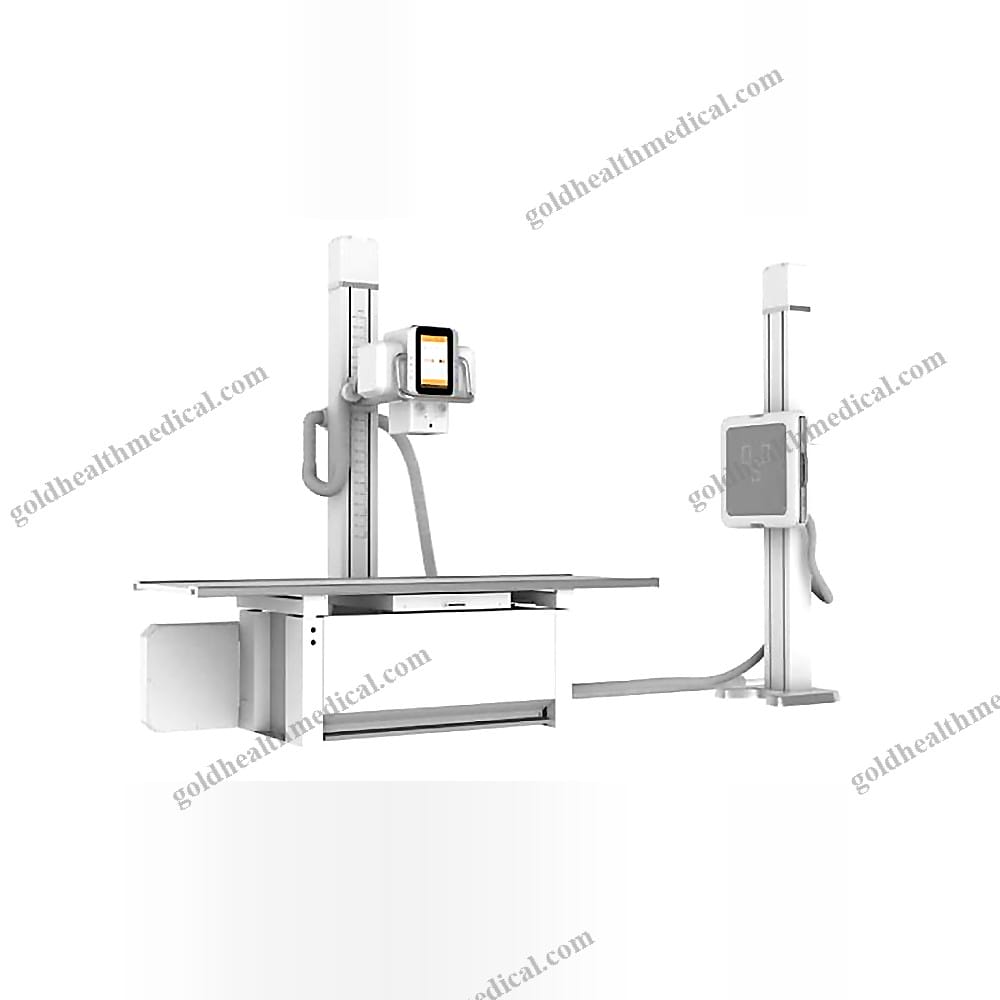

Dual Column DR XRay System
GoldHealth Medical Digital X-ray System
GoldHealth Medical proudly introduces its cutting-edge digital X-ray system, engineered to redefine medical imaging with precision, flexibility, and reliability. Designed to meet the diverse needs of clinical departments, this system combines advanced technology with a user-centric design to deliver unparalleled performance.
Key Features
- Flexible and Robust Rack Design
- Reliable inline rail system for seamless operation.
- One-piece construction ensures smooth, effortless maneuverability.
- Power-assisted controls allow single-handed adjustments.
- Durable components ensure extended mechanical life.
-
Customizable configurations with single or dual detectors to suit various clinical requirements.
-

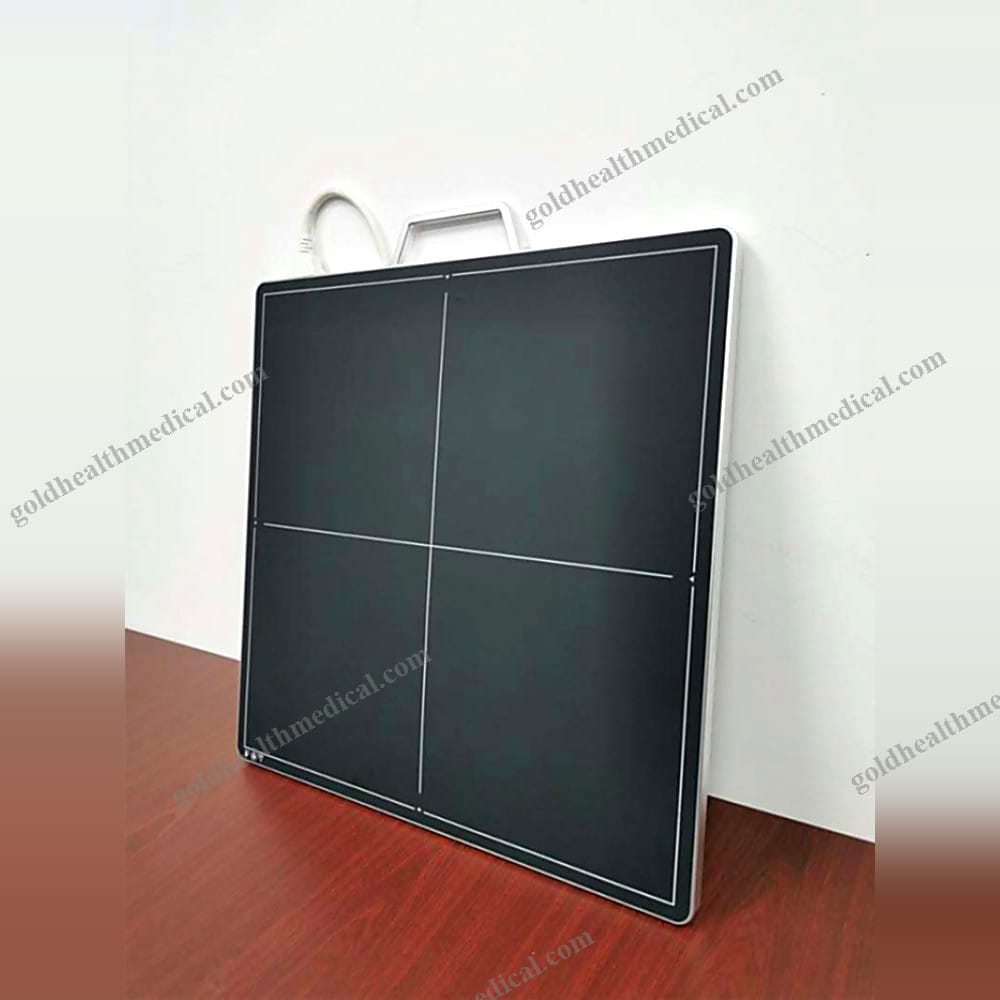

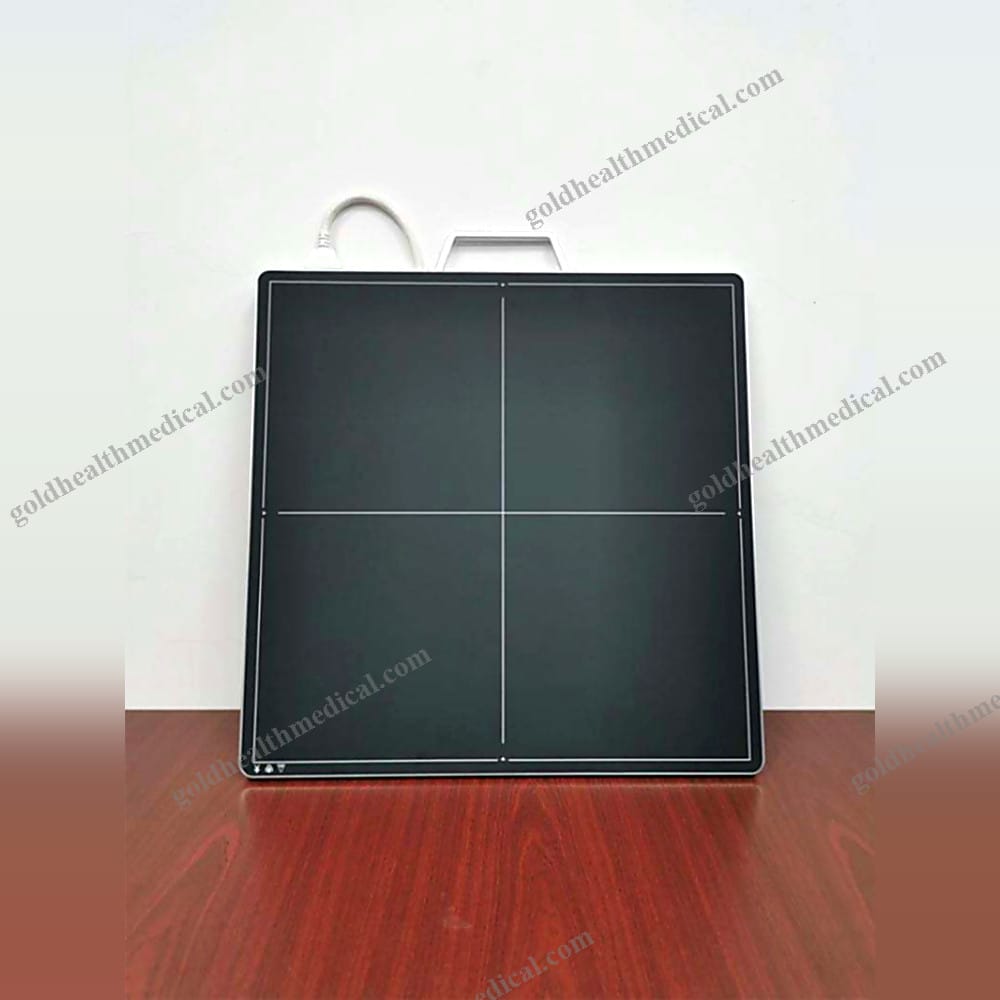

HD Digital Large Detector
- Amorphous silicon large detector for ultimate resolution.
-
Captures every detail, ensuring no critical information is missed.
-
High-Performance High-Voltage Generator
- 500kHz ultra-high-frequency inverter technology.
- KV rise time <500 microseconds, ripple factor <1%.
- Stable performance even with ±30% voltage fluctuations.
-
Optional AEC function for consistent, uniform imaging, simplifying workflows for medical professionals.
-
High-Efficiency X-ray Tube
- Dual focus (0.6/1.2mm) for precise tissue detail visualization.
- High heat capacity ensures uninterrupted operation, even during high patient volumes.
Technical Specifications
Power Requirements
– Voltage: AC380V/400V±10%
– Frequency: 50Hz
– Resistance: ≤0.1Ω
– Capacity: ≥63kVA
Mechanical Parameters
– Column vertical movement: 1160mm (±5%)
– Column lateral movement: 1730mm (±5%)
– Chest film frame lifting distance: ≥1200mm
– Tube assembly rotation: -90° to +90° (manual)
– Column rotation: -180° to +180° (manual)
– Patient table X-axis movement: 900mm (±5%)
– Patient table Y-axis movement: 260mm (±5%)
– Patient table dimensions: 2110mm × 822mm × 656mm (±5%)
– Maximum patient weight: 150kg
High-Voltage Generator
– Input power voltage: AC 380V/400V±10%
– Frequency: 50Hz
– Output nominal electric power: 50kW (500mA, 100kV, 0.1s)
– Tube voltage: 40kV–150kV (1kV step adjustment)
– Tube current: 10mA–630mA (multilevel digital adjustment)
– Loading time: 1ms–6300ms (multilevel digital adjustment)
– Shortest irradiation time (AEC): 1.6ms
X-ray Tube
– Anode input power: Large focal spot: 50kW; Intermediate focal spot: 20kW
– Focal spot: 0.6/1.2mm
– Anode speed: 2700RPM
– Nominal tube voltage: 150kV
– Anode heat content: 163kJ (230kHU)
– Heat capacity of X-ray tube assembly: 900kJ (1250kHU)
Beam Limiting Device
– Inherent filtration: 1.5mm Al
– Maximum tube voltage: 150kV
– Mean exposure intensity: >100Lux at SID100cm
– Minimum irradiation field: <30mm × 30mm at SID100cm
– Maximum irradiation field: 430mm × 430mm at SID100cm
Detector Options
– CareView1500L
– Dimensions: 35cm × 43cm
– Effective number of bits: ≥14bit
– Limiting resolution: ≥3.4lp/mm
- CareView1800L
- Dimensions: 43cm × 43cm
- Effective number of bits: ≥14bit
- Limiting resolution: ≥3.6lp/mm
Image Workstation
– Hard-disk capacity: ≥500GB
– Memory: ≥
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Product Name: Digital X-ray System by GoldHealth Medical
Product Overview:
The Digital X-ray System by GoldHealth Medical is a cutting-edge Class II medical instrument designed to deliver exceptional precision and reliability in diagnostic imaging. Engineered with advanced high-energy-ray technology, this system ensures superior image quality while maintaining safety and efficiency. Ideal for hospitals, clinics, research institutions, and rehabilitation centers, it combines robust performance with user-friendly operation, making it a trusted choice for both professional and home healthcare environments.
Key Features and Specifications:
- Power Source: Electric
- Voltage: AC380V/400V ±10%
- Frequency: 50Hz
- Output Nominal Electric Power: 50kW (500mA, 100kV, 0.1s)
- Tube Voltage: 40kV ~ 150kV
- Tube Current: 10mA ~ 630mA
- Loading Time: 1ms ~ 6300ms, adhering to the R'10 number system in ISO 497
- Current-Time Product: 0.1mAs ~ 630mAs
- Column Lateral Movement Distance: 1730mm (Error: ±5%)
Material and Build Quality:
- Constructed with premium-grade metal for enhanced durability and stability.
Safety and Compliance:
- Meets the stringent GB15979-2002 safety standard.
- Certified with CE quality assurance for global reliability.
Warranty and Support:
- Comprehensive 1-year warranty for peace of mind.
- Access to online technical support for seamless after-sales service.
Shelf Life:
- 1 year from the date of manufacture.
Packaging Details:
- Selling Units: Single item
- Single Package Size: XX cm
- Single Gross Weight: XX kg
Unique Selling Points:
- Unmatched precision in diagnostic imaging with a wide range of tube voltage and current settings.
- Designed for versatility, supporting diverse medical applications with consistent performance.
- Engineered for safety and compliance, ensuring user and patient protection at all times.
GoldHealth Medical’s Digital X-ray System is more than just equipment—it’s a commitment to advancing healthcare through innovation and excellence.
