CONTEC MS200 Professional Nibp Simulator with CE Certificate

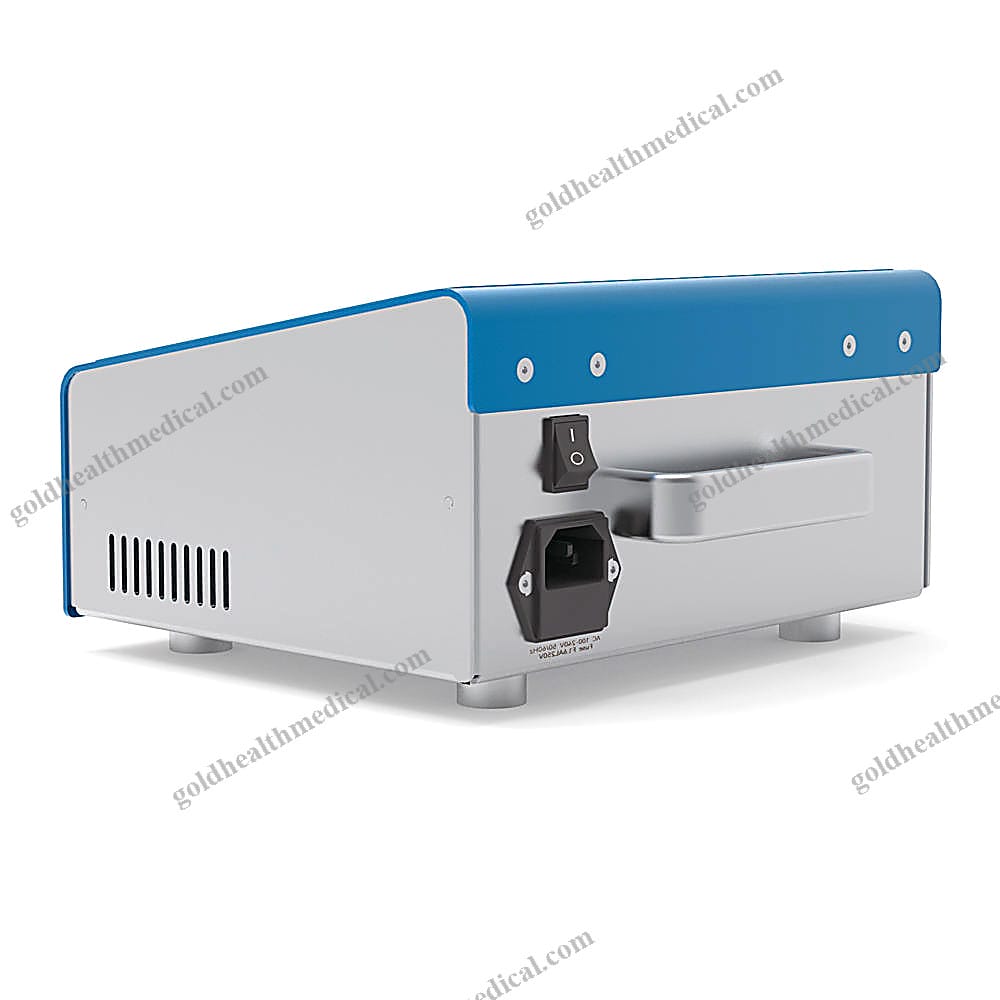

GoldHealth Medical NIBP Simulator
Overview
The GoldHealth Medical NIBP Simulator is a versatile testing instrument designed for oscillometric Non-Invasive Blood Pressure (NIBP) Monitors. With a sleek design and user-friendly interface, this simulator features an internal pump capable of generating pressures up to 400 mmHg (53.3 kPa). It offers dynamic blood pressure simulations, static pressure calibration, automated leak testing, and pressure relief valve testing, enabling precise analysis of various NIBP Monitors.
Features
- Comprehensive Testing: Includes pressure gauge testing, pressure leak testing, and relief valve testing.
- Built-in Pump: Provides a reliable pressure source with integrated leak and pressure relief tests.
- Versatile Simulations: Supports NIBP simulations for both arm and wrist cuffs.
- Patient Conditions: Offers adult and neonate simulations with eight preset patient conditions and user-defined options.
- Advanced Simulations: Includes arrhythmias and respiratory artifact simulations.
- Integrated Air Chamber: Simulates adult and neonate cuff environments.
- High-Resolution Display: 65k colors, 4.3″ LCD display with adjustable brightness.
Technical Specifications
Pressure Measurement
- Units: mmHg, kPa, cmH2O, inH2O, psi
- Range: 0mmHg – 400mmHg
- Resolution: 1 mmHg, 0.1 kPa, 1 cmH2O, 1 inH2O, 0.1 psi
- Accuracy:
- 0-300 mmHg: ±0.5% of reading ±1 mmHg
- 301-400 mmHg: ±2% of reading
Pressure Generator
- Static Pressure Range: 50 mmHg – 400 mmHg
- Resolution: 1mmHg
- Difference between Target and Actual Pressure: ±10 mmHg from 100-400 mmHg with a minimum volume of 300 cc
Internal Leak Rate
- Rate: <2 mmHg per minute with a minimum volume of 300 cc
Pressure Leak Test
- Peak and Real-Time Pressures: Screen displays peak pressures and real-time pressures.
- Leak Rate Display: Leak rate shown after 10 seconds.
Pressure Relief Test
- Peak Pressure Display: Displays peak pressure generated up to 400 mmHg (53.3 kPa).
Standard BP Simulations
- Preset Blood Pressure:
- 1#: BP: 120/80(93) HR: 80 Pulse Volume: 0.68
- 2#: BP: 150/100(116) HR: 80 Pulse Volume: 0.65
- 3#: BP: 200/150(166) HR: 80 Pulse Volume: 0.60
- 4#: BP: 255/195(215) HR: 80 Pulse Volume: 0.55
- 5#: BP: 60/30(40) HR: 80 Pulse Volume: 0.75
- 6#: BP: 80/50(60) HR: 80 Pulse Volume: 0.71
- 7#: BP: 100/65(76) HR: 80 Pulse Volume: 0.69
Patient Conditions
- BP Simulations:
- Healthy: BP: 120/80(93) HR:75 Pulse Volume: 0.68
- Weak Pulse: BP: 110/80(90) HR:95 Pulse Volume: 0.50
- Mild Exercise: BP: 140/90(106) HR:120 Pulse Volume: 1.00
- Strenuous Exercise: BP: 140/90(106) HR:162 Pulse Volume: 1.40
- Obese: BP: 120/80(93) HR:90 Pulse Volume: 0.50
- Geriatric: BP: 150/110(123) HR:95 Pulse Volume: 0.40
