CONTEC ECG300G Digital 3Channel Portable
Don’t Miss Out on Premium Medical Equipment – Limited Offers!
Get the best in medical equipment at unbeatable prices. Tailored for hospitals and clinics. Submit your details to unlock exclusive deals now!
Your information is secure and won’t be shared. Expect a quick response from our team with personalized recommendations and offers!

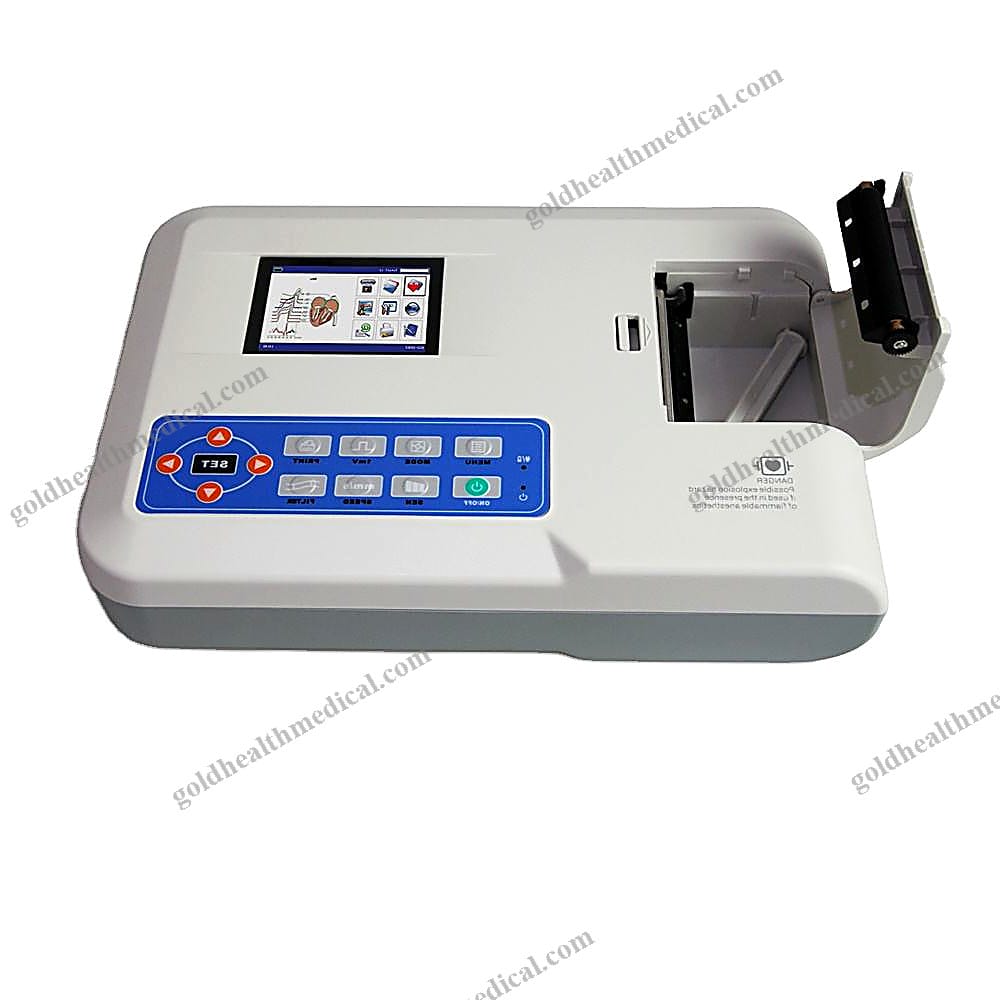

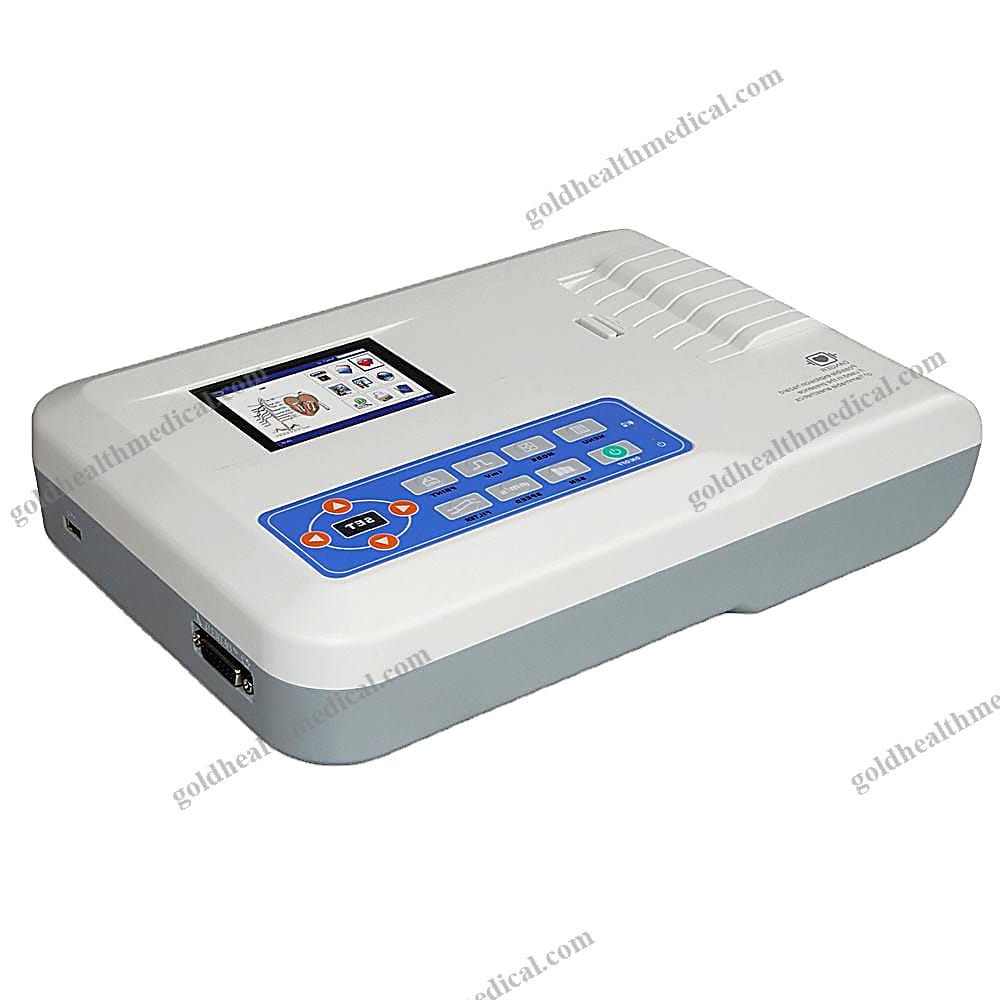

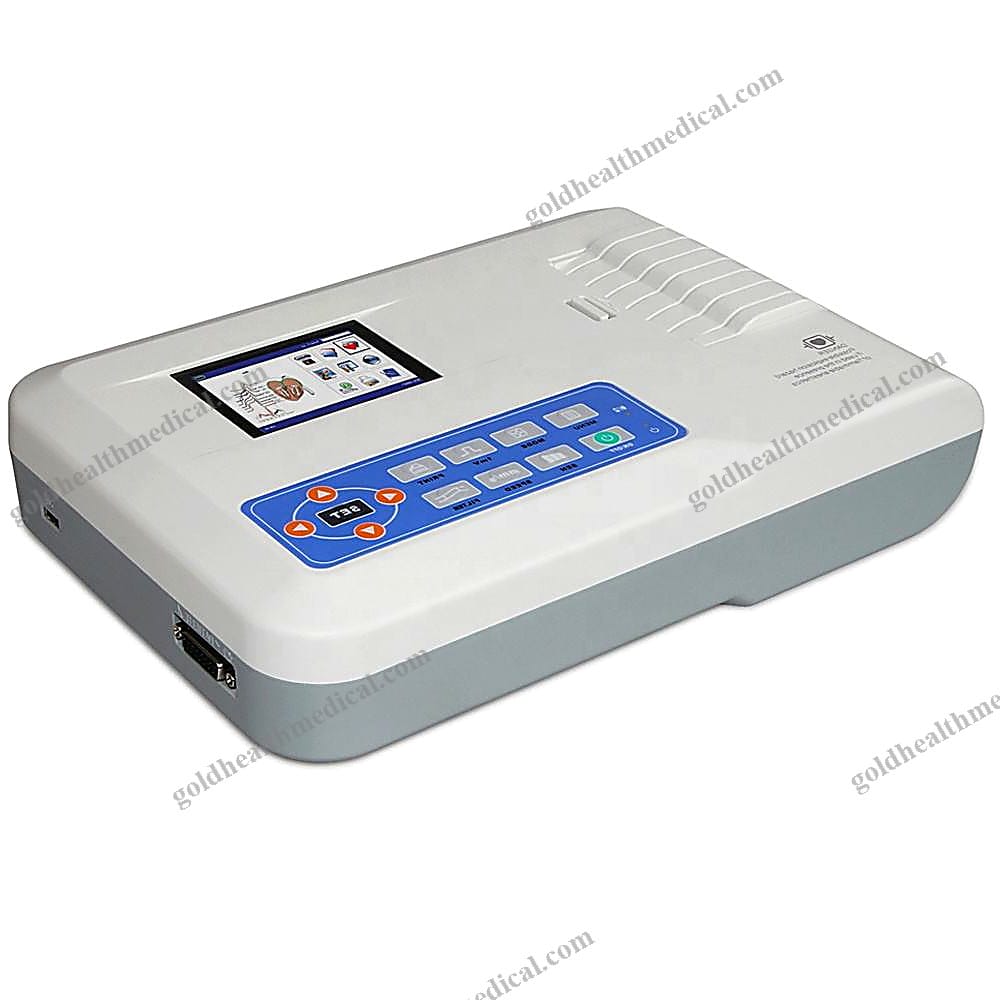

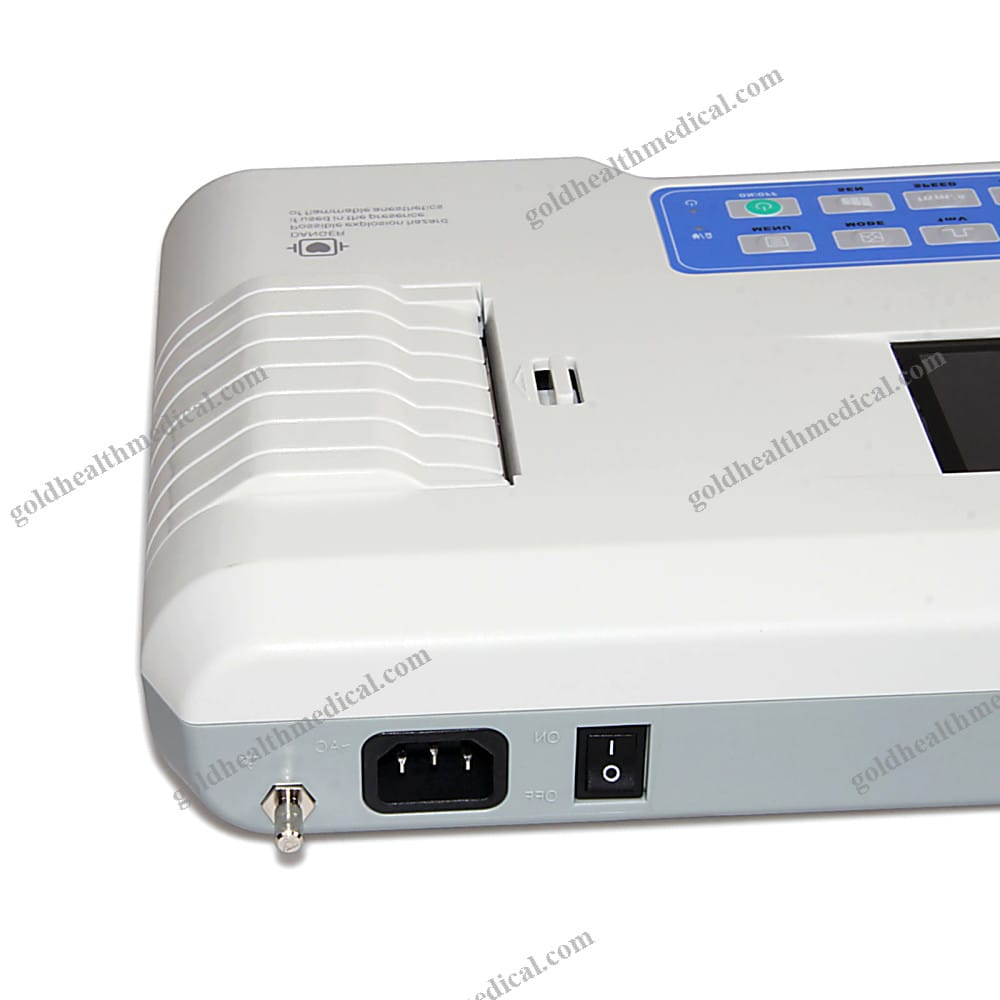

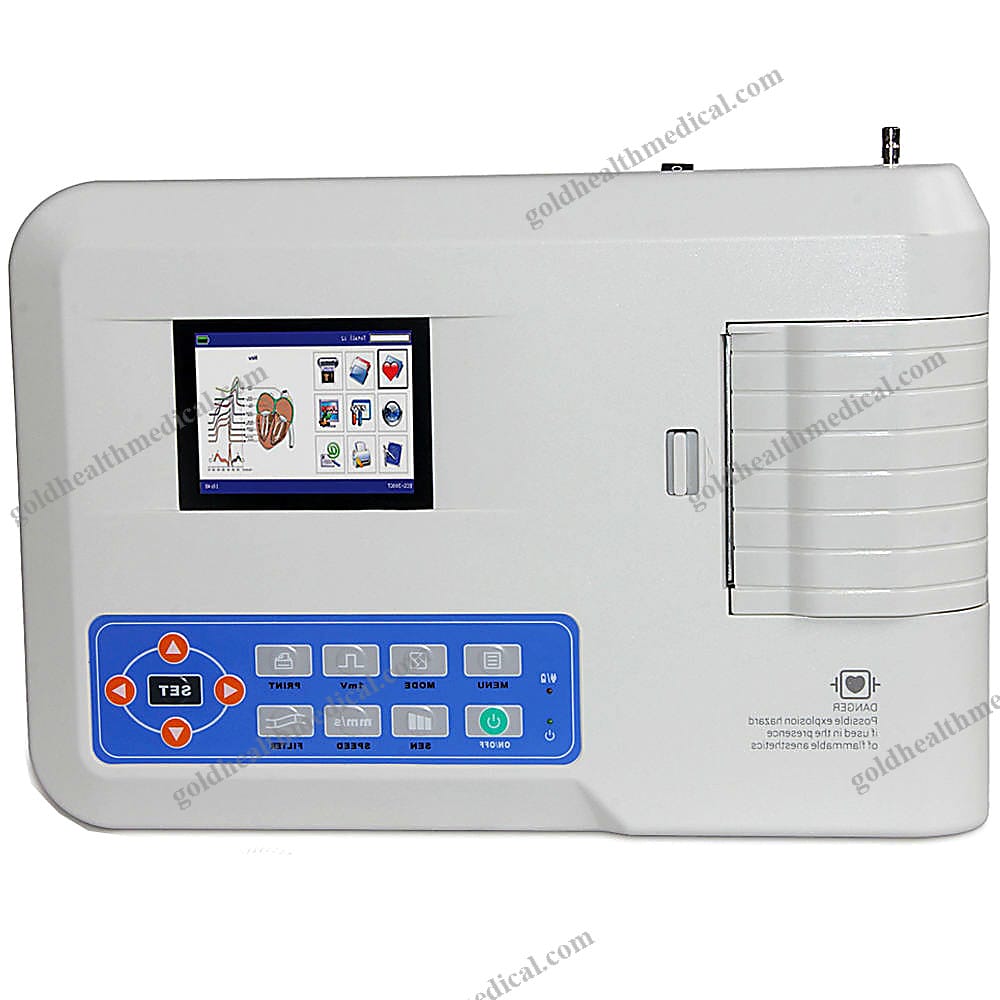

GoldHealth Medical Portable ECG Machine
Product Overview
GoldHealth Medical introduces a cutting-edge portable electrocardiograph designed to deliver exceptional precision and versatility in cardiac diagnostics. This advanced device captures 12-lead ECG signals simultaneously, utilizing a high-performance thermal printing system to produce clear and detailed ECG waveforms. Engineered for both clinical and field use, it combines intuitive operation with sophisticated analysis tools to meet the needs of healthcare professionals.
Key Features
- Advanced Signal Processing: Employs digital signal processing technology with power, frequency, baseline, and EMG filters to ensure high-quality ECG waveforms.
- Comprehensive Display: Simultaneously showcases 3/6/12-lead ECG waveforms, print modes, sensitivity, paper speed, and filter status on a single screen for efficient comparative diagnosis.
- Flexible Printing Options: Offers multiple printing modes, including manual, auto 4×3, auto 3×4+1, rhythm formats, and more. Adjustable waveform length and time-stamped prints cater to diverse diagnostic requirements.
- Automated Analysis: Provides automatic measurement and diagnosis of routine ECG parameters, including HR, P-R interval, QRS duration, QT interval, and axis deviations, reducing clinician workload.
- Robust Memory: Built-in storage supports up to 1000 cases, enabling seamless case review and statistical analysis.
- Multilingual Support: Features an intuitive interface and reports in multiple languages, including English, Spanish, French, German, Russian, and more.
Technical Specifications
- Input Mode: Floating with defibrillation protection
- Frequency Response: 0.05Hz ~ 150Hz (-3dB ~ +0.4dB)
- CMRR: >60dB (>100dB with filter)
- Time Constant: ≥ 3.2s
- Patient Leak Current: <10µA
- Calibration Voltage: 1mV
- Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5% (Standard: 10mm/mV ±2%)
- Noise Level: <15µVp-p
- Input Impedance: ≥50MΩ
- Sampling Accuracy: 12-bit
- Safety Classification: Class I, Type CF, defibrillation-proof applied part
- Recording Modes: Auto, rhythm, and manual modes with automatic lead switching and analysis
- Measurement Parameters: HR, P-R interval, QRS duration, QT interval, axis deviations, R(V5), S(V1), and more
- Paper Size: 80mm(W) × 20m(L)
- Sampling Frequency: 1000Hz
- EMG Interference Filter: 25Hz/35Hz (-3dB)
- Power Frequency Filter: AC 50Hz/60Hz (-20dB)
- Paper Speed:
- Auto: 25, 50mm/s ±5%
- Rhythm: 25, 50mm/s ±5%
- Manual: 5, 6.25, 10, 12.5, 25, 50mm/s ±5%
- Power Supply:
- AC: 100V~240V (50/60Hz)
- DC: 7.4V/3500mAh rechargeable lithium battery
- Fuse Specification: Two AC time-lag fuses (φ5×20mm, T1.6AL250V)
- Waterproof Rating: IPX0
- Working Mode: Continuous operation
Environmental Performance
- Operating Conditions:
- Temperature: 5°C ~ 40°C
- Relative Humidity: 25% ~ 95% (non-condensing)
- Atmospheric Pressure: 700hPa ~ 1060hPa
- Storage and Transport Conditions:
- Temperature: -40°C ~ +55°C
- Relative Humidity: ≤95%
- Atmospheric Pressure: 500hPa ~ 1060hPa
Physical Characteristics
- Dimensions: 315mm(L) × 215mm(W) × 77mm(H)
- Weight: 1.6Kg
Optional Accessories
- ECG-Sync software with USB cable

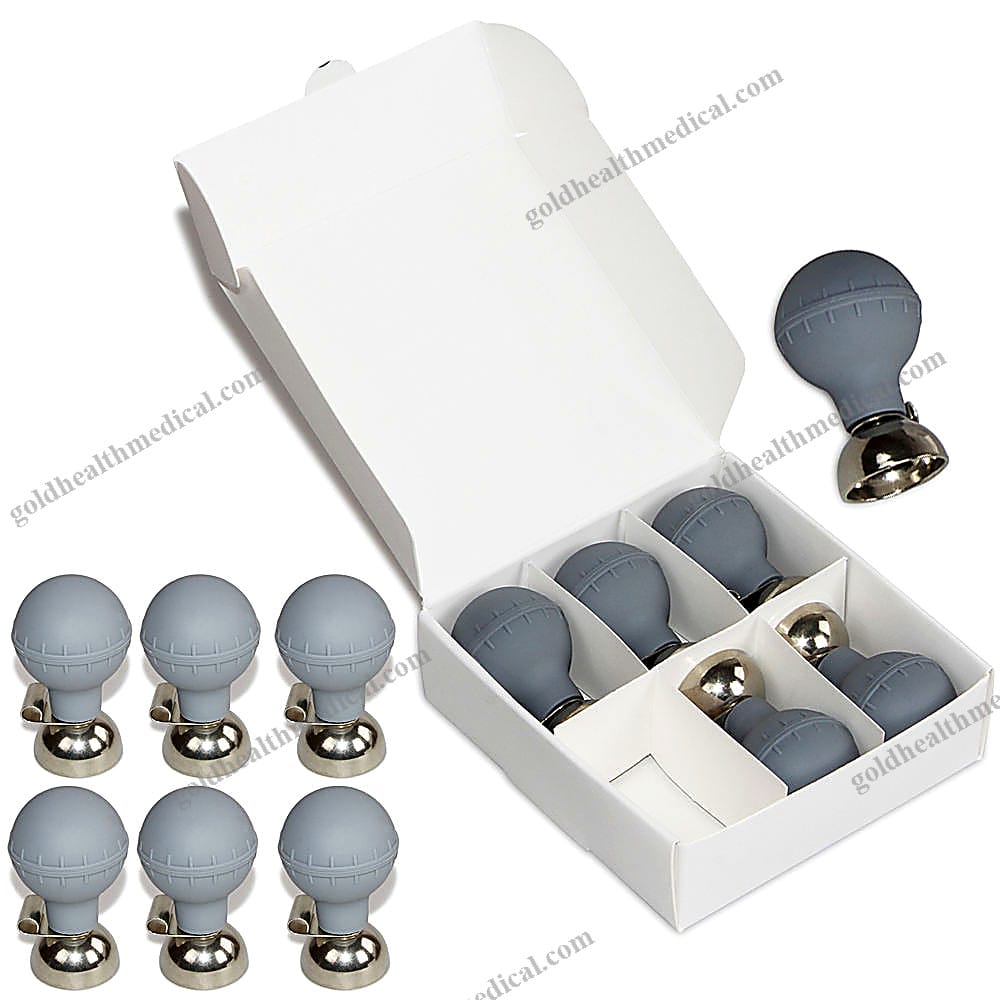

- ECG electrodes
- Carrying bag
- Conductive gel
