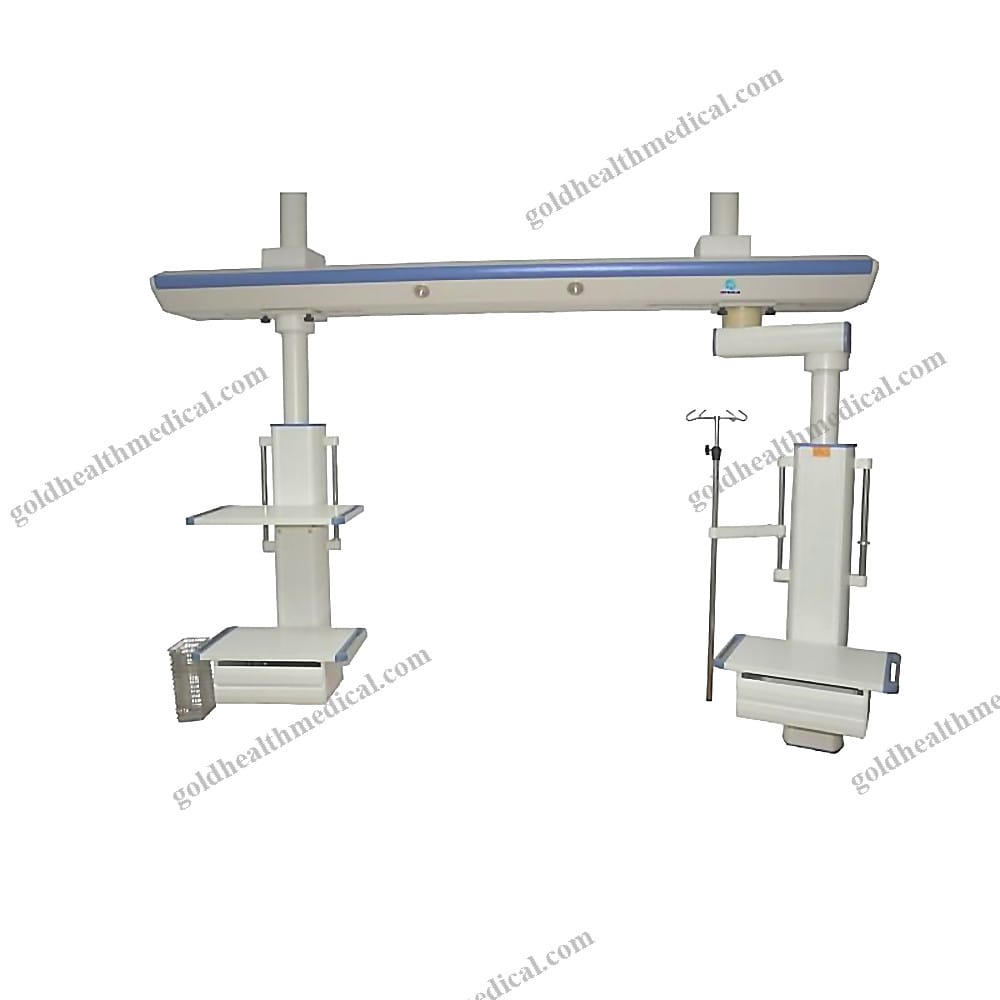

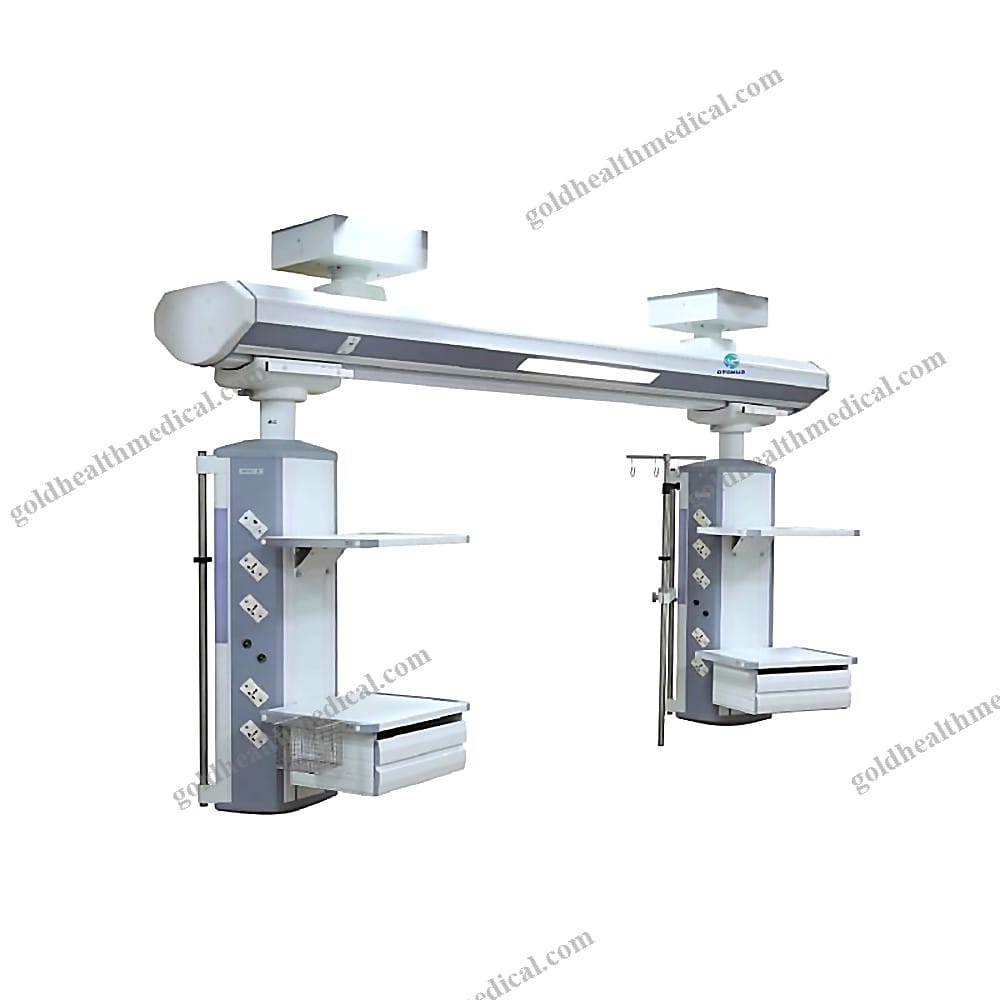

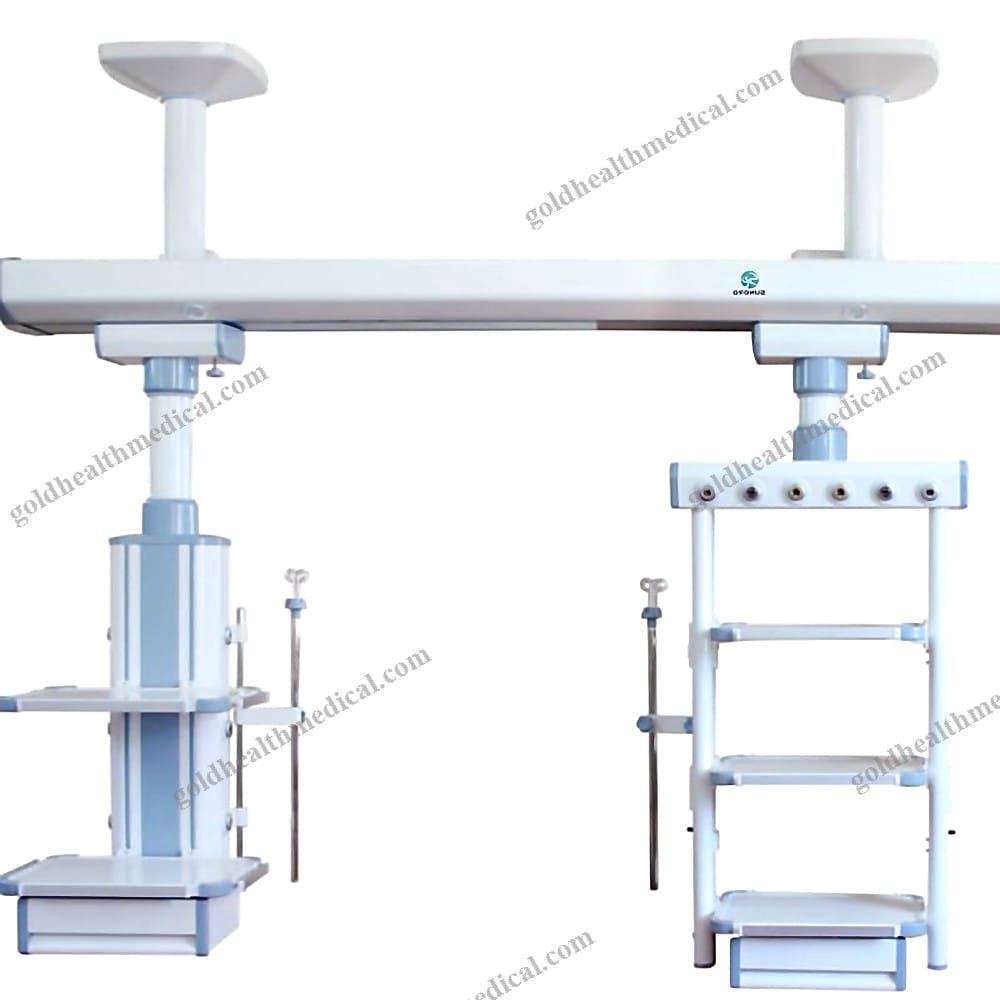

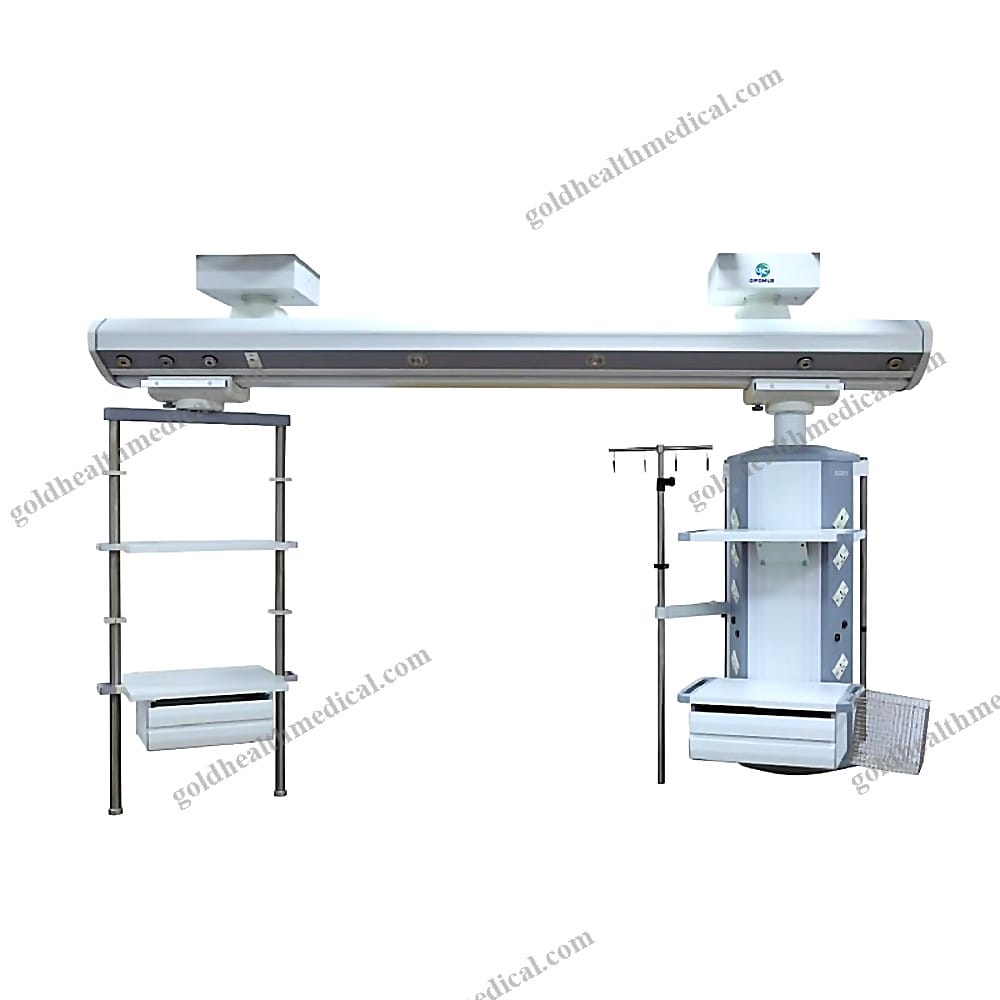

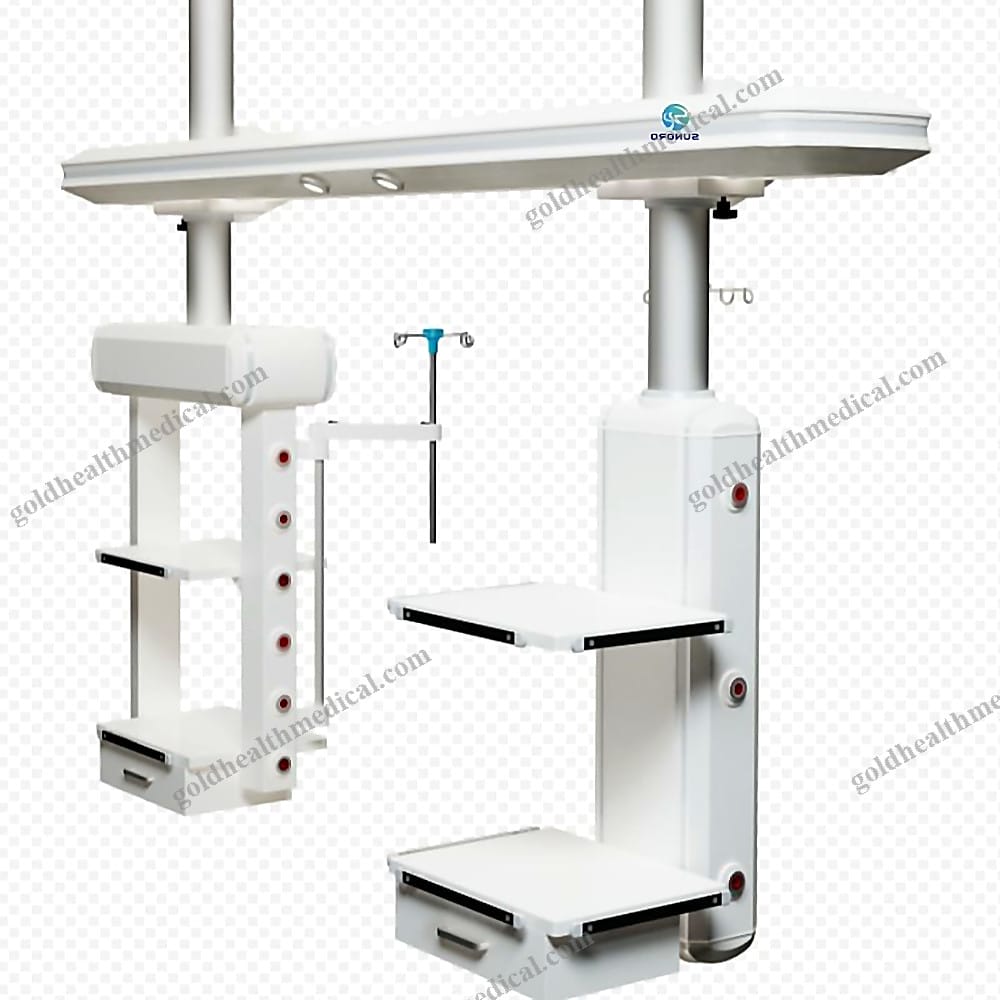

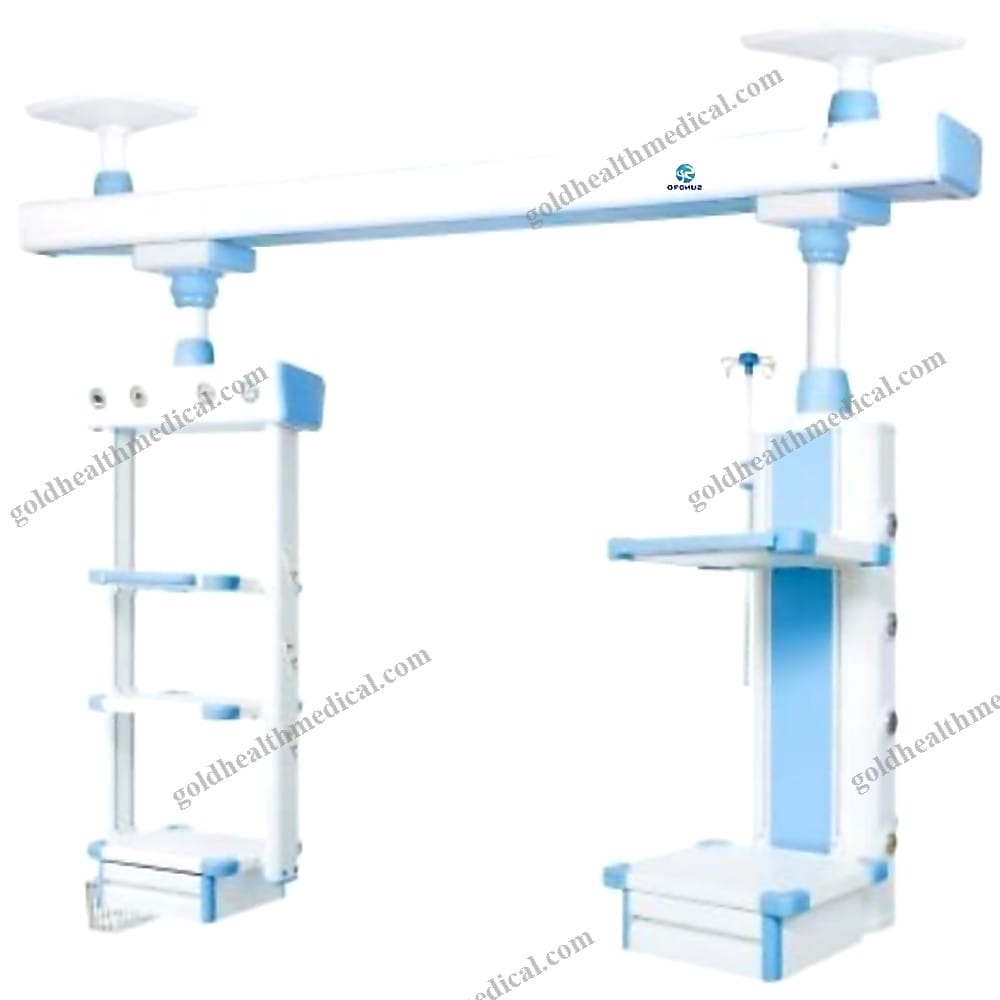

GoldHealth Medical Single-Arm Electric Medical Surgical Pendant ICU Pendant System

GoldHealth Medical introduces a cutting-edge Single-Arm Electric Medical Surgical Pendant, designed to elevate the efficiency and precision of medical environments such as ICUs, operating theaters, and research labs. This state-of-the-art system combines advanced engineering with user-centric design, ensuring seamless integration into any healthcare setting.

Key Features and Technical Specifications

Power Supply and Core Parameters

• Power Supply: AC220V, 50Hz, with an input power of 6 KVA.
• Main Bridge: A single bridge system with a customizable length of 2200–2800mm, tailored to fit your facility’s spatial requirements. Includes dual lighting for enhanced visibility.

Precision Engineering and Safety

• Damping Brake System: Integrated into rotating components to ensure zero drift during operation, guaranteeing stability and precision.
• Rotational Freedom: All joints allow a full 340° rotation, providing unparalleled flexibility in equipment positioning.
• Load Capacity: The main bridge supports up to 450kg, ensuring robust performance even under heavy use.

Material and Design Excellence

• High-Strength Aluminum Alloy: Constructed from premium aluminum alloy profiles, offering durability and a sleek, fully enclosed design.
• Surface Treatment: Electrostatic spray coating ensures anti-aging, corrosion resistance, and effortless cleaning, maintaining hygiene standards in critical environments.

Tower Configurations

Dry Tower

• Mobility: 400mm travel range around the tower body.
• Dimensions: 1300mm in length with a net load capacity of 100kg.
• Frame Structure: Aluminum alloy construction optimized for medical equipment placement.
• Instrument Platform:
• Three-tier design with a streamlined handle for effortless positioning.
• Lower platform includes an aluminum alloy drawer.
• Rounded corners for anti-collision safety.
• Gas Terminals: Four terminals (2 oxygen, 1 negative pressure suction, 1 compressed air) featuring:
• Color-coded and uniquely shaped interfaces to prevent incorrect connections.
• Over 20,000 plug-and-pull cycles.
• Secondary sealing with three operational states (through, break, pull) for maintenance without gas interruption.
• Electrical Sockets: Eight 220V, 10A sockets compatible with Chinese, American, and British standards. Power and gas terminals are electrically isolated for safety.
• Additional Features:
• Equipotential grounding terminal.
• RJ45 network interface.
• Stainless steel storage basket.

Wet Tower

• Mobility: 400mm travel range around the tower body.
• Dimensions: 1000mm in length with a net load capacity of 80kg.
• Instrument Platform:
• Two-tier design with a streamlined handle for easy adjustments.
• Lower platform includes a drawer with rounded corners for safety.
• Gas Terminals: Identical to the dry tower configuration.
• Electrical Sockets: Nine 220V, 10A sockets installed in isolated compartments for electrical and gas separation.
• Additional Features:
• Adjustable aluminum alloy infusion pump frame with four stainless steel hooks.
• Equipotential grounding terminal.
• RJ45 network interface.
• Internal gas pipelines color-coded for easy identification: transparent (oxygen), orchid (air), orange (negative pressure).
• Internal wiring with 2.5² multi-core copper wires in red, blue, and yellow for ground distinction.

Why Choose GoldHealth Medical?

• Unmatched Versatility: Designed to meet the diverse needs of hospitals, clinics, and research facilities.
• Safety First: Advanced braking systems and isolation technologies ensure secure operation.
• Durability and Hygiene: High-quality materials and surface treatments extend product life while maintaining cleanliness.
• Customizable Solutions: Tailored configurations to suit specific spatial and functional requirements.

GoldHealth Medical is committed to delivering innovative, reliable, and high-performance medical equipment that empowers healthcare professionals worldwide. Transform your medical environment with our Single-Arm Electric Medical Surgical Pendant today.
