BPMM1214 Portable Veterinary Monitor
Don’t Miss Out on Premium Medical Equipment – Limited Offers!
Get the best in medical equipment at unbeatable prices. Tailored for hospitals and clinics. Submit your details to unlock exclusive deals now!
Your information is secure and won’t be shared. Expect a quick response from our team with personalized recommendations and offers!

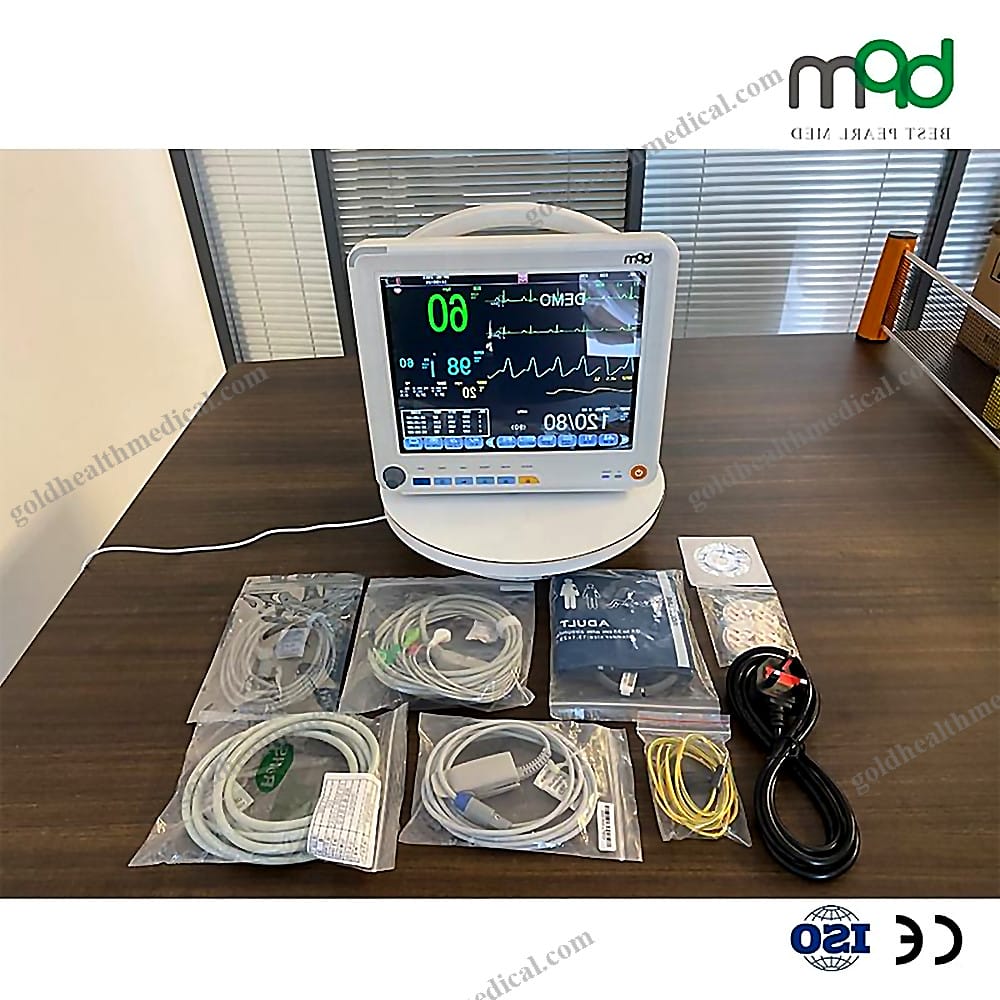

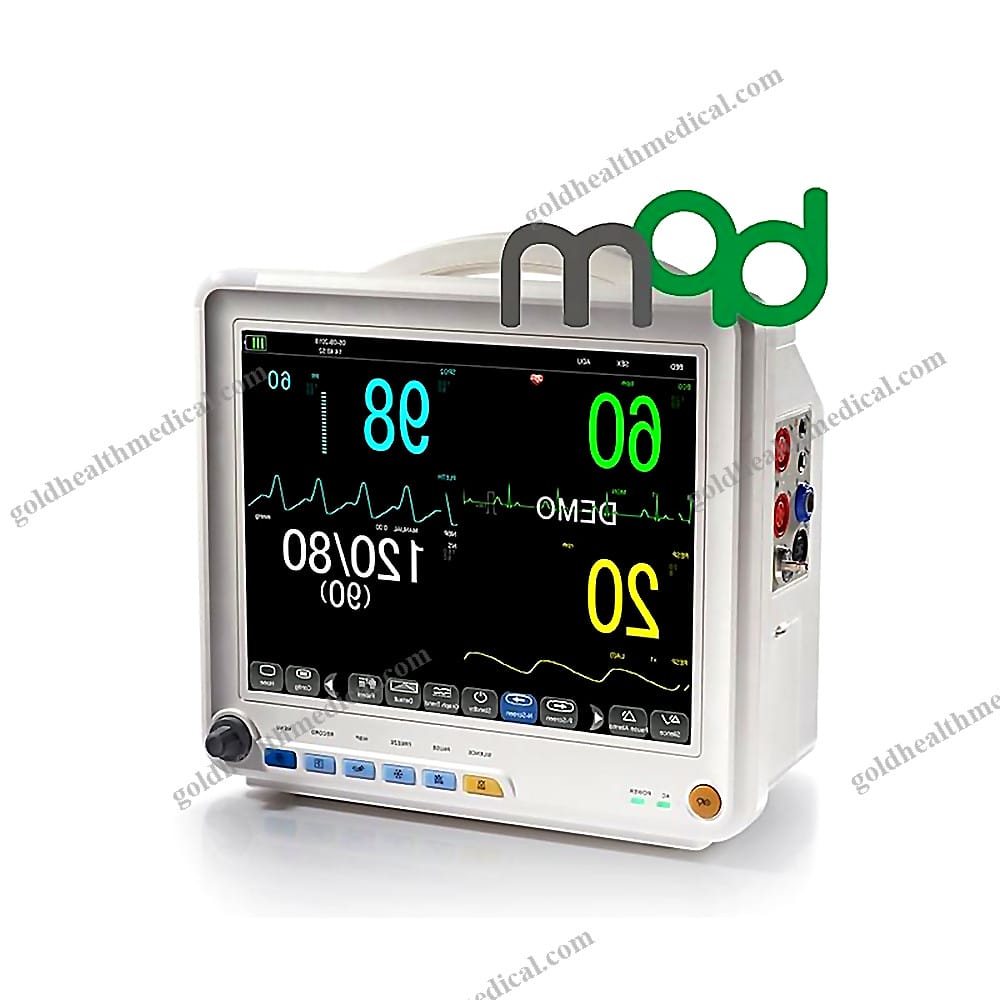

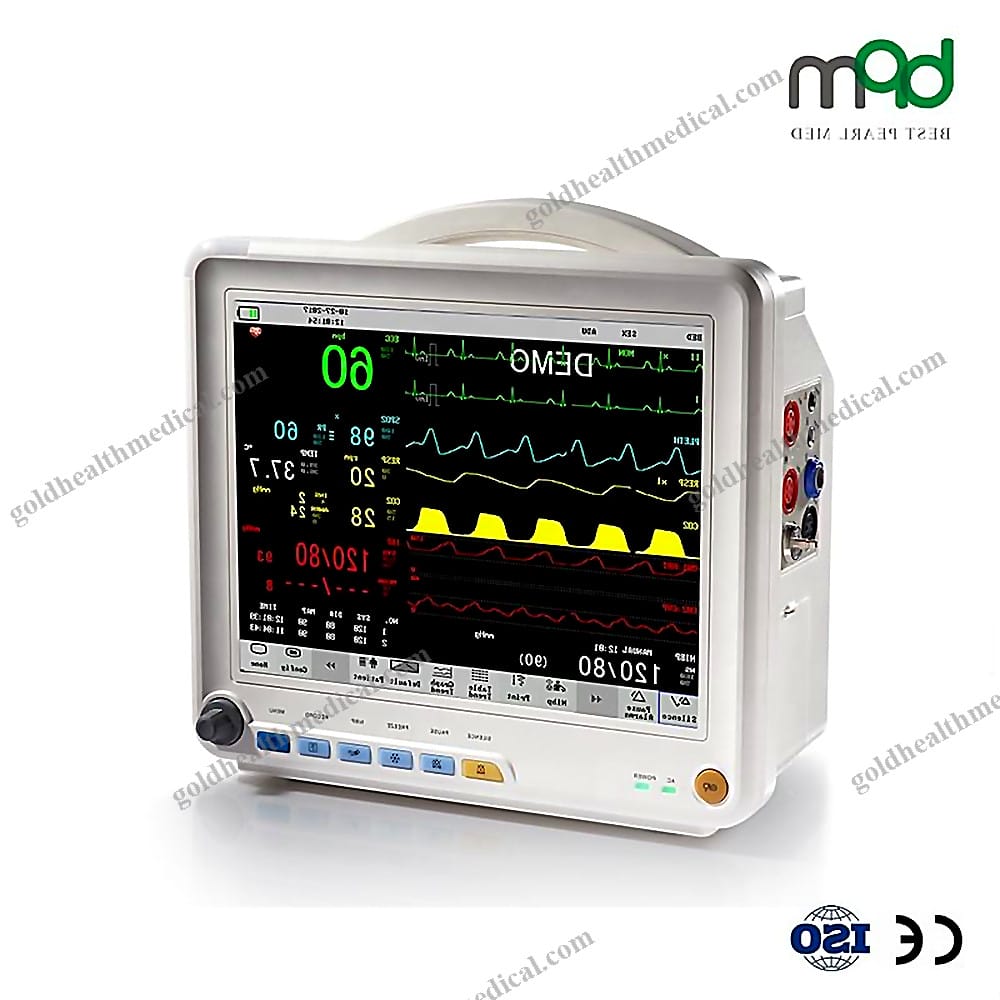

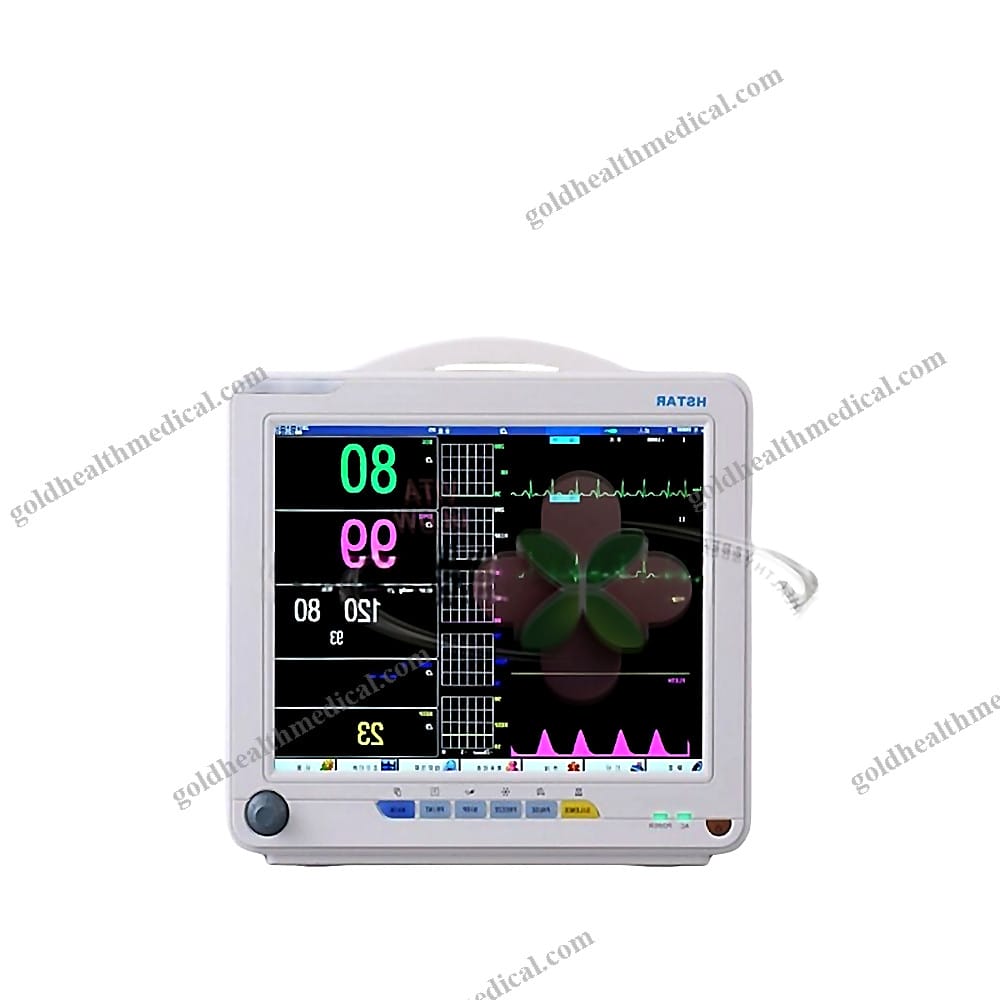

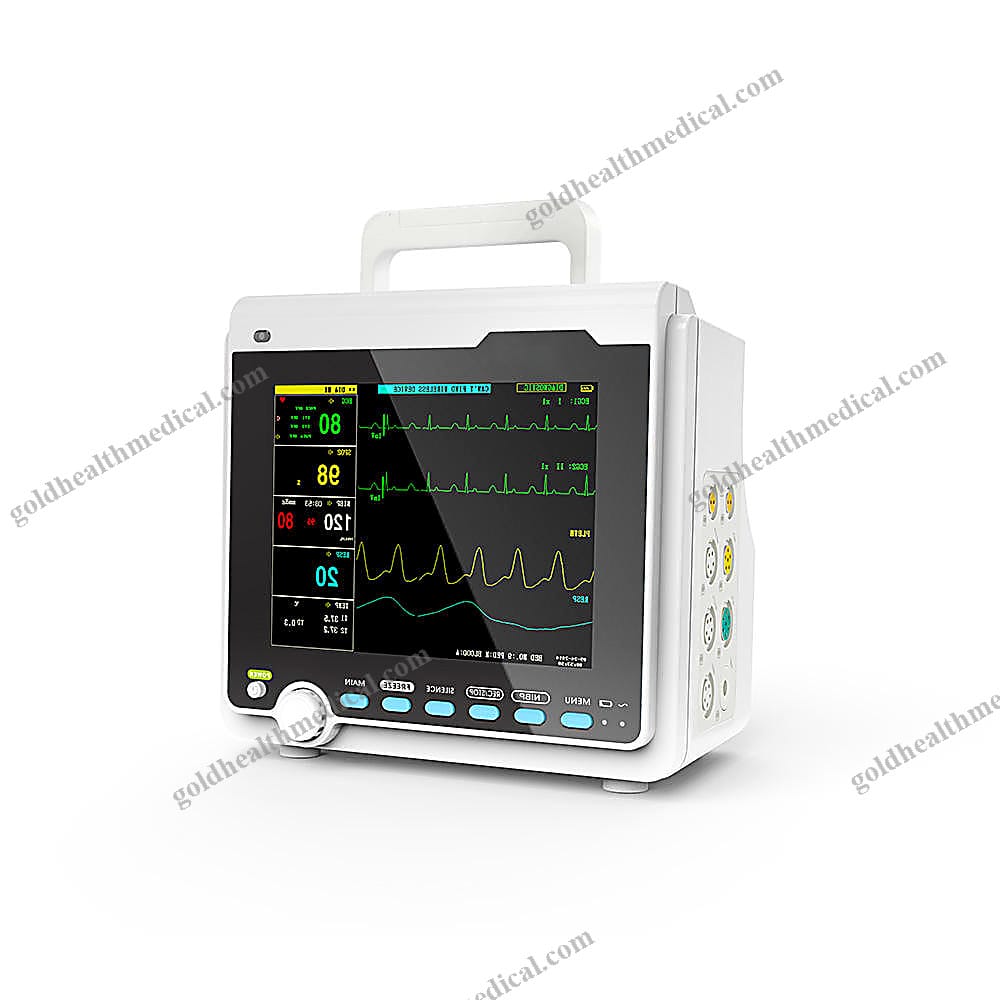

Introducing the GoldHealth Medical Portable Multi-Parameter Veterinary Monitor, a cutting-edge handheld solution designed for versatile clinical use. This advanced device is engineered to deliver precision, reliability, and ease of use, making it an indispensable tool for veterinary professionals.
Key Features

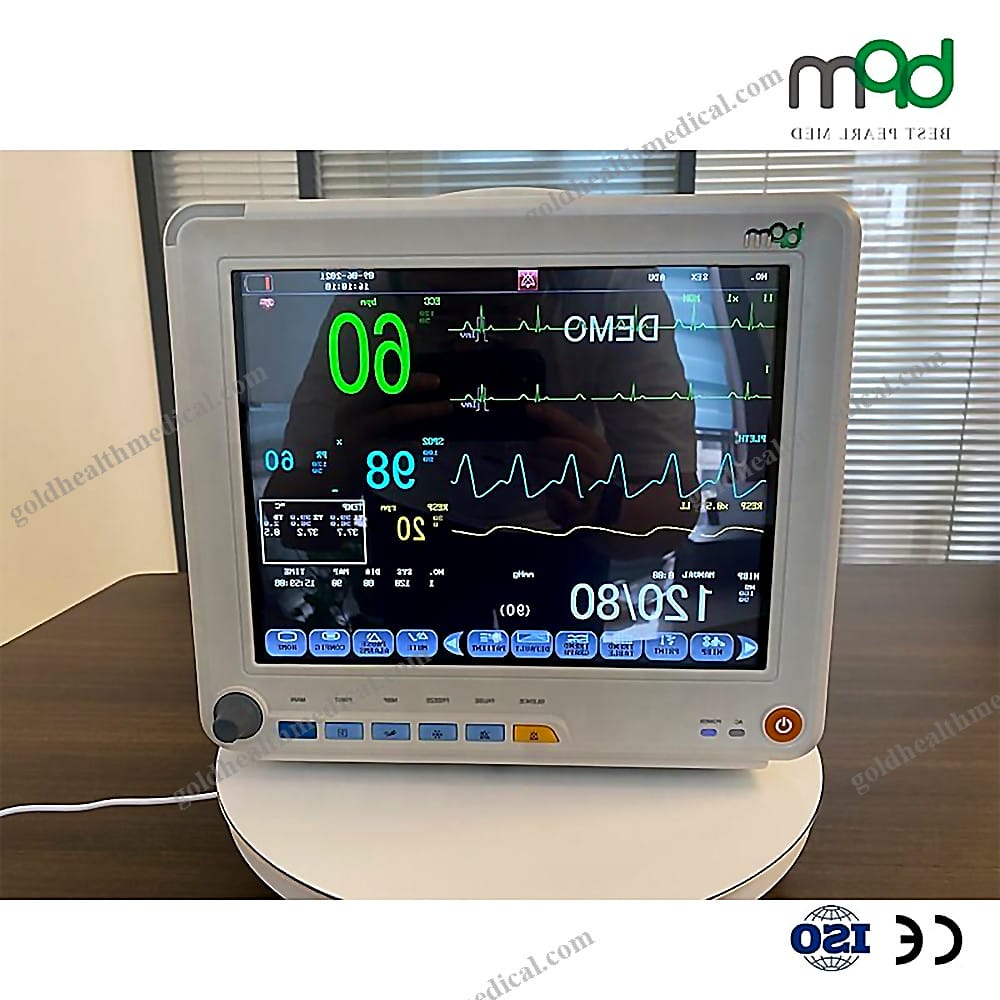

- 12.1-inch High-Resolution Color Display: A vibrant 800×600 resolution screen ensures clear visualization of critical data.
- Three Intelligent Working Modes: Tailored for Monitoring, Surgery, and Diagnosis, providing flexibility for diverse clinical scenarios.
- Intuitive User Interface: Simplified and user-friendly design ensures seamless operation even in high-pressure environments.
- Customizable Display Options: Choose from multiple display modes, including Standard Interface, Large Font, ECG Full Display, OXY, Trend Table, and BP Trend, to suit specific application needs.
- Extended Battery Life: Equipped with a built-in rechargeable lithium battery, offering up to 2 hours of uninterrupted performance.

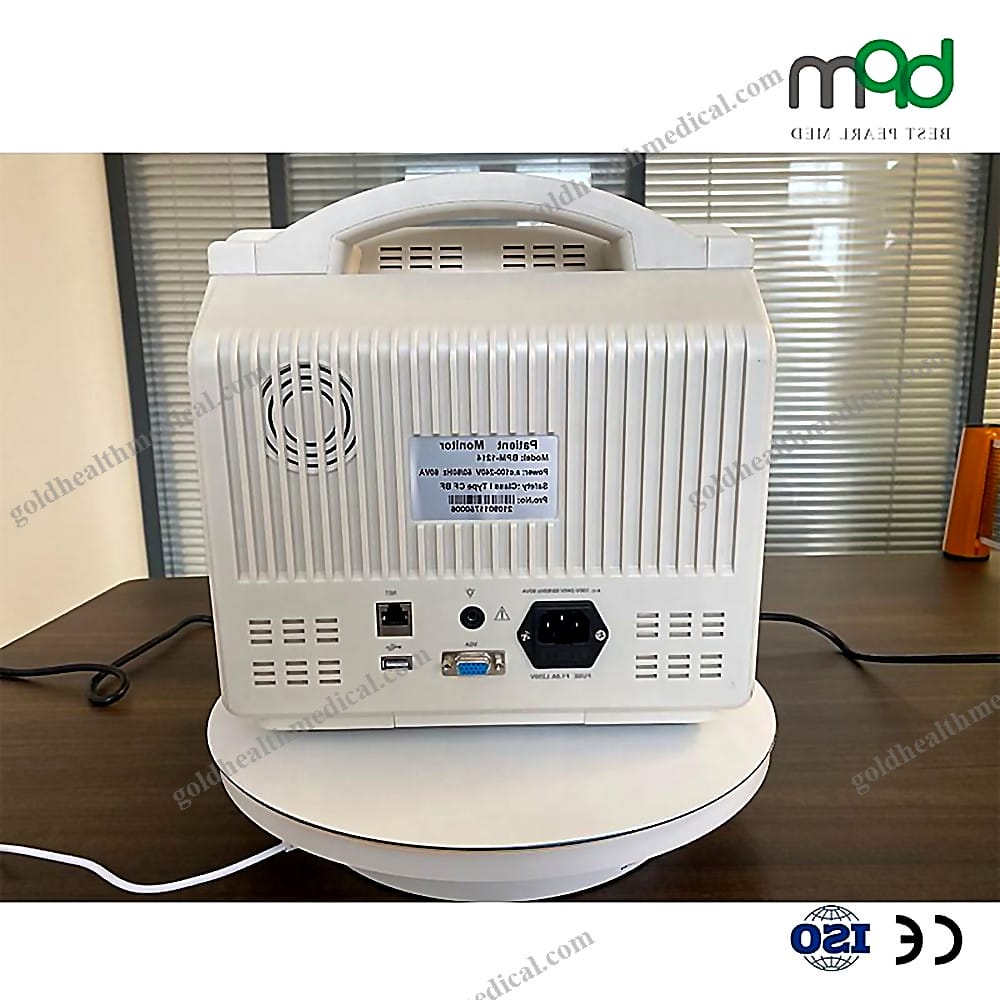

- External Display Compatibility: Features VGA output for enhanced visibility on larger monitors.
Technical Specifications
ECG
- Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V)
- Gain Settings: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
- Heart Rate Range:
- Adult: 15-300 BPM
- Neonatal: 15-350 BPM
- Resolution: 1 BPM
- Accuracy: ±1%
- Sensitivity: >200 µV (Peak to Peak)
- ST Measurement Range: -2.0 ~ +2.0 mV
- Accuracy:
- -0.8mV~+0.8mV: ±0.02mV or ±10%, whichever is greater
- Other Ranges: Unspecified
- Sweep Speed: 12.5 mm/s, 25 mm/s, 50 mm/s
- Bandwidth:
- Diagnostic: 0.05~130 Hz
- Monitor: 0.5~40 Hz
- Surgery: 1~20 Hz
SPO2
- Measuring Range: 0 ~ 100%
- Resolution: 1%
- Accuracy: 70% ~ 100% (±2%)
- Pulse Rate: 20-250 BPM
- Resolution: 1 BPM
- Accuracy: ±3 BPM
NIBP
- Method: Oscillometry
- Measurement Modes: Manual, Auto, STAT
- Units: mmHg, kPa
- Measurement and Alarm Ranges:
- Adult Mode:
- SYS: 40 ~ 280 mmHg
- DIA: 10 ~ 225 mmHg
- MEAN: 20 ~ 240 mmHg
- Pediatric Mode:
- SYS: 40 ~ 220 mmHg
- DIA: 10 ~ 160 mmHg
- MEAN: 20 ~ 170 mmHg
- Neonatal Mode:
- SYS: 40 ~ 135 mmHg
- DIA: 10 ~ 100 mmHg
- MEAN: 20 ~ 110 mmHg
- Resolution: 1 mmHg
- Accuracy: ±5 mmHg
RESP
- Method: Impedance between RA-LL or RA-LA
- Measurement Range:
- Adult: 10 ~ 120 BrPM
- Neonatal/Pediatric: 7 ~ 150 BrPM
- Resolution: 1 BrPM
- Accuracy: ±2 BrPM
TEMP
- Measurement and Alarm Range: 0 ~ 50°C
- Resolution: 0.1°C
- Accuracy: ±0.1°C
Why Choose GoldHealth Medical?
The GoldHealth Medical Portable Multi-Parameter Veterinary Monitor stands out with its precision engineering, adaptable functionality, and sleek design. Whether in a clinic, research lab, or field setting, this monitor empowers veterinary professionals to deliver exceptional care with confidence. Its advanced features and reliable performance make it the ultimate choice for modern veterinary practices.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Brand Name: GoldHealth Medical
Product Name: Advanced Medical Monitor PC
Key Features:
- 12.1-inch High-Resolution Color Display: Crisp visuals for precise monitoring and enhanced diagnostics.
- Versatile Working Modes: Seamlessly switch between Monitoring, Surgery, and Diagnosis modes to meet diverse clinical needs.
- 5-Lead ECG System: Reliable and accurate cardiac signal acquisition for comprehensive patient assessment.
- External VGA Output: Expand your workspace by connecting to external displays for enhanced visibility and convenience.
Technical Specifications:
- Measuring Range: 0 ~ 100% for accurate physiological data tracking.
- NIBP Method: Advanced oscillometric technology for reliable blood pressure readings.
- RESP Method: Impedance measurement between RA-LL or RA-LA for precise respiratory monitoring.
- TEMP Resolution: 0.1°C for highly sensitive and accurate temperature readings.
Packaging and Delivery:
- Packaging: Export-standard carton designed for maximum protection during transit.
- Ports: Shipped from major hubs including Guangzhou, Shanghai, Beijing, Qingdao, and Tianjin for faster delivery.
- Supply Ability: Consistent availability with a production capacity of 2000 units per month.
Why Choose GoldHealth Medical?
GoldHealth Medical’s Advanced Medical Monitor PC combines cutting-edge technology with user-centric design, empowering healthcare professionals with accurate, real-time patient data. Whether in hospitals, clinics, or home care settings, this device ensures precision, reliability, and ease of use, making it an indispensable tool for modern healthcare environments.
