GoldHealth Medical: Advanced BiPAP Device for Enhanced Respiratory Support

Product Overview

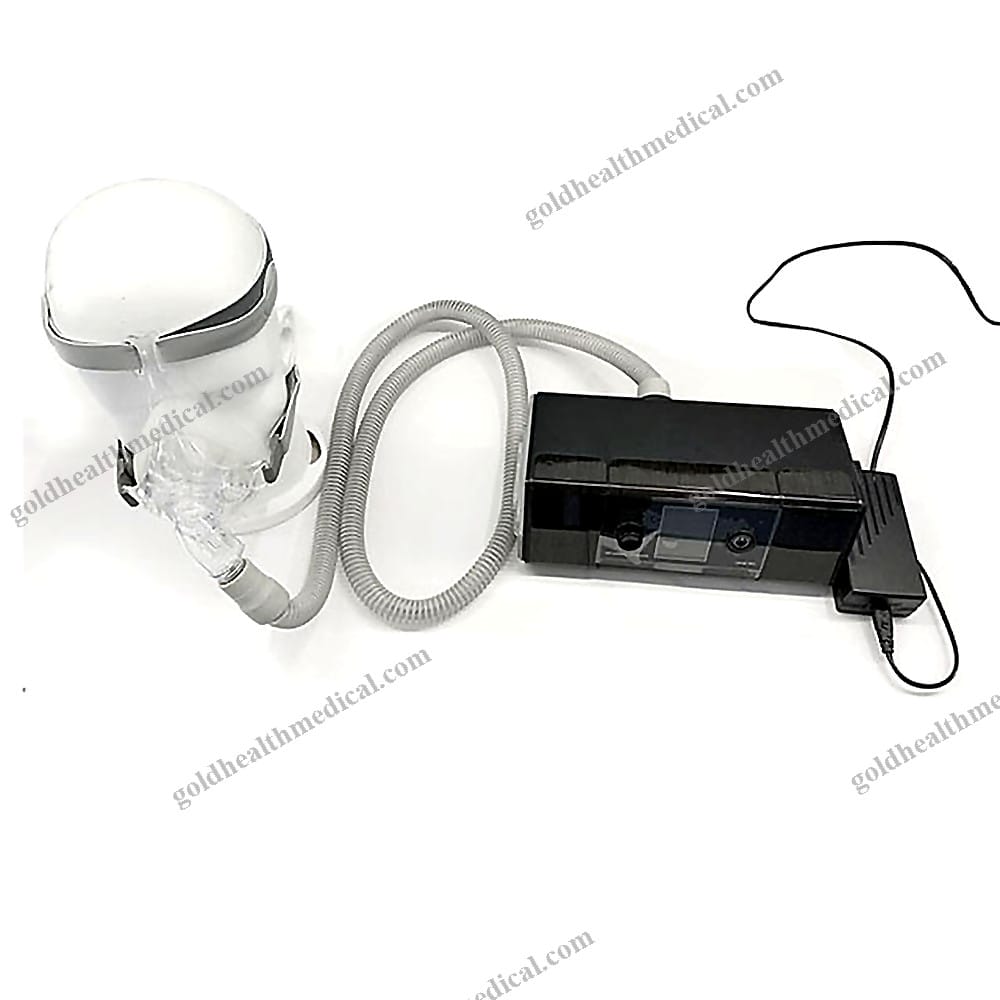

GoldHealth Medical presents a cutting-edge BiPAP device designed to deliver unparalleled respiratory support for a variety of medical settings. Engineered with precision, this device is ideal for hospitals, clinics, research institutions, and home care environments.

Key Features

• Advanced Work Modes: Offers multiple operational modes including CPAP Auto, S, T, ST Auto S, and APCV, ensuring tailored therapy for each patient.
• Ultra-Quiet Operation: Operates at a sound level of less than 28dBA at 10cmH2O, providing a peaceful environment for rest and recovery.

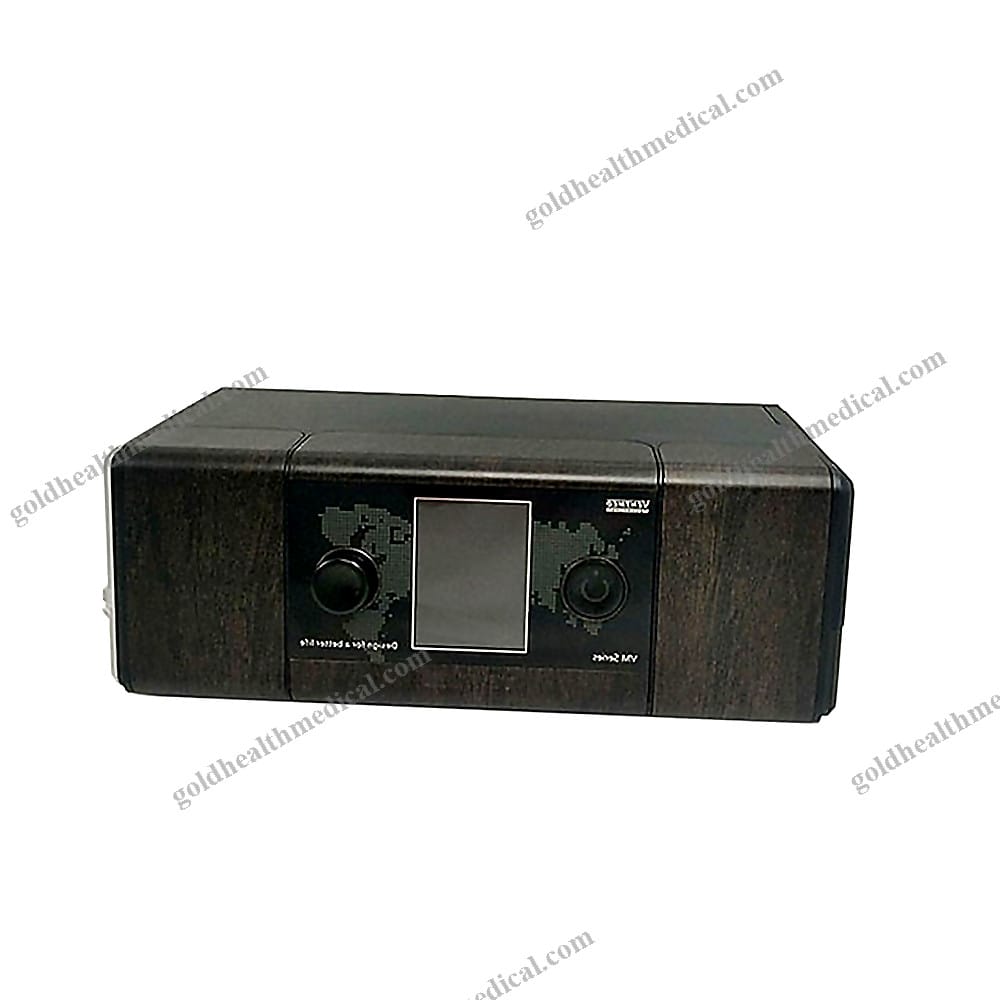

• Intuitive Display: Features a 2.8-inch TFT screen with a resolution of 320 x 240 for clear and easy monitoring.
• Comprehensive Pressure Settings:
• Pressure Range: 4-30cmH2O
• IPAP: 4-30 cmH2O
• EPAP: 4-20 cmH2O
• Extensive Data Storage: Stores data for over five years, ensuring long-term tracking and analysis.
• Robust Power Management:
• Input: 100-240V~, 50-60Hz, 2A Max
• Output: 24V =-25AStop
• Over-Temperature Protection: Automatically alarms with four beeps.
• Convenient Lock Function: Prevents accidental changes with an automatic screen-off feature after 15 minutes; any button press restores the display.
• Customizable Backup Rate: Adjustable from 5-50 minutes.
• Flexible Ramp Time: Adjustable in one-minute increments from 0-60 minutes.
• Auto ON/OFF Functionality: Simplifies operation with automatic start and stop.
• Sensitive Trigger Levels:
• Inspiratory Trigger: 1-5 levels
• Expiratory Trigger: 1-5 levels
• Inspiratory Sensitivity: 1-5 levels
• Expiratory Pressure Relief (EPR): Adjustable from 0-3 levels for enhanced comfort.
• Auto-Altitude Adjustment: Ensures consistent performance at varying altitudes.
• Leak Compensation and Awake Detection: Enhances therapy effectiveness with intelligent detection features.

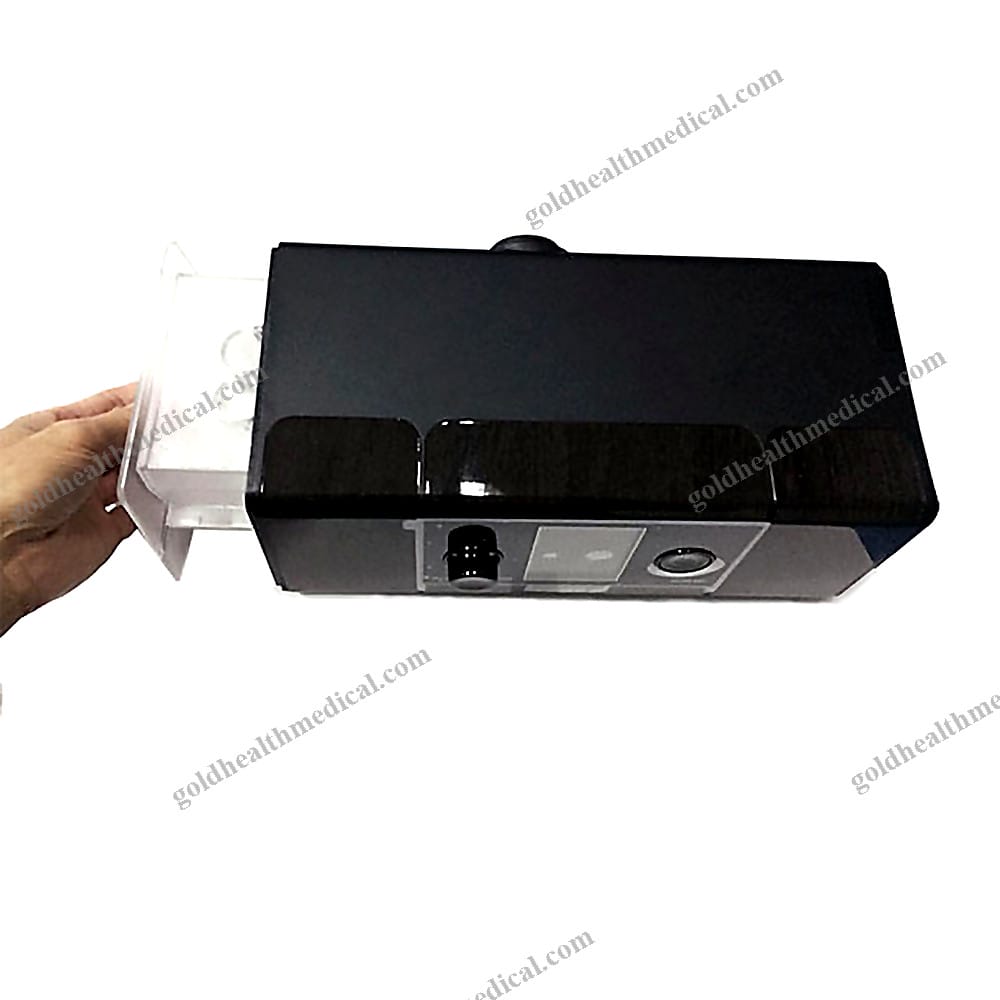

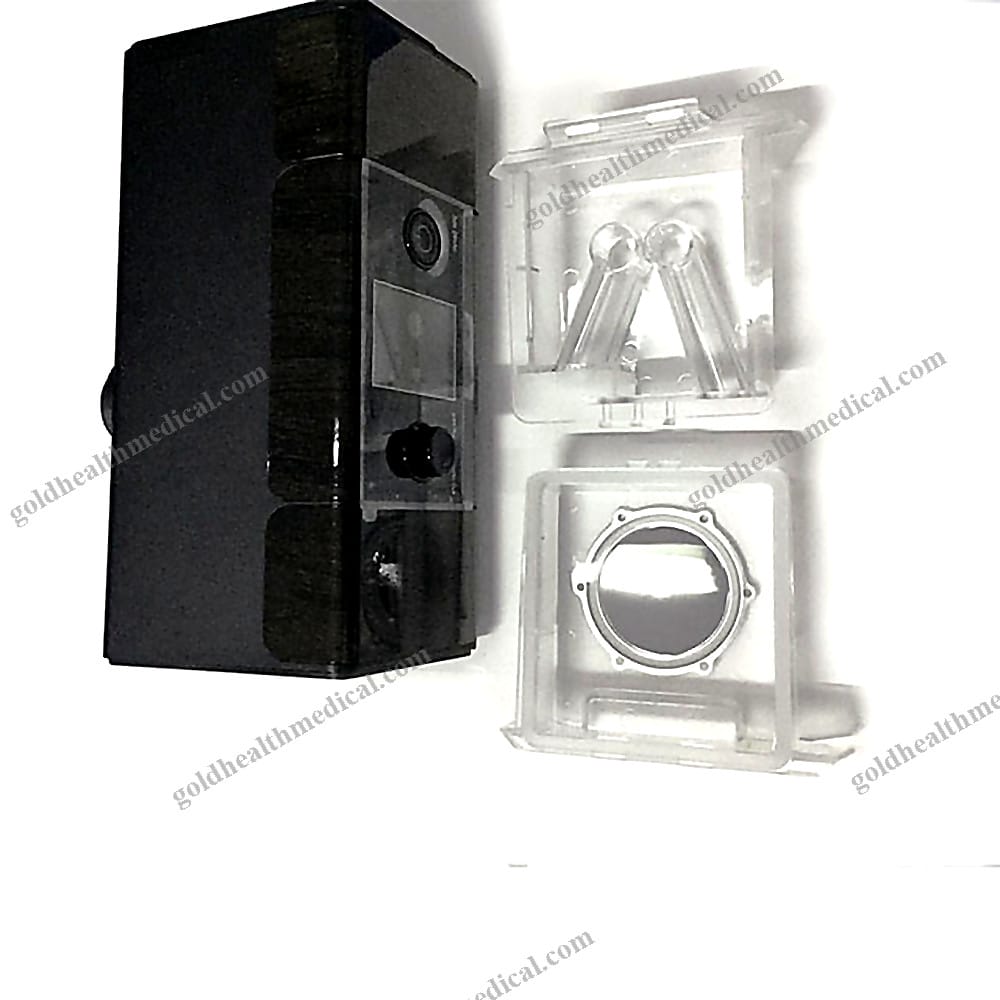

• Integrated Heated Humidifier:
• Water Tank Capacity: 200mL Max.
• Humidifier Level: Adjustable from 0-5 levels.
• Comprehensive Alert System: Notifies users of power off and mask off conditions.
• Compact and Lightweight Design: Dimensions of 29L x 15W x 10H cm and a gross weight starting at 4.5Kg.
• Two-Year Warranty: Ensures reliability and peace of mind.

Specifications

• Pressure Range: 4-30cmH2O
• IPAP: 4-30 cmH2O
• EPAP: 4-20 cmH2O
• Data Storage: Over 5 years
• Power:
• Input: 100-240V~, 50-60Hz, 2A Max
• Output: 24V =-25AStop
• Over-Temperature Protection: Automatic alarm with four beeps
• Lock Function: Yes
• Screen: 2.8-inch TFT, 320 x 240 resolution
• Backup Rate: 5-50 minutes, adjustable
• I/E Ratio: 10-80%
• Ramp Time: 0-60 minutes, adjustable in 1-minute increments
• Auto ON/OFF: Yes
• Inspiratory Trigger: 1-5 levels
• Expiratory Trigger: 1-5 levels
• Inspiratory Sensitivity: 1-5 levels
• EPR (Expiratory Pressure Relief): Yes, 0-3 levels
• Auto-Altitude: Yes
• Leak Compensation: Yes
• Awake Detection: Yes
• Breath Event Detection: Yes
• Water Tank Capacity: 200mL Max.
• Humidifier Level: Integrated Heated, 0-5 levels
• Alerts: Power off, mask off
• Machine Dimensions: 29L x 15W x 10H cm
• Gross Weight:
• 1 Piece: 4.5Kg
• 2 Pieces: 8.
