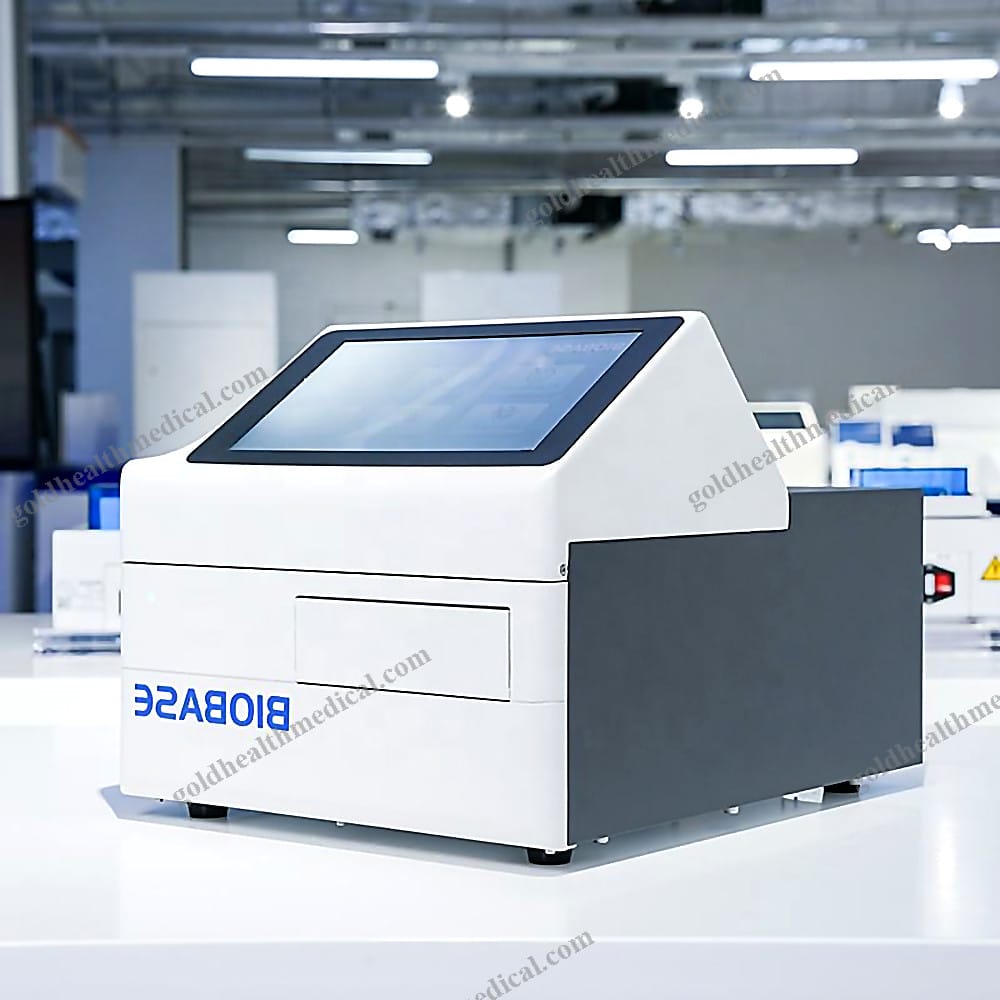

GoldHealth Medical Elisa Microplate Reader

Product Highlights

• Advanced Optical System: Equipped with an 8-channel vertical optical system for superior performance.
• Unmatched Speed: Achieves a super-fast reading speed of just 7 seconds, ensuring efficiency in every test.

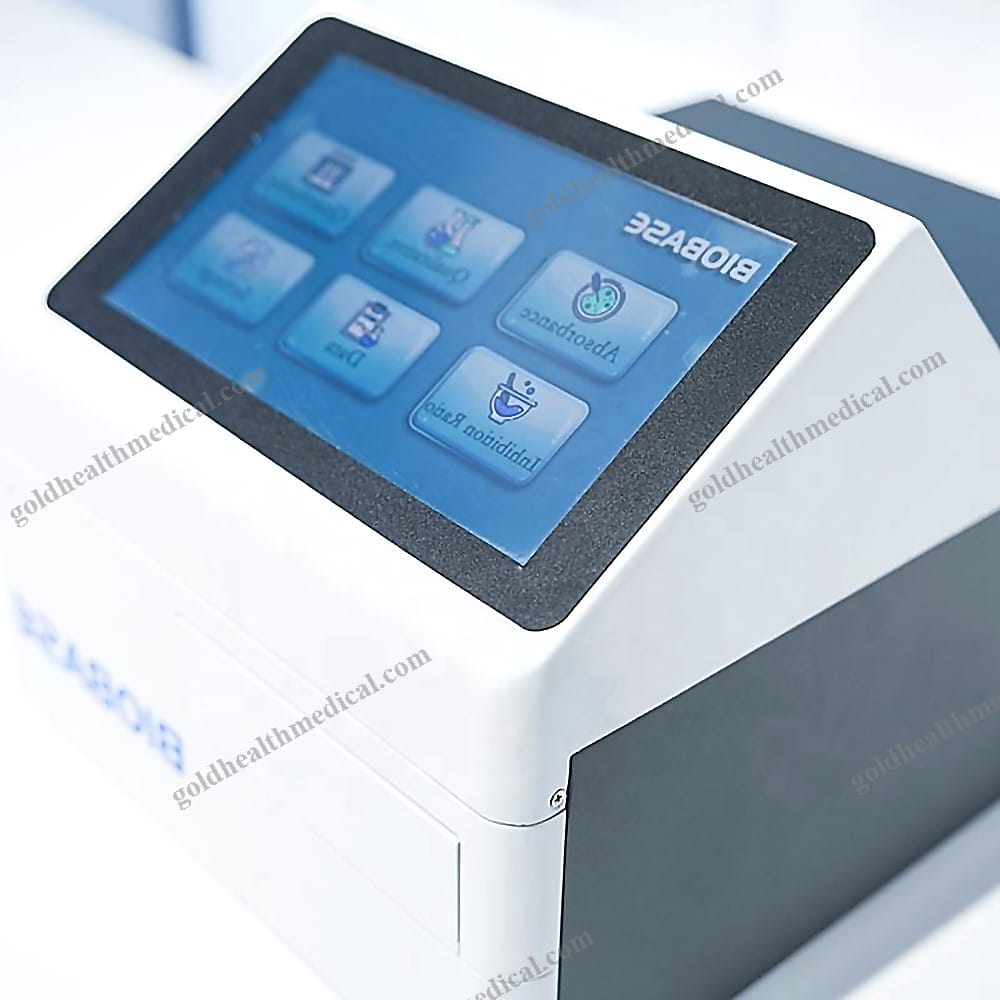

• Intuitive Interface: Features a 10.1-inch large touch screen with a visual layout function, offering a seamless what-you-see-is-what-you-get experience.
• High-Performance Hardware: Built on ARM architecture with a high-performance, low-power processor and ADI high-precision AD conversion chip for accurate and stable measurements.
• Proprietary Software: Utilizes a self-developed core algorithm with independent intellectual property rights, enabling flexible use of multiple calculation methods.

Product Specifications

• Measurement Channels: Vertical 8 optical channels
• Wavelength Range: 400～800 nm
• Filter Options: Standard wavelengths of 405, 450, 492, 630nm; expandable to ten wavelengths (optional)
• Reading Range: 0.000～4.000 Abs
• Linear Range: 0.000～3.000 Abs
• Repeatability: CV≤1.0%
• Stability: ≤±0.003Abs
• Absorbance Accuracy:
• Absorbance value [0.0~1.0], error≤±0.02Abs
• Absorbance value [1.0~2.0], error≤±0.03Abs
• Wavelength Indication Error: ≤±2nm
• Wavelength Repeatability: ≤±1.5nm
• Sensitivity: ≥0.01 mg/L
• Channel Difference: ≤0.02Abs
• Vibration Plate Function: 3 adjustable vibration plate functions (0~255 s)
• Display: 10.1-inch Large Touch Screen
• Input Power: 60VA
• Power Supply: AC220V, 50Hz
• Interface: RS-232
• Packing Size (WDH): 535mm395mm395mm
• Gross Weight: 13kg

Why Choose GoldHealth Medical?

GoldHealth Medical’s Elisa Microplate Reader is designed to deliver precision, speed, and reliability. With its cutting-edge technology and user-friendly interface, it is the ideal choice for hospitals, clinics, research institutions, and more. Elevate your diagnostic capabilities with a device that combines innovation and accuracy.
