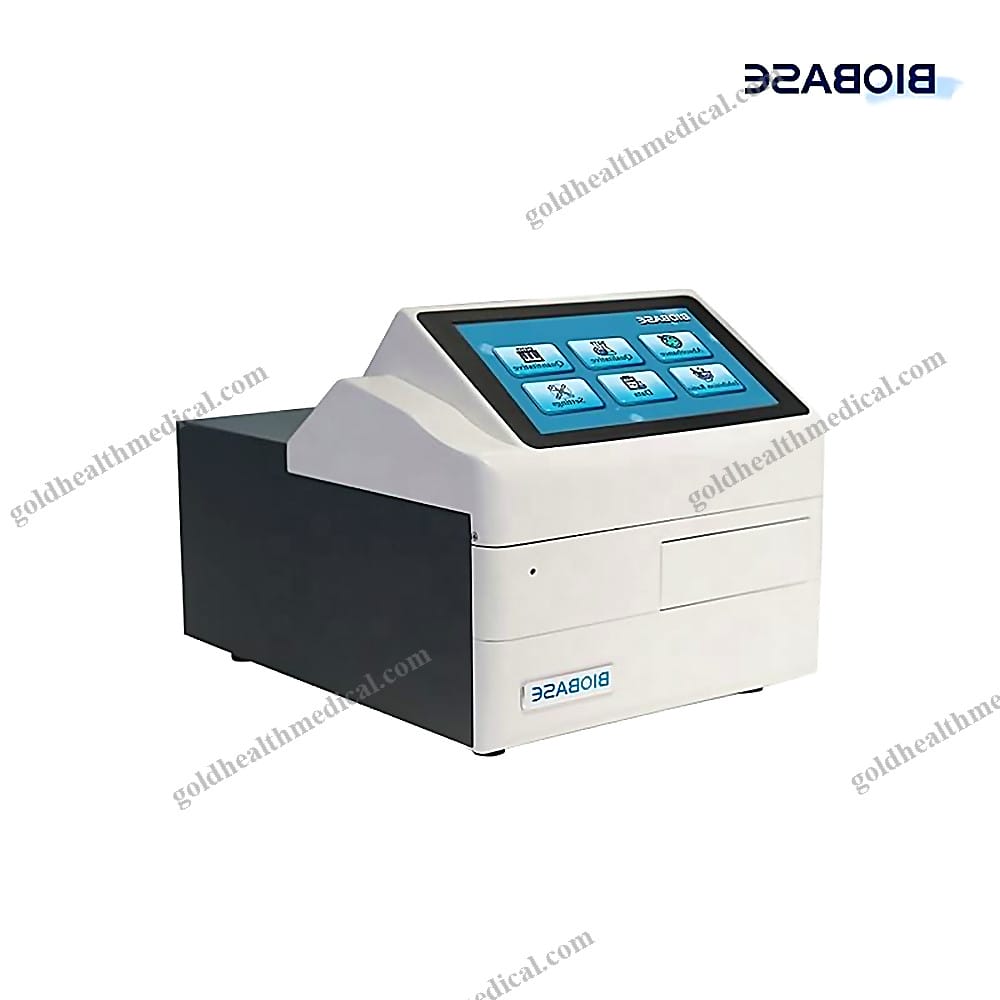

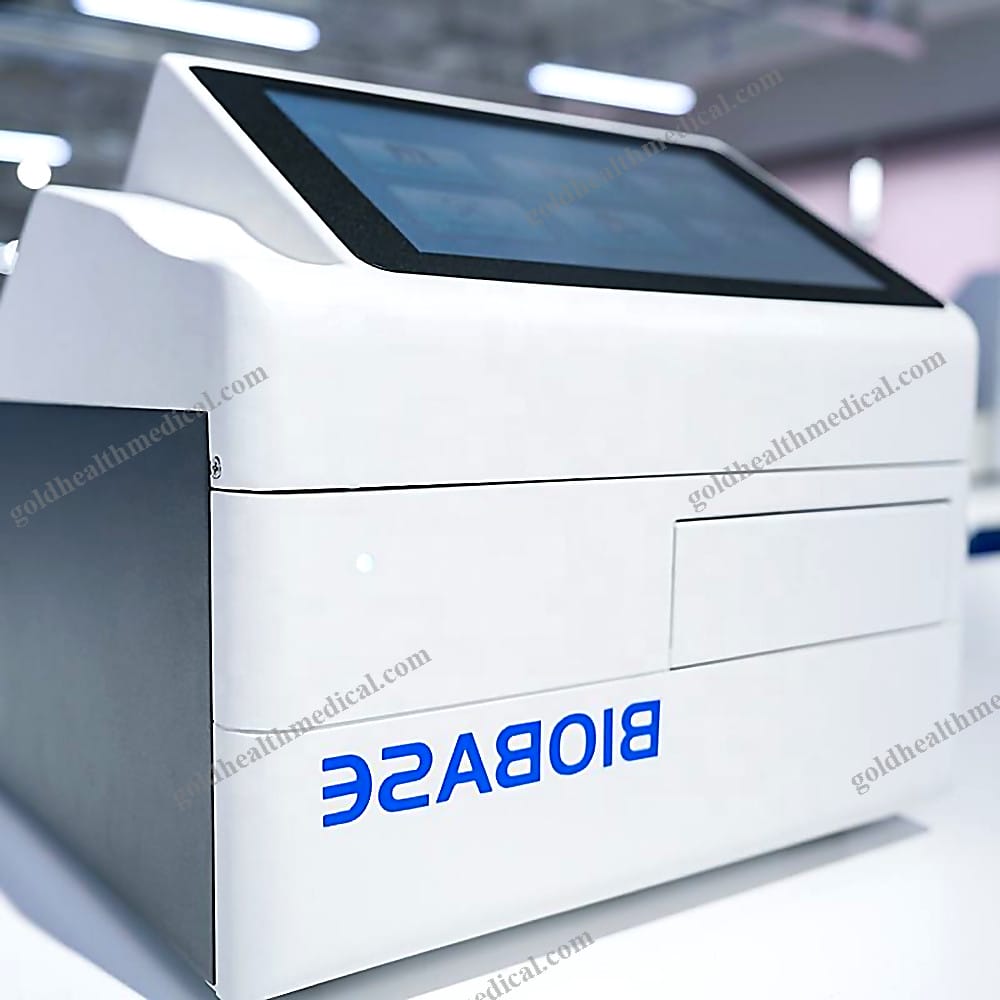

GoldHealth Medical ELISA Microplate Reader

Engineered for precision and efficiency, the GoldHealth Medical ELISA Microplate Reader is designed to elevate your diagnostic and research capabilities. Featuring an advanced 8-channel vertical optical system, this reader delivers unparalleled accuracy and speed, ensuring optimal performance in any professional setting.

Key Features

• 8-Channel Vertical Optical System: Ensures consistent and reliable measurements across all samples.
• Super-Fast Reading Speed: Achieves results in just 7 seconds, maximizing workflow efficiency.

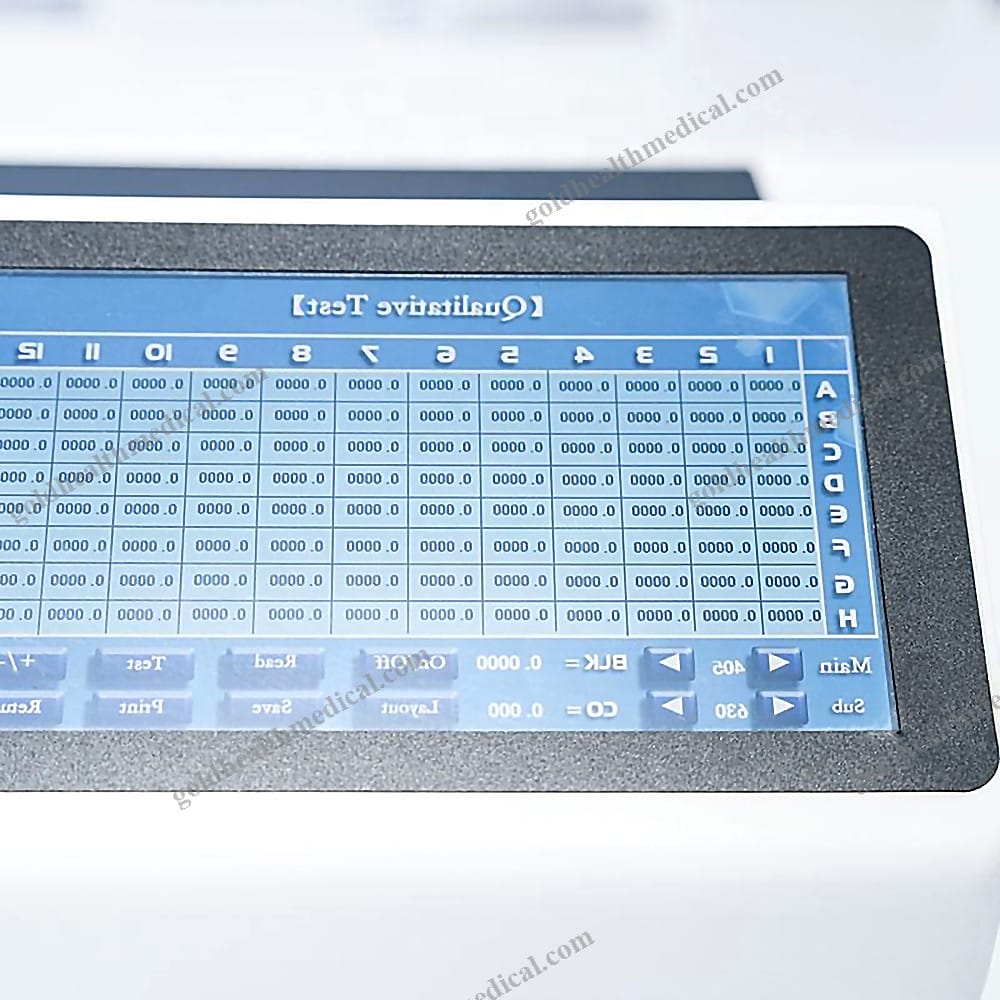

• 10.1-Inch Large Touch Screen: Intuitive interface with a visual layout function for seamless operation—what you see is what you get.
• High-Performance Hardware: Built on ARM architecture with an ADI high-precision AD conversion chip for enhanced accuracy and stability.

Technical Parameters

• Measurement Channel: Vertical 8 optical channels

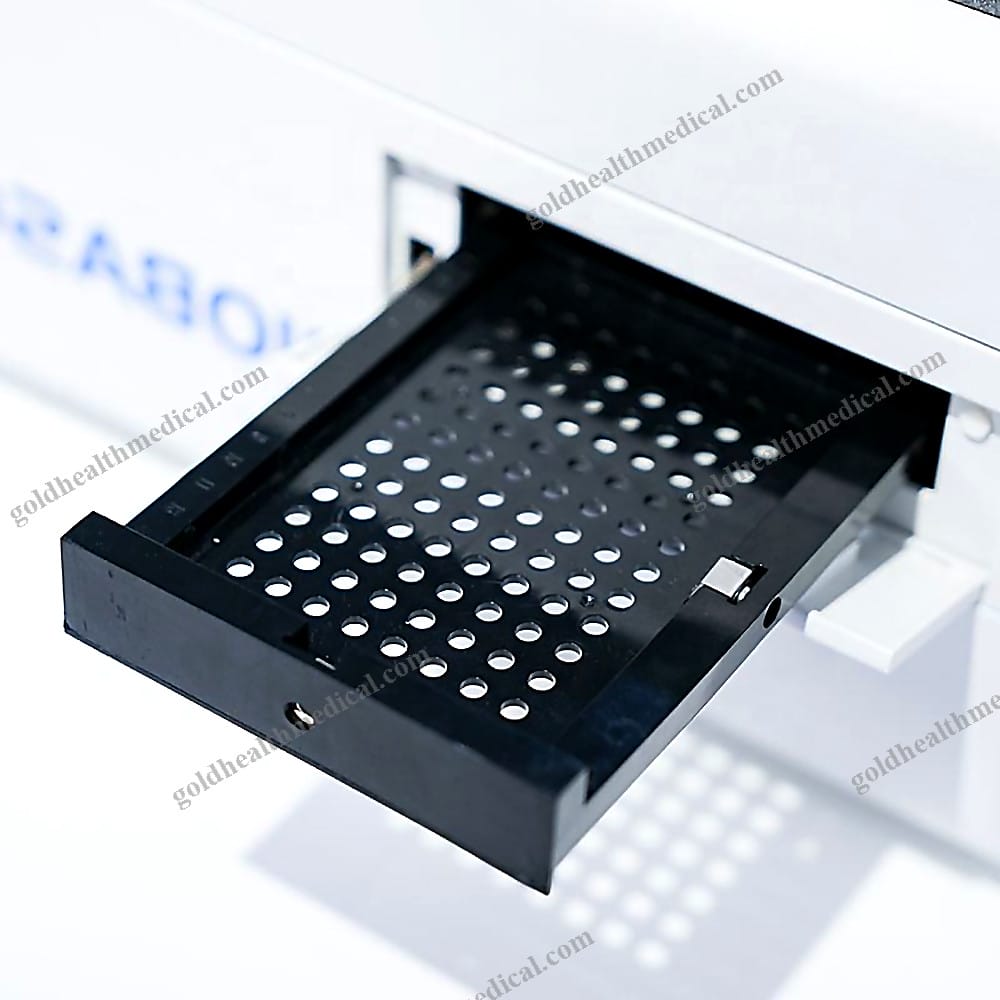

• Plate Type: 96-well microplate
• Wavelength Range:
• 400~750nm (Standard)
• 340~850nm (Extended Range)
• Filter Options:
• Standard: 405, 450, 492, 630nm
• Optional: Up to 10 wavelengths
• Reading Range: 0.000~3.000Abs
• Linear Range:
• 0.000~3.000Abs (Standard)
• 0.000~4.000Abs (Enhanced)
• 0.000~4.500Abs (Maximum)
• Resolution: 0.0001Abs
• Repeatability: CV≤1.0%
• Stability: ≤±0.005Abs, CV≤0.2%
• Sensitivity: ≥0.01mg/L
• Channel Difference: ≤0.02Abs, ≤±0.003Abs
• Vibration Plate Function:
• 3 adjustable modes (0~255s)
• 5 adjustable modes (0~255s, Enhanced Model)
• Incubation Function:
• Time Range: 0~60min
• Temperature Range: RT +4℃~50℃ (Enhanced Model)
• Detection Modes:
• Single/double wavelength
• Qualitative: Open CUT-OFF decision formula with customizable judgment conditions
• Quantitative: Supports linear, semi-log, natural logarithm, log-log, point-to-point, and four-parameter equation analysis
• Display: 10.1-inch color touch capacitive screen
• Operating Mode: Touch screen with capacitive stylus, compatible with external keyboard and mouse
• Printer Compatibility: Supports external USB, RJ45 network port, and universal interface printers

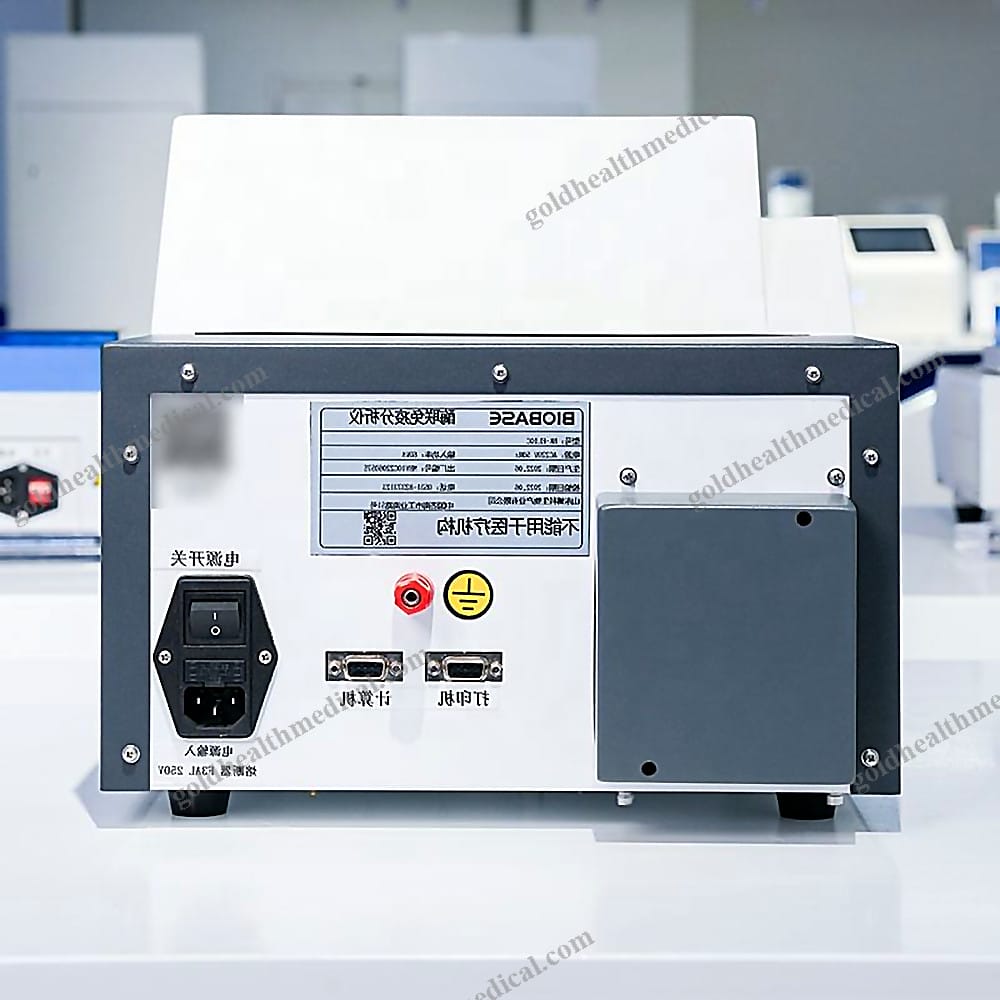

• Interfaces:
• USB 2.0 x 4
• RJ45 network port x 1
• RS-232 x 1
• Power Supply: AC100~240V, 50/60Hz
• Instrument Size (WDH):
• 450320300mm (Standard)
• 495340370mm (Enhanced Model)
• Package Size (WDH):
• 540400460mm (Standard)
• 610440475mm (Enhanced Model)
• Net/Gross Weight:
• 13/15kg (Standard)
• 12/14kg (Enhanced Model)

Why Choose GoldHealth Medical?

GoldHealth Medical is committed to delivering cutting-edge scientific equipment tailored to meet the demands of modern healthcare and research environments. Our ELISA Microplate Reader combines innovative design with robust functionality, ensuring precision, reliability, and ease of use.

• Advanced Technology: Harness the power of ARM architecture and high-precision AD conversion for unmatched accuracy.
• User-Centric Design: A large, responsive touch screen and intuitive interface make operation effortless.
• Versatile Applications: Ideal for hospitals, clinics, laboratories, and research institutions.
• Global Expertise: Backed by decades of experience in medical and laboratory equipment manufacturing.

Experience the GoldHealth Medical difference—where innovation meets excellence.
