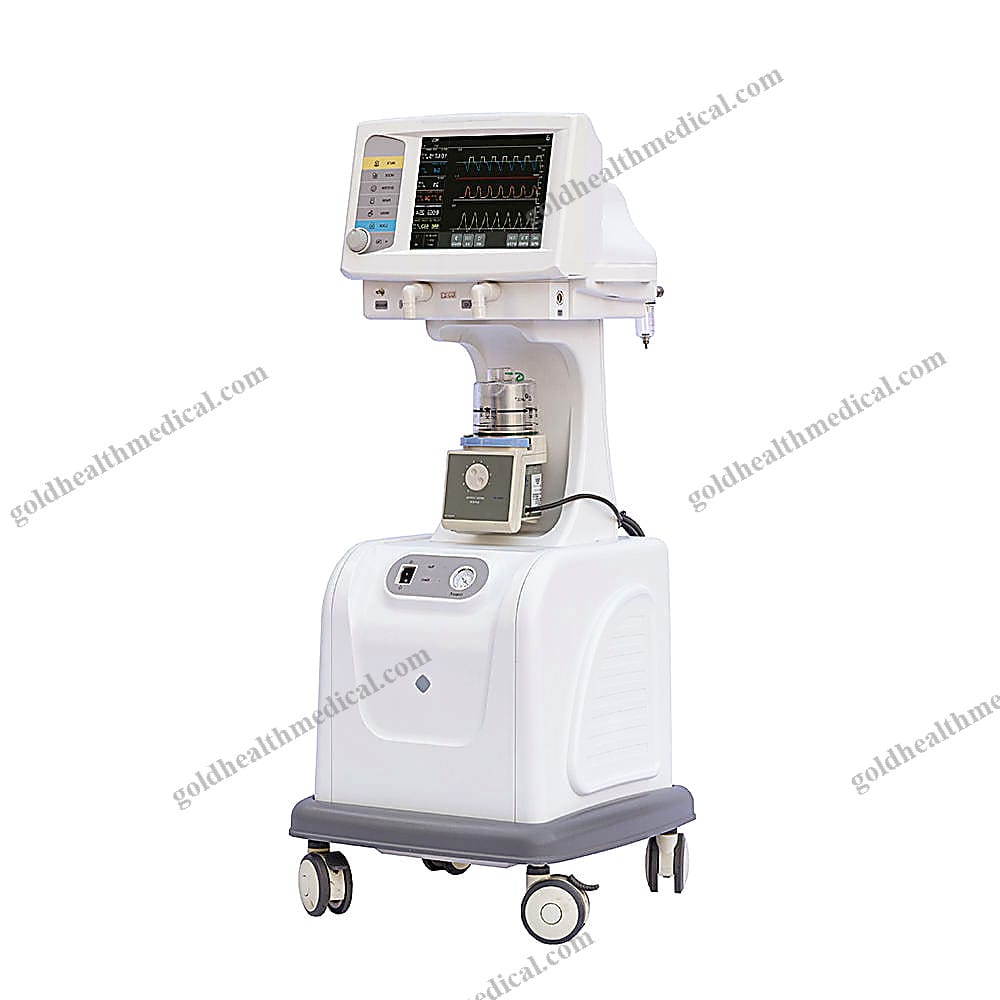

GoldHealth Medical: Advanced Ventilator System
Product Overview
GoldHealth Medical presents a cutting-edge ventilator system designed to deliver exceptional performance and reliability in critical care environments. Engineered with precision, this ventilator combines advanced technology with user-friendly features to support both adult and pediatric patients.
Key Features
- Intuitive LCD Display: A 10.2-inch screen provides clear, real-time data visualization.
- Versatile Ventilation Modes: Includes VCV, SIMV, MANUAL, SIPPV(A/C), PCV, and STAND-BY modes.
- Electronically Controlled, Pneumatically Driven: Ensures consistent and accurate ventilation.
- Advanced Monitoring: Tracks VT, MV, BPM, Paw, lung compliance, FiO₂, and waveforms for comprehensive patient assessment.
- Safety Systems: Equipped with a hypoxic guard system, N₂O cut-off valve, and safety valve for enhanced protection.
Technical Specifications
- Dimensions: 52 x 73 x 123 cm
- Weight: 65 kg
- Casters: Front wheels with lock for easy mobility and stability
- Gas Configuration: O₂, N₂O, Air
- Pipeline Input Range: 280-600 kPa
- Power Supply: AC 220V ±10%, 50Hz ±2%
- Battery: Lead-acid 12V, 4Ah, with a runtime of 30 minutes to 2 hours
- Tidal Volume Range: 20-1500 ml
- Pressure Range: 5-80 cmH₂O
- Respiration Rate Range: 1-100 bpm (1-40 bpm under SIMV)
- I:E Ratio Range: 4:1 to 1:8
- PEEP Range: OFF, 3-30 cmH₂O (Optional)
- Flow Meter: 5 tubes with cascade flow rates of 0.1-15 L/min for O₂, N₂O, and Air
- Vaporizer: Supports Isoflurane, Enflurane, Sevoflurane, and Halothane
Unique Selling Points
- Precision Engineering: Electronically controlled and pneumatically driven for optimal performance.
- Comprehensive Safety Features: Includes hypoxic guard, N₂O cut-off, and advanced alarm systems.
- Versatile Applications: Suitable for both adult and pediatric care, adaptable to various clinical settings.
- Enhanced Mobility: Front wheels with lock ensure easy maneuverability and secure positioning.
- Customizable Options: Offers optional features like PEEP and auxiliary gas outlets for tailored solutions.
Monitoring Capabilities
- Waveforms: P-T, F-T, V-T
- Loops: P-V, V-F, F-P
- Alarm Limits: Audio/visual alerts for tidal volume, MV, Paw, FiO₂, O₂, air failure, AC power failure, and battery status.
Optional Features
- ACGO: Auxiliary Common Gas Outlet
- Yoke System: Supports 11L cylinders (O₂, N₂O, Air)
- AGSS: Anesthetic Gas Scavenging Systems
- Suction Unit: Integrated for convenience
GoldHealth Medical’s ventilator system is designed to meet the rigorous demands of modern healthcare environments, ensuring reliable performance and patient safety. Whether in hospitals, clinics, or home care settings, this ventilator stands out as a trusted solution for critical respiratory support.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Brand Name: GoldHealth Medical

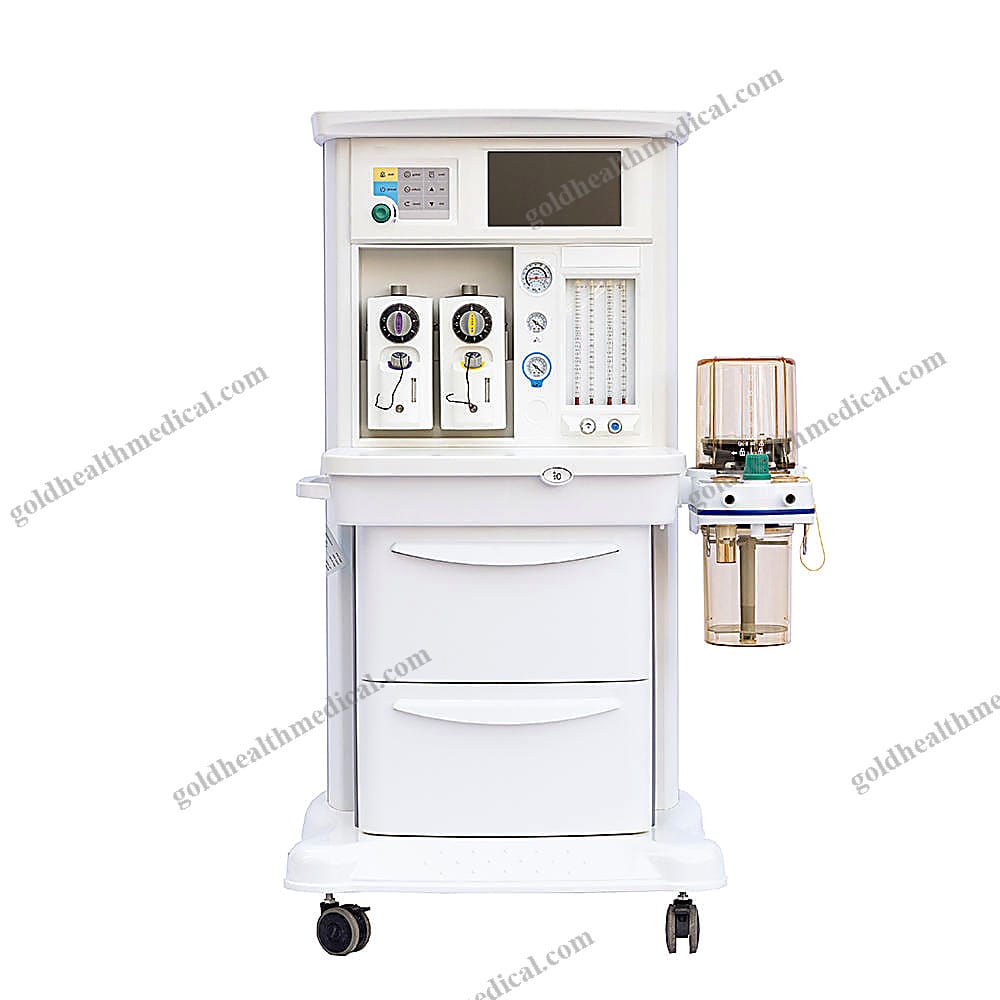

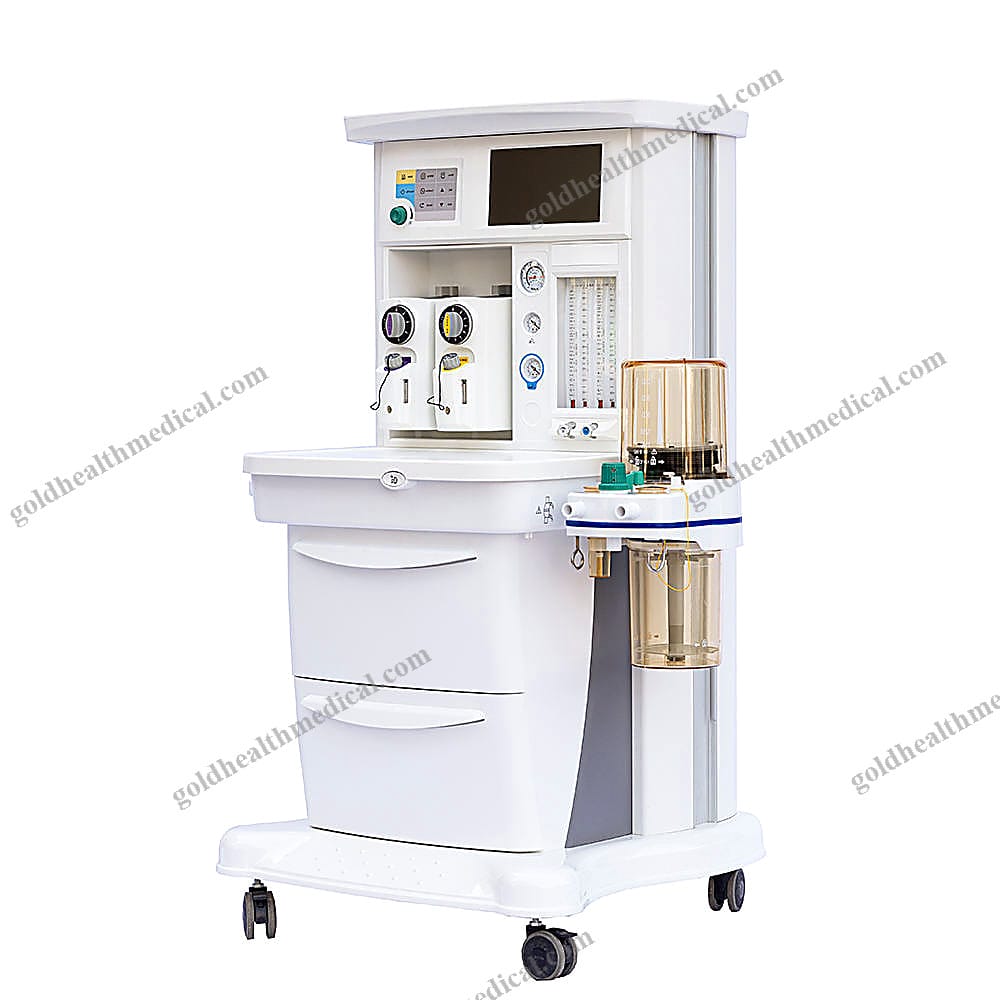

Product Name: Anesthesia Machine
Key Features:
- Advanced Ventilation Modes: Equipped with multiple ventilation modes including A/C, IPPV, SIPPV, IMV, SIMV, PCV, VCV, PEEP, SIGN, and MANUAL, ensuring precise control for diverse clinical needs.
- Dual Vaporizer support: Allows seamless integration of two vaporizers for enhanced versatility in anesthesia delivery.
- Application Flexibility: Designed for use in Operating Rooms and ICUs, catering to both Adult and Pediatric patients.
- Emergency Care Functionality: Built to handle critical scenarios with reliable performance during emergency procedures.
Technical Specifications:
- Power Source: Electrically controlled system for consistent and reliable operation.
- Instrument Classification: Class II medical device, ensuring safety and precision.
- Place of Origin: Sichuan, China – crafted with meticulous attention to detail and quality.
- Shelf Life: 1 year from the date of manufacture.
Certifications & Compliance:
- Quality Certifications: CE and ISO approved, guaranteeing adherence to international standards of safety and performance.
After-Sales Support:
- Warranty: Comprehensive 1-year warranty for peace of mind.
- Support: Access to online technical support, ensuring prompt assistance whenever needed.
Unique Selling Points:
- Customizable Solutions: OEM services available to meet specific institutional requirements.
- Reliability and Precision: Engineered with cutting-edge materials and technology to deliver consistent, high-quality performance in critical medical environments.
Applications:
- Operating Rooms
- Intensive Care Units (ICU)
- Emergency Care Settings
GoldHealth Medical’s Anesthesia Machine is designed to empower healthcare providers with advanced, dependable technology that meets the dynamic demands of modern medical practice.
