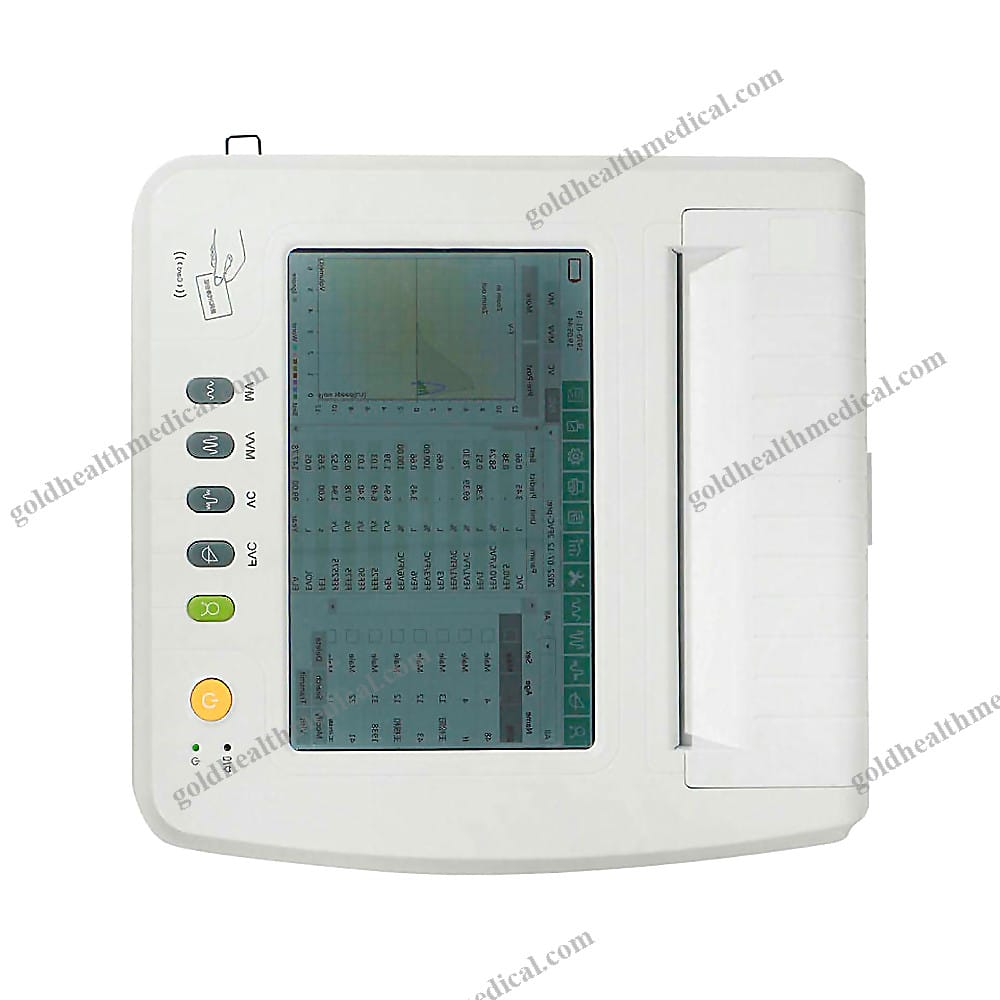

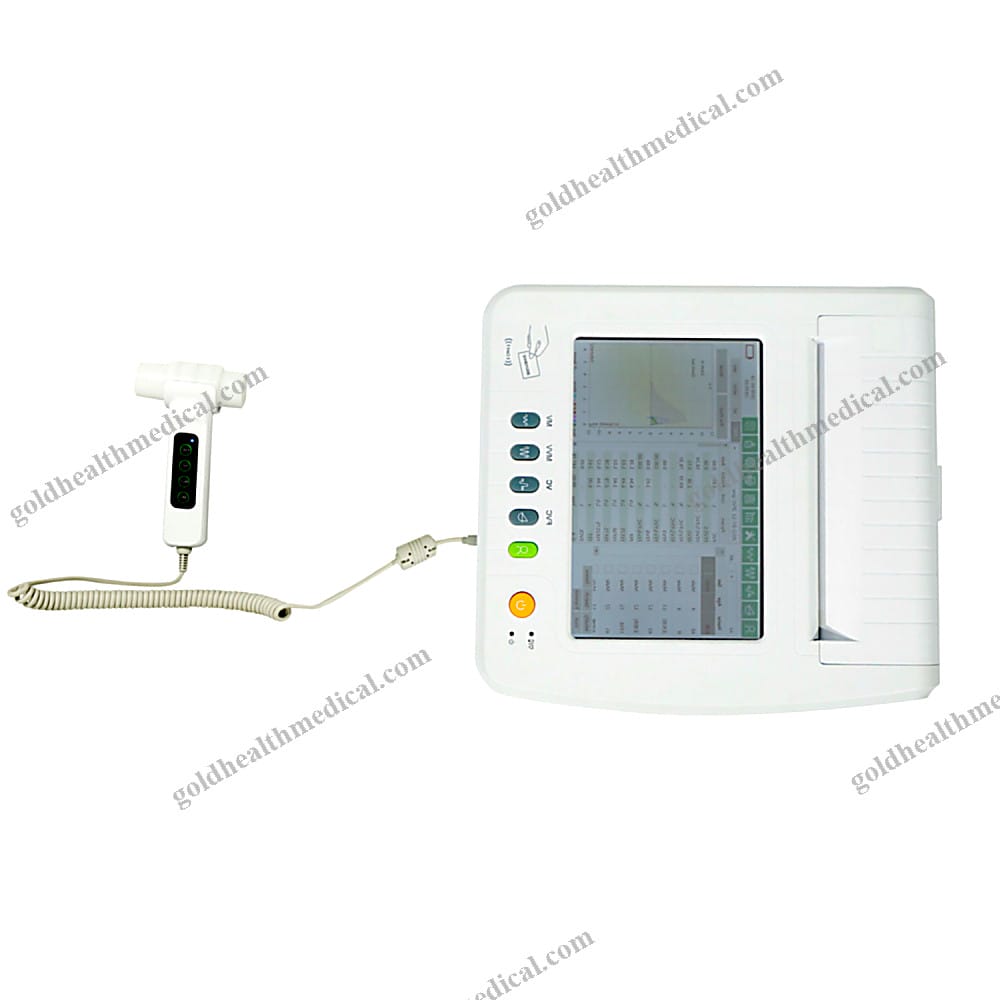

GoldHealth Medical Spirometer: Precision in Every Breath
The GoldHealth Medical Spirometer is a state-of-the-art portable device designed for comprehensive pulmonary function testing. Utilizing advanced differential pressure acquisition technology, this spirometer measures over 100 parameters related to FVC, VC, MVV, and MV functions. Its versatility makes it suitable for a wide range of applications, including hospitals, clinics, family use, and pre/post-medication MVV and provocation tests. It provides users with detailed pulmonary function test results, empowering medical professionals with the data needed for accurate diagnosis.
Key Features
- Advanced Differential Pressure Detection: Equipped with professional lung function software, it measures over 100 parameters related to FVC, VC, MVV, and MV functions.
- Real-Time Curve Display: Measures both inspiratory and expiratory parameters with real-time curve visualization.
- BTPS Correction: Automatically measures temperature, humidity, and barometric pressure for precise adjustments.
- Quality Control: Features automatic QC rating and calibration control, including volume calibration and three-flow verification.
- Optimal Value Display: Highlights the best results from multiple measurements.
- Predicted Value Ratio: Reflects the tester’s condition by comparing measured values with predicted values.
- Flow-Volume and Volume-Time Curves: Provides detailed graphical representations.
- Data Management: Includes data memory, deletion, and review functions.
- Trend Chart Display: Visualizes progress over time.
- Over-Limit Alerts: Prompts for volume and flow exceedances.
- Rechargeable Battery: Features a lithium battery with charging prompts and power level indication.
- Multiple Predicted Values: Built-in support for various demographic predictions.
- Bronchial Testing: Supports bronchial dilation and provocation tests.
- Pulmonary Function Assessment: Comprehensive evaluation tools.
- Follow-Up Questionnaires: Integrated questionnaire functionality for ongoing patient monitoring.
- Patient Information Management: Enter, manage, and query patient data effortlessly.

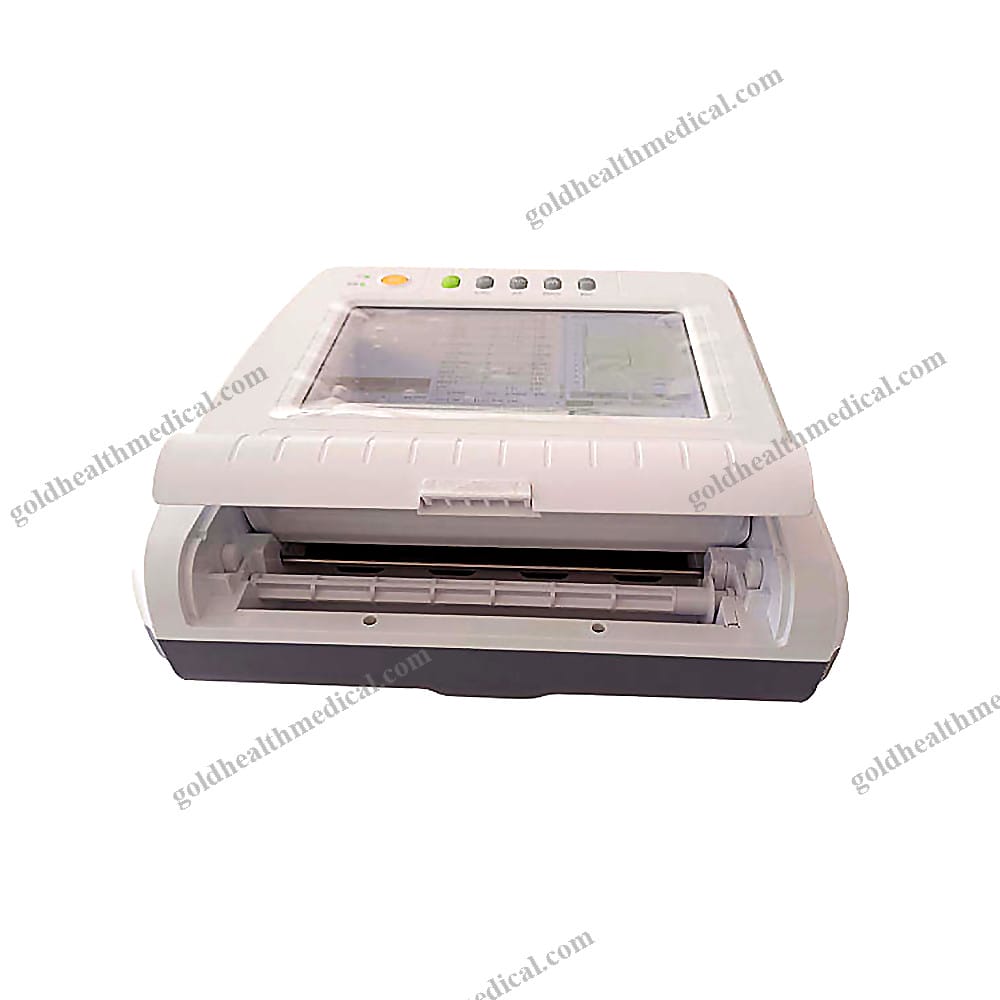

- Printable Reports: Built-in 210mm thermal printer for on-demand test reports. External printer connectivity also available.

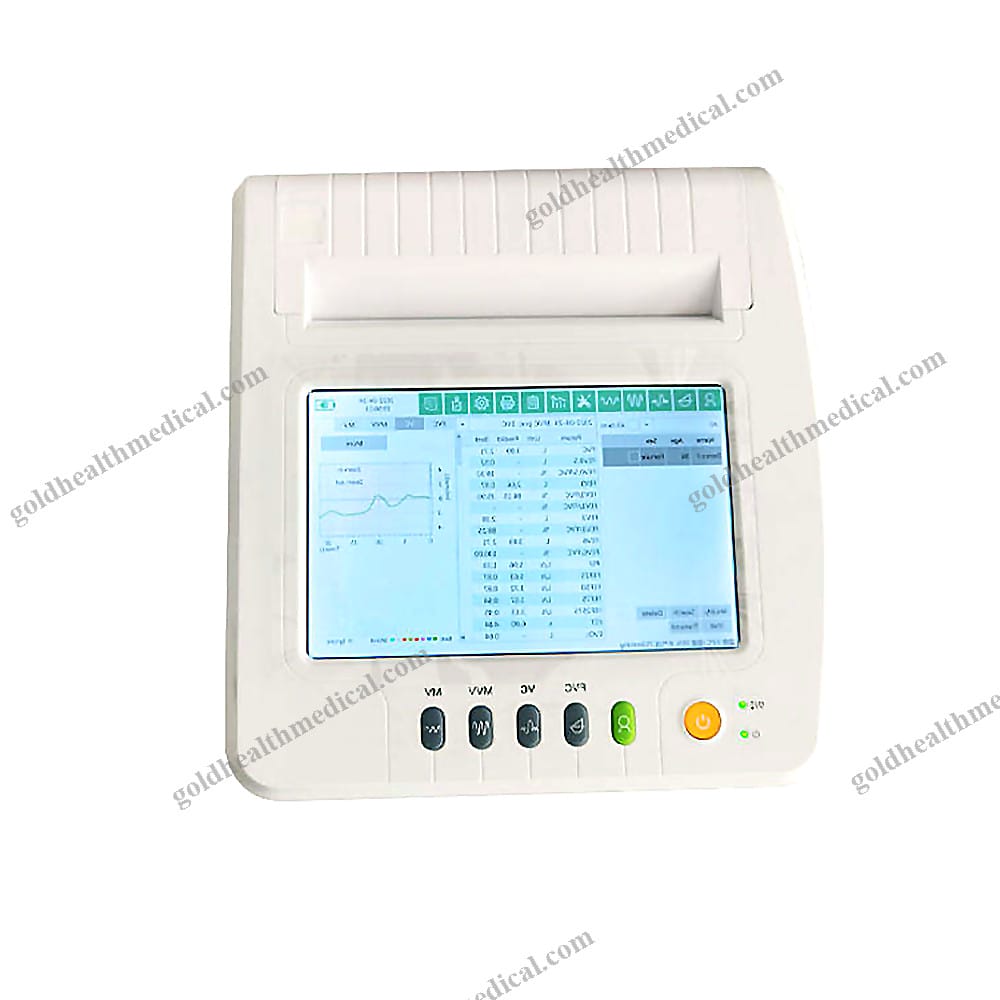

- 10.1″ Touch Screen: Capacitive touch screen with a resolution of 1280 x 800.
- Wi-Fi Connectivity: Seamless data transfer and updates.
- Optional ID Card Reader: Streamlines patient identification.
Technical Specifications
- Display: 10.1″ color LCD with a resolution of 1280 x 800
- Volume Range: 0 L to 10 L (BTPS)
- Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
- Flow Range: 0 L/s to 16 L/s (BTPS)
- Flow Accuracy: ±5% or ±0.17 L/s (whichever is greater)
- Power Consumption: P ≤ 150 V·A
- Power Supply: DC 14.8 V rechargeable lithium battery or AC220V 50Hz
- Safety Class: Class I or internally powered equipment, type BF applied part
Package Contents
- 1 Spirometer

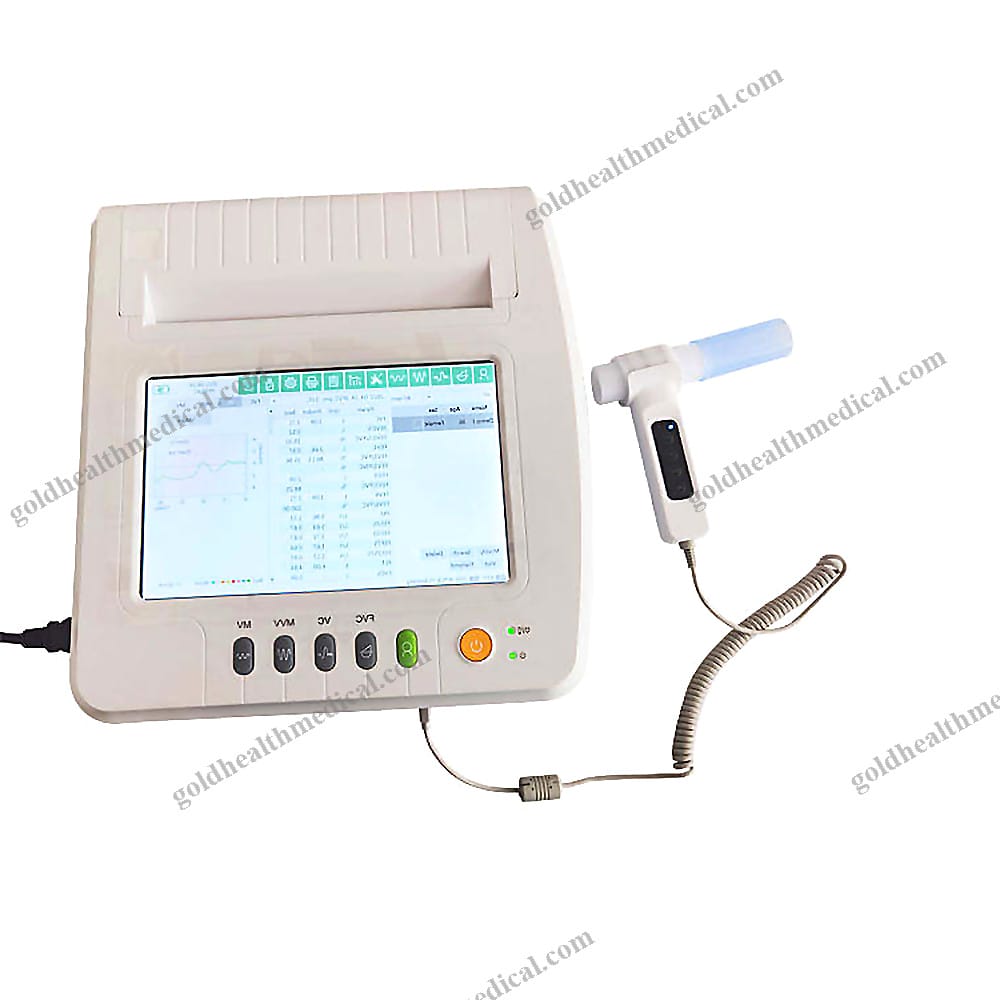

- 1 Pulmonary function probe
- 100 Mouthpieces (50 round, 50 flat)
- 1 Cord set
- 1 Recording paper
- 1 Earth line
- 1 User Manual
- 1 Nose clip (optional)
GoldHealth Medical’s Spirometer stands out with its precision engineering, user-friendly interface, and comprehensive functionality, making it an indispensable tool for healthcare professionals and patients alike.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Company Name: GoldHealth Medical
Product Introduction:

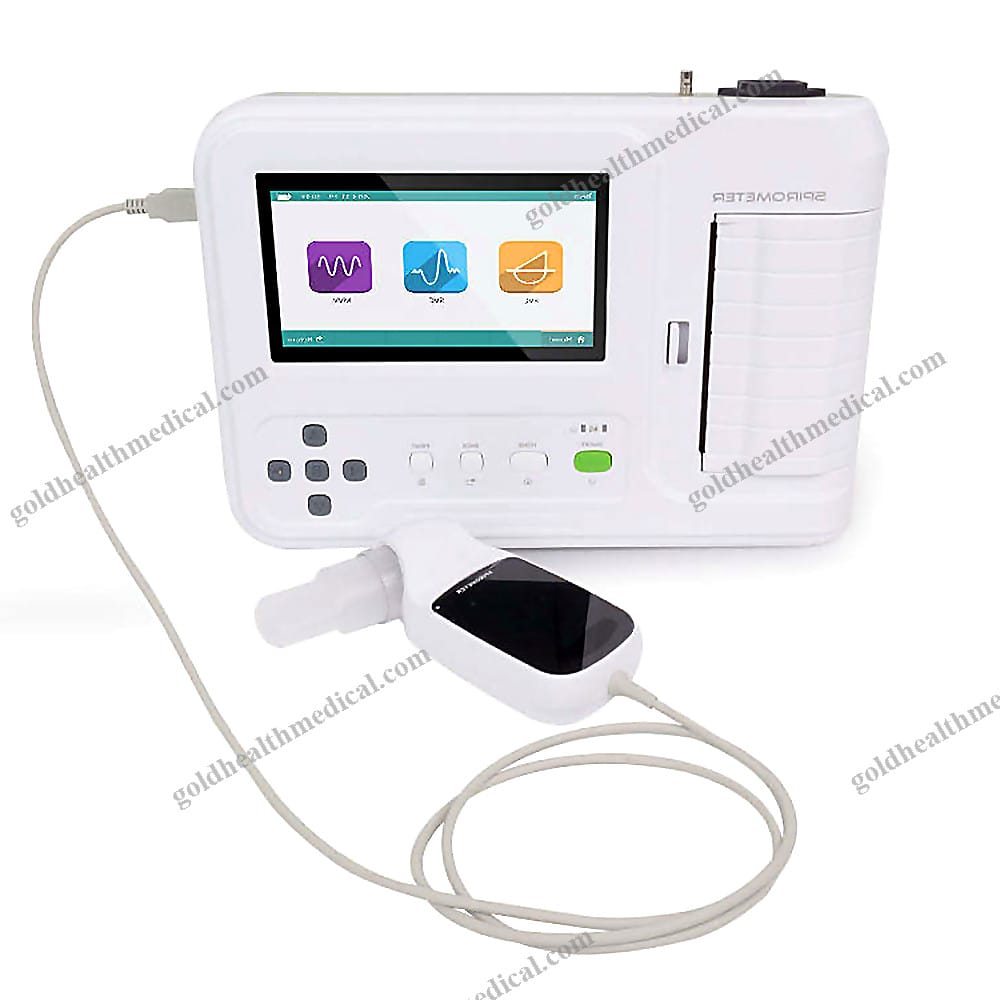

The GoldHealth Medical Volume Spirometer is a cutting-edge clinical device designed to deliver precise and reliable respiratory measurements. Engineered with safety and accuracy in mind, this Class II medical instrument is ideal for use in hospitals, clinics, research labs, and home care environments. Its advanced design ensures ease of use while maintaining the highest standards of performance, making it an indispensable tool for respiratory health assessment.
