Advanced 15T MRI System for Precision Diagnostics

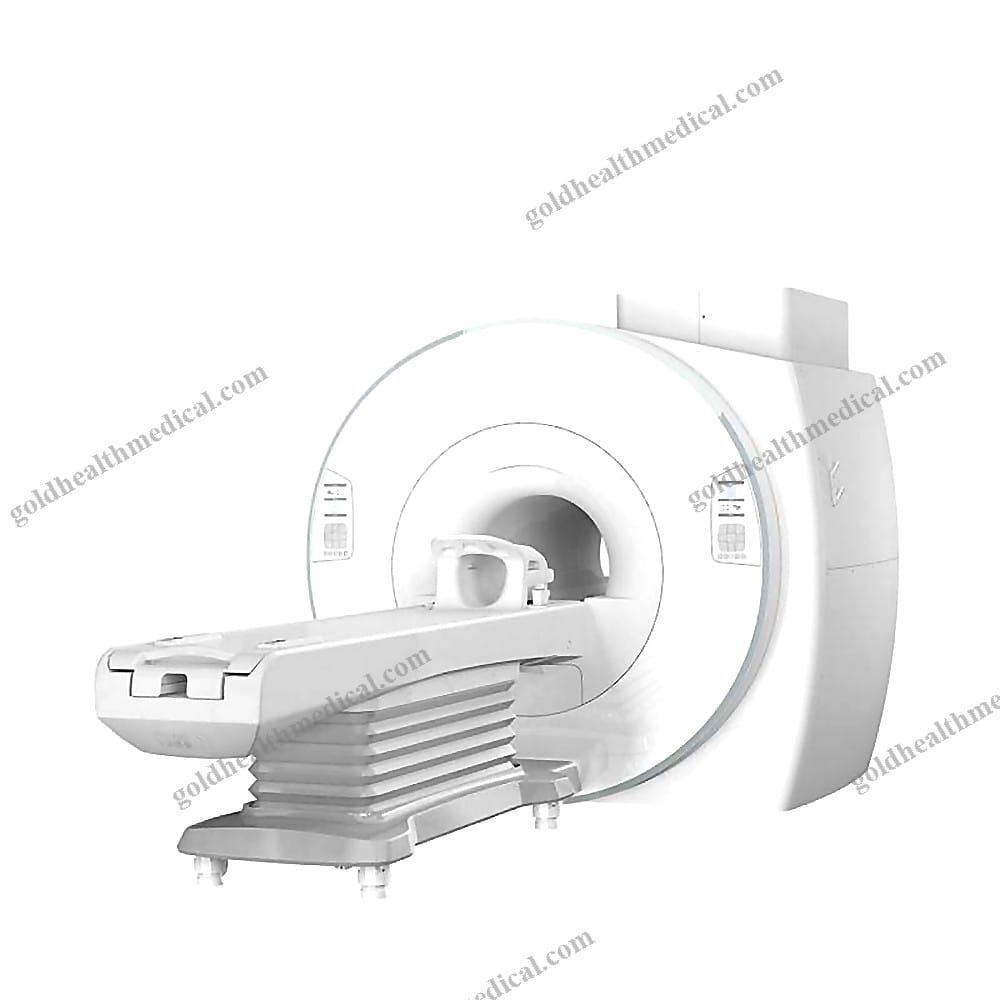

GoldHealth Medical: Advanced 1.5T Magnetic Resonance System
Experience the future of medical imaging with GoldHealth Medical’s cutting-edge 1.5T Magnetic Resonance System. Designed for unparalleled precision and versatility, this system redefines diagnostic excellence with its user-friendly interface and exceptional optical performance.
Key Features
- Intuitive Design: Combines ease of use with outstanding optical performance.
- Operational Simplicity: Streamlined functionality across all aspects of operation.
Technical Specifications
Magnet
- Field Strength: 1.5T
- Type: Superconducting
- Shimming: Passive + Active + Dynamic
- Shielding Technology: Equipped to resist external electromagnetic interference
- Long Term Stability: ≤0.125ppm/h
- Field Homogeneity (V-RMS):
- 50cm DSV: ≤0.75ppm
- 45cm DSV: ≤0.37ppm
- 40cm DSV: ≤0.18ppm
- 30cm DSV: ≤0.05ppm
- 20cm DSV: ≤0.015ppm
- 10cm DSV: ≤0.002ppm
- Patient Aperture: 600mm
Gradient
- Type: Single (Non-Resonant)
- Max. Amplitude (X-, Y-, Z- Axis): 40mT/m
- Max. Slew Rate (X-, Y-, Z- Axis): 133mT/m/ms
RF Transmit and Receive
- RF Amplifier Max. Output Power: 20kW
- Independent RF Receiving Channels: 16 Channels
- RF Receiving Coils:
- MUSIC Phased Array Head-Neck Coil: 16 Channels
- MUSIC Phased Array Spine Coil: 18 Channels
- MUSIC Phased Array Body Coil: 8 Channels
- Phased Array Knee Coil: 8 Channels
- Phased Array Shoulder Coil: 4 Channels
- Optional RF Receiving Coils:
- Phased Array Wrist Coil: 8 Channels
- Phased Array Ankle Coil: 8 Channels
- Phased Array Breast Coil: 8 Channels
- Small Flexible Coil: 4 Channels
- Large Flexible Coil: 4 Channels
Pulse Sequence and Scanning Technology
- Sequences Supported: SE, GRE, EPI, IR
- Neural System Imaging: Includes Tornado (Eliminating Motion Artifacts) and SWAPP
- Abdominal Imaging: Fast dynamic enhanced volumetric scanning
- DWI, MRA, MRV, Magnetic Resonance Hydrography (MRCP): All supported
- Precise Quantitative Techniques:
- mLIVE (Fat Liver Quantification and Iron Liver Quantification, PDFF/R2*)
- Cartilage Quantification
- Artifact Reduction and Time-Saving Technology: Integrated
- Other Special Imaging Techniques and Clinical Applications: Available
Optional Features
- ASL:
- Impulse RF Labelling
- 2D ASL & Post-Process Analysis
- MRS:
- STEAM or PRESS
- Single Voxel MRS
- MRS Automatic Advanced High-Order Homogenization
GoldHealth Medical’s 1.5T Magnetic Resonance System is engineered to deliver exceptional imaging quality and reliability, making it an indispensable tool for hospitals, clinics, research institutions, and more. Elevate your diagnostic capabilities with our state-of-the-art technology.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Product Name: 1.5T MR Imaging by GoldHealth Medical
Key Features and Benefits:
- Superior Imaging Technology: Experience unparalleled precision with our 1.5T MR Imaging system, designed to deliver high-resolution diagnostic images for a wide range of medical applications.
- Advanced Shimming Capabilities: Equipped with Passive, Active, and Dynamic shimming for exceptional magnetic field stability and accuracy.
- Unmatched Field Homogeneity: Achieve consistent imaging quality with field homogeneity as low as ≤0.015ppm in a 20cm DSV, ensuring reliable results across varying scan volumes.
- Long-Term Stability: Maintain consistent performance with a long-term stability of ≤0.125ppm/h, ensuring minimal drift over extended use.
Technical Specifications:
- Type: Superconducting MRI System
- Field Homogeneity (V-RMS):
- 50cm DSV: ≤0.75ppm
- 45cm DSV: ≤0.37ppm
- 40cm DSV: ≤0.18ppm
- 30cm DSV: ≤0.05ppm
- 20cm DSV: ≤0.015ppm
- Shimming: Passive + Active + Dynamic
- Instrument Classification: Class II
- Power Source: Electric
- Material: Acrylic, Metal
Quality and Safety Assurance:
- Certifications: ISO, CE
- Warranty: 2 years, ensuring peace of mind and long-term reliability.
- Shelf Life: 2 years
Support and Service:
- After-Sale Service: Comprehensive online technical support to ensure seamless operation and address any concerns promptly.
Packaging Details:
- Selling Units: Single item
- Single Package Size: XX cm
- Single Gross Weight: XX kg
GoldHealth Medical’s 1.5T MR Imaging system is engineered to meet the rigorous demands of modern healthcare facilities, offering cutting-edge technology, exceptional durability, and superior imaging performance. Elevate your diagnostic capabilities with a system designed for precision, reliability, and patient care excellence.
