121 Portable Veterinary ECG Monitor with ETCO2
GoldHealth Medical: Revolutionizing Veterinary Care with Advanced Monitoring Technology

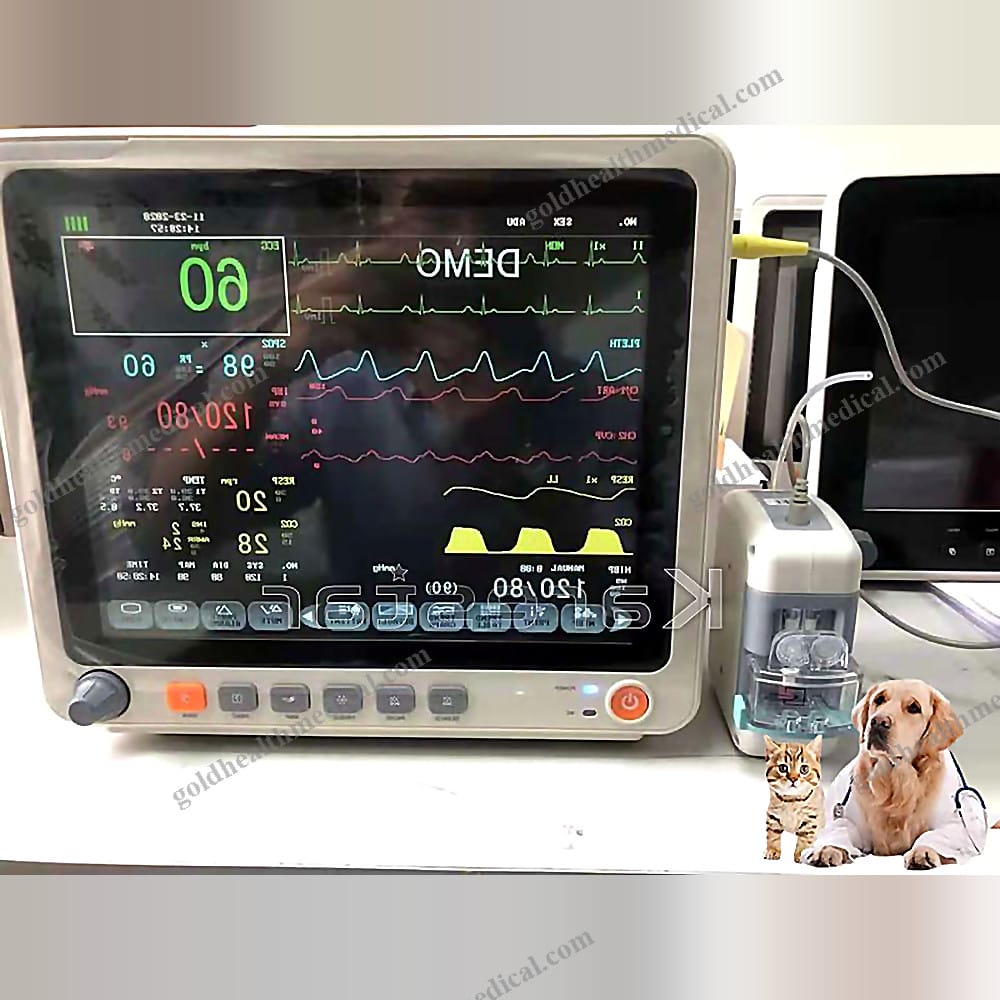

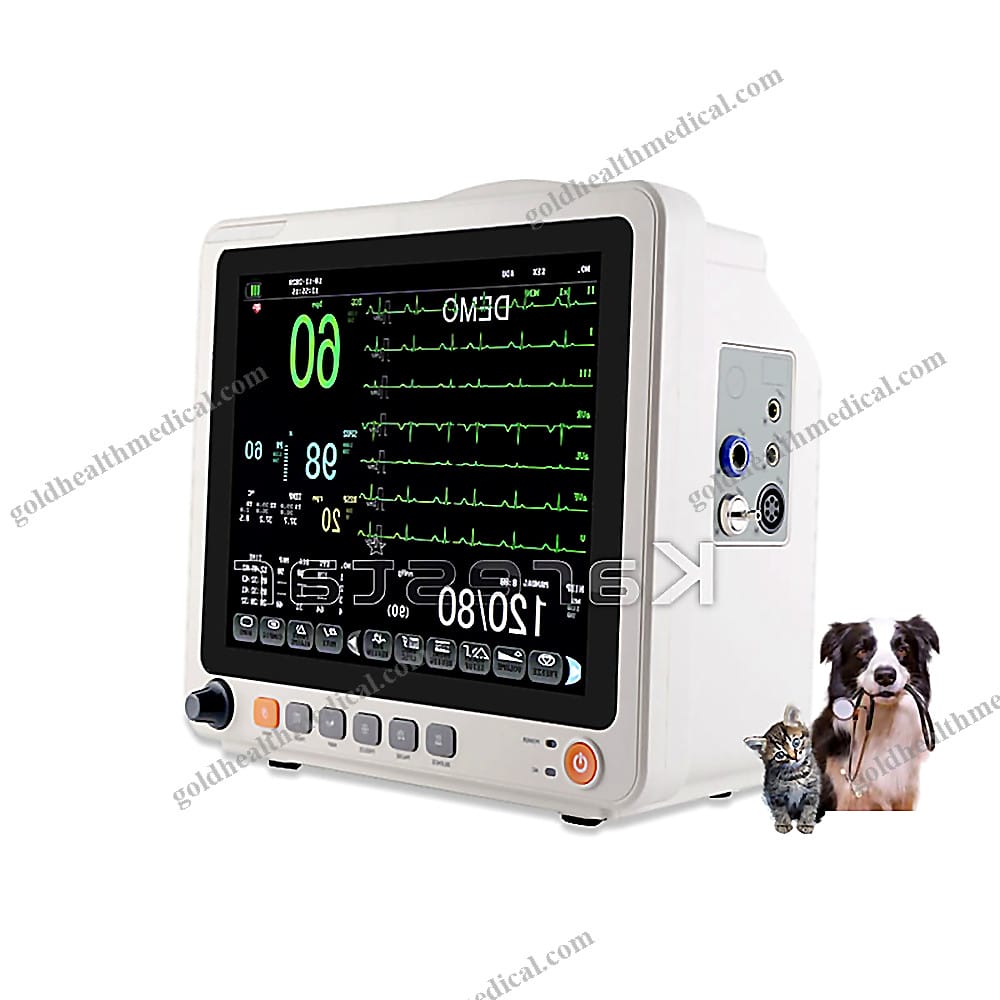

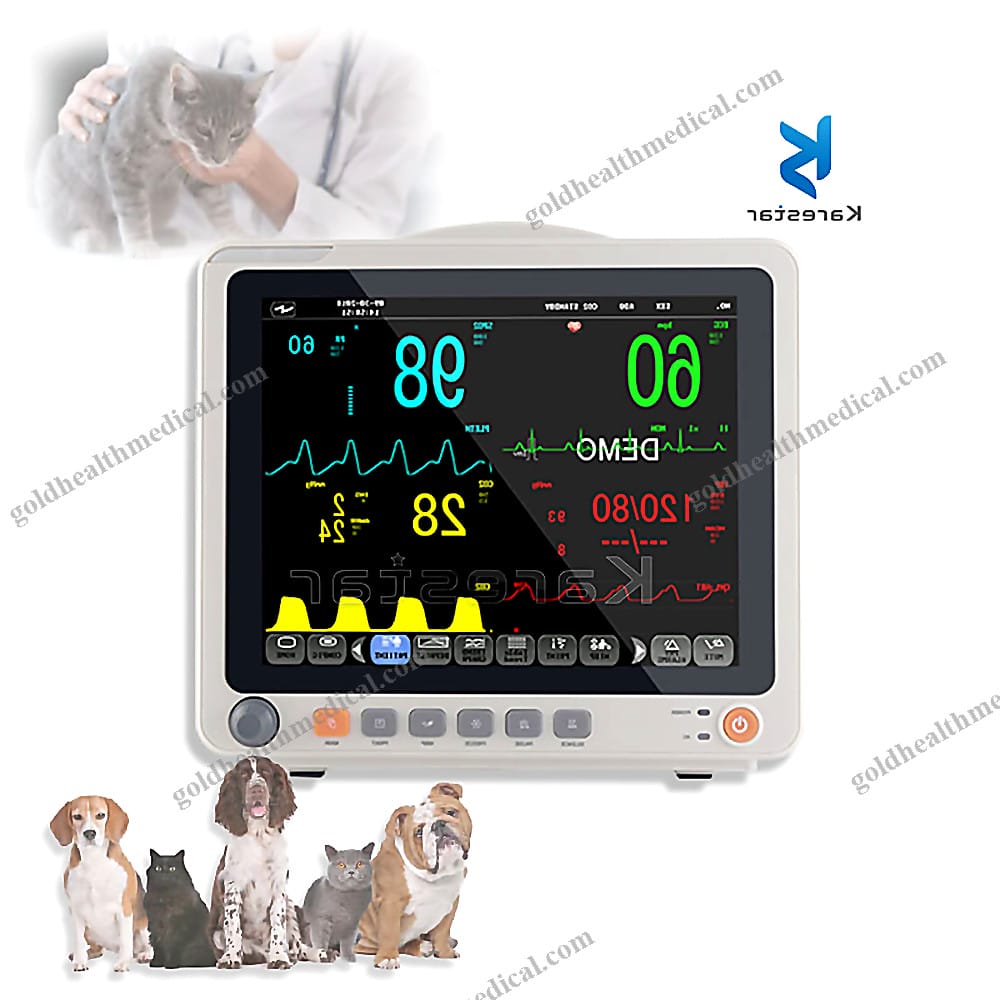

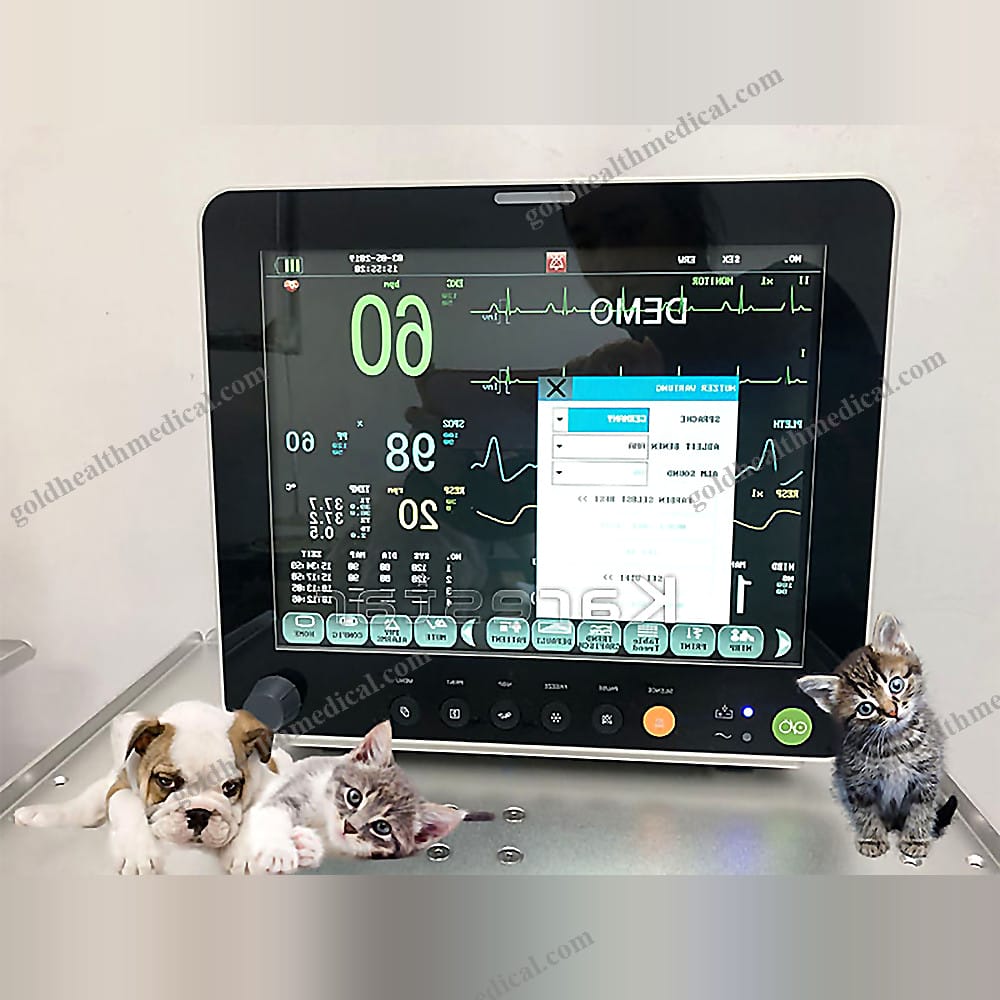

Introducing the Portable Veterinary Multiparameter Monitor
GoldHealth Medical presents a cutting-edge portable multiparameter monitor designed to elevate veterinary care. Featuring a 12.1-inch high-brightness color touchscreen, this device delivers exceptional clarity and intuitive operation, ensuring seamless integration into any veterinary setting. With a built-in high-capacity battery, it offers unparalleled mobility and reliability, making it ideal for both clinical and field use.
Standard Configuration
- ECG: 5-lead system (I, II, III, AVR, AVL, AVF, V) with multiple bandwidth options (Diagnostic: 0.05–130 Hz, Monitor: 0.5–40 Hz, Surgery: 1–20 Hz)
- SPO2: Measuring range of 0–100%, resolution of 1%, and accuracy of ±2% within 70–100%
- NIBP: Supports adult, pediatric, and neonatal modes with precise measurement ranges
- TEMP: High-resolution temperature monitoring (0.1°C) with an accuracy of ±0.1°C
- RESP: Impedance-based respiratory rate monitoring for adults and neonates
- PR/HR: Heart rate monitoring with a range of 15–350 BPM and resolution of 1 BPM
Advanced Features
- ETCO2 Monitoring: Optional end-tidal CO2 module for enhanced respiratory assessment
- Dual IBP: Optional invasive blood pressure monitoring for critical care scenarios
- Multiple Language Support: English, French, Spanish, Portuguese, Turkish, German, Chinese

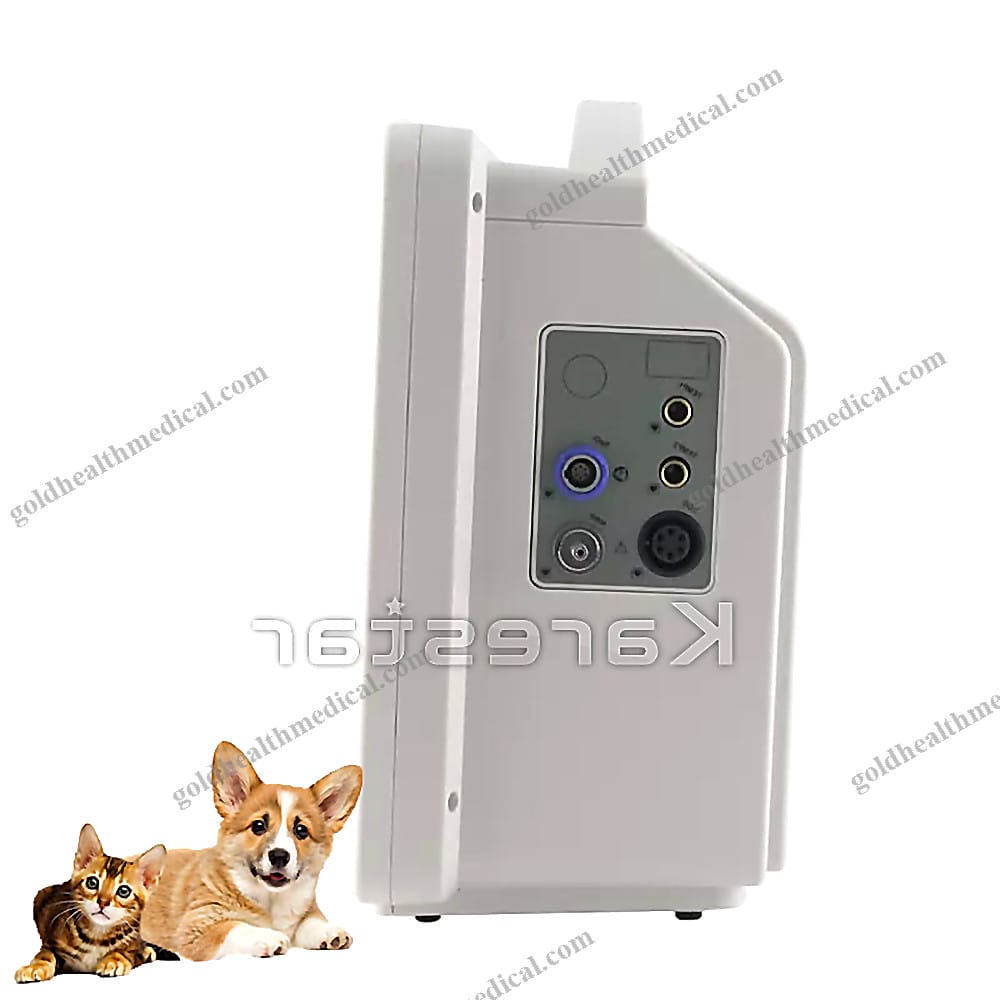

- Connectivity: VGA and USB ports for data transfer and external display integration
Optional Accessories
- ECG lead wires
- SPO2 sensors and extension cords
- BP cuffs in various sizes tailored for veterinary use

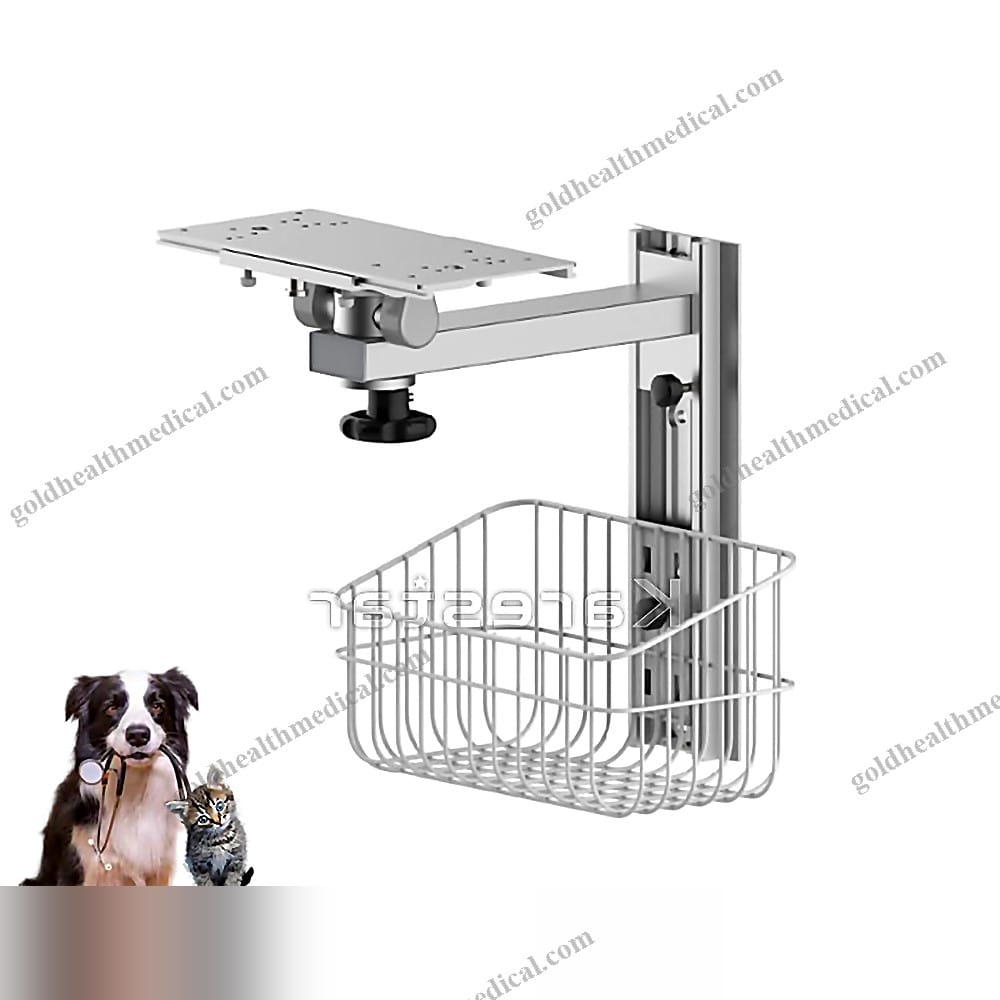

- Trolley and wall mount for flexible placement
- Built-in printer for instant reporting
- Temperature probe and power cord
Key Specifications
- ECG:
- Heart rate range: 15–300 BPM (adult), 15–350 BPM (neonatal)
- ST measurement range: -2.0 to +2.0 mV with ±0.02mV or ±10% accuracy
- SPO2:
- Pulse rate: 20–250 BPM
- Sensitivity: >200 µV (peak to peak)
- NIBP:
- Adult mode: SYS 40–280 mmHg, DIA 10–225 mmHg, MEAN 20–240 mmHg
- Pediatric mode: SYS 40–220 mmHg, DIA 10–160 mmHg, MEAN 20–170 mmHg
- Neonatal mode: SYS 40–135 mmHg, DIA 10–100 mmHg, MEAN 20–110 mmHg
- RESP:
- Adult: 10–120 BrPM
- Neonatal/Pediatric: 7–150 BrPM
- TEMP:
- Range: 0–50°C
- Resolution: 0.1°C
- Accuracy: ±0.1°C
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering precision, durability, and innovation in veterinary care. Our multiparameter monitor is engineered to meet the rigorous demands of modern veterinary practices, offering:
– Unmatched Accuracy: Advanced algorithms ensure reliable readings across all parameters.
– Versatility: Suitable for a wide range of applications, from routine check-ups to critical care.
– User-Centric Design: Intuitive interface and customizable configurations enhance usability.
– Comprehensive Support: Rigorous quality control and a dedicated after-sales team ensure long-term satisfaction.
Elevate Your Practice with GoldHealth Medical
Transform the way you monitor and care for your patients with GoldHealth Medical’s state-of-the-art multiparameter monitor. Designed for veterinarians, by veterinarians, this device is your ultimate partner in delivering exceptional healthcare outcomes.
Experience the future of veterinary diagnostics—choose GoldHealth Medical today.
Common Shipping and Delivery Considerations
- Packaging:
Medical devices need secure packaging to avoid damage during transit, including shock-absorbing materials or custom foam inserts. - Compliance with Regulations:
Ensure compliance with local and international standards (e.g., FDA, CE) and shipping regulations like Good Distribution Practice (GDP). - Temperature Control:
Some devices require temperature-controlled shipping (e.g., refrigerated trucks or special packaging) to maintain product integrity. - Tracking and Documentation:
Shipments should be tracked with necessary documents like invoices, certificates, and import/export paperwork. - Lead Time:
Plan ahead for lead times, which can vary depending on the equipment size and delivery location. - Insurance: Due to the high value of medical equipment, consider insurance to protect against loss or damage during transit.
- Customs and Import Regulations: Account for customs procedures and tariffs when shipping internationally, ensuring proper documentation.
- Special Handling:
Fragile or hazardous medical devices may require special handling, with clear labeling to ensure proper care. - Delivery Method:
Choose the appropriate shipping method (air, sea, or ground) depending on the equipment’s size, value, and urgency. - Returns and Reverse Logistics:
Have a clear process in place for returns, repairs, and warranty claims if necessary.
Frequently Asked Questions
39
Stores In World
97
Cities With Free Shipping
300+
Five Star Rating
Our mission and vision
At Gold Health Medical, our vision is to revolutionize healthcare by providing high-quality medical equipment that enhances patient care and improves healthcare efficiency. We are committed to being a trusted partner for medical professionals and institutions, ensuring they have access to the latest and most reliable medical technology.
Our goal is to bridge the gap between innovation and accessibility, making advanced healthcare solutions available to providers worldwide. Through excellence in service, integrity, and continuous improvement, we strive to empower healthcare professionals with the tools they need to deliver superior patient outcomes.
Together, we are shaping the future of medical care—one innovation at a time.
What Our Customers Say
At Gold Health Medical, we take pride in delivering high-quality medical equipment and exceptional customer service. Here’s what our satisfied clients have to say about their experience with us:
Company Name: GoldHealth Medical
Product Introduction:
Experience the future of medical monitoring with our state-of-the-art device, designed to deliver precision, versatility, and reliability in critical healthcare environments. Engineered for seamless integration into hospitals, clinics, research labs, and home care settings, this advanced system ensures accurate patient data monitoring, enhanced diagnostics, and efficient workflow optimization.
Key Features and Parameters:
- Display Mode: A vibrant 12.1-inch color touch screen offers intuitive navigation and crystal-clear visualization of patient data.
- Touch Screen: Fully responsive and user-friendly interface for effortless operation.
- Battery Life: Equipped with a long-lasting lithium battery, providing up to 3 hours of continuous use for uninterrupted performance.
- Working Modes: Three specialized modes tailored for diverse applications:
- Monitoring
- Surgery
- Diagnosis
- Output Options: Includes VGA support for external display connectivity, ensuring flexibility in multi-screen setups.
- USB Functionality: Supports USB disk for convenient data storage and transfer.
- Standard 6-Parameter Configuration: Comprehensive monitoring of vital signs, including:
- SPO2 (Oxygen Saturation)
- ECG (Electrocardiogram)
- TEMP (Body Temperature)
- PR/HR (Pulse Rate/Heart Rate)
- NIBP (Non-Invasive Blood Pressure)
- RESP (Respiration Rate)
- Alarm Function: Intelligent alert system to notify caregivers of critical changes in patient status.
- Multilingual Support: Adaptable to multiple languages, ensuring global usability.
- Freeze Function: Allows temporary halting of data display for detailed analysis during critical procedures.
Packaging and Delivery Details:
- Packaging: Securely packed in durable carton boxes, suitable for standard express, air cargo, or sea freight.
- Ports: Shenzhen, Shanghai, or Yiwu for flexible shipping options.
- Single Package Dimensions: 37 x 28 x 36 cm
- Single Gross Weight: 4.100 kg
Supply Capability:
GoldHealth Medical ensures consistent availability with a robust annual supply capacity of 20,000 units, meeting the demands of healthcare providers worldwide.
Why Choose GoldHealth Medical?
Our commitment to innovation, precision engineering, and user-centric design sets us apart. This device is not just a tool but a reliable partner in delivering exceptional patient care, empowering healthcare professionals with actionable insights and unmatched performance.
